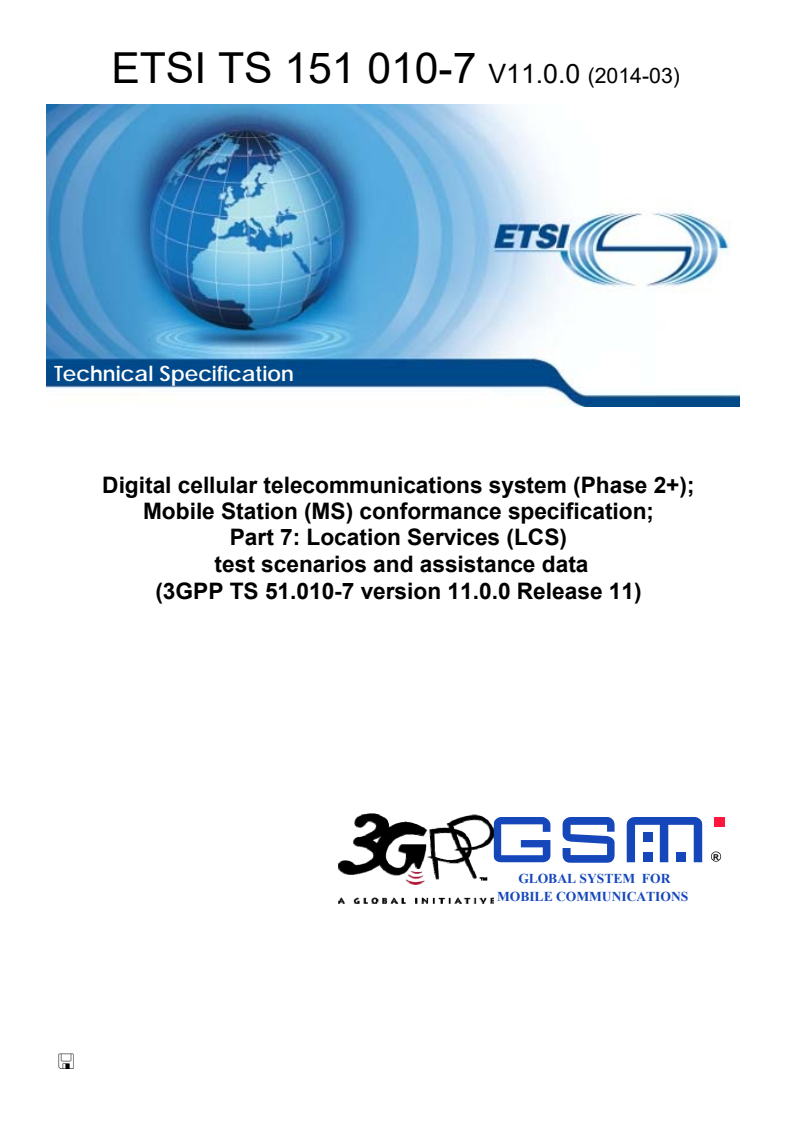

ETSI TS 151 010-7 V11.0.0 (2014-03)

Technical Specification
Digital cellular telecommunications system (Phase 2+);
Mobile Station (MS) conformance specification;
Part 7: Location Services (LCS)
test scenarios and assistance data
(3GPP TS 51.010-7 version 11.0.0 Release 11)

R
GLOBAL SYSTEM FOR
MOBILE COMMUNICATIONS
�

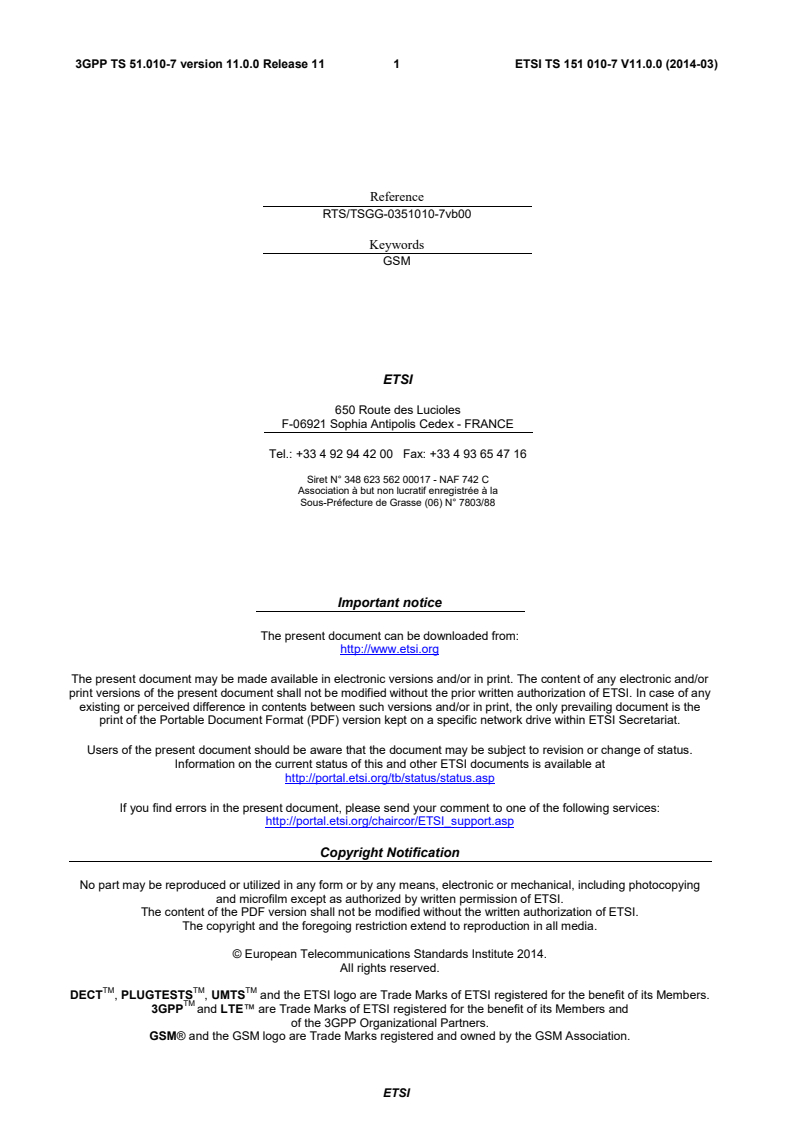

3GPP TS 51.010-7 version 11.0.0 Release 11 1 ETSI TS 151 010-7 V11.0.0 (2014-03)

Reference
RTS/TSGG-0351010-7vb00
Keywords
GSM
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2014.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 2 ETSI TS 151 010-7 V11.0.0 (2014-03)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities, UMTS identities or
GSM identities. These should be interpreted as being references to the corresponding ETSI deliverables.
The cross reference between GSM, UMTS, 3GPP and ETSI identities can be found under
http://webapp.etsi.org/key/queryform.asp.
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 3 ETSI TS 151 010-7 V11.0.0 (2014-03)
Contents
Intellectual Property Rights . 2
Foreword . 2
Foreword . 6
1 Scope . 7
2 References . 7
3 Abbreviations . 7
3.1 Abbreviations . 7
4 Orbital model information, assistance data and assistance data files . 8
4.1 General . 8
5 GPS information . 8
5.1 GPS Scenario and Assistance data for Assisted GPS signalling tests . 8
5.1.1 General . 8
5.1.2 GPS Scenario . 8
5.1.3 Assistance Data Reference Time . 9
5.1.3a Assistance Data GPS Reference Time Extension . 9
5.1.4 Assistance Data Reference Location . 9
5.1.5 Assistance Data Navigation Model . 9
5.1.6 Assistance Data Ionospheric Model . 10
5.1.7 Assistance Data Almanac . 10
5.1.7a Assistance Data GPS Almanac Extension . 11
5.1.8 Assistance Data Acquisition Assistance . 11
5.1.8a Assistance Data GPS Acquisition Assistance Extension . 12
5.2 GPS Scenarios and Assistance Data for Assisted GPS Minimum Performance tests . 13
5.2.1 General . 13
5.2.1.0 Introduction . 13
5.2.1.1 Satellite constellations and assistance data for performance testing . 13
5.2.1.2 GPS Scenarios for performance testing. 13
5.2.1.2.0 General . 13
5.2.1.2.1 GPS Scenario #1 . 13
5.2.1.2.2 GPS Scenario #2 . 14
5.2.1.2.3 GPS Scenario #3 . 14
5.2.1.2.4 MS Location for TTFF test cases . 14
5.2.1.2.4.0 General . 14
5.2.1.2.4.1 MS Location Offset . 15
5.2.1.2.4.2 MS Altitude. 15
5.2.1.2.5 Satellites to be simulated in each test case . 15
5.2.2 Information elements required for normal MS based testing . 15
5.2.3 Information elements required for MS based Sensitivity Fine Time Assistance test case . 16
5.2.4 Information elements available for normal MS assisted testing . 16
5.2.5 Information elements available for MS assisted Sensitivity Fine Time Assistance test case . 18
5.2.6 Contents of Information elements for Minimum performance testing . 18
5.2.6.1 General . 18
5.2.6.2 IE Random Offset Values . 19
5.2.6.2.0 Introduction . 19
5.2.6.2.1 GPS TOW . 19
5.2.6.2.2 GPS bit number (BN or Bit #) . 19
5.2.6.3 Assistance Data Reference Time . 19
5.2.6.3a Assistance Data GPS Reference Time Extension . 21
5.2.6.4 Assistance Data Reference Location . 21
5.2.6.5 Assistance Data Navigation Model . 21
5.2.6.6 Assistance Data Ionospheric Model . 22
5.2.6.7 Assistance Data Almanac . 22
5.2.6.7a Assistance Data GPS Almanac Extension . 23
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 4 ETSI TS 151 010-7 V11.0.0 (2014-03)
5.2.6.8 Assistance Data Acquisition Assistance . 23
5.2.6.8a Assistance Data GPS Acquisition Assistance Extension . 25
6 GNSS information . 26
6.1 GNSS Scenarios and Assistance Data for Assisted GNSS signalling tests . 26
6.1.1 General . 26
6.1.2 GNSS Scenario . 26
6.1.3 Default Assistance Data Elements to be provided by the SS . 27
6.1.4 Assistance Data values . 28
6.2 GNSS Scenarios and Assistance Data for Assisted GNSS Minimum Performance tests . 41
6.2.1 General . 41
6.2.1.0 Introduction . 41
6.2.1.1 Satellite constellations and assistance data for A-GNSS performance testing . 41
6.2.1.2 GNSS Scenarios for A-GNSS performance testing . 41
6.2.1.2.0 Introduction . 41
6.2.1.2.1 GNSS Scenario #1 . 42
6.2.1.2.2 GNSS Scenario #2 . 43
6.2.1.2.3 GNSS Scenario #3 . 44
6.2.1.2.3.0 Introduction . 44
6.2.1.2.3.1 GNSS Scenario #3A . 44
6.2.1.2.3.2 GNSS Scenario #3B . 44
6.2.1.2.3.3 QZSS Scenario #1 . 44
6.2.1.2.3.4 WAAS Scenario . 45
6.2.1.2.3.5 EGNOS Scenario . 45
6.2.1.2.3.6 MSAS Scenario . 45
6.2.1.2.3.7 GAGAN Scenario . 45
6.2.1.2.4 GNSS Scenario #4 . 45
6.2.1.2.4.0 Introduction . 45
6.2.1.2.4.1 GNSS Scenario #4A . 45
6.2.1.2.4.2 GNSS Scenario #4B . 45
6.2.1.2.4.3 GNSS Scenario #4C . 46
6.2.1.2.4.4 GNSS Scenario #4D . 46
6.2.1.2.4.5 QZSS Scenario #2 . 46
6.2.1.2.3.6 WAAS Scenario . 46
6.2.1.2.3.7 EGNOS Scenario . 46
6.2.1.2.3.8 MSAS Scenario . 46
6.2.1.2.3.9 GAGAN Scenario . 46
6.2.1.2.5 MS Location for TTFF test cases . 46
6.2.1.2.5.0 Introduction . 46
6.2.1.2.5.1 MS Location Offset . 47
6.2.1.2.5.2 MS Altitude. 47
6.2.2 Information elements required for normal MS based testing . 47
6.2.3 Information elements required for MS based Sensitivity Fine Time Assistance test case . 49
6.2.4 Information elements available for normal MS assisted testing . 49
6.2.5 Information elements available for MS assisted Sensitivity Fine Time Assistance test case . 52
6.2.6 Contents of Information elements for Minimum performance testing . 53
6.2.6.1 General . 53
6.2.6.2 IE Random Offset Values . 54
6.2.6.2.0 Introduction . 54
6.2.6.2.1 GNSS TOW . 54
6.2.6.2.2 GNSS bit number (BN or Bit #) . 54
6.2.6.3 Satellite SV IDs to be used . 54
6.2.6.4 Assistance Data Contents . 55
Annex A (normative): GPS data files . 72
A.1 GPS data files for signalling tests . 72
A.2 GPS data files for Minimum Performance tests . 72
Annex B (normative): GNSS data files. 73
B.1 GNSS data files for signalling tests . 73
B.2 GNSS data files for Minimum Performance tests . 73
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 5 ETSI TS 151 010-7 V11.0.0 (2014-03)
Annex C (informative): Change history . 74
History . 75

ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 6 ETSI TS 151 010-7 V11.0.0 (2014-03)
Foreword
rd
This Technical Specification has been produced by the 3 Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
The present document is part 1 of a multi-part deliverable covering the Digital cellular telecommunications system
(GSM Phase2 and Phase 2+ Releases 1996, 1997, 1998, 1999, 3GPP Release 4, 3GPP Release 5, 3GPP Release 6,
3GPP Release 7, 3GPP Release 8 and 3GPP Release 9); Mobile Station (MS) conformance specification, as identified
below:
Part 1: Conformance specification
Reference: 3GPP TS 51.010-1.
Part 2: Protocol Implementation Conformance Statement (PICS) proforma specification.
Reference: 3GPP TS 51.010-2.
Part 3: Layer 3 (L3) Abstract Test Suite (ATS).
Reference: 3GPP TS 51.010-3.
Part 4: SIM Application Toolkit conformance specification.
Reference: 3GPP TS 11.10-4.
Part 5: Inter-RAT (GERAN to UTRAN) Abstract Test Suite (ATS)
Reference: 3GPP TS 51.010-5.
Part 7: Location Services (LCS) test scenarios and assistance data.
Reference: 3GPP TS 51.010-7.
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 7 ETSI TS 151 010-7 V11.0.0 (2014-03)
1 Scope
The present document contains the orbital model information, the assistance data and the assistance data files that shall
be used for all LCS Assisted GPS and Assisted GNSS test cases defined in subclause 70 of TS 51.010-1 [4].
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
- For a specific reference, subsequent revisions do not apply.
- For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TR 21.905: "Vocabulary for 3GPP Specifications".
[2] 3GPP TR 41.001: "GSM Release specifications".
[3] 3GPP TR 21 912 (V3.1.0): "Example 2, using fixed text".
[4] 3GPP TS 51.010-1: "Mobile Station (MS) conformance specification; Part 1: Conformance
specification".
[5] 3GPP TS 44.031: "Location Services (LCS); Mobile Station (MS) - Serving Mobile Location
Centre (SMLC), Radio Resource LCS Protocol (RRLP)".
[6] STANAG 4294: NATO STANAG 4294. Navstar Global Positioning System (GPS) System
Characteristics.
[7] 3GPP TS 23.032: "Universal Geographical Area Description (GAD)".
[8] 3GPP TS 45.005: "Reference needed".
3 Abbreviations
3.1 Abbreviations
For the purposes of the present document, the abbreviations given in TR 21.905 [1] and the following apply. An
abbreviation defined in the present document takes precedence over the definition of the same abbreviation, if any, in
TR 21.905 [1].
A-GNSS Assisted - Global Navigation Satellite System
A-GPS Assisted - Global Positioning System
FFS For Further Study
GNSS Global Navigation Satellite System
GPS Global Positioning System
LCS Location Services
SS Satellite Simulator
SV Space Vehicle
SV ID Space Vehicle Identification
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 8 ETSI TS 151 010-7 V11.0.0 (2014-03)
4 Orbital model information, assistance data and
assistance data files
4.1 General
The following subclauses define the GPS and GNSS orbital model information, the assistance data and the assistance
data files for the test cases defined in TS 51.010-1 [4] subclauses 70.7 to 70.9 for A-GPS Signalling test cases,
subclauses 70.13 to 70.15 for A-GNSS Signalling test cases, subclause 70.11 for A-GPS Minimum Performance test
cases and subclause 70.16 for A-GNSS Minimum Performance test cases.
The orbital model information is defined and where appropriate is given in Yuma format in .txt files for each scenario in
the appropriate data file defined in Annex A or Annex B.
Where the assistance data is fixed or is not required on a per-satellite basis, then it is defined in the following
subclauses. Where assistance data is required on a per-satellite basis, or where the values of the data also vary with time
then it is specified in comma-separated-variable files in the appropriate data file defined in Annex A or Annex B. These
files specify the values to be used for each satellite, indexed by satellite PRN or SV ID, and, where applicable, the
values to be used indexed by both time and satellite PRN or SV ID.
All the Assistance Data information elements are given with reference to TS 44.031 [5], where the details are defined.
5 GPS information
5.1 GPS Scenario and Assistance data for Assisted GPS
signalling tests
5.1.1 General
This subclause defines the GPS scenario and the associated assistance data that shall be used for all Assisted GPS
signalling tests defined in TS 51.010-1 [4] subclauses 70.7 to 70.9.
The satellite simulator (SS) shall generate the six satellite signals defined in subclause 5.1.2 and shall provide assistance
data as defined in subclauses 5.1.3 to 5.1.8.
Where assistance data is required on a per-satellite basis, or where the values of the data also varies with time it is
specified in comma-separated-variable files in the GPS_data.zip file defined in Annex A. These files specify the values
to be used for each satellite, indexed by satellite PRN, and, where applicable, the values to be used indexed by both time
and satellite PRN.
Assistance data that is marked as "time varying" and the GPS TOW field are only specified and used in 0.96 second
increments. Interpolation between these values shall not be used.
The accuracy of the GPS TOW and assistance data that is marked as "time varying" in the provided assistance data shall
be within +/- 2 s relative to the GPS time in the system simulator.
Assistance data Information Elements and fields that are not specified shall not be used.
5.1.2 GPS Scenario
The following GPS scenario shall be used. The assistance data specified in the following subclauses is consistent with
this GPS scenario:
- Yuma Almanac data: see file Sig Tokyo_Yuma.txt in the GPS_data.zip file defined in Annex A
- MS location and Reference location: static at latitude: 35 degrees 40 minutes north, longitude: 139 degrees 45
minutes east, (Tokyo) height: = 50m
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 9 ETSI TS 151 010-7 V11.0.0 (2014-03)
- Start time: 12th September 2003 21:30:00
- Visible satellites simulated: PRNs: 4, 6, 9, 10, 13, 22.
Ionospheric model: see values in subclause 5.1.6
- The levels of the simulated satellites shall all be at -125dBm +/- 6dB
5.1.3 Assistance Data Reference Time
Table 5.1.3.1: Reference Time (Fields occurring once per message)
Parameter Units Value/remark
GPS Week weeks 211
GPS TOW Sec 509400
Start time. Add integer number of 0.96 seconds as
required. (Note)
Note: GPS TOW
This is the value of GPS TOW in seconds when the GPS scenario is started in the GPS
simulator. The value of GPS TOW to be used in the Reference Time IE shall be
calculated at the time the IE is required by adding the elapsed time since the time
the scenario was started in the GPS simulator to this value, rounded up to the next
0.96 second interval. This "current GPS TOW" is then also used to determine the
value of any other parameters marked as "Time varying" in subclause 5.1

5.1.3a Assistance Data GPS Reference Time Extension
Table 5.1.3a.1: GPS Reference Time Extension (Fields occurring once per message)
Parameter Units Value/remark Release
GPS Week Cycle 1024 weeks 1 Rel-10 onwards
Number
5.1.4 Assistance Data Reference Location
Table 5.1.4.1: Reference Location
Parameter Units Value/remark
Type of Shape Bit field Ellipsoid point with altitude and
uncertainty Ellipsoid
Degrees of latitude degrees +3.56666666666667 10E1
Degrees of longitude degrees +1.39750000000000 10E2
Altitude m +50
Uncertainty semi-m 3000
major
Uncertainty semi-m 3000
minor
Orientation of major degrees 0
axis
Uncertainty altitude m 500
Confidence % 68
5.1.5 Assistance Data Navigation Model
Table 5.1.5.1: Navigation Model (Fields occurring once per message)
Parameter Units Value/remark
Num_Sats_Total 6
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 10 ETSI TS 151 010-7 V11.0.0 (2014-03)
Table 5.1.5.2: Navigation Model (Fields occurring once per satellite)
Parameter Units Value/remark
SatID PRNs: 4, 6, 9, 10, 13, 22.
Satellite Status See file: Sig Navigation_model.csv
C/A or P on L2 See file: Sig Navigation_model.csv
URA Index See file: Sig Navigation_model.csv
SV Health See file: Sig Navigation_model.csv
IODC See file: Sig Navigation_model.csv
L2 P Data Flag See file: Sig Navigation_model.csv
SF 1 Reserved See file: Sig Navigation_model.csv
T sec See file: Sig Navigation_model.csv
GD
t sec See file: Sig Navigation_model.csv
oc
af sec/sec See file: Sig Navigation_model.csv
af sec/sec See file: Sig Navigation_model.csv
af sec See file: Sig Navigation_model.csv
C meters See file: Sig Navigation_model.csv
rs
Δn semi-circles/sec See file: Sig Navigation_model.csv
M semi-circles See file: Sig Navigation_model.csv
C radians See file: Sig Navigation_model.csv
uc
e See file: Sig Navigation_model.csv
C radians See file: Sig Navigation_model.csv
us
1/2 1/2
(A) meters See file: Sig Navigation_model.csv
t sec See file: Sig Navigation_model.csv
oe
Fit Interval Flag See file: Sig Navigation_model.csv
AODO sec See file: Sig Navigation_model.csv
C radians See file: Sig Navigation_model.csv
ic
OMEGA semi-circles See file: Sig Navigation_model.csv
C radians See file: Sig Navigation_model.csv
is
i semi-circles See file: Sig Navigation_model.csv
C meters See file: Sig Navigation_model.csv
rc
semi-circles See file: Sig Navigation_model.csv
ω
OMEGAdot semi-circles/sec See file: Sig Navigation_model.csv
Idot semi-circles/sec See file: Sig Navigation_model.csv

5.1.6 Assistance Data Ionospheric Model
Table 5.1.6.1: Assistance Data Ionospheric Model
Parameter Units Value/remark
α seconds 4.6566129 10E-9
sec/semi-circle 1.4901161 10E-8
α
α sec/(semi-circle) -5.96046 10E-8
sec/(semi-circle) -5.96046 10E-8
α
β seconds 79872
sec/semi-circle 65536
β
β sec/(semi-circle) -65536
sec/(semi-circle) -393216
β
5.1.7 Assistance Data Almanac
Table 5.1.7.1: Almanac (Fields occurring once per message)
Parameter Units Value/remark
Num_Sats_Total 24
WN weeks 212
a
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 11 ETSI TS 151 010-7 V11.0.0 (2014-03)
Table 5.1.7.2: Almanac (Fields occurring once per satellite)
Parameter Units Value/remark
SatID PRNs: 1 to 24
E dimensionless See file: Sig Almanac.csv
t sec See file: Sig Almanac.csv
oa
semi-circles See file: Sig Almanac.csv
δi
OMEGADOT semi-circles/sec See file: Sig Almanac.csv
SV Health See file: Sig Almanac.csv
1/2 1/2
A meters See file: Sig Almanac.csv
OMEGA semi-circles See file: Sig Almanac.csv
semi-circles See file: Sig Almanac.csv
ω
M semi-circles See file: Sig Almanac.csv
af seconds See file: Sig Almanac.csv
af sec/sec See file: Sig Almanac.csv
5.1.7a Assistance Data GPS Almanac Extension
Table 5.1.7a.1: GPS Almanac Extension (Fields occurring once per message)
Parameter Units Value/remark Release
Complete Almanac Provided 1 (TRUE) Rel-10 onwards

5.1.8 Assistance Data Acquisition Assistance
Table 5.1.8.1: GPS Acquisition Assistance - Parameters appearing once per message
Parameter Units Value/remark
Number of Satellites 6
GPS TOW sec 509400
Start time. Add integer number of 0.96 seconds
as required. (Note)
Note: GPS TOW
This is the value of GPS TOW in seconds when the GPS scenario is started in the GPS simulator. The value of GPS
TOW to be used in the Acquisition Assistance IE shall be calculated at the time the IE is required by
adding the elapsed time since the time the scenario was started in the GPS simulator to this value,
rounded up to the next 0.96 second interval.

ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 12 ETSI TS 151 010-7 V11.0.0 (2014-03)
Table 5.1.8.2: GPS Acquisition Assistance - Parameters appearing [number of satellites] times per
message
Parameter Units Value/remark
SVID/PRNID PRNs: 4, 6, 9, 10, 13, 22.
th
Doppler (0 order term) Hz Time varying. See file: Sig Acquisition_assist.csv
(Note)
st
Doppler (1 order term) Hz/sec Time varying. See file: Sig Acquisition_assist.csv
(Note)
Doppler Uncertainty Hz Time varying. See file: Sig Acquisition_assist.csv
(Note)
Code Phase chips Time varying. See file: Sig Acquisition_assist.csv
(Note)
Integer Code Phase  Time varying. See file: Sig Acquisition_assist.csv
(Note)
GPS Bit number  Time varying. See file: Sig Acquisition_assist.csv
(Note)
Code Phase Search Window chips Time varying. See file: Sig Acquisition_assist.csv
(Note)
Azimuth deg Time varying. See file: Sig Acquisition_assist.csv
(Note)
Elevation deg Time varying. See file: Sig Acquisition_assist.csv
(Note)
Note: Acquisition_assistparameters
This field is "Time varying" and its value depends on the "current GPS TOW" as described in subclause 5.1.3.
The value of this field to be used shall be determined by taking the "current GPS TOW" value and
selecting the field value in the Sig Acquisition_assist.csv file corresponding to the value of "current
GPS TOW".
5.1.8a Assistance Data GPS Acquisition Assistance Extension
Table 5.1.8a.1: GPS Acquisition Assistance Extension - Parameters appearing once per message
Parameter Units Value/remark Release
N_SAT 6 Rel-10 onwards
Table 5.1.8a.2: GPS Acquisition Assistance Extension - Parameters appearing [number of satellites]
times per message
Parameter Units Value/remark Release
SatID PRNs: 4, 6, 9, 10, 13, 22. Rel-10 onwards
Azimuth LSB degrees Time varying. Calculated Rel-10 onwards
from Azimuth, see file: Sig
Acquisition_assist.csv
(Note)
Elevation LSB degrees Time varying. Calculated Rel-10 onwards
from Elevation, see file:
Sig Acquisition_assist.csv
(Note)
Note: This field is "Time varying" and its value depends on the "current GPS TOW" as described in subclause
5.1.3. The value of this field to be used shall be determined by taking the "current GPS TOW" value
and selecting the field value in the Sig Acquisition_assist.csv file corresponding to the value of
"current GPS TOW".
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 13 ETSI TS 151 010-7 V11.0.0 (2014-03)
5.2 GPS Scenarios and Assistance Data for Assisted GPS
Minimum Performance tests
5.2.1 General
5.2.1.0 Introduction
This subclause defines the GPS scenarios and assistance data IEs which shall be available for use as specified in all A-
GPS Minimum Performance test cases defined in TS 51.010-1 [4] subclause 70.11.
The information elements are given with reference to TS 44.031 [5], where the details are defined.
Subclauses 5.2.2 and 5.2.3 list the assistance data IEs required for performance testing of MS-based mode, and
subclauses 5.2.4 and 5.2.5 list the assistance data available for performance testing of MS-assisted mode. Subclause
5.2.6 lists the values of the assistance data IE fields for all performance testing.
The A-GPS minimum performance requirements are defined by assuming that all relevant and valid assistance data is
received by the MS in order to perform GPS measurements and/or position calculation. This subclause does not include
nor consider delays occurring in the various signalling interfaces of the network.
5.2.1.1 Satellite constellations and assistance data for performance testing
The satellite constellations for performance testing shall consist of 24 satellites. Almanac assistance data shall be
available for all these 24 satellites. At least 9 of the satellites shall be visible to the MS (that is above 5 degrees
elevation with respect to the MS). Other assistance data shall be available for 9 of these visible satellites. In each test,
signals are generated for only a subset of these satellites for which other assistance data is available. The number of
satellites in this subset is specified in the test. The satellites in this subset shall all be above 15 degrees elevation with
respect to the MS. The HDOP for the test shall be calculated using this subset of satellites. The selection of satellites for
this subset shall be random and consistent with achieving the required HDOP for the test.
5.2.1.2 GPS Scenarios for performance testing
5.2.1.2.0 General
This subclause defines the GPS scenarios that shall be used for all Assisted GPS performance tests defined in subclause
TS 51.010-1 [4] subclause 70.11.
The GPS scenarios achieve the required HDOP for the Test Cases as defined in the Requirements specification TS
45.005 [8]. They also satisfy the requirement that for each test instance the reference location shall change sufficiently
such that the MS shall have to use the new assistance data.
The satellites to be simulated in each test case are specified in subclause 5.2.1.2.5.
The viable running time during which the scenario maintains the required HDOP or HDOPs is given. Once this time has
been reached the scenario shall be restarted from its nominal start time.
5.2.1.2.1 GPS Scenario #1
The following GPS scenario #1 shall be used during the TTFF tests defined in TS 51.010-1 [4] subclause 70.11. The
assistance data specified in the following subclauses for GPS scenario #1 is consistent with this GPS scenario.
Yuma Almanac data: see file Perf GPS_1_Yuma.txt in the GPS_data_perf.zip file defined in Annex A.
MS location: the MS location is calculated as a random offset from the reference location using the method described in
subclause 5.2.1.2.4. The reference location is: latitude: 33 degrees 45 minutes 0.019 seconds north, longitude: 84
degrees 23 minutes 0.011 seconds west, (Atlanta USA), height: = 300m.
Nominal start time: 22nd January 2005 (Saturday) 00:08:00.
Viable running time to maintain specified HDOP values: 19 minutes.
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 14 ETSI TS 151 010-7 V11.0.0 (2014-03)
Visible satellites available for simulation and for which Assistance Data (other than Almanac) shall be generated:
PRNs: 2, 6, 10, 17, 18, 21, 26, 29, 30.
Ionospheric model: see values in subclause 5.2.6.6.
Tropospheric model: STANAG with SRI equal to 324.8, as defined in STANAG 4294 [6].
5.2.1.2.2 GPS Scenario #2
The following GPS scenario #2 shall be used during the TTFF tests defined in TS 51.010-1 [4] subclause 70.11. The
assistance data specified in the following subclauses for GPS scenario #2 is consistent with this GPS scenario.
Yuma Almanac data: see file Perf GPS_2_Yuma.txt in the GPS_data_perf.zip file defined in Annex A.
MS location: the MS location is calculated as a random offset from the reference location using the method described in
subclause 5.2.1.2.4. The reference location is: latitude: 37 degrees 48 minutes 59.988 seconds south, longitude: 144
degrees 58 minutes 0.013 seconds east, (Melbourne Australia), height: = 100m.
Nominal start time: 22nd January 2004 (Thursday) 00:08:00.
Viable running time to maintain specified HDOP values: 19 minutes.
Visible satellites available for simulation and for which Assistance Data (other than Almanac) shall be generated:
PRNs: 3, 11, 14, 15, 18, 22, 23, 25, 31.
Ionospheric model: see values in subclause 5.2.6.6.
Tropospheric model: STANAG with SRI equal to 324.8, as defined in STANAG 4294 [6].
5.2.1.2.3 GPS Scenario #3
The following GPS scenario #3 shall be used during the Moving Scenario and Periodic Location test case defined in TS
51.010-1 [4] subclause 70.11. The assistance data specified in the following subclauses for GPS scenario #3 is
consistent with this GPS scenario.
Yuma Almanac data: see file Perf GPS_3_Yuma.txt in the GPS_data_perf.zip file defined in Annex A.
MS location: the MS location is given as a trajectory as shown in Figure 70.11.9.1 of TS 51.010-1 [4] subclause 70.11.
The reference location is at the centre of the trajectory and is at: latitude: 37 degrees 48 minutes 59.988 seconds south,
longitude: 144 degrees 58 minutes 0.013 seconds east, (Melbourne Australia), height: = 100m.
Start time: 22nd January 2004 (Thursday) 00:08:00.
Start location: at the point between l and l in Figure 70.11.9.1 of TS 51.010-1 [4] subclause 70.11, going in a clock-
11 12
wise direction.
Visible satellites available for simulation and for which Assistance Data (other than Almanac) shall be generated:
PRNs: 3, 11, 14, 15, 18, 22, 23, 25, 31.
Viable running time to maintain specified HDOP values: 19 minutes.
Ionospheric model: see values in subclause 5.2.6.6.
Tropospheric model: STANAG with SRI equal to 324.8, as defined in STANAG 4294 [6].
5.2.1.2.4 MS Location for TTFF test cases
5.2.1.2.4.0 General
This subclause defines the method for generating the random MS locations that are required to be used for the TTFF
tests defined in TS 51.010-1 [4] subclause 70.11.
For every Test Instance in each TTFF test case, the MS location shall be randomly selected to be within 3 km of the
Reference Location. The Altitude of the MS shall be randomly selected between 0 m to 500 m above WGS-84 reference
ellipsoid. These values shall have uniform random distributions.
ETSI
3GPP TS 51.010-7 version 11.0.0 Release 11 15 ETSI TS 151 010-7 V11.0.0 (2014-03)
The MS location is calculated as an offset from the Reference Location.
5.2.1.2.4.1 MS Location Offset
The MS location offset shall be calculated by selecting the next pair of random numbers, representing a pair of latitude
and longitude offsets in degrees, from a standard uniform random number generator, with the following properties:
The ranges of the latitude and longitude offsets values shall be such that when translated onto the surface of the
earth they shall lie within a 3km radius circle, centred on the Reference location specified for the GPS scenario
under consideration. For the purposes of this calculation make the following assumpt
...
