Satelitske zemeljske postaje in sistemi (SES) - Harmonizirani EN za zemeljske postaje na mobilnih platformah, ki oddajajo proti satelitom v geostacionarni orbiti v pasovih od 27,5 GHz do 30,0 GHz, ki zajema bistvene zahteve člena 3.2 direktive R&TTE
Ta dokument se uporablja za zemeljske postaje na mobilnih platformah (ESOMP) z naslednjimi značilnostmi.
• Zemeljska postaja na mobilni platformi je izdelana za mobilno in stacionarno delovanje.
• Zemeljska postaja na mobilni platformi deluje na različnih mobilnih platformah, npr. na vlakih, morskih plovilih, letalih in drugih vozilih, pri čemer lahko pride do občasnih motenj in prekinitev v satelitski povezavi.
• Zemeljska postaja na mobilni platformi deluje kot del satelitskega omrežja (npr. zvezdnega, mrežnega ali od točke do točke), ki se uporablja za distribucijo in/ali izmenjavo informacij.
• Zemeljska postaja na mobilni platformi je sestavljena iz vse opreme, električne in mehanske, od same antene do vmesnikov z drugo komunikacijsko opremo na mobilni platformi (običajno se imenujejo zemeljski vmesniki).
• Frekvence oddajanja in sprejemanja so prikazane v preglednici 1.
• Zemeljska postaja na mobilni platformi oddaja na frekvenci od 27,50 GHz do 30,00 GHz – to je pas, ki je med drugimi storitvami dodeljen fiksnim satelitskim storitvam (FSS) (Zemlja–vesolje). Vendar naj bi bilo delovanje zemeljske postaje na mobilni platformi omejeno na frekvenčni obseg 29,50 GHz do 30,00 GHz v državah in v bližini držav, ki so fiksne storitve (FS) dodelile drugim frekvenčnim obsegom. Lokalni predpisi lahko dovolijo delovanje v teh frekvenčnih obsegih.
• Zemeljska postaja na mobilni platformi sprejema v eni ali več frekvencah v obsegu od 17,30 GHz do 20,20 GHz (fiksne satelitske storitve).
• Zemeljska postaja na mobilni platformi uporablja linearno ali krožno polarizacijo.
• Zemeljska postaja na mobilni platformi deluje prek geostacionarnega satelita (ali skupine skupno nameščenih geostacionarnih satelitov), ki je od katerega koli drugega geostacionarnega satelita, ki deluje na istih frekvencah ter na istem
območju pokritja, oddaljen vsaj za 2°. OPOMBA 1: Zemeljske postaje na mobilni platformi lahko delujejo s sateliti, ki so medsebojno bližje od 2°, z dodatnimi omejitvami delovanja, ki niso zajete v tem dokumentu.
• Zemeljska postaja na mobilni platformi je izdelana za nenadzorovano delovanje.
•Zemeljska postaja na mobilni platformi se krmili in spremlja z napravo za krmiljenje omrežja (NCF). Ta funkcija se lahko izvaja centralno (npr. za omrežje zemeljskih postaj na mobilni platformi s centralnim vozliščem) ali pa se lahko izvaja v sami zemeljski postaji na mobilni platformi za avtonomno krmiljenje. Naprava za krmiljenje omrežja ne spada na področje uporabe tega dokumenta. Ta dokument se uporablja za zemeljsko postajo na mobilni platformi s pomožno opremo in različnimi telekomunikacijskimi vrati, ko ta deluje znotraj mejnih vrednosti obratovalnega okoljskega profila, kot ga z izjavo določi kandidat, ter ko je nameščena v skladu z zahtevami kandidatove izjave ali v skladu z zahtevami dokumentacije uporabnika. Ta dokument zajema določbe člena 3.2 Direktive 1999/5/ES [i.2] (direktive R&TTE), ki navaja, da »[...] mora biti radijska oprema skonstruirana tako, da učinkovito uporablja spekter, razporejen za prizemne/vesoljske radijske komunikacije in orbitalne vire, tako da ne pride do škodljivega motenja.«
OPOMBA 2: Obratovalne zahteve določajo nacionalne uprave in ustrezni sklepi Odbora za elektronske komunikacije. Poleg tega dokumenta se lahko za opremo na področju uporabe tega dokumenta uporabljajo tudi drugi standardi EN, ki določajo tehnične zahteve v zvezi z bistvenimi zahtevami iz drugih delov člena 3 Direktive 1999/5/ES [i.2] (Direktive R&TTE).
General Information
- Status
- Published
- Publication Date
- 11-Oct-2013
- Current Stage
- 12 - Completion
- Due Date
- 25-Feb-2013
- Completion Date
- 22-Feb-2013
- Mandate
- M/284
Overview
ETSI EN 303 978 V1.1.2 (2013-02) (ETSI EN 303 978 V1.1.2) is a harmonized European standard for Satellite Earth Stations and Systems (SES) - specifically for Earth Stations on Mobile Platforms (ESOMP) that transmit to geostationary satellites in the 27.5 GHz to 30.0 GHz bands. It interprets the essential requirement of Article 3.2 of the R&TTE Directive (Directive 1999/5/EC) that radio equipment must effectively use spectrum and orbital resources to avoid harmful interference.
The standard applies to ESOMPs designed for both mobile and stationary use on platforms such as trains, ships, aircraft and other vehicles. It covers the complete earth station subsystem from the antenna through the terrestrial interface, including transmit/receive frequency ranges, polarization, and operational constraints.
Key Topics and Technical Requirements
The document defines technical and test requirements focused on spectrum protection and interference avoidance, including:
- Frequency ranges: Transmit 27.50–30.00 GHz (operational restriction typically to 29.50–30.00 GHz near FS allocations); receive 17.30–20.20 GHz (FSS).
- Polarization: Support for linear or circular polarization.
- Satellite geometry: Operation via geostationary satellites, normally separated by ≥2° for like-frequency/coverage scenarios (closer spacing may require additional constraints).
- Emission controls:
- Off-axis and on-axis spurious radiation limits
- Off-axis EIRP emission density (co- and cross-polarized)
- Carrier suppression and burst transmission limits
- Operational functions and safety:
- Uplink Power Control to limit interference
- Antenna pointing and polarization alignment accuracy and pointing-error detection
- Cessation of emissions under specified fault or operational conditions
- Identification of ESOMP and Control & Monitoring Functions (CMFs) for network control (NCF)
- Conformance testing and test methods: Environmental profiles for testing, measurement methods for spurious emissions, EIRP, and CMF behavior.
Practical Applications
This standard is used to ensure ESOMPs:
- Comply with spectrum protection and regulatory requirements
- Operate reliably in mobile environments (trains, maritime, aircraft)
- Integrate safely within satellite networks (star, mesh, point-to-point)
- Are testable and certifiable against European regulatory essentials
Who Should Use This Standard
- Satellite equipment manufacturers and integrators (ESOMP design, antenna systems)
- Network operators and service providers deploying mobile satellite terminals
- Test laboratories and conformity assessment bodies
- National regulators and spectrum managers
- System engineers responsible for satellite link planning and interference mitigation
Related standards and regulation
- Directive 1999/5/EC (R&TTE Directive) - Article 3.2 essential requirement
- National regulatory requirements and ECC Decisions that define operational conditions
- Other ENs may apply for additional Article 3 requirements (safety, EMC, etc.)
This standard is essential for stakeholders developing or certifying mobile earth stations that must protect fixed-satellite service spectrum and operate in the 27.5–30.0 GHz geostationary uplink band.
en_303978v010100c - Satellite Earth Stations and Systems (SES); Harmonized EN for Earth Stations on Mobile Platforms (ESOMP) transmitting towards satellites in geostationary orbit in the 27,5 GHz to 30,0 GHz frequency bands covering the essential requirements of article 3.2 of the R&TTE Directive

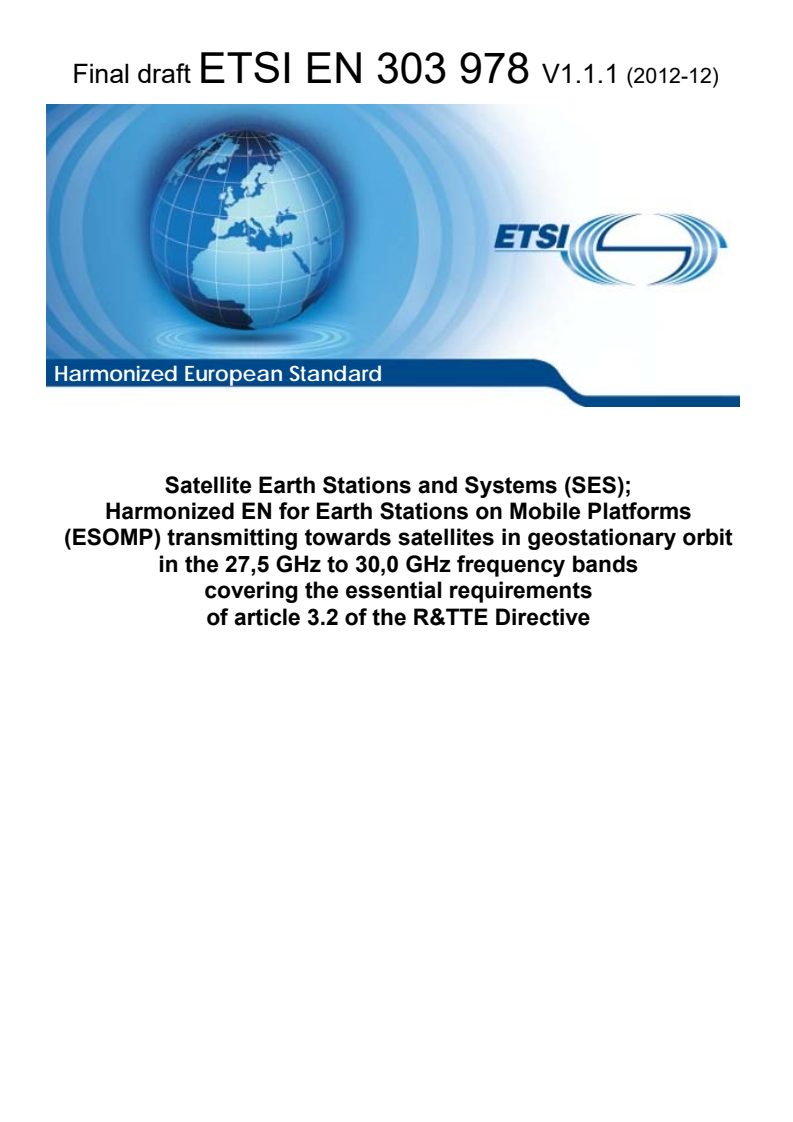

ETSI EN 303 978 V1.1.1 (2012-12) - Satellite Earth Stations and Systems (SES); Harmonized EN for Earth Stations on Mobile Platforms (ESOMP) transmitting towards satellites in geostationary orbit in the 27,5 GHz to 30,0 GHz frequency bands covering the essential requirements of article 3.2 of the R&TTE Directive

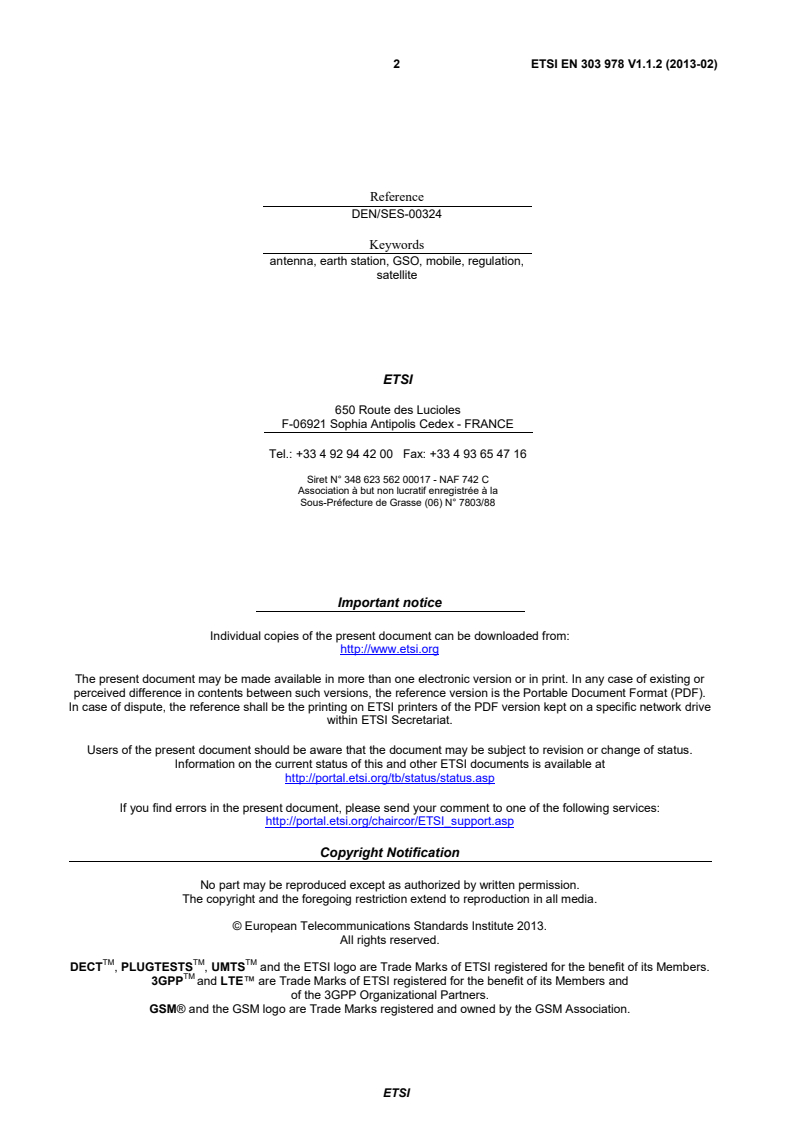

ETSI EN 303 978 V1.1.2 (2013-02) - Satellite Earth Stations and Systems (SES); Harmonized EN for Earth Stations on Mobile Platforms (ESOMP) transmitting towards satellites in geostationary orbit in the 27,5 GHz to 30,0 GHz frequency bands covering the essential requirements of article 3.2 of the R&TTE Directive
Frequently Asked Questions
ETSI EN 303 978 V1.1.2 (2013-02) is a standard published by the European Telecommunications Standards Institute (ETSI). Its full title is "Satellite Earth Stations and Systems (SES); Harmonized EN for Earth Stations on Mobile Platforms (ESOMP) transmitting towards satellites in geostationary orbit in the 27,5 GHz to 30,0 GHz frequency bands covering the essential requirements of article 3.2 of the R&TTE Directive". This standard covers: DEN/SES-00324
DEN/SES-00324
ETSI EN 303 978 V1.1.2 (2013-02) is associated with the following European legislation: Standardization Mandates: M/284. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
ETSI EN 303 978 V1.1.2 (2013-02) is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

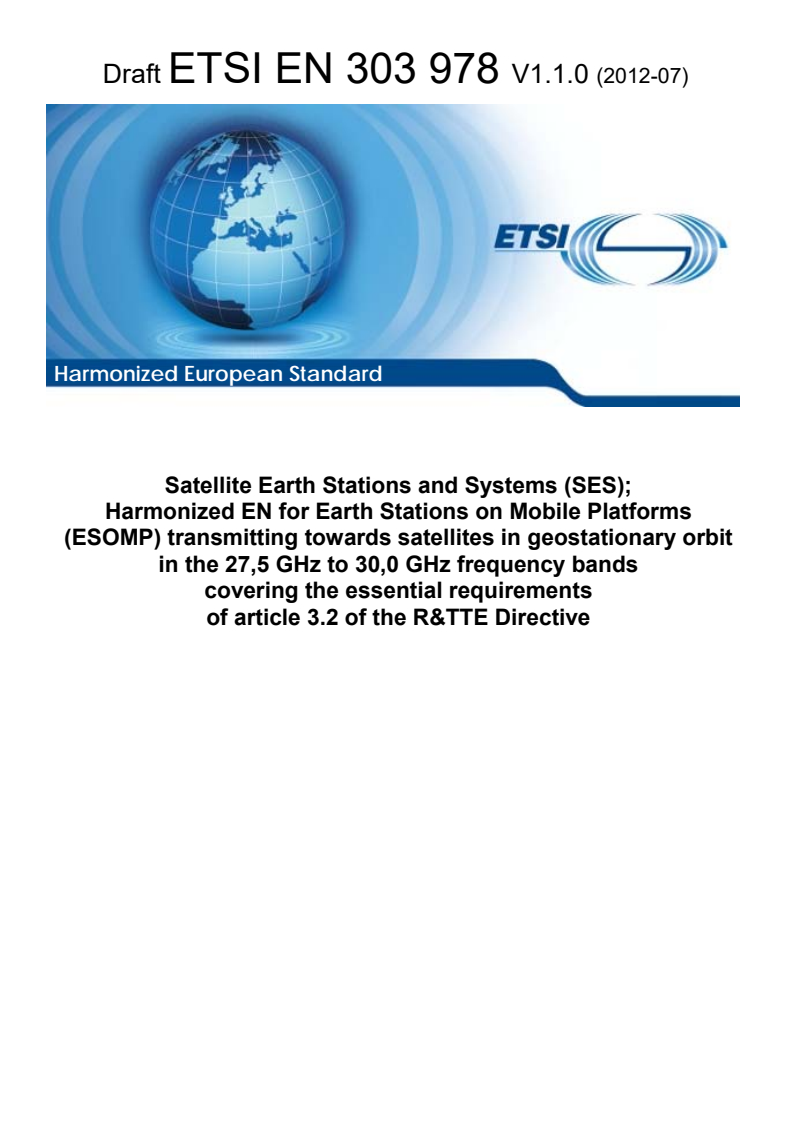

Draft ETSI EN 303 978 V1.1.0 (2012-07)
Harmonized European Standard
Satellite Earth Stations and Systems (SES);
Harmonized EN for Earth Stations on Mobile Platforms
(ESOMP) transmitting towards satellites in geostationary orbit
in the 27,5 GHz to 30,0 GHz frequency bands
covering the essential requirements
of article 3.2 of the R&TTE Directive

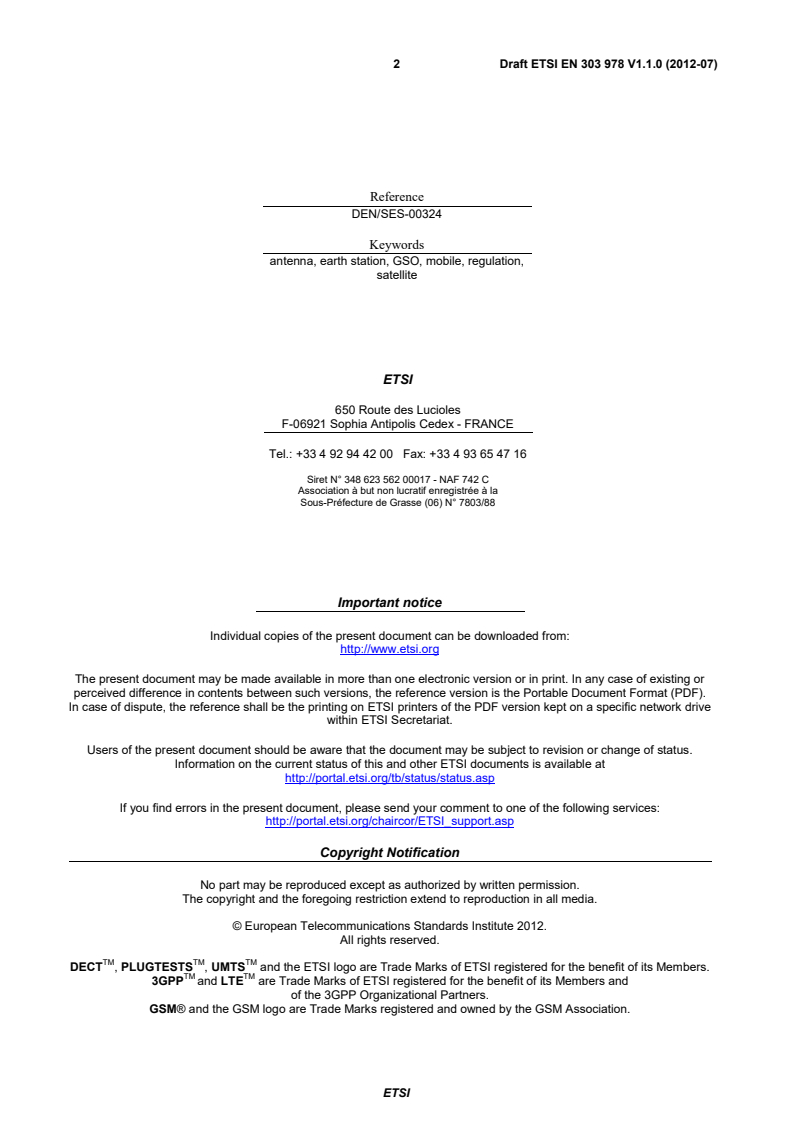

2 Draft ETSI EN 303 978 V1.1.0 (2012-07)
Reference
DEN/SES-00324
Keywords
antenna, earth station, GSO, mobile, regulation,
satellite

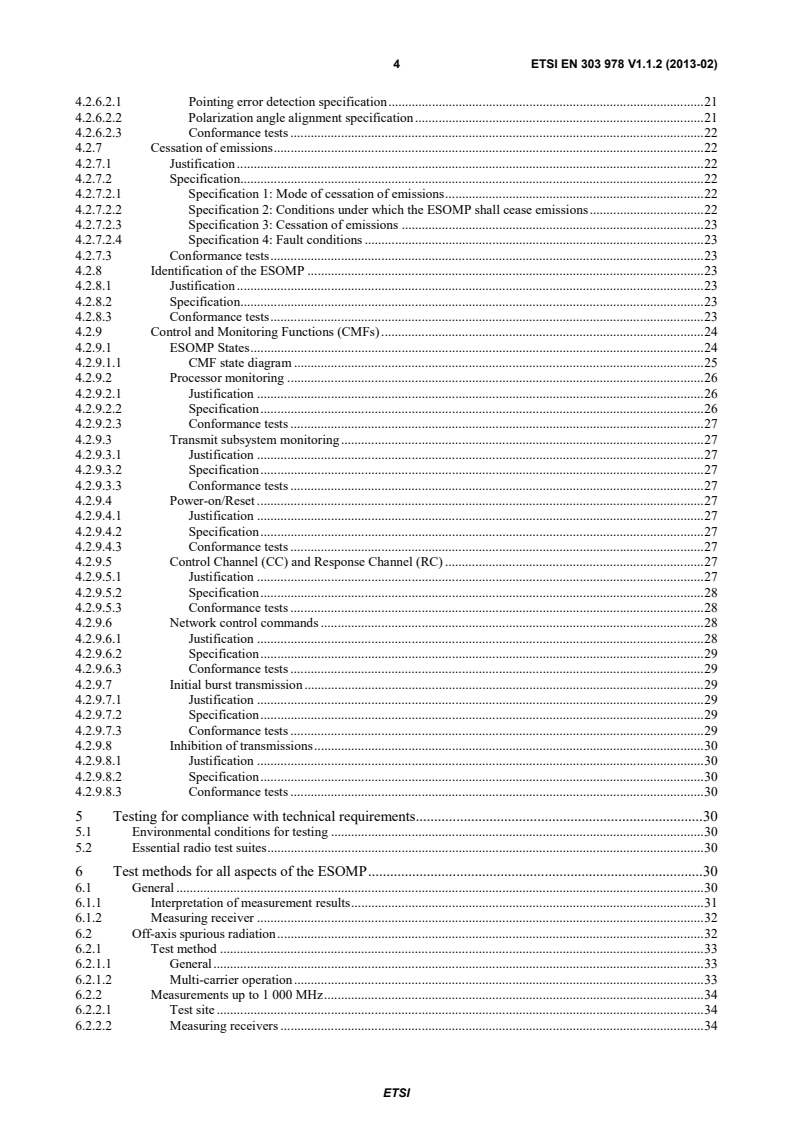

ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2012.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM TM
3GPP and LTE are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 303 978 V1.1.0 (2012-07)

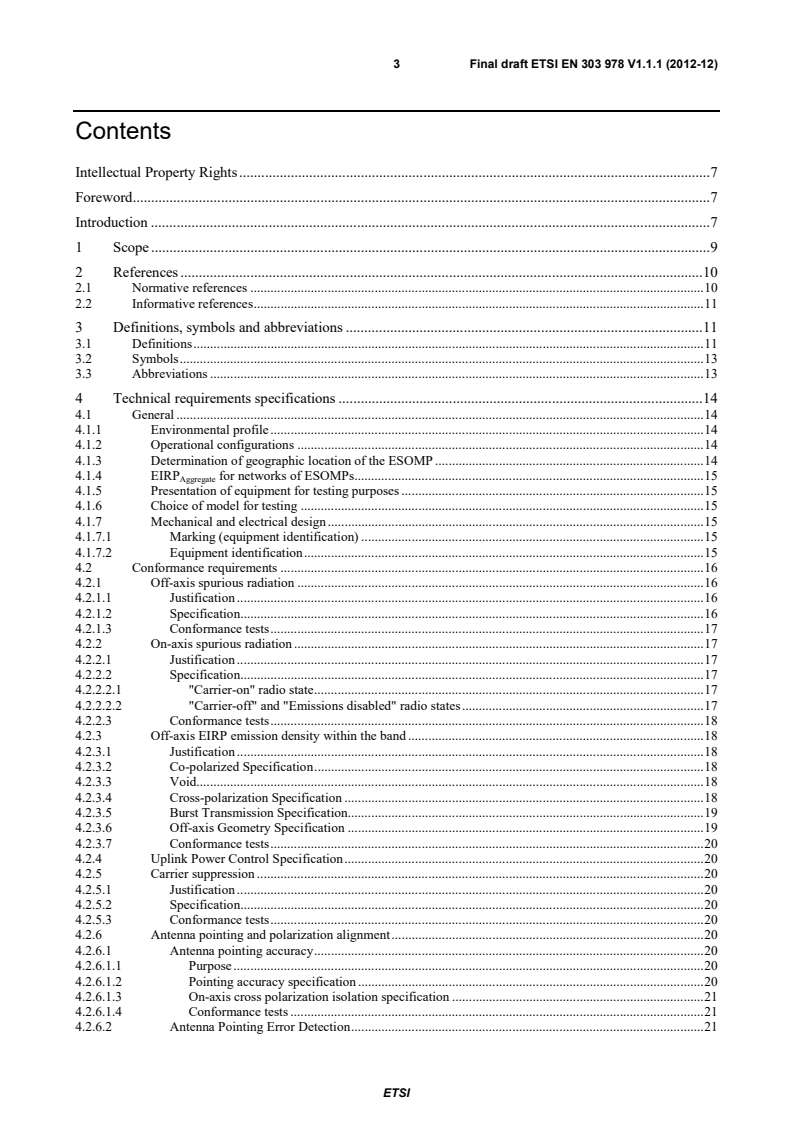

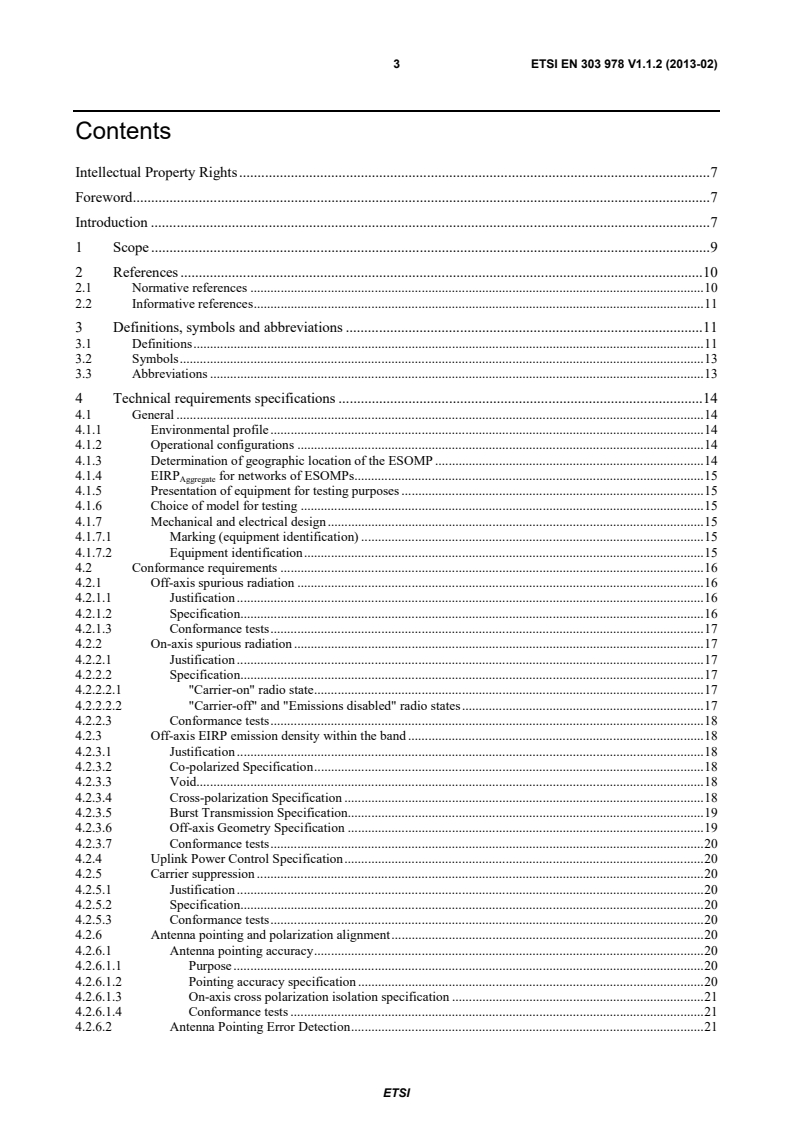

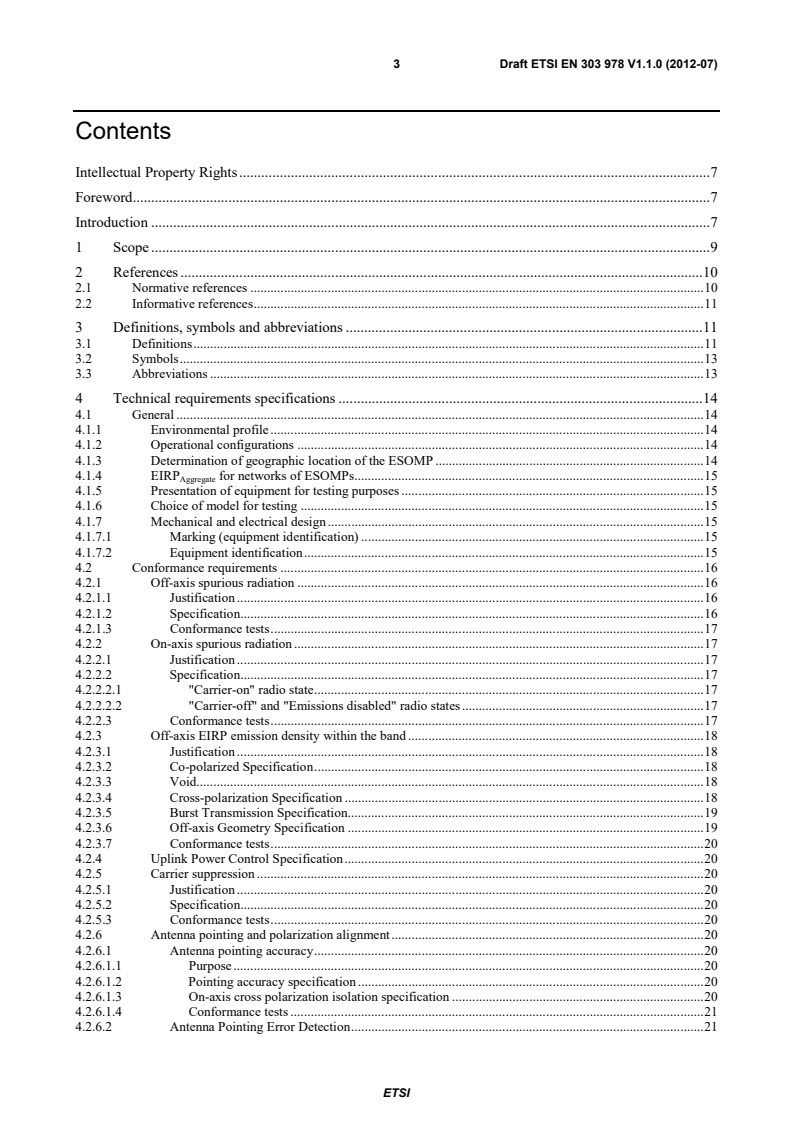

Contents
Intellectual Property Rights . 7
Foreword . 7
Introduction . 7
1 Scope . 9
2 References . 10
2.1 Normative references . 10
2.2 Informative references . 11
3 Definitions, symbols and abbreviations . 11
3.1 Definitions . 11
3.2 Symbols . 13
3.3 Abbreviations . 13
4 Technical requirements specifications . 14
4.1 General . 14
4.1.1 Environmental profile . 14
4.1.2 Operational configurations . 14
4.1.3 Determination of geographic location of the ESOMP . 14
4.1.4 EIRP for networks of ESOMPs . 15
Aggregate
4.1.5 Presentation of equipment for testing purposes . 15
4.1.6 Choice of model for testing . 15
4.1.7 Mechanical and electrical design . 15
4.1.7.1 Marking (equipment identification) . 15
4.1.7.2 Equipment identification . 15
4.2 Conformance requirements . 16
4.2.1 Off-axis spurious radiation . 16
4.2.1.1 Justification . 16
4.2.1.2 Specification. 16
4.2.1.3 Conformance tests . 17
4.2.2 On-axis spurious radiation . 17
4.2.2.1 Justification . 17
4.2.2.2 Specification. 17
4.2.2.2.1 "Carrier-on" radio state . 17
4.2.2.2.2 "Carrier-off" and "Emissions disabled" radio states . 17
4.2.2.3 Conformance tests . 17
4.2.3 Off-axis EIRP emission density within the band . 18
4.2.3.1 Justification . 18
4.2.3.2 Co-polarized Specification . 18
4.2.3.3 Void. 18
4.2.3.4 Cross-polarization Specification . 18
4.2.3.5 Burst Transmission Specification . 19
4.2.3.6 Off-axis Geometry Specification . 19
4.2.3.7 Conformance tests . 20
4.2.4 Uplink Power Control Specification . 20
4.2.5 Carrier suppression . 20
4.2.5.1 Justification . 20
4.2.5.2 Specification. 20
4.2.5.3 Conformance tests . 20
4.2.6 Antenna pointing and polarization alignment . 20
4.2.6.1 Antenna pointing accuracy . 20
4.2.6.1.1 Purpose . 20
4.2.6.1.2 Pointing accuracy specification . 20
4.2.6.1.3 On-axis cross polarization isolation specification . 20
4.2.6.1.4 Conformance tests . 21
4.2.6.2 Antenna Pointing Error Detection . 21

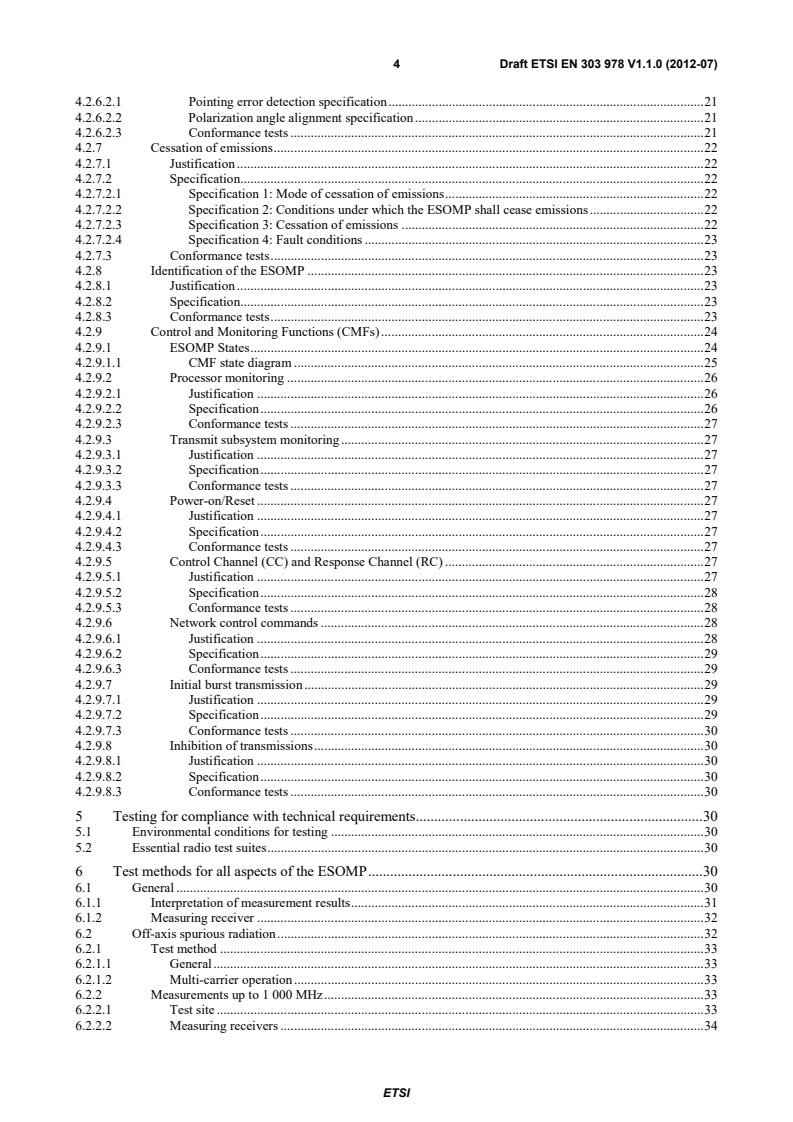

ETSI
