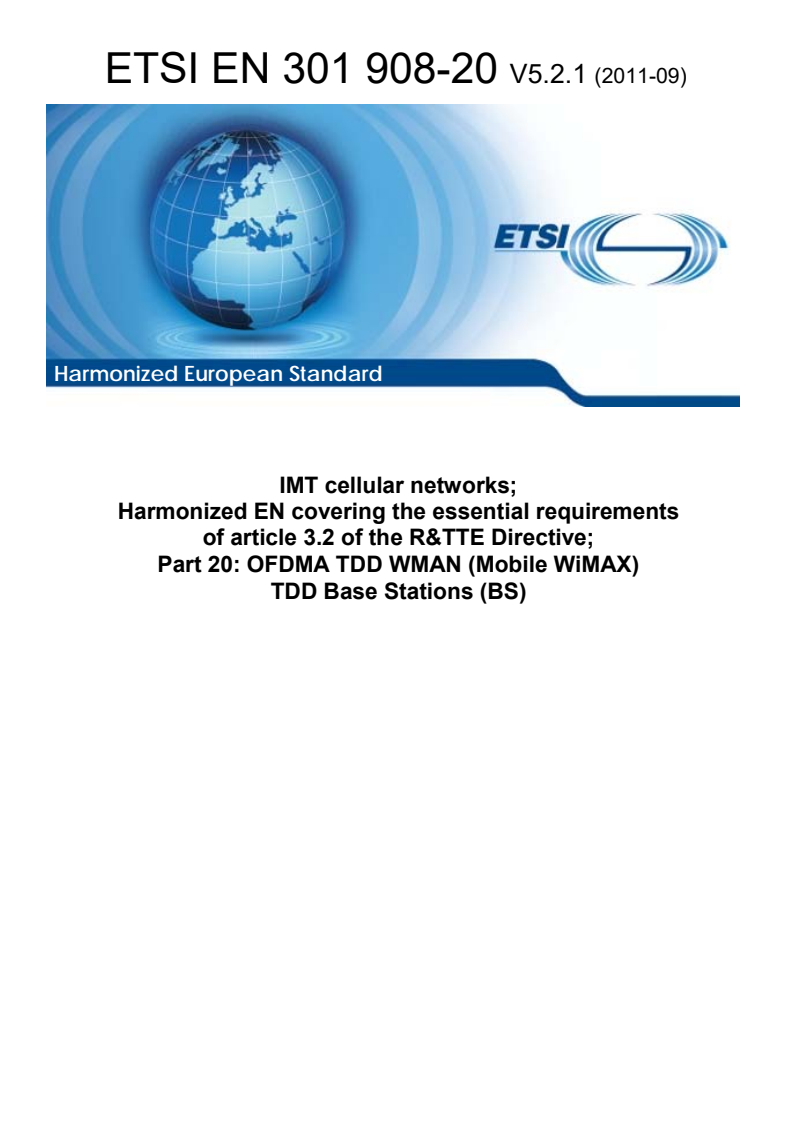

ETSI EN 301 908-20 V5.2.1 (2011-09)

Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 20: OFDMA TDD WMAN (Mobile WiMAX)
TDD Base Stations (BS)

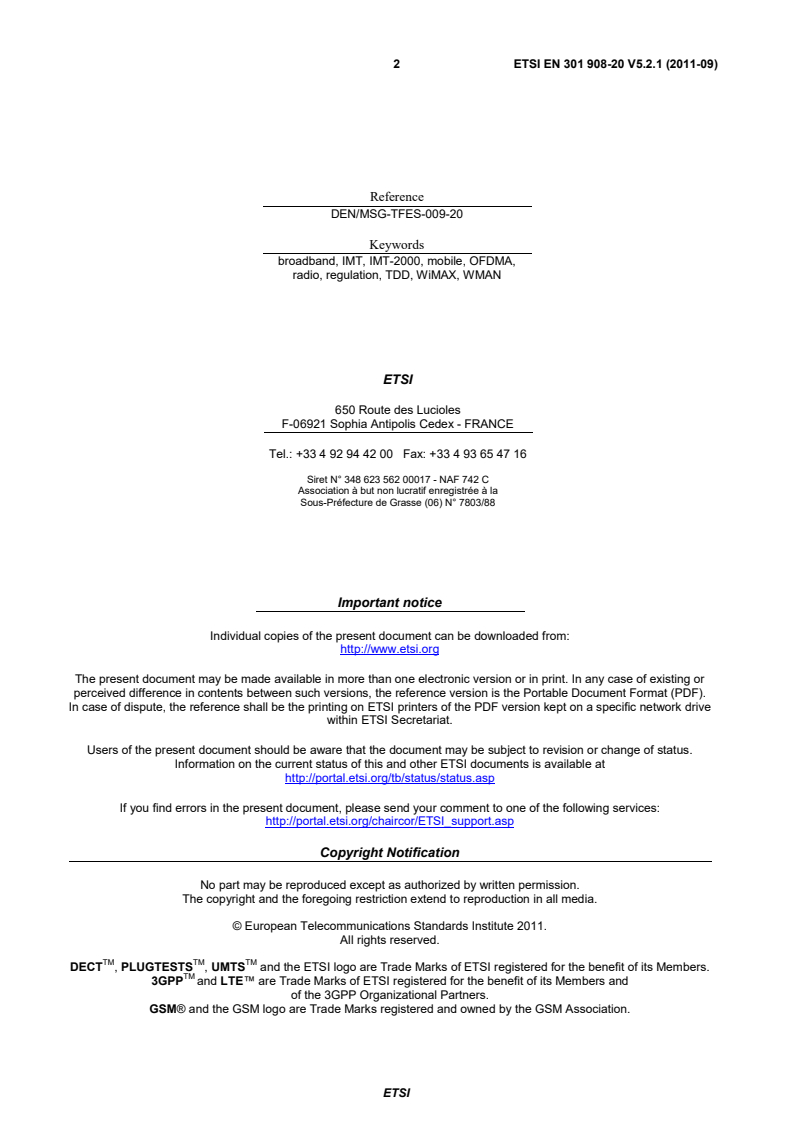

2 ETSI EN 301 908-20 V5.2.1 (2011-09)

Reference
DEN/MSG-TFES-009-20
Keywords
broadband, IMT, IMT-2000, mobile, OFDMA,
radio, regulation, TDD, WiMAX, WMAN
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 301 908-20 V5.2.1 (2011-09)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 10
4 Essential requirements specification . 11
4.1 Environmental profile . 11
4.2 Conformance requirements . 11
4.2.1 Introduction. 11
4.2.2 Transmitter Spectrum Emission Mask . 11
4.2.2.1 Definition . 11
4.2.2.2 Limits . 11
4.2.2.2.1 Spectrum emission mask for 5 MHz channel bandwidth . 12
4.2.2.2.2 Spectrum emission mask for 10 MHz channel bandwidth . 12
4.2.2.3 Conformance . 12
4.2.3 Transmitter Adjacent Channel Leakage power Ratio (ACLR) . 12
4.2.3.1 Definition . 12
4.2.3.2 Limits . 12
4.2.3.2.1 ACLR requirements for 5 MHz channel bandwidth . 12
4.2.3.2.2 ACLR requirements for 10 MHz channel bandwidth . 13
4.2.3.3 Conformance . 13
4.2.4 Transmitter spurious emis sions . 13
4.2.4.1 Definition . 13
4.2.4.2 Limits . 13
4.2.4.2.1 General requirements . 13
4.2.4.2.2 Additional Spurious Emission Requirements . 14
4.2.4.3 Conformance . 14
4.2.5 Base station maximum output power . 14
4.2.5.1 Definition . 14
4.2.5.2 Limits . 14
4.2.5.3 Conformance . 15
4.2.6 Transmit intermodulation . 15
4.2.6.1 Definition . 15
4.2.6.2 Limits . 15
4.2.6.3 Conformance . 15
4.2.7 Receiver spurious emissions . 15
4.2.7.1 Definition . 15
4.2.7.2 Limits . 15
4.2.7.3 Conformance . 16
4.2.8 Receiver blocking characteristics . 16
4.2.8.1 Definition . 16
4.2.8.2 Limits . 16
4.2.8.3 Conformance . 16
4.2.9 Receiver intermodulation characteristics . 17
4.2.9.1 Definition . 17
4.2.9.2 Limits . 17
4.2.9.3 Conformance . 17
ETSI
4 ETSI EN 301 908-20 V5.2.1 (2011-09)
4.2.10 Receiver Adjacent Channel Selectivity. 17
4.2.10.1 Definition . 17
4.2.10.2 Limits . 18
4.2.10.3 Conformance . 18
5 Testing for compliance with technical requirements . 18
5.1 Environmental conditions for testing . 18
5.2 Product information . 18
5.3 Interpretation of the measurement results . 19
5.4 Essential radio test suites . 20
5.4.1 Transmitter Spectrum Emission Mask . 20
5.4.1.1 Method of measurement . 20
5.4.1.1.1 Initial conditions . 20
5.4.1.1.2 Procedure . 20
5.4.1.2 Test requirements . 21
5.4.2 Transmitter Adjacent Channel Leakage Power Ratio (ACLR) . 21
5.4.2.1 Method of measurement . 21
5.4.2.1.1 Initial conditions . 22
5.4.2.1.2 Procedure . 22
5.4.2.2 Test requirements . 22
5.4.3 Transmitter spurious emis sions . 22
5.4.3.1 Method of measurement . 23
5.4.3.1.1 Initial conditions . 23
5.4.3.1.2 Procedure . 23
5.4.3.2 Test requirements . 23
5.4.4 Base Station maximum output power . 24
5.4.4.1 Method of measurement . 24
5.4.4.1.1 Initial conditions . 24
5.4.4.1.2 Procedure . 24
5.4.4.2 Test requirements . 25
5.4.5 Transmit Intermodulation . 25
5.4.5.1 Method of measurement . 25
5.4.5.1.1 Initial conditions . 25
5.4.5.1.2 Procedure . 25
5.4.5.2 Test requirements . 26
5.4.6 Receiver spurious emissions . 26
5.4.6.1 Method of measurement . 26
5.4.6.1.1 Initial conditions . 26
5.4.6.1.2 Procedure . 26
5.4.6.2 Test requirements . 26
5.4.7 Receiver blocking characteristics . 27
5.4.7.1 Method of Measurement . 27
5.4.7.1.1 Initial conditions . 28
5.4.7.1.2 Procedure . 28
5.4.7.2 Test requirements . 28
5.4.8 Receiver Intermodulation characteristics . 28
5.4.8.1 Method of measurement . 28
5.4.8.1.1 Initial conditions . 29
5.4.8.1.2 Procedure . 29
5.4.8.2 Test requirements . 30
5.4.9 Receiver adjacent channel selectivity . 30
5.4.9.1 Method of measurement . 30
5.4.9.1.1 Initial conditions . 30
5.4.9.1.2 Procedure . 30
5.4.9.2 Test requirements . 31
Annex A (normative): HS Requirements and conformance Test specifications Table (HS-
RTT) . 32
Annex B (normative): Environmental profile . 34
Annex C (informative): The EN title in the official languages . 35
ETSI
5 ETSI EN 301 908-20 V5.2.1 (2011-09)
Annex D (informative): Bibliography . 36
History . 37

ETSI
6 ETSI EN 301 908-20 V5.2.1 (2011-09)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile Standards Group
(MSG).
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 20 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] for Base Stations (BS), Repeaters and User Equipment (UE) for IMT cellular networks, as
identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD ) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
7 ETSI EN 301 908-20 V5.2.1 (2011-09)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Stations (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Stations (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".

National transposition dates
Date of adoption of this EN: 12 September 2011
Date of latest announcement of this EN (doa): 31 December 2011
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 June 2012
Date of withdrawal of any conflicting National Standard (dow): 30 June 2013

Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
8 ETSI EN 301 908-20 V5.2.1 (2011-09)
1 Scope
The present document applies to the following radio equipment type:
• Base stations for IMT-2000 OFDMA TDD WMAN (Mobile WiMAX) operating in TDD mode.
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: OFDMA TDD WMAN Base Station frequency bands
Mobile WiMAX Band Class IMT-2000 OFDMA TDD WMAN Channel Bandwidth
Index service operating bands
1B 2 300 MHz to 2 400 MHz 5 MHz and 10 MHz

The requirements in the present document apply to both Wide Area Base Stations and Local Area Base Stations unless
otherwise stated.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2], (R&TTE Directive) article 3.2,
which states that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the Directive 1999/5/EC [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[2] CEPT/ERC/REC 74-01E (Siófok 1998, Nice 1999, Sesimbra 2002, Hradec Kralove 2005):
"Unwanted emissions in the spurious domain".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
ETSI
9 ETSI EN 301 908-20 V5.2.1 (2011-09)
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI EN 300 019-1-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-0: Classification of environmental
conditions; Introduction".
[i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
[i.7] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in the R&TTE Directive [i.2] and the
following apply:
burst: period during which radio waves are intentionally transmitted, preceded and succeeded by periods during which
no intentional transmission is made
environmental profile: declared range of environmental conditions under which equipment within the scope of the
present document is required to be compliant
integral antenna: antenna which is declared to be part of the radio equipment by the manufacturer
NOTE: Even when equipment with an integral antenna is concerned, it might still be possible to separate the
antenna from the equipment using a special tool. In such cases the assessment of the radio equipment and
of the antenna against requirements of the present document may be done separately.
maximum output power: mean power level per carrier of the base station measured at the antenna connector in a
specified reference condition
mean power: when applied to a modulated signal, this is the power (transmitted or received) in a bandwidth
nominal maximum output power: maximum nominal mean power level per carrier of the user equipment available at
the antenna connector declared by the manufacturer; for equipment implementing dynamic change of modulation
format, it is intended as the maximum nominal mean power associated to the modulation format delivering the highest
power
receiver thermal noise power: equal to k×T×BW×F
WiMAX: trade marked name for the OFDMA TDD WMAN IMT technology
ETSI
10 ETSI EN 301 908-20 V5.2.1 (2011-09)
3.2 Symbols
For the purposes of the present document, the following symbols apply:
A Base Station Interface A
BS
A Mobile Station Interface A
MS
A Unit Under Test Interface A
UUT
BW Assigned channel bandwidth
dB decibel
dBc decibel relative to carrier
dBm decibel relative to 1 milliwatt
f Frequency of measurement
f centre frequency of the assigned channel
c
F Receiver noise figure
k Boltzmann's constant
M Base Station Interface M
BS
M Mobile Station Interface M
MS
N Receiver thermal noise power expressed in dBm
th
-6
P Receiver sensitivity level at BER ≤ 10 (or equivalent PER) performance, corresponding to the
SENS
most robust modulation and coding rate supported by the technology
-6
P Receiver sensitivity level at BER 10 for a 5 MHz channelized system, corresponding to the most
SENS5
robust modulation and coding rate supported by the technology
-6
P Receiver sensitivity level at BER 10 for a 10 MHz channelized system, corresponding to the
SENS10
most
robust modulation and coding rate supported by the technology
Pnom declared nominal maximum output Power
T Ambient temperature in Kelvin
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage power Ratio
ACS Adjacent Channel Selectivity
BER Bit Error Ratio
BS Base Station
CW Continuous Wave
ERM Electromagnetic compatibility and Radio spectrum Matters
GHz GigaHertz
IMT International Mobile Telecommunications
MHz MegaHertz
MSG Mobile Standards Group
OFDMA Orthogonal Frequency Division Multiple Access
PER Packet Error Ratio
RF Radio Frequency
R&TTE Radio equipment and Telecommunications Terminal Equipment
RMS Root Mean Square
TDD Time Division Duplexing
TFES Task Force for European Standards for IMT
TPC Transmit Power Control
Tx Transmit, Transmitter
UE User Equipment
UEE User Equipment Emulator
UUT Unit Under Test
WMAN Wireless Metropolitan Area Network
ETSI
11 ETSI EN 301 908-20 V5.2.1 (2011-09)
4 Essential requirements specification
With reference to article 3.2 of Directive 1999/5/EC [i.2] the phenomena in this clause have been identified as relevant
to the essential requirements.
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the manufacturer. The equipment shall comply with all the technical
requirements of the present document at all times when operating within the boundary limits of the required operational
environmental profile.
4.2 Conformance requirements
This clause describes the conformance requirements for OFDMA TDD WMAN Base Stations.
4.2.1 Introduction
To meet the essential requirement under article 3.2 of the R&TTE Directive [i.2] for IMT Base Stations (BS) six
essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1 provides a cross
reference between these six essential parameters and the corresponding nine technical requirements for equipment
within the scope of the present document.
To fulfil an essential parameter the compliance with all the corresponding technical requirements in table 4.2.1-1 must
be verified.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.2 Transmitter Spectrum emissions mask
4.2.3 Transmitter adjacent channel leakage power ratio
4.2.6 Transmitter Intermodulation characteristics
Conducted spurious emissions in active mode 4.2.4 Transmitter spurious emissions
Accuracy of maximum output power 4.2.5 Transmitter maximum output power
Conducted spurious emission in idle mode 4.2.7 Receiver spurious emissions
Impact of interference on receiver performance 4.2.8 Receiver Blocking characteristics
4.2.9 Receiver Intermodulation characteristics
Receiver adjacent channel selectivity 4.2.10 Receiver Adjacent Channel Selectivity (ACS)

4.2.2 Transmitter Spectrum Emission Mask
4.2.2.1 Definition
The Transmitter Spectrum Emission Mask defines an out of band emission requirement for the transmitter. These out of
band emissions are unwanted emissions outside the channel bandwidth resulting from the modulation process and
non-linearity in the transmitter but excluding spurious emissions.
4.2.2.2 Limits
A base station transmitting on a single RF carrier configured in accordance with the manufacturer's specification shall
meet the requirement.
ETSI
12 ETSI EN 301 908-20 V5.2.1 (2011-09)
4.2.2.2.1 Spectrum emission mask for 5 MHz channel bandwidth
Table 4.2.2.2.1-1: Spectrum Emission Mask for 5 MHz channel bandwidth
Offset from channel centre
Allowed emission level within the Integration
frequency (Δf ) integration bandwidth bandwidth
(dBm) (kHz)
(MHz)
2,5 ≤ Δf < 3,5 -13 dBm 50
-13 dBm 1 000
3,5 ≤ Δf < 12,5
4.2.2.2.2 Spectrum emission mask for 10 MHz channel bandwidth
Table 4.2.2.2.2-1: Spectrum Emission Mask for 10 MHz channel bandwidth
Offset from channel centre Allowed emission level within the Integration
integration bandwidth bandwidth
frequency (Δf )
(MHz) (dBm) (kHz)
-13 dBm 100
5 ≤ Δf < 6
6 ≤ Δf < 25 -13 dBm 1 000
4.2.2.3 Conformance
Conformance tests described in clause 5.4.1 shall be carried out.
4.2.3 Transmitter Adjacent Channel Leakage power Ratio (ACLR)
4.2.3.1 Definition
Adjacent Channel Leakage power Ratio (ACLR) is the ratio of the mean power measured through a filter pass band
centred on the assigned channel frequency to the mean power measured through the same filter pass band centred on a
first or second adjacent channel. The first adjacent and second adjacent channel centre offsets relative to the assigned
channel centre frequency are 5 MHz and 10 MHz when the nominal occupied channel bandwidth is 5 MHz. These
offsets are 10 MHz and 20 MHz respectively when the nominal occupied channel bandwidth is 10 MHz.
4.2.3.2 Limits
The requirements in tables 4.2.3.2.1-1 and 4.2.3.2.2-1 are based upon a measurement filter characteristic that is
rectangular with a width dependant upon the BS channel bandwidth.
4.2.3.2.1 ACLR requirements for 5 MHz channel bandwidth
Table 4.2.3.2.1-1: ACLR requirement for 5 MHz channel bandwidth
Adjacent channel centre frequency Minimum required ACLR Measurement filter width
relative to assigned (MHz)
channel frequency (dB)
Base station channel centre frequency 4,75
44,2
±5 MHz
Base station channel centre frequency 4,75
49,2
±10 MHz
ETSI
13 ETSI EN 301 908-20 V5.2.1 (2011-09)
4.2.3.2.2 ACLR requirements for 10 MHz channel bandwidth
Table 4.2.3.2.2-1: ACLR requirement for 10 MHz channel bandwidth
Adjacent channel centre frequency Minimum required ACLR Measurement filter width
relative to assigned (MHz)
channel frequency (dB)
Base station channel centre frequency 9,5
44,2
±10 MHz
Base station channel centre frequency 9,5
49,2
±20 MHz
4.2.3.3 Conformance
Conformance tests described in clause 5.4.2 shall be carried out.
4.2.4 Transmitter spurious emissions
4.2.4.1 Definition
Transmitter spurious emissions are emissions which are caused by unwanted transmitter effects such as harmonics
emission, parasitic emission, intermodulation products and frequency conversion products, but exclude out of band
emissions. This is measured at the Base Station RF output port.
The spurious emission limits are specified in terms of general requirements in line with ITU-R Recommendation
SM.329-10 [i.7] and frequency range specific requirements to address inter-system co-existence.
4.2.4.2 Limits
4.2.4.2.1 General requirements
The requirements shall apply to both Wide Area BS and Local Area BS.
The limits of spurious emissions (or more precisely, according latest ITU-R definitions, unwanted emissions in the
spurious domain), shall conform to CEPT/ERC/REC 74-01 [2].
The following requirements in tables 4.2.4.2.1.1-1 and 4.2.4.2.1.2-1 are only applicable for frequencies, which are
greater than 250 % of the channel bandwidth (that is 12,5 MHz for the 5 MHz channel bandwidth and 25 MHz for the
10 MHz channel bandwidth) away from the centre carrier frequency. In the following fc is the center frequency of
transmit signal and f is the frequency of spurious emission.
4.2.4.2.1.1 Requirements for 5 MHz channel bandwidth
Table 4.2.4.2.1.1-1: Spurious Emission requirement for 5 MHz channel bandwidth
Segment Frequency Range Measurement Bandwidth Maximum allowed
level (dBm)
1 9 kHz ≤ f < 150 kHz 1 kHz -36
2 150 kHz ≤ f < 30 MHz 10 kHz -36
3 30 MHz ≤ f < 1 000 MHz 100 kHz -36
4 1 GHz ≤ f < 12,75 GHz 30 kHz If 12,5 ≤ |fc-f| < 50 -30
300 kHz If 50 ≤ |fc-f| < 60
1 MHz If 60 ≤ |fc-f|
ETSI
14 ETSI EN 301 908-20 V5.2.1 (2011-09)
4.2.4.2.1.2 Requirements for 10 MHz channel bandwidth
Table 4.2.4.2.1.2-1: Spurious Emission requirement for 10 MHz channel bandwidth
Segment Frequency Range Measurement Bandwidth Maximum allowed level
(dBm)
1 9 kHz ≤ f < 150 kHz 1 kHz -36
2 150 kHz ≤ f < 30 MHz 10 kHz -36
3 30 MHz ≤ f < 1 000 MHz 100 kHz -36
4 1 GHz ≤ f < 12,75 GHz -30
30 kHz If 25 ≤ |fc-f| < 100
300 kHz If 100 ≤ |fc-f| < 120
1 MHz If 120 ≤ |fc-f|
4.2.4.2.2 Additional Spurious Emission Requirements
Table 4.2.4.2.2-1: Additional spurious emissions requirements for BS (Out of Band)
Band (MHz) Maximum level (dBm) Measurement bandwidth
(MHz)
791 ≤ f < 821 -52 1
-49 1
832 ≤ f < 862
876 ≤ f < 915 -51 1
-47 1
921 ≤ f < 925
925 ≤ f < 960 -52 1
-51 1
1 710 ≤ f < 1 785
1 805 ≤ f < 1 880 -52 1
-49 1
1 920 ≤ f < 1 980
2 110 ≤ f < 2 170 -52 1
-52 1
1 900 ≤ f < 1 920
2 010 ≤ f < 2 025 -52 1
-49 1
2 500 ≤ f < 2 570
2 570 ≤ f < 2 620 -52 1
-52 1
2 620 ≤ f < 2 690
NOTE 1: For 5 MHz channel bandwidth the f ranges from 2 302,5 MHz to 2 397,5 MHz.
c
NOTE 2: For 10 MHz channel bandwidth the f ranges from 2 305 MHz to 2 395 MHz.
c
4.2.4.3 Conformance
Conformance tests described in clause 5.4.3 shall be carried out.
4.2.5 Base station maximum output power
4.2.5.1 Definition
The maximum output power tolerance is the difference between the declared Pnom and the actual maximum output
power and corresponding tolerance limits.
4.2.5.2 Limits
The requirement shall apply to both Wide Area BS and Local Area BS.
In normal conditions, the measured output power, derived according to clause 5.4.4.1.2, shall remain within +2,7 dB
and -2,7 dB of the manufacturer's rated output power.
In extreme conditions, the measured output power, derived according to clause 5.4.4.1.2, shall remain within +3,2 dB
and -3,2 dB of the manufacturer's rated output power.
ETSI
15 ETSI EN 301 908-20 V5.2.1 (2011-09)
4.2.5.3 Conformance
Conformance tests described in clause 5.4.4 shall be carried out.
4.2.6 Transmit intermodulation
4.2.6.1 Definition
The transmit intermodulation performance is a measure of the capability of the transmitter to inhibit the generation of
signals in its non linear elements caused by presence of the wanted signal and an interfering signal reaching the
transmitter via the antenna.
The transmit intermodulation level is the power of the intermodulation products when a modulated interference signal is
injected into the antenna connector at a mean power level of 30 dB lower than that of the mean power of the wanted
signal. The wanted signal bandwidth shall be 5 MHz and 10 MHz respectively. The interferer has the same bandwidth
as the wanted signal.
For 5 MHz channel BW, the centre frequency of the interference signal offset from the subject signal carrier centre
frequency shall be at ±5 MHz, ±10 MHz, ±15 MHz (±10 MHz, ±20 MHz, ±30 MHz for 10 MHz channel BW) but
exclude interference frequencies that are partially or completely outside of the declared operating frequency band of the
base station.
4.2.6.2 Limits
rd
With the test signal applied, the spectrum emission mask, ACLR and spurious emission requirements at the specific 3
th
and 5 order intermodulation frequencies, excluding those overlapping the interfering signal, shall continue to meet the
limits in clauses 4.2.2, 4.2.3 and 4.2.4.
4.2.6.3 Conformance
Conformance tests described in clause 5.4.5 shall be carried out.
4.2.7 Receiver spurious emissions
4.2.7.1 Definition
The spurious emissions power is the power of emissions, generated or amplified in a receiver, which appear at the BS
antenna connector. The requirements apply to all BS with separate Rx and Tx antenna port. The test shall be performed
when both Tx and Rx are on with the Tx port terminated.
For BS equipped with only a single antenna connector for both transmitter and receiver, the requirements of clause 4.2.4
Transmitter spurious emissions shall apply to this port, and this test need not be performed.
The following requirements in table 4.2.7.2-1 are only applicable for frequencies, which are greater than 250 % of the
channel bandwidth (that is 12,5 MHz for the 5 MHz channel bandwidth and 25 MHz for the 10 MHz channel
bandwidth) away from the centre carrier frequency.
4.2.7.2 Limits
The requirement shall apply to both Wide Area BS and Local Area BS.
Table 4.2.7.2-1: General receiver spurious emission requirements
Frequency band Measurement bandwidth Maximum level
100 kHz -57 dBm
30 MHz ≤ f < 1 GHz
1 MHz -47 dBm
1 GHz ≤ f ≤ 12,75 GHz
ETSI
16 ETSI EN 301 908-20 V5.2.1 (2011-09)
4.2.7.3 Conformance
Conformance tests described in clause 5.4.6 shall be carried out.
4.2.8 Receiver blocking characteristics
4.2.8.1 Definition
The blocking characteristics are a measure of the receiver ability to receive a wanted signal at its assigned channel
frequency in the presence of an unwanted interferer on frequencies other than
...

Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
Harmonized European Standard
IMT cellular networks;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive;
Part 20: OFDMA TDD WMAN (Mobile WiMAX)
TDD Base Stations (BS)

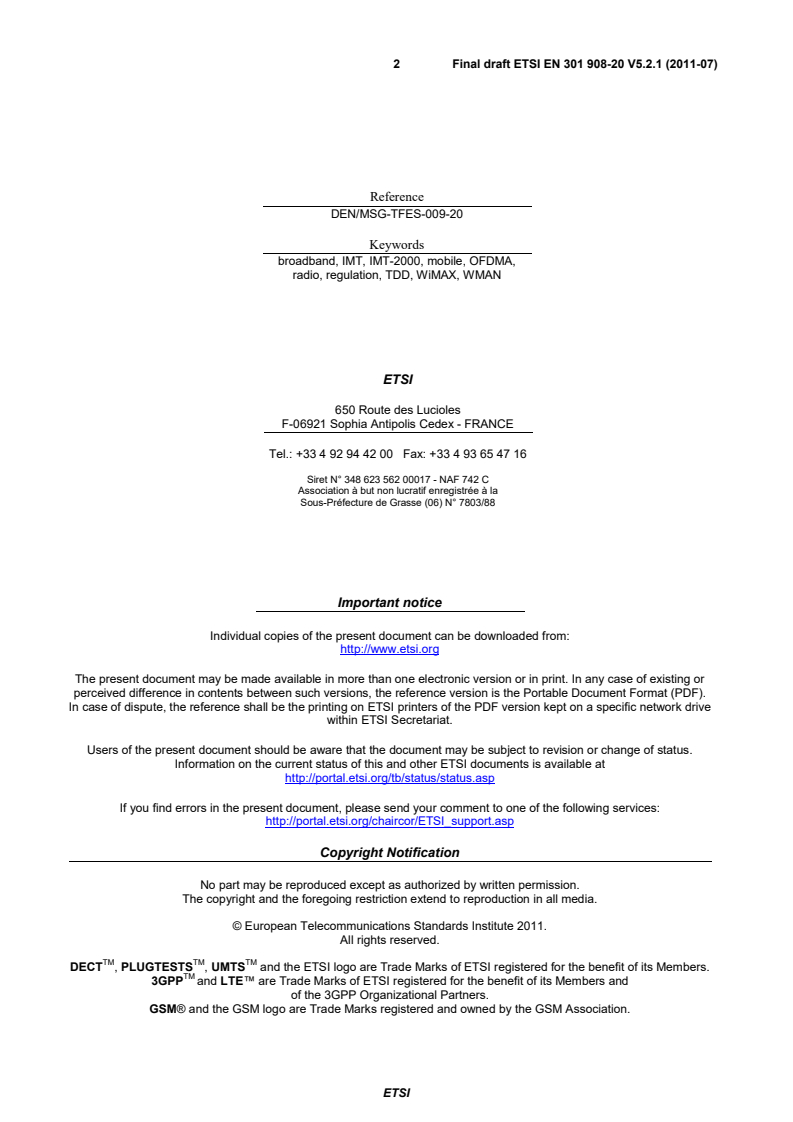

2 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)

Reference
DEN/MSG-TFES-009-20
Keywords
broadband, IMT, IMT-2000, mobile, OFDMA,
radio, regulation, TDD, WiMAX, WMAN
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
Contents
Intellectual Property Rights . 6
Foreword . 6
Introduction . 7
1 Scope . 8
2 References . 8
2.1 Normative references . 8
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 9
3.1 Definitions . 9
3.2 Symbols . 10
3.3 Abbreviations . 10
4 Essential requirements specification . 11
4.1 Environmental profile . 11
4.2 Conformance requirements . 11
4.2.1 Introduction. 11
4.2.2 Transmitter Spectrum Emission Mask . 11
4.2.2.1 Definition . 11
4.2.2.2 Limits . 11
4.2.2.2.1 Spectrum emission mask for 5 MHz channel bandwidth . 12
4.2.2.2.2 Spectrum emission mask for 10 MHz channel bandwidth . 12
4.2.2.3 Conformance . 12
4.2.3 Transmitter Adjacent Channel Leakage power Ratio (ACLR) . 12
4.2.3.1 Definition . 12
4.2.3.2 Limits . 12
4.2.3.2.1 ACLR requirements for 5 MHz channel bandwidth . 12
4.2.3.2.2 ACLR requirements for 10 MHz channel bandwidth . 13
4.2.3.3 Conformance . 13
4.2.4 Transmitter spurious emis sions . 13
4.2.4.1 Definition . 13
4.2.4.2 Limits . 13
4.2.4.2.1 General requirements . 13
4.2.4.2.2 Additional Spurious Emission Requirements . 14
4.2.4.3 Conformance . 14
4.2.5 Base station maximum output power . 14
4.2.5.1 Definition . 14
4.2.5.2 Limits . 14
4.2.5.3 Conformance . 15
4.2.6 Transmit intermodulation . 15
4.2.6.1 Definition . 15
4.2.6.2 Limits . 15
4.2.6.3 Conformance . 15
4.2.7 Receiver spurious emissions . 15
4.2.7.1 Definition . 15
4.2.7.2 Limits . 15
4.2.7.3 Conformance . 16
4.2.8 Receiver blocking characteristics . 16
4.2.8.1 Definition . 16
4.2.8.2 Limits . 16
4.2.8.3 Conformance . 16
4.2.9 Receiver intermodulation characteristics . 17
4.2.9.1 Definition . 17
4.2.9.2 Limits . 17
4.2.9.3 Conformance . 17
ETSI
4 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
4.2.10 Receiver Adjacent Channel Selectivity. 17
4.2.10.1 Definition . 17
4.2.10.2 Limits . 18
4.2.10.3 Conformance . 18
5 Testing for compliance with technical requirements . 18
5.1 Environmental conditions for testing . 18
5.2 Product information . 18
5.3 Interpretation of the measurement results . 19
5.4 Essential radio test suites . 20
5.4.1 Transmitter Spectrum Emission Mask . 20
5.4.1.1 Method of measurement . 20
5.4.1.1.1 Initial conditions . 20
5.4.1.1.2 Procedure . 20
5.4.1.2 Test requirements . 21
5.4.2 Transmitter Adjacent Channel Leakage Power Ratio (ACLR) . 21
5.4.2.1 Method of measurement . 21
5.4.2.1.1 Initial conditions . 22
5.4.2.1.2 Procedure . 22
5.4.2.2 Test requirements . 22
5.4.3 Transmitter spurious emis sions . 22
5.4.3.1 Method of measurement . 22
5.4.3.1.1 Initial conditions . 23
5.4.3.1.2 Procedure . 23
5.4.3.2 Test requirements . 23
5.4.4 Base Station maximum output power . 24
5.4.4.1 Method of measurement . 24
5.4.4.1.1 Initial conditions . 24
5.4.4.1.2 Procedure . 24
5.4.4.2 Test requirements . 25
5.4.5 Transmit Intermodulation . 25
5.4.5.1 Method of measurement . 25
5.4.5.1.1 Initial conditions . 25
5.4.5.1.2 Procedure . 25
5.4.5.2 Test requirements . 26
5.4.6 Receiver spurious emissions . 26
5.4.6.1 Method of measurement . 26
5.4.6.1.1 Initial conditions . 26
5.4.6.1.2 Procedure . 26
5.4.6.2 Test requirements . 26
5.4.7 Receiver blocking characteristics . 27
5.4.7.1 Method of Measurement . 27
5.4.7.1.1 Initial conditions . 28
5.4.7.1.2 Procedure . 28
5.4.7.2 Test requirements . 28
5.4.8 Receiver Intermodulation characteristics . 28
5.4.8.1 Method of measurement . 28
5.4.8.1.1 Initial conditions . 29
5.4.8.1.2 Procedure . 29
5.4.8.2 Test requirements . 30
5.4.9 Receiver adjacent channel selectivity . 30
5.4.9.1 Method of measurement . 30
5.4.9.1.1 Initial conditions . 30
5.4.9.1.2 Procedure . 30
5.4.9.2 Test requirements . 31
Annex A (normative): HS Requirements and conformance Test specifications Table (HS-
RTT) . 32
Annex B (normative): Environmental profile . 34
Annex C (informative): The EN title in the official languages . 35
ETSI
5 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
Annex D (informative): Bibliography . 36
History . 37

ETSI
6 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This final draft Harmonized European Standard (EN) has been produced by ETSI Technical Committee Mobile
Standards Group (MSG), and is now submitted for the Vote phase of the ETSI standards Two-step Approval Procedure.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.1] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The title and reference to the present document are intended to be included in the publication in the Official Journal of
the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [i.2].
See article 5.1 of Directive 1999/5/EC [i.2] for information on presumption of conformity and Harmonised Standards or
parts thereof the references of which have been published in the Official Journal of the European Union.
The requirements relevant to Directive 1999/5/EC [i.2] are summarised in annex A.
The present document is part 20 of a multi-part deliverable covering the essential requirements under article 3.2 of
Directive 1999/5/EC [i.2] for Base Stations (BS), Repeaters and User Equipment (UE) for IMT cellular networks, as
identified below:
Part 1: "Introduction and common requirements";
Part 2: "CDMA Direct Spread (UTRA FDD) User Equipment (UE)";
Part 3: "CDMA Direct Spread (UTRA FDD) Base Stations (BS)";
Part 4: "CDMA Multi-Carrier (cdma2000) User Equipment (UE)";
Part 5: "CDMA Multi-Carrier (cdma2000) Base Stations (BS)";
Part 6: "CDMA TDD (UTRA TDD) User Equipment (UE)";
Part 7: "CDMA TDD (UTRA TDD ) Base Stations (BS)";
Part 8: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (UE) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 9: "Harmonized EN for IMT-2000, TDMA Single-Carrier (UWC 136) (BS) covering essential requirements
of article 3.2 of the R&TTE Directive";
Part 10: "Harmonized EN for IMT-2000, FDMA/TDMA (DECT) covering essential requirements of article 3.2 of
the R&TTE Directive";
Part 11: "CDMA Direct Spread (UTRA FDD) (Repeaters)";
Part 12: "Harmonized EN for IMT-2000, CDMA Multi-Carrier (cdma2000) (Repeaters) covering the essential
requirements of article 3.2 of the R&TTE Directive";
Part 13: "Evolved Universal Terrestrial Radio Access (E-UTRA) User Equipment (UE)";
ETSI
7 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
Part 14: "Evolved Universal Terrestrial Radio Access (E-UTRA) Base Stations (BS)";
Part 15: "Evolved Universal Terrestrial Radio Access (E-UTRA) (FDD Repeaters)";
Part 16: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (UE)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 17: "Harmonized EN for IMT-2000, Evolved CDMA Multi-Carrier Ultra Mobile Broadband (UMB) (BS)
covering the essential requirements of article 3.2 of the R&TTE Directive";
Part 18: "E-UTRA, UTRA and GSM/EDGE Multi-Standard Radio (MSR) Base Stations (BS)";
Part 19: "OFDMA TDD WMAN (Mobile WiMAX) TDD User Equipment (UE)";
Part 20: "OFDMA TDD WMAN (Mobile WiMAX) TDD Base Stations (BS)";
Part 21: "OFDMA TDD WMAN (Mobile WiMAX) FDD User Equipment (UE)";
Part 22: "OFDMA TDD WMAN (Mobile WiMAX) FDD Base Stations (BS)".

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.2]. The
modular structure is shown in EG 201 399 [i.3].
ETSI
8 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
1 Scope
The present document applies to the following radio equipment type:
• Base stations for IMT-2000 OFDMA TDD WMAN (Mobile WiMAX) operating in TDD mode.
This radio equipment type is capable of operating in all or any part of the frequency bands given in table 1-1.
Table 1-1: OFDMA TDD WMAN Base Station frequency bands
Mobile WiMAX Band Class IMT-2000 OFDMA TDD WMAN Channel Bandwidth
Index service operating bands
1B 2 300 MHz to 2 400 MHz 5 MHz and 10 MHz

The requirements in the present document apply to both Wide Area Base Stations and Local Area Base Stations unless
otherwise stated.
The present document is intended to cover the provisions of Directive 1999/5/EC [i.2], (R&TTE Directive) article 3.2,
which states that "… radio equipment shall be so constructed that it effectively uses the spectrum allocated to
terrestrial/space radio communications and orbital resources so as to avoid harmful interference".
In addition to the present document, other ENs that specify technical requirements in respect of essential requirements
under other parts of article 3 of the Directive 1999/5/EC [i.2] may apply to equipment within the scope of the present
document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI EN 301 908-1 (V5.2.1): "IMT cellular networks; Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive; Part 1: Introduction and common
requirements".
[2] CEPT/ERC/REC 74-01E (Siófok 1998, Nice 1999, Sesimbra 2002, Hradec Kralove 2005):
"Unwanted emissions in the spurious domain".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
ETSI
9 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
[i.2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.3] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of Harmonized Standards for application under the R&TTE Directive".
[i.4] ETSI TR 102 215 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Recommended approach, and possible limits for measurement uncertainty for the measurement of
radiated electromagnetic fields above 1 GHz".
[i.5] ETSI EN 300 019-1-0: "Environmental Engineering (EE); Environmental conditions and
environmental tests for telecommunications equipment; Part 1-0: Classification of environmental
conditions; Introduction".
[i.6] ETSI TR 100 028 (all parts) (V1.4.1): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
[i.7] ITU-R Recommendation SM.329-10 (2003): "Unwanted emissions in the spurious domain".
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in the R&TTE Directive [i.2] and the
following apply:
burst: period during which radio waves are intentionally transmitted, preceded and succeeded by periods during which
no intentional transmission is made
environmental profile: declared range of environmental conditions under which equipment within the scope of the
present document is required to be compliant
integral antenna: antenna which is declared to be part of the radio equipment by the manufacturer
NOTE: Even when equipment with an integral antenna is concerned, it might still be possible to separate the
antenna from the equipment using a special tool. In such cases the assessment of the radio equipment and
of the antenna against requirements of the present document may be done separately.
maximum output power: mean power level per carrier of the base station measured at the antenna connector in a
specified reference condition
mean power: when applied to a modulated signal, this is the power (transmitted or received) in a bandwidth
nominal maximum output power: maximum nominal mean power level per carrier of the user equipment available at
the antenna connector declared by the manufacturer; for equipment implementing dynamic change of modulation
format, it is intended as the maximum nominal mean power associated to the modulation format delivering the highest
power
receiver thermal noise power: equal to k×T×BW×F
WiMAX: trade marked name for the OFDMA TDD WMAN IMT technology
ETSI
10 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
3.2 Symbols
For the purposes of the present document, the following symbols apply:
A Base Station Interface A
BS
A Mobile Station Interface A
MS
A Unit Under Test Interface A
UUT
BW Assigned channel bandwidth
dB decibel
dBc decibel relative to carrier
dBm decibel relative to 1 milliwatt
f Frequency of measurement
f centre frequency of the assigned channel
c
F Receiver noise figure
k Boltzmann's constant
M Base Station Interface M
BS
M Mobile Station Interface M
MS
N Receiver thermal noise power expressed in dBm
th
-6
P Receiver sensitivity level at BER ≤ 10 (or equivalent PER) performance, corresponding to the
SENS
most robust modulation and coding rate supported by the technology
-6
P Receiver sensitivity level at BER 10 for a 5 MHz channelized system, corresponding to the most
SENS5
robust modulation and coding rate supported by the technology
-6
P Receiver sensitivity level at BER 10 for a 10 MHz channelized system, corresponding to the
SENS10
most
robust modulation and coding rate supported by the technology
Pnom declared nominal maximum output Power
T Ambient temperature in Kelvin
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ACLR Adjacent Channel Leakage power Ratio
ACS Adjacent Channel Selectivity
BER Bit Error Ratio
BS Base Station
CW Continuous Wave
ERM Electromagnetic compatibility and Radio spectrum Matters
GHz GigaHertz
IMT International Mobile Telecommunications
MHz MegaHertz
MSG Mobile Standards Group
OFDMA Orthogonal Frequency Division Multiple Access
PER Packet Error Ratio
RF Radio Frequency
R&TTE Radio equipment and Telecommunications Terminal Equipment
RMS Root Mean Square
TDD Time Division Duplexing
TFES Task Force for European Standards for IMT
TPC Transmit Power Control
Tx Transmit, Transmitter
UE User Equipment
UEE User Equipment Emulator
UUT Unit Under Test
WMAN Wireless Metropolitan Area Network
ETSI
11 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
4 Essential requirements specification
With reference to article 3.2 of Directive 1999/5/EC [i.2] the phenomena in this clause have been identified as relevant
to the essential requirements.
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the manufacturer. The equipment shall comply with all the technical
requirements of the present document at all times when operating within the boundary limits of the required operational
environmental profile.
4.2 Conformance requirements
This clause describes the conformance requirements for OFDMA TDD WMAN Base Stations.
4.2.1 Introduction
To meet the essential requirement under article 3.2 of the R&TTE Directive [i.2] for IMT Base Stations (BS) six
essential parameters in addition to those in EN 301 908-1 [1] have been identified. Table 4.2.1-1 provides a cross
reference between these six essential parameters and the corresponding nine technical requirements for equipment
within the scope of the present document.
To fulfil an essential parameter the compliance with all the corresponding technical requirements in table 4.2.1-1 must
be verified.
Table 4.2.1-1: Cross references
Essential parameter Corresponding technical requirements
Spectrum emissions mask 4.2.2 Transmitter Spectrum emissions mask
4.2.3 Transmitter adjacent channel leakage power ratio
4.2.6 Transmitter Intermodulation characteristics
Conducted spurious emissions in active mode 4.2.4 Transmitter spurious emissions
Accuracy of maximum output power 4.2.5 Transmitter maximum output power
Conducted spurious emission in idle mode 4.2.7 Receiver spurious emissions
Impact of interference on receiver performance 4.2.8 Receiver Blocking characteristics
4.2.9 Receiver Intermodulation characteristics
Receiver adjacent channel selectivity 4.2.10 Receiver Adjacent Channel Selectivity (ACS)

4.2.2 Transmitter Spectrum Emission Mask
4.2.2.1 Definition
The Transmitter Spectrum Emission Mask defines an out of band emission requirement for the transmitter. These out of
band emissions are unwanted emissions outside the channel bandwidth resulting from the modulation process and
non-linearity in the transmitter but excluding spurious emissions.
4.2.2.2 Limits
A base station transmitting on a single RF carrier configured in accordance with the manufacturer's specification shall
meet the requirement.
ETSI
12 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
4.2.2.2.1 Spectrum emission mask for 5 MHz channel bandwidth
Table 4.2.2.2.1-1: Spectrum Emission Mask for 5 MHz channel bandwidth
Offset from channel centre
Allowed emission level within the Integration
frequency (Δf ) integration bandwidth bandwidth
(dBm) (kHz)
(MHz)
2,5 ≤ Δf < 3,5 -13 dBm 50
-13 dBm 1 000
3,5 ≤ Δf < 12,5
4.2.2.2.2 Spectrum emission mask for 10 MHz channel bandwidth
Table 4.2.2.2.2-1: Spectrum Emission Mask for 10 MHz channel bandwidth
Offset from channel centre Allowed emission level within the Integration
integration bandwidth bandwidth
frequency (Δf )
(MHz) (dBm) (kHz)
-13 dBm 100
5 ≤ Δf < 6
6 ≤ Δf < 25 -13 dBm 1 000
4.2.2.3 Conformance
Conformance tests described in clause 5.4.1 shall be carried out.
4.2.3 Transmitter Adjacent Channel Leakage power Ratio (ACLR)
4.2.3.1 Definition
Adjacent Channel Leakage power Ratio (ACLR) is the ratio of the mean power measured through a filter pass band
centred on the assigned channel frequency to the mean power measured through the same filter pass band centred on a
first or second adjacent channel. The first adjacent and second adjacent channel centre offsets relative to the assigned
channel centre frequency are 5 MHz and 10 MHz when the nominal occupied channel bandwidth is 5 MHz. These
offsets are 10 MHz and 20 MHz respectively when the nominal occupied channel bandwidth is 10 MHz.
4.2.3.2 Limits
The requirements in tables 4.2.3.2.1-1 and 4.2.3.2.2-1 are based upon a measurement filter characteristic that is
rectangular with a width dependant upon the BS channel bandwidth.
4.2.3.2.1 ACLR requirements for 5 MHz channel bandwidth
Table 4.2.3.2.1-1: ACLR requirement for 5 MHz channel bandwidth
Adjacent channel centre frequency Minimum required ACLR Measurement filter width
relative to assigned (MHz)
channel frequency (dB)
Base station channel centre frequency 4,75
44,2
±5 MHz
Base station channel centre frequency 4,75
49,2
±10 MHz
ETSI
13 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
4.2.3.2.2 ACLR requirements for 10 MHz channel bandwidth
Table 4.2.3.2.2-1: ACLR requirement for 10 MHz channel bandwidth
Adjacent channel centre frequency Minimum required ACLR Measurement filter width
relative to assigned (MHz)
channel frequency (dB)
Base station channel centre frequency 9,5
44,2
±10 MHz
Base station channel centre frequency 9,5
49,2
±20 MHz
4.2.3.3 Conformance
Conformance tests described in clause 5.4.2 shall be carried out.
4.2.4 Transmitter spurious emissions
4.2.4.1 Definition
Transmitter spurious emissions are emissions which are caused by unwanted transmitter effects such as harmonics
emission, parasitic emission, intermodulation products and frequency conversion products, but exclude out of band
emissions. This is measured at the Base Station RF output port.
The spurious emission limits are specified in terms of general requirements in line with ITU-R Recommendation
SM.329-10 [i.7] and frequency range specific requirements to address inter-system co-existence.
4.2.4.2 Limits
4.2.4.2.1 General requirements
The requirements shall apply to both Wide Area BS and Local Area BS.
The limits of spurious emissions (or more precisely, according latest ITU-R definitions, unwanted emissions in the
spurious domain), shall conform to CEPT/ERC/REC 74-01 [2].
The following requirements in tables 4.2.4.2.1.1-1 and 4.2.4.2.1.2-1 are only applicable for frequencies, which are
greater than 250 % of the channel bandwidth (that is 12,5 MHz for the 5 MHz channel bandwidth and 25 MHz for the
10 MHz channel bandwidth) away from the centre carrier frequency. In the following fc is the center frequency of
transmit signal and f is the frequency of spurious emission.
4.2.4.2.1.1 Requirements for 5 MHz channel bandwidth
Table 4.2.4.2.1.1-1: Spurious Emission requirement for 5 MHz channel bandwidth
Segment Frequency Range Measurement Bandwidth Maximum allowed
level (dBm)
1 9 kHz ≤ f < 150 kHz 1 kHz -36
2 150 kHz ≤ f < 30 MHz 10 kHz -36
3 30 MHz ≤ f < 1 000 MHz 100 kHz -36
4 1 GHz ≤ f < 12,75 GHz 30 kHz If 12,5 ≤ |fc-f| < 50 -30
300 kHz If 50 ≤ |fc-f| < 60
1 MHz If 60 ≤ |fc-f|
ETSI
14 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
4.2.4.2.1.2 Requirements for 10 MHz channel bandwidth
Table 4.2.4.2.1.2-1: Spurious Emission requirement for 10 MHz channel bandwidth
Segment Frequency Range Measurement Bandwidth Maximum allowed level
(dBm)
1 9 kHz ≤ f < 150 kHz 1 kHz -36
2 150 kHz ≤ f < 30 MHz 10 kHz -36
3 30 MHz ≤ f < 1 000 MHz 100 kHz -36
4 1 GHz ≤ f < 12,75 GHz -30
30 kHz If 25 ≤ |fc-f| < 100
300 kHz If 100 ≤ |fc-f| < 120
1 MHz If 120 ≤ |fc-f|
4.2.4.2.2 Additional Spurious Emission Requirements
Table 4.2.4.2.2-1: Additional spurious emissions requirements for BS (Out of Band)
Band (MHz) Maximum level (dBm) Measurement bandwidth
(MHz)
791 ≤ f < 821 -52 1
-49 1
832 ≤ f < 862
876 ≤ f < 915 -51 1
-47 1
921 ≤ f < 925
925 ≤ f < 960 -52 1
-51 1
1 710 ≤ f < 1 785
1 805 ≤ f < 1 880 -52 1
-49 1
1 920 ≤ f < 1 980
2 110 ≤ f < 2 170 -52 1
-52 1
1 900 ≤ f < 1 920
2 010 ≤ f < 2 025 -52 1
-49 1
2 500 ≤ f < 2 570
2 570 ≤ f < 2 620 -52 1
-52 1
2 620 ≤ f < 2 690
NOTE 1: For 5 MHz channel bandwidth the f ranges from 2 302,5 MHz to 2 397,5 MHz.
c
NOTE 2: For 10 MHz channel bandwidth the f ranges from 2 305 MHz to 2 395 MHz.
c
4.2.4.3 Conformance
Conformance tests described in clause 5.4.3 shall be carried out.
4.2.5 Base station maximum output power
4.2.5.1 Definition
The maximum output power tolerance is the difference between the declared Pnom and the actual maximum output
power and corresponding tolerance limits.
4.2.5.2 Limits
The requirement shall apply to both Wide Area BS and Local Area BS.
In normal conditions, the measured output power, derived according to clause 5.4.4.1.2, shall remain within +2,7 dB
and -2,7 dB of the manufacturer's rated output power.
In extreme conditions, the measured output power, derived according to clause 5.4.4.1.2, shall remain within +3,2 dB
and -3,2 dB of the manufacturer's rated output power.
ETSI
15 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
4.2.5.3 Conformance
Conformance tests described in clause 5.4.4 shall be carried out.
4.2.6 Transmit intermodulation
4.2.6.1 Definition
The transmit intermodulation performance is a measure of the capability of the transmitter to inhibit the generation of
signals in its non linear elements caused by presence of the wanted signal and an interfering signal reaching the
transmitter via the antenna.
The transmit intermodulation level is the power of the intermodulation products when a modulated interference signal is
injected into the antenna connector at a mean power level of 30 dB lower than that of the mean power of the wanted
signal. The wanted signal bandwidth shall be 5 MHz and 10 MHz respectively. The interferer has the same bandwidth
as the wanted signal.
For 5 MHz channel BW, the centre frequency of the interference signal offset from the subject signal carrier centre
frequency shall be at ±5 MHz, ±10 MHz, ±15 MHz (±10 MHz, ±20 MHz, ±30 MHz for 10 MHz channel BW) but
exclude interference frequencies that are partially or completely outside of the declared operating frequency band of the
base station.
4.2.6.2 Limits
rd
With the test signal applied, the spectrum emission mask, ACLR and spurious emission requirements at the specific 3
th
and 5 order intermodulation frequencies, excluding those overlapping the interfering signal, shall continue to meet the
limits in clauses 4.2.2, 4.2.3 and 4.2.4.
4.2.6.3 Conformance
Conformance tests described in clause 5.4.5 shall be carried out.
4.2.7 Receiver spurious emissions
4.2.7.1 Definition
The spurious emissions power is the power of emissions, generated or amplified in a receiver, which appear at the BS
antenna connector. The requirements apply to all BS with separate Rx and Tx antenna port. The test shall be performed
when both Tx and Rx are on with the Tx port terminated.
For BS equipped with only a single antenna connector for both transmitter and receiver, the requirements of clause 4.2.4
Transmitter spurious emissions shall apply to this port, and this test need not be performed.
The following requirements in table 4.2.7.2-1 are only applicable for frequencies, which are greater than 250 % of the
channel bandwidth (that is 12,5 MHz for the 5 MHz channel bandwidth and 25 MHz for the 10 MHz channel
bandwidth) away from the centre carrier frequency.
4.2.7.2 Limits
The requirement shall apply to both Wide Area BS and Local Area BS.
Table 4.2.7.2-1: General receiver spurious emission requirements
Frequency band Measurement bandwidth Maximum level
100 kHz -57 dBm
30 MHz ≤ f < 1 GHz
1 MHz -47 dBm
1 GHz ≤ f ≤ 12,75 GHz
ETSI
16 Final draft ETSI EN 301 908-20 V5.2.1 (2011-07)
4.2.7.3 Conformance
Conformance tests described in clause 5
...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.IMT cellular networks - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive - Part 20: OFDMA TDD WMAN (Mobile WiMAX) TDD Base Stations (BS)33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 301 908-20 Version 5.2.1SIST EN 301 908-20 V5.2.1:2011en01-november-2011SIST EN 301 908-20 V5.2.1:2011SLOVENSKI
