ETSI TS 151 026 V13.0.0 (2016-01)

ETSI TS 1151 026 V13.0.0 (201616-01)

TECHNICAL SPECIFICATIONION
Digital cellular telecocommunications system (Phahase 2+);
Base Station Systetem (BSS) equipment specificfication;
PPart 4: Repeaters
(3GPP TS 51.0.026 version 13.0.0 Release 13 13)

R
GLOBAL SYSTTEME FOR
MOBILE COMMUUNNICATIONS
3GPP TS 51.026 version 13.0.0 Release 13 1 ETSI TS 151 026 V13.0.0 (2016-01)

Reference
RTS/TSGG-0151026vd00
Keywords
GSM
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the
print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2016.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3GPP TS 51.026 version 13.0.0 Release 13 2 ETSI TS 151 026 V13.0.0 (2016-01)

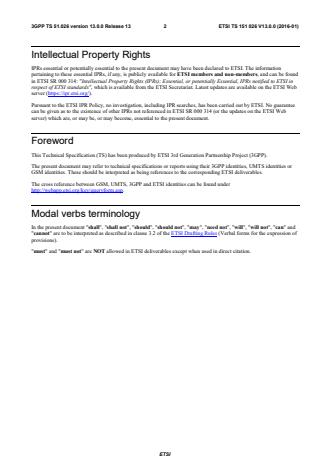

Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities, UMTS identities or
GSM identities. These should be interpreted as being references to the corresponding ETSI deliverables.
The cross reference between GSM, UMTS, 3GPP and ETSI identities can be found under
http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
3GPP TS 51.026 version 13.0.0 Release 13 3 ETSI TS 151 026 V13.0.0 (2016-01)
Contents
Intellectual Property Rights . 2
Foreword . 2
Modal verbs terminology . 2
Foreword . 5
1 Scope . 6
2 References . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 7
4 General . 7
4.1 Radio frequency bands . 8
4.2 Test environments . 8
4.2.1 Normal test environment . 8
4.2.2 Extreme test environment . 8
4.2.3 Extreme temperature . 8
4.3 Manufacturers declarations . 9
4.4 Methods of measurement . 9
5 Spurious emissions . 9
5.1 Test purpose . 9
5.2 Test case . 9
5.3 Conformance requirement . 10
5.4 Reference requirement . 11
6 Intermodulation attenuation . 11
6.1 Test purpose . 11
6.2 Test case . 11
6.3 Conformance requirement . 11
6.4 Reference requirement . 11
7 Out of band gain . 12
7.1 Test purpose . 12
7.2 Test case . 12
7.3 Conformance requirement . 12
7.4 Reference requirement . 12
8 Frequency error . 12
8.1 Test purpose . 12
8.2 Test case . 13
8.3 Conformance requirement . 13
8.4 Reference requirement . 13
9 Modulation accuracy at GMSK modulation. 13
9.1 Test purpose . 13
9.2 Test case . 13
9.3 Conformance requirement . 14
9.4 Reference requirement . 14
10 Modulation accuracy at 8-PSK, QPSK, 16-QAM, 32-QAM or AQPSK modulation . 14
10.1 Test purpose . 14
10.2 Test case . 14
10.3 Conformance requirement . 15
10.4 Reference requirement . 15
Annex A (informative): Testing of gain for part band repeaters . 16
ETSI
3GPP TS 51.026 version 13.0.0 Release 13 4 ETSI TS 151 026 V13.0.0 (2016-01)
A.1 Rationale for this test . 16
A.2 Gain outside pass band . 16
A.2.1 Test purpose . 16
A.2.2 Test case . 16
A.2.3 Conformance requirement . 16
Annex B (informative): Change history . 17
History . 18

ETSI
3GPP TS 51.026 version 13.0.0 Release 13 5 ETSI TS 151 026 V13.0.0 (2016-01)
Foreword
rd
This Technical Specification has been produced by the 3 Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI
3GPP TS 51.026 version 13.0.0 Release 13 6 ETSI TS 151 026 V13.0.0 (2016-01)
1 Scope
The present document describes the Radio Frequency (RF) tests for GSM repeaters (frequency bands according to
clause 4.1) which receive, amplify, and retransmit a received Mobile Station (MS) signal in the GSM MS transmit band
and simultaneously receive, amplify and retransmit a received Base Transceiver Station (BTS) RF signal in the
GSM BTS transmit band.
The present document is applicable to repeaters meeting the requirements of either GSM Phase 2 or GSM Phase 2+.
Unless otherwise stated, all tests are applicable to repeaters meeting Phase 2 and/or Phase 2+ GSM requirements,
because the requirements of the Phase 2 and Phase 2+ core GSM specifications which are referenced in the test are
consistent. Most differences between Phase 2 and Phase 2+ requirements represent Phase 2+ features which are optional
for the BSS to support.
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
• References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TR 21.905: "Vocabulary for 3GPP Specifications".
[2] ETS 300 019-1-0: "Equipment Engineering (EE): Environmental conditions and environmental
tests for telecommunications equipment Part 1-0; Classification of environmental conditions;
Introduction".
[3] ETS 300 019-1-3: "Equipment Engineering (EE): Environmental conditions and environmental
tests for telecommunications equipment Part 1-3; Classification of environmental conditions,
Stationary use at weather-protected locations".
[4] ETS 300 019-1-4: "Equipment Engineering (EE): Environmental conditions and environmental
tests for telecommunications equipment Part 1-4; Classification of environmental conditions,
Stationary use at non-weather-protected locations".
[5] ITU-R Rec. SM.329: "Spurious emissions".
[6] void.
[7] IEC 60068-2: "Basic environmental testing procedures: Part 2 Tests".
[8] IEC 721: "Classification of environmental conditions".
[9] 3GPP TS 51.010-1: 'Mobile Station (MS) conformity specification'.
[10] 3GPP TS 51.021: 'Base Station System (BSS) equipment specification; Radio aspects'.
[11] ETSI ETR 027: "Methods of measurement for private mobile radio equipment".
[12] ETSI ETR 028: "Uncertainties in the measurement of mobile radio equipment characteristics".
[13] 3GPP TS 45.005: "Radio transmission and reception".
ETSI
3GPP TS 51.026 version 13.0.0 Release 13 7 ETSI TS 151 026 V13.0.0 (2016-01)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
broadband repeater: repeater which is designed for operation on any combination of ARFCNs (up to a specified
maximum number) within the operating band of the repeater.
channelized repeater: repeater which is designed for operation on a specified subset of ARFCNs within the operating
band of the repeater. The subset of ARFCNs may be determined during the manufacture of the repeater, or may be
programmable.
GSM: Unless otherwise specified, references to GSM include all radio frequency bands according to clause 4.1.
operating band: the frequency range in which GSM operates.
pass band: frequency range that the repeater operates in with operational configuration.
NOTE 1: This frequency range can correspond to one or several consecutive nominal channels. If they are not
consecutive each subset of channels shall be considered as an individual pass band.
NOTE 2: A repeater can have one or several pass bands.
repeater: bi-directional Radio Frequency (RF) amplifier which can amplify and transmit a received Mobile Station
(MS) signal in the GSM MS transmit band, simultaneously it can amplify and transmit a received Base Transceiver
Station (BTS) RF signal in the GSM BTS transmit band.
repeater system using frequency shift: repeater system consisting of two different elements, a master unit close to the
BTS and at least one remote unit close to the area to be covered.
NOTE 3: The master unit amplifies the channels from the BTS and shifts them to different GSM channels. In the
remote unit the shifted channels from the master unit will be transferred back to the original channels and
amplified. This is valid for the downlink signals as well as for the uplink signals.
spurious emissions: emissions at frequencies other than those of the carrier and sidebands associated with normal
modulation and switching.
subchannel power imbalance ratio on downlink: as defined in 3GPP TS 45.004 [21].
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
BTS Base Transceiver Station
MS Mobile Station
RF Radio Frequency
SCPIR_DL Subchannel Power Imbalance Ratio on DownLink
Abbreviations used within the GSM specifications are given in 3GPP TR 21.905 [1].
4 General
A repeater can be designed to amplify the whole transmit RF band or just a part of the band. In the latter case the
repeater can be either Broadband, with frequency band selective filtering, or channelized, with channel selective
filtering.
ETSI
3GPP TS 51.026 version 13.0.0 Release 13 8 ETSI TS 151 026 V13.0.0 (2016-01)
4.1 Radio frequency bands
A repeater, as having a bi-directional amplifier capability, can amplify and transmit a received MS signal in the MS
transmit band, simultaneously it can amplify and transmit a received BTS signal in the BTS transmit band. The relevant
MS and BTS transmit bands for the present document are the MS and BTS transmit bands as defined in 3GPP
TS 45.005 [13], clause 2. A repeater is designed to operate in one or several pass bands within the MS and BTS transmit
bands as defined in 3GPP TS 45.005 [13], clause 2. In this document, such MS and BTS relevant bands are herein
referred as the repeater operating bands, as defined in clause 3.1. Repeater operating band(s) and repeater pass band(s)
are part of clause 4.3 Manufacturers declarations.
Table 1: void
NOTE: In some circumstances, for instance when an operator (or more than one operator who co-ordinate the use
of repeaters), is not allocated a complete band, it may be necessary to restrict the frequency range of
operations of repeaters. In these circumstances, the test of "Gain outside pass band" in annex A may be
used to verify the performance of the repeater.
4.2 Test environments
For each test in the present document, the environmental conditions under which the repeater is to be tested are defined.
4.2.1 Normal test environment
When a normal test environment is specified for a test, the test should be performed under any combination of
conditions between the minimum and maximum limits stated in table 2.
Table 2: Limits of conditions for Normal Test Environment
Condition Minimum Maximum
Barometric pressure 86 kPa 106 kPa
Temperature 15ºC 30ºC
Relative Humidity 20 % 85 %
Power supply Nominal, as declared by the manufacturer
Vibration Negligible
The ranges of barometric pressure, temperature and humidity represent the maximum variation expected in the
uncontrolled environment of a test laboratory. If it is not possible to maintain these parameters within the specified
limits, the actual values shall be recorded in the test report.
NOTE: This may, for instance, be the case for measurements of radiated emissions performed on an open field
test site.
4.2.2 Extreme test environment
The
...
