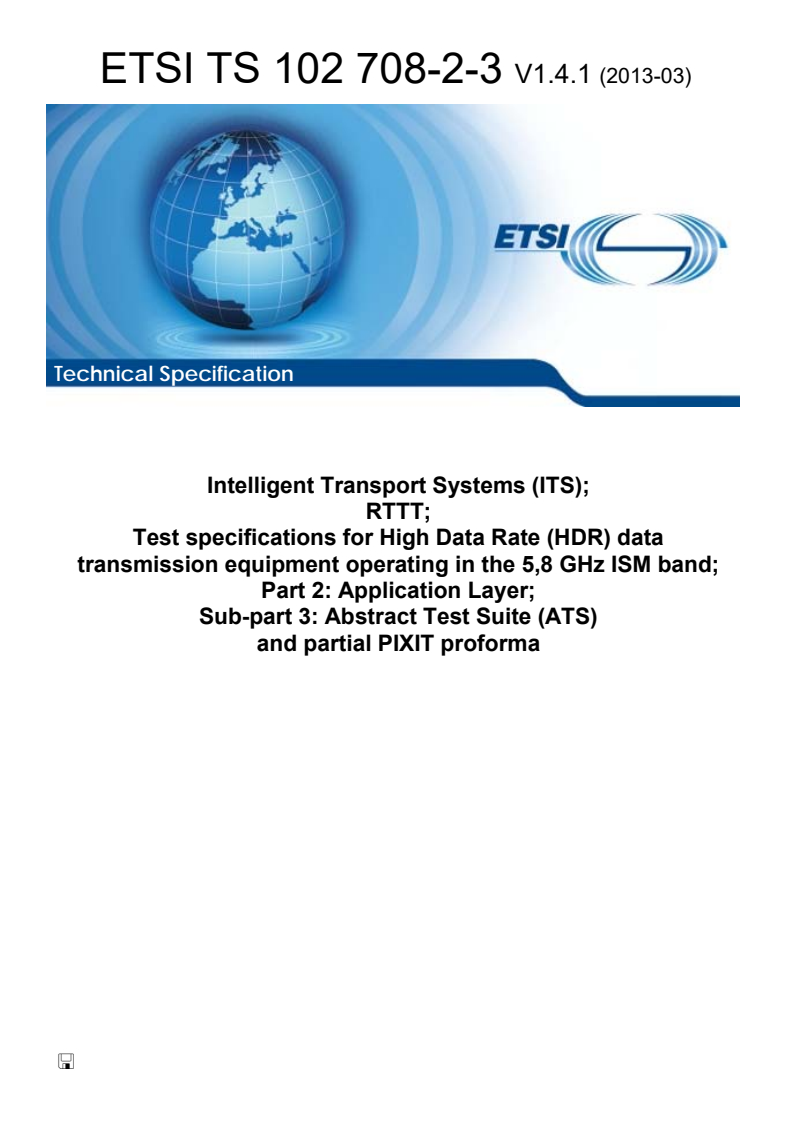

ETSI TS 102 708-2-3 V1.4.1 (2013-03)

Technical Specification
Intelligent Transport Systems (ITS);
RTTT;
Test specifications for High Data Rate (HDR) data
transmission equipment operating in the 5,8 GHz ISM band;
Part 2: Application Layer;
Sub-part 3: Abstract Test Suite (ATS)
and partial PIXIT proforma
�

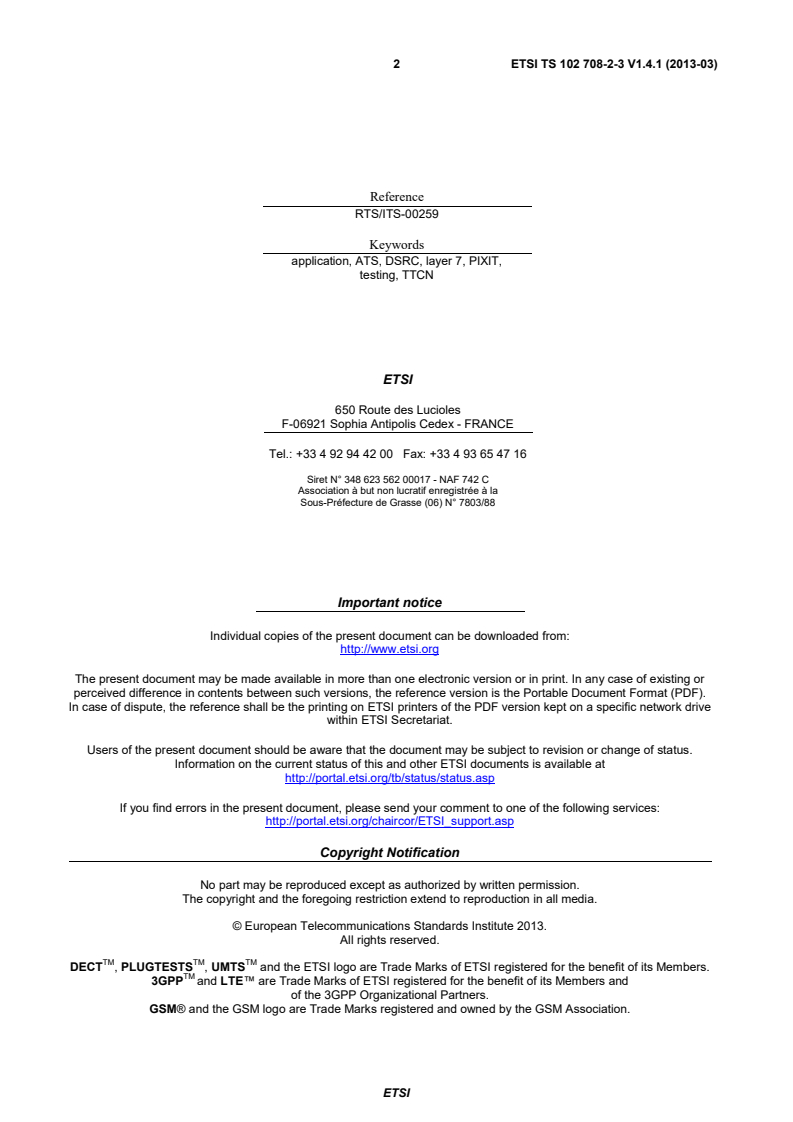

2 ETSI TS 102 708-2-3 V1.4.1 (2013-03)

Reference
RTS/ITS-00259
Keywords
application, ATS, DSRC, layer 7, PIXIT,
testing, TTCN
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2013.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TS 102 708-2-3 V1.4.1 (2013-03)
Contents
Intellectual Property Rights . 4
Foreword . 4
1 Scope . 5
2 References . 5
2.1 Normative references . 5
2.2 Informative references . 6
3 Definitions and abbreviations . 6
3.1 Definitions . 6
3.2 Abbreviations . 6
4 Abstract Test Method (ATM) . 7
4.1 Protocol layer architecture . 7
4.2 Test system architecture . 8
4.2.1 The TTCN-3 test architecture . 8
4.2.2 The HDR Application Layer test architecture . 9
4.2.3 Port mapping . 9
4.2.3.1 Mapping rules for the llc port . 9
4.2.3.2 Mapping rules for APDUs . 10
4.3 Type of SUT . 10
5 Untestable test purposes . 10
6 The ATS development process . 10
6.1 Requirements and Test Purposes . 10
6.2 Test case grouping . 11
6.3 Test case identifier. 11
6.4 ATS Library . 11
6.5 TTCN-3 naming conventions . 12
6.6 PICS information . 12
6.7 ATS archive . 12
Annex A (normative): Partial PIXIT proforma . 13
A.1 Introduction . 13
A.2 PIXIT items . 13
Annex B (informative): TTCN-3 library modules . 16
B.1 Electronic annex, zip file with TTCN-3 code . 16
History . 17

ETSI
4 ETSI TS 102 708-2-3 V1.4.1 (2013-03)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Intelligent Transport System (ITS).
The present document is part 2, sub-part 3 of a multi-part deliverable covering the test specifications for High Data Rate
(HDR) Dedicated Short Range Communication (DSRC).
Full details of the entire series can be found in part 2-1 [2].
ETSI
5 ETSI TS 102 708-2-3 V1.4.1 (2013-03)
1 Scope
The present document contains the Abstract Test Suite (ATS) and partial PIXIT proforma to test the Application layer
of ES 200 674-1 [1].
The objective of the present document is to provide test scripts for testing conformance of DSRC-HDR equipment
specified in [1] giving a high probability of inter-operability between different manufacturer's equipment.
All formal test scripts provided in the present document are based on TS 102 708-2-2 [3].
The ISO standard for the methodology of conformance testing (ISO/IEC 9646-1 [4], ISO/IEC 9646-2 [5] and
ISO/IEC 9646-5 [6]), ETS 300 406 [7] and ES 201 873-1 [8] specifying the TTCN-3 core language are used as a basis
for the test methodology.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI ES 200 674-1: "Intelligent Transport Systems (ITS); Road Transport and Traffic Telematics
(RTTT); Dedicated Short Range Communications (DSRC); Part 1: Technical characteristics and
test methods for High Data Rate (HDR) data transmission equipment operating in the 5,8 GHz
Industrial, Scientific and Medical (ISM) band".
[2] ETSI TS 102 708-2-1: "Intelligent Transport Systems (ITS); RTTT; Test specifications for High
Data Rate (HDR) data transmission equipment operating in the 5,8 GHz ISM band;
Part 2: Application Layer; Sub-Part 1: Protocol Implementation Conformance Statement (PICS)
proforma specification".
[3] ETSI TS 102 708-2-2: "Intelligent Transport Systems (ITS); RTTT; Test specifications for High
Data Rate (HDR) data transmission equipment operating in the 5,8 GHz ISM band;
Part 2: Application Layer; Sub-Part 2: Test Suite Structure and Test Purposes (TSS&TP)".
[4] ISO/IEC 9646-1 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 1: General concepts".
[5] ISO/IEC 9646-2 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 2: Abstract Test Suite specification".
[6] ISO/IEC 9646-5 (1994): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 5: Requirements on test laboratories and clients for the
conformance assessment process".
[7] ETSI ETS 300 406: "Methods for testing and Specification (MTS); Protocol and profile
conformance testing specifications; Standardization methodology".
[8] ETSI ES 201 873-1: "Methods for Testing and Specification (MTS); The Testing and Test Control
Notation version 3; Part 1: TTCN-3 Core Language".
ETSI
6 ETSI TS 102 708-2-3 V1.4.1 (2013-03)
[9] ETSI ES 201 873-5: "Methods for Testing and Specification (MTS); The Testing and Test Control
Notation version 3; Part 5: TTCN-3 Runtime Interface (TRI)".
[10] ETSI ES 201 873-6: "Methods for Testing and Specification (MTS); The Testing and Test Control
Notation version 3; Part 6: TTCN-3 Control Interface (TCI)".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TS 102 708-1-3: "Intelligent Transport Systems (ITS); RTTT; Test specifications for High
Data Rate (HDR) data transmission equipment operating in the 5,8 GHz ISM band; Part 1: Data
Link Layer; Sub-Part 3: Abstract Test Suite (ATS) and partial PIXIT proforma".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in ES 200 674-1 [1], ISO/IEC 9646-1 [4],
ISO/IEC 9646-2 [5], ES 201 873-1 [8] and the following apply:
Abstract test case: Refer to ISO/IEC 9646-1 [4].
Abstract Test Method (ATM): Refer to ISO/IEC 9646-1 [4].
Abstract Test Suite (ATS): Refer to ISO/IEC 9646-1 [4].
Implementation Under Test (IUT): Refer to ISO/IEC 9646-1 [4].
Lower Tester (LT): Refer to ISO/IEC 9646-1 [4].
Test Purpose (TP): Refer to ISO/IEC 9646-1 [4].
3.2 Abbreviations
For the purposes of the present document, the abbreviations given in ES 200 674-1 [1], ISO/IEC 9646-1 [4],
ISO/IEC 9646-2 [5], ES 201 873-1 [8] and the following apply:
AL Application Layer
APDU Application Protocol data Unit
ASN.1 Abstract Syntax Notation 1
ATS Abstract Test Suite
DLL Data Link Layer
FCS Frame Check Sequence
IUT Implementation Under Test
LLC Link Layer Control
LPDU Link Protocol data Unit
LSB Least Significant Bit
MSB Most Significant Bit
OBU On Board Unit
PDU Protocol Data Unit
PHY Physical (Layer)
PICS Protocol Implementation Conformance Statement
PIXIT Partial Protocol Implementation Extra Information for Testing
RSU Road Side Unit
SUT System under Test
TC Test Case
TP Test Purpose
ETSI
7 ETSI TS 102 708-2-3 V1.4.1 (2013-03)
TS Test System
TSS Test Suite Structure
TTCN Testing and Test Control Notation
TTCN-3 Testing and Test Control Notation version 3
4 Abstract Test Method (ATM)
This clause describes the ATM used to test TS 102 708-2-2 [3].
4.1 Protocol layer architecture
The implementation under test is the Application layer of ES 200 674-1 [1]. The System under test includes also the
PHY layer and the LLC layer, which are necessary to perform the IUT tests.
The tester executes the TTCN-3 scripts of the present document, running on an emulated PHY layer.

Figure 1: Protocol layer architecture
Table 1 shows the Application Test Suite Structure (TSS) including its subgroups defined for the conformance testing.
Table 1: Test suite structure for DSRC-HDR application layer
Group Type of system under test (SUT) Behaviour
Kernel unit On Board Unit Valid behaviour
Invalid behaviour
Road Side Unit Valid behaviour
Read access On Board Unit Valid behaviour
Invalid behaviour
Road Side Unit Valid behaviour
Write access On Board Unit Valid behaviour
Invalid behaviour
Road Side Unit Valid behaviour
Optional functionality On Board Unit Valid behaviour
Invalid behaviour
Road Side Unit Valid behaviour
Security On Board Unit Valid behaviour
Invalid behaviour
Road Side Unit Valid behaviour
Invalid behaviour
Integrity constraints On Board Unit Invalid behaviour

ETSI
8 ETSI TS 102 708-2-3 V1.4.1 (2013-03)
4.2 Test system architecture
4.2.1 The TTCN-3 test architecture
An abstract architecture for a test system (TS) implementing a TTCN-3 ATS is displayed in figure 2 and also stated in
ES 201 873-5 [9].
Test Management (TM)
Test Control (TC) Test Logging (TL)

TCI
TTCN-3 Executable (TE)
TTCN-3 Runtime System (T3RTS)
Executable Test Suite (ETS)
Encoding/Decoding System
TRI
SUT Adapter (SA) Platform Adapter (PA)

Figure 2: The TTCN-3 Abstract Test System Architecture
A TS has two interfaces, the TTCN-3 Control Interface (TCI) and the TTCN-3 Runtime Interface (TRI), which specify
the interface between Test Management (TM) and TTCN-3 Executable (TE) entities, and TE, SUT Adapter (SA) and
Platform Adapter (PA) entities, respectively. Out of these two interfaces the TRI has been standardized in
ES 201 873-5 [9], whereas the specification and implementation of the TCI is in
...
