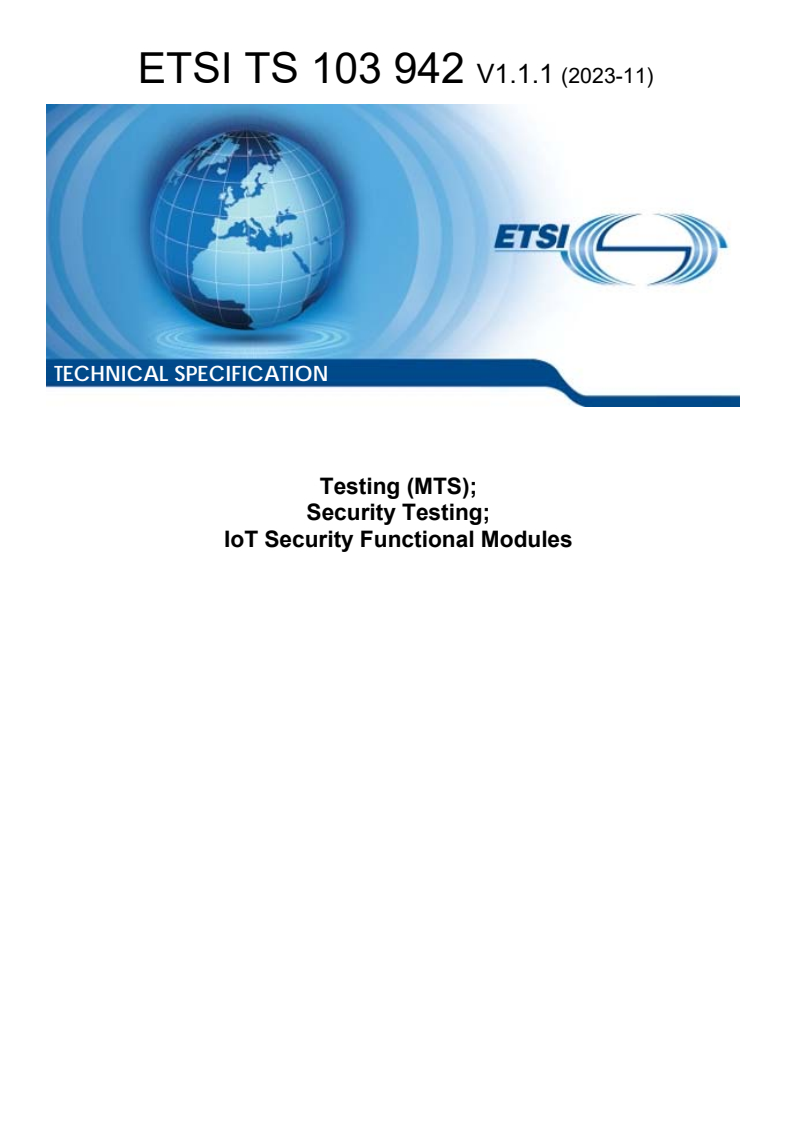

ETSI TS 103 942 V1.1.1 (2023-11)

TECHNICAL SPECIFICATION
Testing (MTS);
Security Testing;
IoT Security Functional Modules

2 ETSI TS 103 942 V1.1.1 (2023-11)

Reference
DTS/MTS-TST10SecTest_IoTmodule
Keywords
IoT, security, TDL, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
https://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure Program:
https://www.etsi.org/standards/coordinated-vulnerability-disclosure
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2023.
All rights reserved.
ETSI
3 ETSI TS 103 942 V1.1.1 (2023-11)

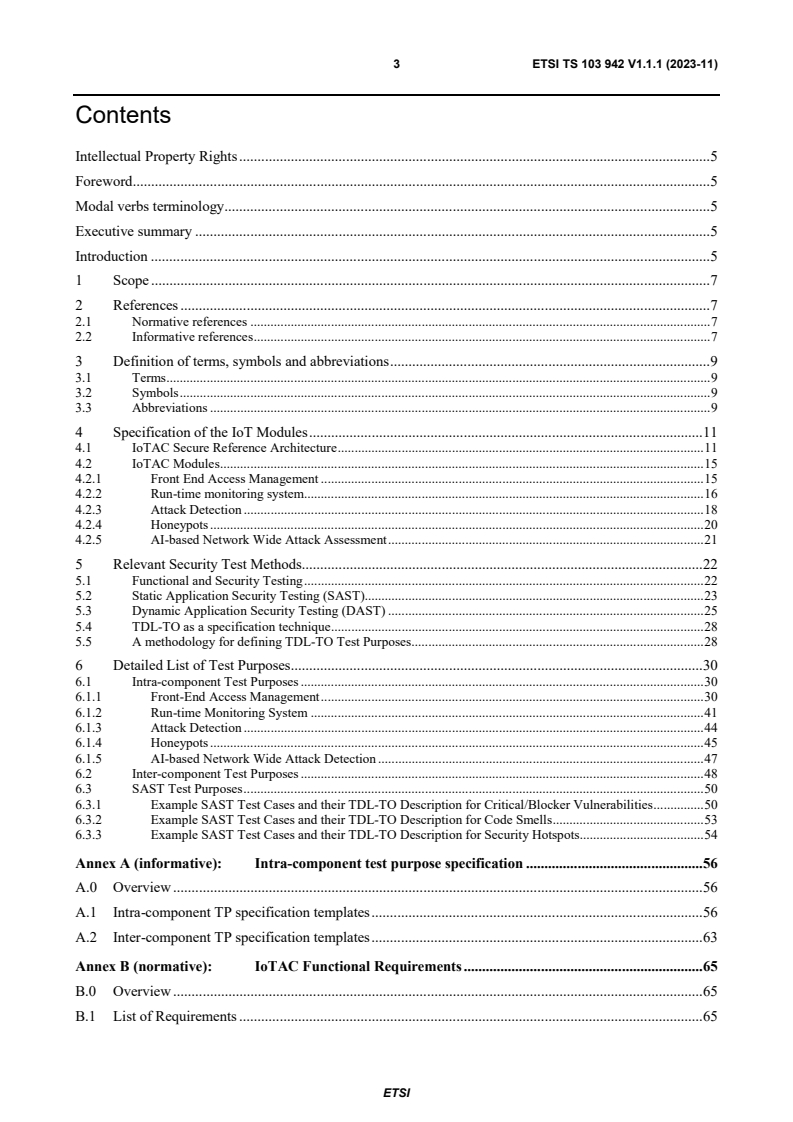

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Executive summary . 5
Introduction . 5
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 9
3.1 Terms . 9
3.2 Symbols . 9
3.3 Abbreviations . 9
4 Specification of the IoT Modules . 11
4.1 IoTAC Secure Reference Architecture . 11
4.2 IoTAC Modules . 15
4.2.1 Front End Access Management . 15
4.2.2 Run-time monitoring system. 16
4.2.3 Attack Detection . 18
4.2.4 Honeypots . 20
4.2.5 AI-based Network Wide Attack Assessment . 21
5 Relevant Security Test Methods . 22
5.1 Functional and Security Testing . 22
5.2 Static Application Security Testing (SAST). 23
5.3 Dynamic Application Security Testing (DAST) . 25
5.4 TDL-TO as a specification technique . 28
5.5 A methodology for defining TDL-TO Test Purposes . 28
6 Detailed List of Test Purposes . 30
6.1 Intra-component Test Purposes . 30
6.1.1 Front-End Access Management . 30
6.1.2 Run-time Monitoring System . 41
6.1.3 Attack Detection . 44
6.1.4 Honeypots . 45
6.1.5 AI-based Network Wide Attack Detection . 47
6.2 Inter-component Test Purposes . 48
6.3 SAST Test Purposes . 50
6.3.1 Example SAST Test Cases and their TDL-TO Description for Critical/Blocker Vulnerabilities . 50
6.3.2 Example SAST Test Cases and their TDL-TO Description for Code Smells . 53
6.3.3 Example SAST Test Cases and their TDL-TO Description for Security Hotspots. 54
Annex A (informative): Intra-component test purpose specification . 56
A.0 Overview . 56
A.1 Intra-component TP specification templates . 56
A.2 Inter-component TP specification templates . 63
Annex B (normative): IoTAC Functional Requirements . 65
B.0 Overview . 65
B.1 List of Requirements . 65
ETSI
4 ETSI TS 103 942 V1.1.1 (2023-11)
History . 72

ETSI
5 ETSI TS 103 942 V1.1.1 (2023-11)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Methods for Testing and
Specification (MTS).
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Executive summary
The present document aims to provide a comprehensive and informative guide for individuals engaged in security
testing of Internet of Things (IoT) infrastructures. It covers relevant security testing techniques and offers practical
recommendations by defining TDL-TO [2] test objectives applicable across multiple industrial domains.
Introduction
With the rapid rise of interconnected devices in the Internet of Things (IoT), robust security measures have become
increasingly significant. Comprehensive security testing of IoT functional modules is imperative to protect sensitive
data and prevent potential vulnerabilities. In this regard, the present technical specification intends to support IoT
developers and users interested in conducting security testing of IoT functional modules. It offers valuable insights into
the testing aspects critical to IoT architectures used across various industrial domains.
ETSI
6 ETSI TS 103 942 V1.1.1 (2023-11)
The present document covers three foundational areas of testing for IoT architectures:
• Functional Security Testing;
• Static Application Security Testing (SAST); and
• Dynamic Application Security Testing (DAST).
The testing approach presented herein is designed to be versatile and applicable to diverse IoT architectures,
irrespective of their specific domain. However, it mainly focuses on the IoTAC System Architecture, which is based on
the proposed IoTAC Reference Architecture [i.9]. The IoTAC Reference Architecture builds upon the
ISO/IEC 30141 [1] IoT Reference Architecture and addresses known security vulnerabilities.
The present document is structured as follows:
• Clause 4 presents the IoTAC Secure Reference Architecture and explains the key modules and components
within the IoTAC System Architecture.
• Clause 5 introduces applicable security testing methods and foundational functional, SAST, and DAST
principles. Besides, it provides a well-rounded methodology for transforming functional and SAST test cases
into TDL-TO test purposes. This step-by-step methodology ensures practitioners can seamlessly convert their
functional and SAST test cases into TDL-TO test purposes, aligning their testing efforts with the structured
and formalized approach TDL-TO offers.
• Clause 6 offers concrete examples of intra and inter-component test purposes using the standardized Test
Description Language (TDL) defined by ETSI ES 203 119-4 [2].
• Annex A showcases intra and inter-component test objectives as specified within the scope of the IoTAC
project and documented in [i.14] and [i.15].
• Annex B outlines the related requirements from [i.15] that are associated with the test objectives.

ETSI
7 ETSI TS 103 942 V1.1.1 (2023-11)
1 Scope
The scope of the present document is designed to guide users and developers involved in the security testing of IoT
systems. While the testing approach described is primarily tailored to the IoTAC System Architecture, it can be
adaptable to various IoT domains. The present document covers essential aspects of testing, including Functional
Testing, Static Application Security Testing (SAST), and Dynamic Application Security Testing (DAST).
Furthermore, it proposes a methodology for translating functional and SAST test cases into TDL-TO test purposes. The
proposed methodology offers a systematic approach, guiding practitioners through analysing functional test case
specifications, mapping the relevant information to TDL-TO concepts, and customizing the SAST ruleset to align with
TDL-TO descriptions. By adopting this methodology, organizations can ensure consistency and effectiveness in
translating functional and security test cases into TDL-TO test purposes, thereby enhancing the efficiency of their
testing processes.
The present document goes beyond a theoretical discussion of testing principles by including concrete examples of intra
and inter-component Test Purposes (TPs) using TDL-TO [2] as a specification language. It provides tangible
applications for developers and users interested in IoT security testing to understand the testing approach better and see
how it can be applied in practice.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or non-
specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long-term validity.
The following referenced documents are necessary for the application of the present document.
[1] ISO/IEC 30141:2018: "Internet of Things (IoT) - Reference Architecture".
[2] ETSI ES 203 119-4 (V1.5.1): "Methods for Testing and Specification (MTS); The Test
Description Language (TDL); Part 4: Structured Test Objective Specification (Extension)".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EN 303 645 (V2.1.1) (2020-06): "CYBER; Cyber Security for Consumer Internet of Things:
Baseline Requirements".
[i.2] ETSI ES 203 119-1 (V1.6.1) (2022-05): "Methods for Testing and Specification (MTS); The Test
Description Language (TDL); Part 1: Abstract Syntax and Associated Semantics".
ETSI
8 ETSI TS 103 942 V1.1.1 (2023-11)
[i.3] ETSI 203 119-2 (V1.5.1) (2022-05): "MTS; The Test Description Language (TDL);
Part 2: Graphical Syntax".
[i.4] ETSI 203 119-3 (V1.6.1) (2022-05): "MTS; The Test Description Language (TDL);
Part 3: Exchange Format".
[i.5] ISO/IEC 19508:2014(E): "Information Technology - Object Management Group Meta Object
Facility (MOF) Core".
[i.6] OMG (2012-01): "OMG Object Constrained Language (OCL)", (V2.3.1) (2012-01).
[i.7] ETSI ES 202 553 (V1.2.1) (2009-06): "Methods for Testing and Specification (MTS); TPLan: A
notation for expressing Test Purposes".
[i.8] ETSI ES 201 873-1 (V4.10.1) (2018-05): "Methods for Testing and Specification (MTS); The
Testing and Test Control Notation version 3; Part 1: TTCN-3 Core Language".
[i.9] IoTAC project Deliverable D2.3: "Architecture Design Document", Public Deliverable,
February 2022.
[i.10] OWASP: "Static Code Analysis (SCA)".
[i.11] OWASP: "Application Security Verification Standard (ASVS)", March 2019.
[i.12] ETSI TS 103 701 (V1.1.1) (2021-08): "CYBER; Cyber Security for Consumer Internet of Things:
Conformance Assessment of Baseline Requirements".
[i.13] IoTAC Project Deliverable D6.2: "Definition of the Development Integration Environment and
KPIs", Public, August 2021.
[i.14] IoTAC project Deliverable D6.3: "Integration and Testing of the IoTAC Architecture",
Confidential, March 2023.
[i.15] IoTAC project Deliverable D2.2: "Requirements and use-cases specification", Confidential,
August 2021.
[i.16] TDL Open Source Project (TOP).
[i.17] OWASP Top Ten 2017: "A3:2017-Sensitive Data Exposure".
[i.18] OWASP Top Ten 2017: "A6:2017-Security Misconfiguration".
[i.19] MITRE, CWE-326: "Inadequate Encryption Strength".
[i.20] MITRE, CWE-327: "Use of a Broken or Risky Cryptographic Algorithm".
[i.21] CWE/SANS Top 25: "Porous Defences".
[i.22] OWASP: "IoT Security Verification Standard (ISVS)", October 2019.
[i.23] OWASP: "Cheat Sheet Series - Password Storage Cheat Sheet".
[i.24] MITRE, CWE-328: "Use of Weak Hash".
[i.25] MITRE, CWE-916: "Use of Password Hash with insufficient effort computation".
[i.26] OWASP Top Ten 2017: "A2:2017 - Broken Authentication".
[i.27] MITRE, CWE-521: "Weak Password Requirements".
[i.28] Sonar Rules, Python Static Code Analysis - Code Smell RSPEC-3516.
[i.29] Sonar Rules, Phyton Static Code Analysis - Code Smell RSPEC-2387.
[i.30] MITRE, CWE-798: "Use of hard-coded credentials".
[i.31] MITRE, CWE-256: "Use of hard-coded password".
ETSI
9 ETSI TS 103 942 V1.1.1 (2023-11)
[i.32] MITRE, CWE-338: "Use of Cryptographically Weak Pseudo-Random Number Generator
(PRNG)".
[i.33] MITRE, CWE-330: "Use of Insufficiently Random Values".
[i.34] CERT, MSC02-J: "Generate strong random numbers".
[i.35] CERT, MSC30-C: "Do not use the rand() function for generating pseudorandom numbers".
[i.36] CERT, MSC50-CPP: "Do not use std::rand() for generating pseudorandom numbers".
[i.37] OWASP Top 10-2021.
[i.38] CVE-2019-13466.
[i.39] CVE-2018-15389.
[i.40] CVE-2013-6386.
[i.41] CVE-2006-3419.
[i.42] CVE-2008-4102.
[i.43] Java Design Patterns.
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
black-box testing: testing without an understanding of the system's internal structure
Dynamic Application Testing (DAST): testing methodology that analyses a running application for potential security
vulnerabilities during execution
functional security testing: verification of a software's security mechanisms to ensure they operate as expected and
safeguard the system
reference architecture: blueprint providing shared terminology and reusable design to guide specific architectural
developments
Static Application Testing (SAST): testing methodology that analyses the source code of the application for potential
security vulnerabilities without actually executing the application
system under test: real, open system that contains the implementation under test
white-box testing: testing components or systems internally by analysing their internal structures
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AADRNN Auto-Associative DRNN
AD Attack Detection
ADT Attack Detection Training
AI Artificial Intelligence
ETSI
10 ETSI TS 103 942 V1.1.1 (2023-11)
AID Application ID
APDU Application Protocol Data Unit
API Application Programming Interface
AR Automatic Reconfiguration
ARNN Adversarial Random Neural Network
ASD Application and Service Domain
ASIC Application Specific Integrated Circuit
ASVS Application Security Verification Standard
BSS Business Support Systems
CA Certification Authority
CI Continuous Integration
CIN Card Identity Number
CLI Command Line Interface
CS Certificate Server
CSR Certification Signing Request
CWE Common Weakness Enumeration
DAST Dynamic Application Security Testing
DB Data Base
DDoS Distributed Denial of Service
DoS Denial of Service Attack
DPE Data Processing Engine
DR Data Routing
DRNN Dense Random Neural Network
FEAM Front-End Access Management
FPGA Field Programmable Gate Array
FPGA Field Programmable Gate Array
FTP Functional Test Purposes
GP Get Parameters
GPU Graphics Processing Unit
HP Honeypot
HTTP Hypertext Transfer Protocol
ID Identifier
IDD Infected Device Detection
IDE Integrated Development Environment
IoT Internet of Things
IP/MAC Internet Protocol/Medium Access Control
ISO International Organization for Standardization
ISVS IoT Security Verification Standard
JSON JavaScript Object Notation
JWT JSON Web Token
KPI Key Performance Indicator
LDAP Lightweight Directory Access Protocol
LR Likelihood Ratio
ML Machine Learning
MOF Meta-Object Facility
MPPE Multi-Purpose Processing Engine
MTS ETSI Technical Committee - Methods for Testing and Specification
N/A Not Applicable
NWAA Network Wide Attack Assessment
NWAD Network Wide Attack Detection
OCL Object Constrained Language
OMD Operation and Management Domain
OSS Operational Support Systems
OTP One Time Password
OWASP Open Web Application Security Project
PBKDF2 Password-Based Key Derivation Function 1 and 2
PED Physical Entities Domain
PHP Hypertext Preprocessor
PICS Protocol Implementation Conformance Statement
PMC Probe Management and Configuration
PR Probe Registry
PRNG Pseudorandom Number Generation
ETSI
11 ETSI TS 103 942 V1.1.1 (2023-11)
RA Reference Architecture
RAID Resource and Interchange Domain
RM Reference Model
RMS Run-time Monitoring System
RNG Random Number Generation
RNN Random Neural Network
SAST Static Application Security Testing
SCA Static Code Analysis
SCD Sensing and Controlling Domain
SDK Software Development Kit
SG Security Gateway
SHA Secure Hash Algorithm
SP Set Parameters
SQL Standard Query Language
SSA Server Secure Application
S-SDLC Secure Software Development Lifecycle
SSH Secure Shell Protocol
SSL Secure Socket Layer
SUT System Under Test
TC Technical Committee
TDL Test Description Language
TDL-TO TDL Test Objective
TISTQB International Software Testing Qualifications Board
TLS Transport Layer Security
TO Test Objective
TOP TDL Open Source Project
TP Test Purpose
TPLan Test Purpose Language
TTCN-3 Testing and Test Control Notation version 3
UD User Domain
UML Unified Modelling Language
VM Virtual Machine
XF Exchange Format
XSS Cross-Site Scripting
4 Specification of the IoT Modules
4.1 IoTAC Secure Reference Architecture
ISO/IEC 30141 [1] provides a comprehensive and flexible framework that organizations can use to design and
implement secure IoT systems in various domains. Its international recognition and emphasis on risk management make
it a reliable choice for organizations looking to deploy secure IoT solutions. Despite this, ISO/IEC 30141 [1] does not
address security aspects sufficiently since it only offers high-level security recommendations and guidelines. The
IoTAC project proposes a Secure IoT Reference Architecture based on the ISO/IEC 30141 [1] RA to solve this problem
[i.9]. In Figure 1, the extended ISO/IEC 30141 [1] Domain-based Reference Model illustrates the mapping of newly
introduced IoTAC components to their corresponding domains.
ETSI
12 ETSI TS 103 942 V1.1.1 (2023-11)

Figure 1: Extended ISO/IEC 30141 [1] Reference Model (RM)
The Physical Entities Domain (PED) defines all physical objects that are part of IoT systems, including sensors,
actuators, and devices, as illustrated in Figure 2.
The Sensing and Controlling Domain (SCD) bridges the digital and physical worlds, encompassing sensors that
monitor various aspects of PED and manipulating actuators. Additionally, the SCD incorporates IoT gateways, local
data stores, and services to facilitate efficient data processing and system control, see ISO/IEC 30141 [1]. The IoTAC
Reference Architecture (RA) introduces the following components to the SCD: IoT Security Gateway, AI-based Attack
Detection, AI-based Network Wide Attack Assessment (NWAA), Honeypots and FEAM Gateway:
• The IoT Security Gateway is a secure entry point for IoT devices in an enterprise network, protecting
sensitive data from potential threats. It performs various functions, such as receiving, verifying, and
distributing sensor messages and relaying control commands to actuators. Its primary tasks include receiving
and scanning messages from sensors and devices. Besides, it logs security events, detects intrusions within the
internal network, ensures device cybersecurity, and provides control methods for connected devices. The
gateway has robust encryption techniques to safeguard sensitive data and prevent unauthorized access.
Additionally, it enforces security policies and controls data flow to minimize attack surfaces, enhancing
system security.
• The AI-based Attack Detection uses the Dense Random Neural Network (DRNN) model and network
metrics derived from the network traffic measurements to ensure IoT security. It detects malicious activity by
learning normal communication patterns among IoT devices, detecting deviations, and sending Threat
Notification messages through the IoT Security Gateway.
• The AI-based Network Wide Attack Assessment (NWAA) begins by conducting a security assessment of
each device in the IoT network to provide a comprehensive evaluation of the system's security.
• The Honeypots employ advanced anomaly detection algorithms to redirect attackers toward isolated
environments and monitor their behaviour, facilitating early identification of potential intrusions and
underlying causes of attacks.
• The FEAM Gateway is an integral Front-end Access Control Management system component. Its primary
function is to serve as an intermediary between the protected device or system and the FEAM Management
module. In this capacity, it assumes responsibility for regulating access to the protected system. By providing
an additional layer of security, the FEAM Gateway ensures that only authorized users and devices are granted
access to the system.
ETSI
13 ETSI TS 103 942 V1.1.1 (2023-11)
The Resource and Interchange Domain (RAID) includes all the functions required to access the IoT system
resources, see ISO/IEC 30141 [1]:
• The Front-End Access Management (FEAM) component represents an innovative capability-based access
control system that fulfils the requirements of the Zero Trust concept in CWE/SANS Top 25 [i.21]. It relies on
using smart cards to store sensitive data, digital signatures and certificates, multi-factor authentication, and
fine-grained privileged access management. Additionally, it adheres to the principle of least privilege on a
session level. One novel feature of FEAM is the separation, both in time and space, of the delegation of access
privileges from authentication and authorization processes.
The Operation and Management Domain (OMD) contains functional components responsible for the overall
management of the IoT system. According to the ISO/IEC 30141 [1] RA, the OMD consists of two primary functional
components: Operational Support Systems (OSS) and Business Support Systems (BSS). In addition, the IoTAC Secure
RA proposes the introduction of an additional RMS component:
• The Run-time Monitoring System (RMS) provides a real-time service that collects security-related data
from monitored IoT system components or applications and stores it for subsequent processing. The system
employs analytics algorithms to analyse the collected data, intending to detect abnormal patterns. The RMS
collects and publishes data to the monitoring platform using monitoring probes.
The Application and Service Domain (ASD) represents the collection of functions implementing application and
service logic that realizes specific business functionalities for the service providers in the ASD, see ISO/IEC 30141 [1].
Data Bus, Observational Repository, and Attack Detection Repository were identified as essential IoTAC components
during the system analysis phase:
• The Data Bus is a communication channel that routes all real-time data within IoTAC's platform. The
platform supports publish-subscribe functionality, enabling users to push their data or subscribe to receive data
that meet their needs. IoTAC's Data Bus facilitates real-time data exchange among various components.
• The Observational Repository is a repository that allows the permanent storage of data from the IoTAC
platform that is monitored or processed.
• The Attack Detection Repository hosts both the offline-trained version of the AD model for parameter
storage and the online-trained version for performance evaluation.
• The User Domain (UD) includes all users interacting with the IoT system through various interfaces.
Figure 2 illustrates the elaborated IoTAC Domain-based Reference Model indicating the information flow between the
components. The IoTAC runtime components produce results aligned with Threat Reporting messaging schemes, as
shown in Figure 2. Threat Reports are then published to the Data Bus within the ASD using a publish/subscribe
function. By subscribing to these messages, a reporting dashboard or any third-party application can display Threat
Reports to end users or facilitate their further processing. More information can be found in the public IoTAC
Deliverable D2.3 Architecture Design Document [i.9].
ETSI
14 ETSI TS 103 942 V1.1.1 (2023-11)

Figure 2: IoTAC Domain-based Reference Model (detailed view) [i.9]
ETSI
15 ETSI TS 103 942 V1.1.1 (2023-11)
4.2 IoTAC Modules
4.2.1 Front End Access Management
The Front-end Access Management Module is a novel capability-based access control system. In this system, the
responsibility of authorizing transactions and authenticating users is delegated to the front end, which refers to the
secure element of the user. Upon registration with the access management system, users are assigned a set of privileges
or rights to perform specific functions. These privileges are loaded into the User Secure Application, which is a smart
card application running on the user's chip card. When a user initiates a transaction, the request is sent to the secure
application. If the transaction request matches one of the stored privileges, the transaction is authorized; otherwise, it is
rejected. The authorization is then prepared as a JSON Web Token (JWT) signed in the secure application. The JWT is
sent to the FEAM Gateway module, which is embedded or integrated into the protected device. The validity of the
signature is verified, and the command may be executed without the local device knowing any personal or privileged
information. The FEAM module includes several core components, such as the Client Application, FEAM SDK, User
Secure Application, Management Module, and FEAM Gateway module, as shown in Figure 3. The key functionalities
and interfaces of the components are described briefly in Table 1 and Table 2 respectively, while more details are
available in Deliverable D2.3 [i.9].

Figure 3: Front End Access Management Component Diagram [i.9]
Table 1: Front End Access Management Core Components
No Component Description
1 Client Application It is a mobile or desktop application used by the user of the FEAM system.
2 FEAM SDK It manages all communication with the User Secure Application, Management and
FEAM Gateway modules.
3 User Secure Application It runs on a user-secure element, stores keys and user credentials, authenticates
the user, and authorizes all operations.
4 Management Module It encompasses the business logic and manages the workflow of the FEAM
module. Specifically, it keeps track of all the users and all their privileges, defines
the constraints of the privileges, and keeps a log of each operation.
5 FEAM Gateway Module It is the entry point to the protected system; it validates the tokens in the
commands and allows or rejects access based on the validation result.

ETSI
16 ETSI TS 103 942 V1.1.1 (2023-11)
Table 2: Front End Access Management Interface Specification
No API Description Type
1 FEAM SDK API This API provides an asynchronous connection to the host application. It Provided
implements the Callback design pattern [i.43].
2 User Secure This API provides access to the User Secure Application using Application Provided
Application API Protocol Data Unit (APDU) commands to authorize User Commands.
3 Management This API provides GET, POST, PUT, and DELETE requests to a client to Provided
Module (MM) manipulate the system's Users and Privileges or the System's configuration
API settings. The Management module checks every incoming Command and only
processes valid and correct ones.
4 FEAM Gateway This API sends the Commands for Protected systems with the IoTAC-specific Provided
Module API information and format. The Gateway module extracts the information and
verifies the Command by checking the header content and the Token in the
requests. The Gateway refuses every invalid or unauthorized Command and
forwards the correct ones to the addressed protected system.
5 MM DB API Management Module DB API is responsible for providing access to the Provided
database of the Admin Module DB, allowing insertion, modification, and deletion
of admin data.
6 SSA API Server Secure Application API is responsible for providing access to the Server Provided
Secure Application using APDU commands to authorize admin Commands to
FEAM Gateway modules.
7 CA CS API The CA Certificate Server API is a REST API providing a POST request to the Provided
Admin module to receive a Certification Signing Request (CSR) and create a
certificate based on the received data.
8 FEAM Gateway This API is responsible for providing access to the FEAM Gateway database, Provided
DB API allowing insertion, modification, and deletion of User blacklist data. The
Resource server provides a POST REST API, which the Management module
can call to block Users on a Resource server.

4.2.2 Run-time monitoring system
Runtime Monitoring System (RMS) is a comprehensive framework for data collection that offers the specifications
and necessary implementation to enable real-time data collection, transformation, filtering, and management service. Its
purpose is to support data consumers, including analytics algorithms responsible for detecting attacks and other
third-party applications that report abnormal behaviour using real-time or historical data. The framework is highly
versatile and can be applied to IoT environments supporting solutions in various domains, including industrial and
cybersecurity. For instance, the solution can be used to gather security-related data from monitored IoT systems,
including network, system, and proprietary data, among others, and store it for detecting patterns of abnormal behaviour
by applying simple mechanisms like filtering and pre-processing. The design of the framework is underpinned by
configurability, extensibility, dynamic setup, and stream handling capabilities. One of the framework's key features is
that it is detached from the underlying infrastructure by employing a specialized data model for modelling the solution's
Data Sources, Processors, and Results, which facilitates the offered solution's data interoperability, discoverability, and
configurability. The module includes six core components: Probe Management & Configuration, Probe Registry, MPPE
Registry, Automatic Reconfiguration, Data Routing, and Multipurpose Processing Engine as illustrated in Figure 4. The
core components of the RMS are described in Table 3, while interfaces are outlined in Table 4. Further details about the
RMS are available in Deliverable D2.3 [i.9].
ETSI
17 ETSI TS 103 942 V1.1.1 (2023-11)

Figure 4: Run-time Monitoring System [i.9]
Table 3: Run-time Monitoring System Core Components
No Component Description
1 Probe Management It manages and configures deployed probes. It can receive automatic probe
and Configuration configuration commands and configure the managed probes accordingly. A manual
probe configuration is possible via the Management and Configuration dashboard.
2 Multi-purpose It enables wrapping of available algorithms to enable their management and data
Processing Engine compatibility (input/output) with the Runtime Monitoring System. MPPE utilizes a
(MPPE) proprietary configuration API and data model, which provides information on the
processor description, instantiation, and dataflow configuration.
3 Data Routing It enables the annotation and routing of incoming data streams.
4 Probe Registry It maintains a record of the deployed probes. Probe deployment data, as well as state
and configuration data, are maintained by the registry. The registry provides probe
creation, reconfiguration, and search capabilities. It facilitates the automatic
deployment of probes and their dynamic discovery.
5 Automatic It receives abnormal behaviour reports for the monitored system and sends automatic
Reconfiguration probe re-configuration commands based on a predefined scenario.
6 Probe It collects data from the target IoT system or application and streams it to the RMS
platform through the data routing component.
7 RMS Dashboard It facilitates the monitoring and management of the RMS by offering a user-friendly
dashboard.
ETSI
18 ETSI TS 103 942 V1.1.1 (2023-11)
Table 4: Run-time Monitoring System Interface Specification
No API Description Type
1 Probe API Probe API enables the control of a Probe by exposing configuration Provided
(sending a probe configuration file) and control (start/stop) interfaces.
2 PMC API Probe Management & Configuration API exposes appropriate endpoints that Provided
enable the discoverability, configurability, and management of the deployed
probes.
3 MPPE API Multi-Purpose Processing Engine API exposes appropriate endpoints that Provided
enable the discoverability, configurability, and management of deployed
processors.
4 MPPE Registry API Multi-Purpose Processing Engine Registry API exposes appropriate Provided
endpoints that enable the discoverability and configurability of deployed
processors. This API is utilized by the MPPE API.
5 DR API Data Routing API exposes appropriate endpoints that enable the Provided
configuration of data streams within the annotation and routing of incoming
data streams to persistence or data management components.
6 AR API Automatic Reconfiguration API exposes appropriate endpoints that enable Provided
the configuration, control, and triggering of the Automatic Reconfiguration
component.
7 PR DB API Probe Registry API exposes appropriate endpoints that enable the Provided
discoverability and configurability of deployed Probes. This API is utilized by
the Probe Management & Configuration API.
8 Observation Repo Observation Repository API exposes appropriate endpoints that enable the Required
API discoverability and usage of captured, pre-processed, and processed data.
9 Data Bus API Data Bus API exposes appropriate endpoints that enable the temporary Required
persistence, publishing, subscribing, and retrieval of data streams.

4.2.3 Attack Detection
The Attack Detection (AD) module uses a Machine Learning (ML) model called Dense Random Neural Network
(DRNN), with novel network metrics provided from online traffic measurements. These measurement-based metrics are
used as input data for learning by the AD module and for decision-making during normal operation. Thus,
...
