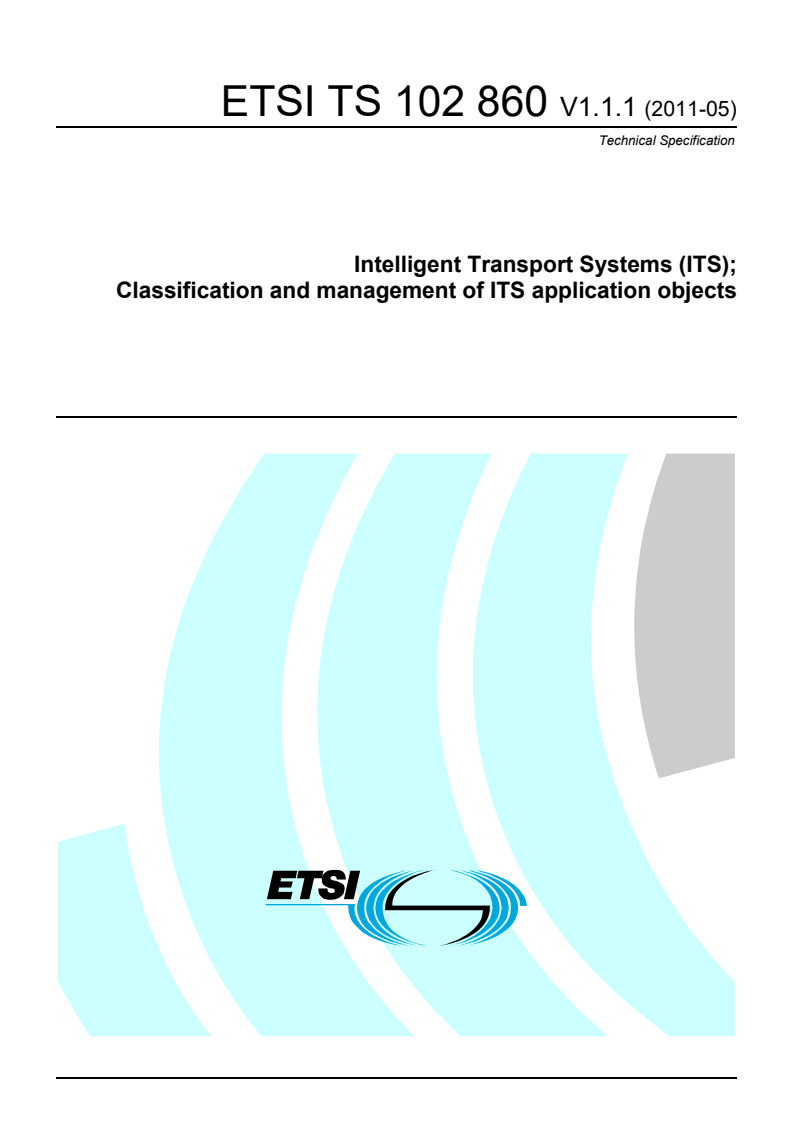

ETSI TS 102 860 V1.1.1 (2011-05)

Technical Specification
Intelligent Transport Systems (ITS);
Classification and management of ITS application objects

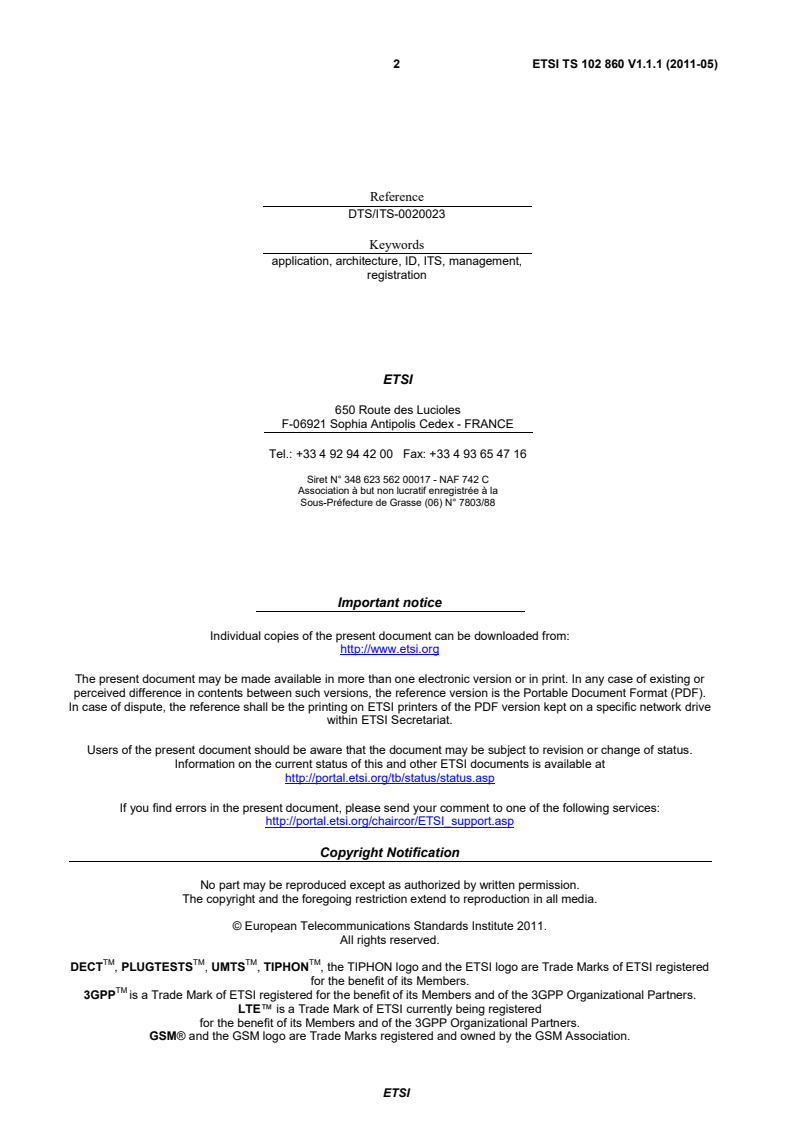

2 ETSI TS 102 860 V1.1.1 (2011-05)

Reference
DTS/ITS-0020023
Keywords
application, architecture, ID, ITS, management,
registration
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TS 102 860 V1.1.1 (2011-05)
Contents
Intellectual Property Rights . 4
Foreword . 4
Introduction . 4
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 7
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.2 Abbreviations . 8
4 Global ITS application object management . 8
4.1 Classification . 8
4.2 Technical operation . 9
4.2.1 Modes of communication . 9
4.2.2 Addressing in an ITS station . 9
4.2.3 ITS-AID and related data elements . 12
4.3 Management procedures . 14
4.3.1 Overview . 14
4.3.2 Off-line procedures . 14
4.3.3 On-line procedures . 14
Annex A (normative): ITS application object identification and management . 16
A.1 Requirements . 16
A.2 ASN.1 modules . 17
A.2.1 Overview . 17
A.2.2 Module ITSaid0v0 . 17
A.2.3 Module ITSaid1v0 . 18
Annex B (informative): ITS application management framework . 21
B.1 ITS registration authority . 21
B.1.1 Organization . 21
B.1.2 Tasks and procedures . 21
B.2 ITS security authorities . 22
B.2.1 Organization . 22
B.2.2 Tasks and procedures . 22
B.3 ITS application object developers . 22
B.4 ITS application object installers and operators . 22
B.5 Technical management elements . 23
B.6 ASN.1 module ITSaid2v0 . 25
History . 30

ETSI
4 ETSI TS 102 860 V1.1.1 (2011-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Intelligent Transport System (ITS).
Introduction
The present document presents the results of a joint approach of CEN, ETSI, IEEE and ISO towards classification and
management of ITS application objects, i.e.:
• ITS message sets;
• ITS applications; and
• ITS application classes.
An essential element to manage ITS application objects is an ITS application (object) identifier (ITS-AID).
In Europe, standardization of ITS at CEN started in 1991 in the Technical Committee TC 278 "Road Transport and
Traffic Telematics". In 2002, EN 12834 [4] produced by TC 278 WG9 "Dedicated Short Range Communication
(DSRC)" was published. EN 12834 [4] contains the specification of a DSRC application class identifier of ASN.1 type
DSRCApplicationEntityID. Numbers of DSRCApplicationEntityID for 16 classes of DSRC applications were allocated.
The most prominent used on the market are (0) for "System" and (1) for "Electronic Fee Collection" (EFC).
In 1992, ISO TC204 "Intelligent Transport Systems" was founded. ISO TC 204 and CEN TC278 work jointly together.
ISO TC204 WG15, the mirror group of CEN TC278 WG9, published ISO 15628 [5], i.e. the international version of
EN 12834 [4]. ISO allocated numbers of DSRCApplicationEntityID for further three ITS DSRC application classes.
ISO TC204 WG16 developed a basic set of communication standards for cooperative systems in ITS - CALM
(Communications Access for Land Mobiles). In ISO 24102 [7], FAST ITS service advertisement is specified.
Identification of ITS application classes and ITS applications was achieved by means of the ITS application identifier of
ASN.1 type ServiceID specified in ISO 29281 [8]. ServiceID recognizes the work done so far at CEN TC278 WG9 and
ISO TC204 WG15, adopting the already allocated numbers for DSRCApplicationEntityID.
IEEE developed the set of WAVE (Wireless Access in Vehicular Environment) standards 1609 - first version published
in 2006. This work maintained and continued DSRCApplicationEntityID of ISO TC204 WG15. IEEE 1609.3 [i.11]
specifies WAVE service advertisement. Identification of what [8] refers to as ITS application classes and ITS
applications is achieved by means of a "Provider Service Identifier" (PSID).
End 2007, ETSI TC ITS was founded. ETSI and CEN work jointly together towards cooperative ITS under the EC
mandate M/453 [i.3]. CEN TC278 WG16 and its international mirror committee ISO TC204 WG18 focus on
cooperative applications in ITS, whereas ETSI TC ITS and ISO TC204 WG16 focus on communications for ITS. These
bodies share the opinion that there is a need for a globally unique identifier of ITS application objects. EU and U.S.
declared the intent to jointly develop cooperative systems for ITS [i.4]. This includes harmonization of standards. The
globally unique approach to identify and manage ITS application objects is in line with [i.4].
ETSI
5 ETSI TS 102 860 V1.1.1 (2011-05)
In 2010, the original definition of PSID was revised by IEEE 1609 WG in cooperation with ETSI TC ITS STF 404 such
that the PSID field contains the ITS Application Identifier (ITS-AID) applying unaligned PER as specified in the
present document.
The present document provides mandatory specifications of technical elements for ITS application object management,
and recommendations for management procedures with a major focus on the needs for communications.
CEN TC 278 WG16 and ISO TC 204 WG18 are complementing the present document with specifications of global
management procedures, taking into account the recommendations of the present document. Further on, they are
specifying further technical details related to classification and management of ITS application objects.
Experts from CEN, ISO TC204 WG16 and WG18, and IEEE 1609 indicated mutual interest to consider the
specification of the ITS application identifier (ITS-AID) given in the present document for finalization or next revisions
of their standards on cooperative systems and communications for ITS.
The purpose of global registration of ITS-AID is to identify uniquely ITS application objects which are defined by
standards or by private specifications. Whether private specifications, in order to ensure proper operation in an ITS
station with respect of overall system security and reliability, need to be publicly available is outside the scope of the
present document. The operational purposes of ITS-AID and the related framework are:
• to identify endpoints in the ITS station for proper evaluation of protocol data units;
• to support secure installation and maintenance of ITS application objects in instances of ITS stations.
ETSI
6 ETSI TS 102 860 V1.1.1 (2011-05)
1 Scope
The present document provides:
• the technical specification of the globally applicable identifier of ITS application objects, referred to as "ITS
Application ID" (ITS-AID);
• requirements and specifications related to operational needs of ITS stations applying ITS-AID in protocol data
units;
• specification of technical elements used for registration of ITS application objects;
• recommendations for the procedural framework for registration and certification of ITS application objects;
• recommendations for the procedural framework and operational needs related to installation and maintenance
of ITS application objects in instances of ITS stations.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ISO/IEC 8825-2: "Information technology - ASN.1 encoding rules: Specification of Packed
Encoding Rules (PER)".
[2] ISO 21217: "Intelligent transport systems - Communications access for land mobiles
(CALM) - Architecture".
[3] ETSI EN 302 665: "Intelligent Transport Systems (ITS); Communications Architecture".
[4] CEN EN 12834: "Road transport and traffic telematics - Dedicated Short Range Communication
(DSRC) - DSRC application layer".
[5] ISO 15628: "Road transport and traffic telematics - Dedicated short range communication
(DSRC) - DSRC application layer".
[6] ISO 21218: "Intelligent transport systems - Communications access for land mobiles
(CALM) - Medium service access points".
[7] ISO 24102: "Intelligent transport systems - Communications access for land mobiles
(CALM) - Management".
[8] ISO 29281: "Intelligent transport systems - Communications access for land mobiles
(CALM) - Non-IP networking".
[9] ISO 15662: "Intelligent transport systems - Wide area communication - Protocol management
information".
ETSI
7 ETSI TS 102 860 V1.1.1 (2011-05)
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 102 707: "Intelligent Transport Systems (ITS); ETSI object identifier tree; ITS domain".
[i.2] ETSI ES 202 663: " Intelligent Transport Systems (ITS); European profile standard for the
physical and medium access control layer of Intelligent Transport Systems operating in the 5 GHz
frequency band".
[i.3] M/453 EN:2009: "Standardisation Mandate addressed to CEN, CENELEC and ETSI in the field of
information and communication technologies to support the interoperability of co-operative
systems for intelligent transport in the European Community".
[i.4] EC/DGINFSO-USDOT/RITA:2009: "EU-U.S. Joint Declaration of Intent on Research
Cooperation in Cooperative Systems".
[i.5] ISO 21212: "Intelligent Transport Systems - Communications access for land mobiles
(CALM) - 2G cellular systems".
[i.6] ISO 21213: "Intelligent Transport Systems - Communications access for land mobiles
(CALM) - 3G cellular systems".
[i.7] ISO 21214: "Intelligent Transport Systems - Communications access for land mobiles
(CALM) - Using infra-red systems".
[i.8] ISO 21215: "Intelligent Transport Systems - Communications access for land mobiles
(CALM) - M5".
[i.9] ISO 21216: "Intelligent Transport Systems - Communications access for land mobiles
(CALM) - Millimetre communications".
[i.10] ISO 21210: "Intelligent Transport Systems - Communications access for land mobiles
(CALM) - IPv6 networking".
[i.11] IEEE 1609.3™-2010: "Standard for Wireless Access in Vehicular Environments
(WAVE) -Networking Services".
[i.12] ISO 17274: "Intelligent Transport Systems - Co-operative Systems - Classification and
management of ITS applications in a global context".
[i.13] ISO 17275: "Intelligent Transport Systems - Co-operative Systems - ITS application requirements
for selection of communication profiles".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in [2], [3], [5], [6], [7], [8] and the following
apply:
ITS application class: class of ITS applications with a procedural framework as specified in [5], [7], uniquely
identified by the globally applicable ITS application identifier ITS-AID
ITS application object: generic term for either ITS application class, or ITS application, or ITS message set
ITS message set: set of messages for a specific purpose in ITS, uniquely identified by the globally applicable ITS
application identifier ITS-AID
ITS registration authority: authorised entity responsible for registration of ITS application objects
ETSI
8 ETSI TS 102 860 V1.1.1 (2011-05)
3.2 Abbreviations
For the purposes of the present document, the abbreviations given in [2], [3], [5], [6], [7], [8], [i.11] and the following
apply:
cam Endpoint where processing of received CAMs starts
ctx Endpoint where processing of received CTXs starts
CTX ITS service context message
FMT-ID Facility Message Type Identifier
ITS-AID ITS Application object Identifier
ITS-APDU Protocol Data unit exchanged between peer entities of ITS access layer
ITS-ASDU Service Data Unit exchanged between ITS access layer and ITS networking & transport layer
ITS-FPDU Protocol Data Unit exchanged between peer entities of ITS facilities layer
ITS-FSDU Service Data Unit exchanged between ITS facilities layer and ITS-S applications
ITS-NPDU Protocol Data Unit exchanged between peer entities of ITS networking & transport layer
ITS-NSDU Service Data Unit exchanged between ITS networking & transport layer and ITS facilities layer
ITS-RA ITS Registration Authority
msg Endpoint where processing of received MSGs starts
MSG General ITS message, different to CAM
sam Endpoint where processing of received SAMs starts
4 Global ITS application object management
4.1 Classification
Management of ITS application objects first of all requires classification of them. A top level classification
distinguishes:
• ITS message sets;
• ITS applications;
• ITS application classes.
A sub-classification according to the relevance for cooperative ITS can be identified and expressed e.g. by means of
communication priorities. Such sub-classification is based on societal requirements on usage of cooperative ITS,
e.g. distinction between road safety applications and "just for fun Internet surfing". Consequently the sub-classification
is mainly a non-technical process, which needs technical support to be provided by standards. Details related to the
non-technical process will be presented in [i.12].
Relevance aspects lead to rules on access rights of ITS application objects to use functionalities of an ITS station or an
ITS sub-system. These access rights need technical elements in order to enable real-time management of ITS
application objects in ITS sub-systems. The same technical elements may be subject of registration of ITS application
objects.
The following two clauses provide a tutorial-like introduction to:
• normative requirements on technical operations specified in annex A; and to
• informative recommendations on procedures for management presented in annex B.
ETSI
9 ETSI TS 102 860 V1.1.1 (2011-05)
4.2 Technical operation
4.2.1 Modes of communication
An ITS station may support the following modes of communication:
• Transmission of messages to unknown recipients (broadcast or multicast communications).
• Requests and responses in a session between two ITS peer station entities (single-hop unicast
communications).
• ITS-specific multi-hop communications.
• Communication with legacy systems, e.g. those based on ISO 15628 [5] or any kind of existing Internet
service, which are not aware of ITS.
The first and second mode are dedicated to ad-hoc communications, i.e. primarily single-hop communications [8] using
access technologies such as ITS-G5 [i.2] / CALM M5 [i.8], CALM IR [i.7], 63 GHz [i.9]. The third and fourth mode
typically use the Internet protocol IPv6 [i.10] via any kind of access technology, including the above mentioned ad-hoc
access technologies, cellular network technologies [i.5], [i.6] and others.
The first mode is used to transmit messages from ITS message sets, such as CAM and DENM. It is also needed to
transmit service advertisement messages [7], [i.11], which enables subsequent sessions between peer stations.
NOTE: "Service announcement" and "service advertisement" are synonyms.
The second mode requires a service advertisement message [7], [i.11] as a prerequisite to initialize the relation between
the ITS-S applications residing in the two peer stations.
4.2.2 Addressing in an ITS station
Address information has to go with every frame in order to select the proper instance of an ITS station or protocol
inside an instance of an ITS station. Addressing basically is needed for every one of the three ITS layers (access layer,
networking & transport layer, facilities layer) [2], [3]. It is contained in protocol data units (PDUs) exchanged between
instances of ITS stations. Address information is forwarded between the layers as parameters in service data units
(SDUs). Data flow (SDUs and PDUs) is illustrated in figure 1 for the generic OSI model and in figure 2 for the ITS
station architecture [2], [3].
NOTE: There could be system designs which deviate from this architecture such that the networking & transport
layer or the facilities layer is empty. Nevertheless a proper addressing scheme is needed.
ETSI
10 ETSI TS 102 860 V1.1.1 (2011-05)

Figure 1: Data flow in the OSI model
ITS-S ITS-S
ADU
Application Application
Application Application
data
(Service Provider) (Service User)
API to applications
ITS-FSDU ITS-FSDU
ITS-FPDU
Facilities Layer Facilities Layer
data
ITS-NSDU
Networking & Networking &
ITS-NPDU
Transport Transport
segment
Layer
Layer
ITS-ASDU
ITS-APDU
Access Layer Access Layer
frame
stream
Figure 2: Data flow in the ITS station
The purpose of addressing in the access layer is:
• to identify at the MAC sub-layer of the data link layer, whether a received frame shall be forwarded to the
upper layers or not (MAC address);
• to identify the proper protocol (LLC control field) in the LLC sub-layer of the data link layer;
• to identify the proper endpoint in the next higher layer, usually the networking protocol (DSAP and SSAP, or
Ether-Type, or IEEE 802.11 ACTION frame type used for WAVE service advertisement).
ETSI
11 ETSI TS 102 860 V1.1.1 (2011-05)
The purpose of addressing in the networking & transport layer is:
• to identify the proper node in a network (e.g. IP address);
• to identify the proper transport protocol (transport header);
• to identify the proper endpoint in the next higher layer, usually a facility in the facilities layer, or in the
management, e.g. for service announcement and service advertisement (port number).
Details of addressing in the facilities layer are illustrated in figure 3. The purpose of addressing in the facilities layer is:
• to identify an ITS application object by means of the ITS application identifier (ITS-AID);
• to identify a "Facility Message Type" (FMT) by means of an FMT identifier (FMT-ID ), e.g. of ASN.1 type
MessageType [7].
In receive mode, each lower layer has to inspect the proper header in order to identify address information to be used as
meta address data in an SDU for selection of the next higher target-point (usually address elements in a service
primitive of a service access point).
In transmit mode, each higher layer has to provide meta address data in an SDU to be inserted in a header in the next
lower layer.
Each layer, see figures 1 and 2, only inspects or creates those headers in a frame (LLC sub-layer), a packet (networking
sub-layer), a segment (transport sub-layer), data (facility layer, ITS-S applications), which are necessary for next step
addressing. Note that a next target-point in receive mode may also be the management entity (see e.g. ISO 24102 [7]
groupcasting and service advertisement) and IEEE 1609 WSA [i.11].
Figure 3 illustrates where in the ITS station architecture the ITS-AID is being used.
ITS-S Applications
ITS-AID
FA-API
ITS-AID ITS-AID
ITS-S
sam
Application
Registration Subscription to ITS
Session Support
for Messages
ITS-AID
Groupcast
P
LDM
A
reqN reqW
S
-
t
F
n
e M
/
ITS Message RX ITS Message
m
) ctx res
t
t
e
n
n TX
g e
e
a ITS-AID
m cam msg
m
n
e
e
a s
i c ITS-AID
t
n
r
M
u
e
Facilities Layer
t
v o
s d n
a A A
NF-SAP
c
e e
p
c c
i
i
u
v
v
r
o r
r e e P
S S A
G
(
S
- Networking & Transport Layer
S
N
y
T Networking addresses
t
I M
i
t
Ports
n
E
IN-SAP
t
n
e
m
P
e
A
g
S
Access Layer
-
a
I
n
M MAC addresses, LLC addresses
a
DSAP/SSAP, EtherType, 802.11 ACTION type
M
Figure 3: Addressing architecture ITS-S.
The octagons indicate target-points of PDUs; these target points are also referred to as endpoints. The access to these
endpoints in receive mode is given by port numbers of the protocol used in the networking & transport layer. The access
to sam may also be via MI-SAP in case MAC management frames are used to carry the "Service Advertisement
Message" (SAM) [7].
ETSI
12 ETSI TS 102 860 V1.1.1 (2011-05)
Registered globally valid port numbers are needed to identify at least the endpoints:
• sam: service advertisement message;
• cam: cooperative awareness message;
• msg: general message;
• ctx: context message as acknowledgement of service announcement message for ITS application classes.
Preferably these registered globally valid port numbers are used in all kinds of transport protocols designed to connect
to these endpoints. However it would be sufficient that port number allocation is done specifically per transport layer
protocol.
Registration of port numbers also has to provide a large range of numbers to be dynamically assigned by transport
protocols.
The address data element ITS-AID is evaluated at the locations indicated with the label "ITS-AID". This shows, that the
data element ITS-AID is contained in:
• "Service Advertisement Messages" (SAM) [7], evaluated in sam;
• "Service Context" (CTX) messages [7], which constitute an acknowledgement of an ITS application class
offered in a SAM, evaluated in ctx;
• "Cooperative Awareness Messages" (CAM), evaluated in cam;
• other ITS messages, e.g. "Decentralized Environmental Notification Messages" (DENM), evaluated in msg;
• subscriptions to ITS messages;
• requests to register for groupcasting (service advertisement).
4.2.3 ITS-AID and related data elements
The ITS application identifier ITS-AID is encoded in an address data element of ASN.1 type ITSaid with variable
length as specified in clause A.2.
Assignment of values of ITS-AID to a specific ITS application object will consider the number allocation and number
reservation of DSRCapplicationEntityID [4], [5]. Thus for new assignments, these values in the range of 0 to 31 already
assigned by CEN and ISO are no more available.
NOTE: DSRCapplicationEntityID [4], [5] is specified as a data type with variable length. However the optional
extension mechanism is not used as specified in CEN profile standards. Most of the numbers already
assigned were never used in products, thus could be re-assigned to new ITS application objects by CEN
TC278 / ISO TC204.
The ITS application identifier ITS-AID is used to identify uniquely the specification of a specific ITS application object
together with some essential properties of it. Essential properties of an ITS application object are e.g.:
• Name
Human readable name of the ITS application object.
• Type
- ITS application.
- ITS application class, e.g. those identified by means of the DSRCApplicationEntityID [4], [5].
- ITS message set.
• Context
Application class context, e.g. as specified in [4], [5]. Applicable for ITS application classes.
ETSI
13 ETSI TS 102 860 V1.1.1 (2011-05)
• Owner
- Standard.
- Private specification.
A universal object identifier (OID) is helpful to identify the owner uniquely.
• Priority
Maximum allowed user priority [6] to be used in protocol data units (messages) generated by the ITS
application object.
• Certificate
Information on the status of the certificate needed to install an ITS application object in an ITS sub-system.
• Messages
Allowed messages defined for this ITS object. A message may be identified by:
- Name
Human readable name of this message.
- Number
Sequential number unique for this ITS application.
- Type
Either detailed specification of ADU presented in figure 1 or "any/not specified" indication.
- Message priority
Maximum allowed priority of a message.
- Logical channels
List of logical channels which may be used to carry this message. Logical channels are characterized by
a sequential number, and a name unique within ITS, and a user priority value indicating the minimum
required priority of a message for transmission.
NOTE: As congestion control may lower the actual value of priorities, only the originally assigned message
priority value is used to identify allowed or prohibited access to a logical channel.
- Communication profiles required or allowed for this message
Indication of allowed or required communication profiles for communication. A communication profile
may indicate functionality of the ITS-S access layer, the ITS-S networking & transport layer, the ITS-S
facilities layer and functionality of the ITS-S management entity and ITS-S security entity.
• General requirements
Indication of general requirements of ITS application objects not directly related to elements of the ITS station
reference architecture [3], [7], [i.13]. An example of such requirements is the cost of communications to be
paid by the end-user.
The mandatory technical specification is provided in the normative annex A.
Recommendations for further specifications are provided in the informative annex B.
ETSI
14 ETSI TS 102 860 V1.1.1 (2011-05)
4.3 Management procedures
4.3.1 Overview
The management procedures are divided into two parts:
• "off-line" procedures, to be performed by e.g. registration and certification authorities;
• "on-line" procedures, to be performed in an ITS sub-system, especially in an ITS station.
The purpose of these management procedures is to ensure proper, secure operation of ITS application objects
implemented in instances of ITS stations, and to avoid or at least reduce the probability of unauthorized use of ITS
sub-system functionalities by ITS application objects.
ITS application objects may be developed by many different organisations, beyond others road authorities, city
authorities and car makers.
The "off-line" procedures constitute the global management framework and include technical specifications needed to
perform the "on-line" procedures.
4.3.2 Off-line procedures
ITS application objects are uniquely identified by an ITS application identifier (ITS-AID), see also clauses 4.2.2 and
4.2.3. The registration of ITS application objects is performed by an ITS registration authority. The format of the
globally unique ITS-AID is specified in annex A and illustrated in figure A.1.
NOTE: Until a suitable registration authority is identified and in operation, each SDO may maintain a list of
assigned ITS-AID values for ITS application objects being developed in the SDO including the unique
link to the standard where the ITS application object is specified. This procedure requires harmonization
with the other SDOs in order to produce globally unique assigned values.
Rules on who can install ITS application objects in an instance of an ITS station, and how this is done need to be set up
e.g. by the registration authority and / or ITS security authorities with technical support from standards organizations.
Technical elements of the "off-line" procedures are specified in the normative annex A and will be given in [i.12].
Elements of the "off-line" procedures are recommended in more detail in annex B. Others will be under the
responsibility of authorities, or will be standardized in [i.12].
4.3.3 On-line procedures
"On-line" management covers the following tasks for proper real-time operation of ITS sub-systems. These procedures
are given by standardized protocols which run in ITS sub-systems, especially in ITS stations.
• Installation, update and de-installation of ITS application objects in a protected environment, e.g. by an
accredited laboratory or service station.
• Installation, update and de-installation of ITS application objects via ITS communication links (e.g. ITS
application store).
• Registration / de-registration of ITS application objects [2], [3], [7] in an ITS station for on-line usage.
• Activation / de-activation of ITS application objects in an ITS station for on-line usage.
NOTE: Installation and update of an ITS application object not necessarily registers or activates it for on-line
usage.
• Access of one ITS application object to another ITS application object, e.g. an ITS-S application launches
another ITS-S application, or an ITS-S application registers for reception of ITS messages.
ETSI
15 ETSI TS 102 860 V1.1.1 (2011-05)
• Proper access of ITS application objects to the functionalities of an ITS protocol stack [2], [3], [6], [7], [8],
e.g. mandatory or optional or prohibited functionalities of the ITS facilities layer, the ITS networking &
transport layer and the ITS access layer by means of communication profiles, logical channels, priorities,
message types.
Access rights may cover the following functional aspects:
- usage of protocols in general;
- load of a communication channel, influenced e.g. by repetition rate of messages, data size, message
priority.
• Proper access of ITS application objects to the functionalities of the ITS security entity and the ITS
management entity.
• Proper access of ITS application objects to functionalities of an ITS sub-system outside an ITS station:
- read access via the proprietary network (in-vehicle or roadside) to instantaneous information, e.g. GPS,
sensors;
- write access via the proprietary network (in-vehicle or roadside) to actors, e.g. driver interface.
Technical elements of the "on-line" procedures are specified in the normative annex A and will be specified in [i.13].
Further elements and procedures will be specified in [i.12].
Informative recommendations on how to manage ITS application objects are provided in the informative annex B.
These informative recommendations will be further developed in [i.12] towards mandatory requirements.
ETSI
16 ETSI TS 102 860 V1.1.1 (2011-05)
Annex A (normative):
ITS application object identification and management
A.1 Requirements
Every ITS application object shall be uniquely identified by a value of the "ITS application identifier" (ITS-AID).
ITS-AID shall be of ASN.1 type ITSaid specified in clause A.2.2. Figure A.1 illustrates the format of ITS-AID for
ASN.1 unaligned PER. The bits "Length Control" are CHOICE and EXTENSION bits which define the size of the data
type. The element "Length indicator N" identifies the number N of octets following this element and containing the
value of ITS-AID.
Figure A.1: Structure of ITS-AID field
On-line operation of ITS application objects installed in an instance of an ITS station shall be controlled by means of
technical parameters and related procedures. These procedures shall manage the access of ITS application objects to
functionality of the ITS station and the ITS sub-system. The technical parameters used in the procedures, e.sg.
minimum and / or maximum values of priorities, shall be covered by the registration parameters.
The registry for ITS application objects shall be given by the ASN.1 type ITSapObSet specified in clause A.2.3. This
registry shall contain entries for ITS application objects given by the ASN.1 type ITSapOb specified in clause A.2.3.
An ITS application object shall be characterized by elements with ASN.1 types presented in table A.1. A registration
authority may use further information to properly identify an ITS application object, and to properly support off-line
and on-line management of ITS application objects. Examples of such further information are presented in clauses B.5
and B.6.
NOTE: Further mandatory requirements are under development [i.12].
Installation and maintenance of ITS objects in instances of ITS stations shall be performed in a secure way. Suitable
technical means to ensure secure operation will be specified in other standards. Secure operation might need the
involvement of "ITS Security Authorities". An ITS station shall allow installation of application objects only in case it
accepts the certificate of the application object.
ITS-S applications, which start a session by transmitting a SAM, shall register themselves on-line in an instance of an
ITS station prior to operation. This on-line registration may apply information contained in the ITS application registry.
There shall be means to deregister ITS-S applications in instances of ITS stations, once these are no more actively
needed. On-line de-registration is different from de-installation. Registration of ITS-S applications requires further data
elements as specified in [2], [3], [7] and in clause B.5.
ETSI
17 ETSI TS 102 860 V1.1.1 (2011-05)
Table A.1: Characteristics of ITS application objects
Name of element ASN.1 type Description
ITSapOb. ITSaid
This shall be the ITS application identifier (ITS-AID). The format shall
iTSaid
be as given in the ASN.1 specification in clause A.2.2, which is
illustrated in figure A.1.
ITSapOb. ITSapObName
This element shall contain the human-readable name of the ITS
iTSapObName
application object. The format shall be as given in the ASN.1
specification in clause A.2.3.
ITSapOb. ITSapObType
This shall indicate, whether ITS-AID refers to an ITS application or to
iTSapObType
an ITS application class or to an ITS message set. The format shall be
as given in the ASN.1 specification in clause A.2.3.
ITSapOb. ITSapObOwner
This shall indicate whether the specification of the ITS application
iTSapObOwner
object is given by a standard or by a private specification. The owner
shall be identified by a human readable name and by a universal
object identifier. The format shall be as given in the ASN.1
specification in clause A.2.3.
ITSapOb. ITSapObPriority
This priority shall indicate the maximum allowed priority of messages
iTSapObPrio
produced by the ITS application object. The format shall be as given in
the ASN.1 specification in clause A.2.3.
ITSapOb. ITSapObCertificate
This element shall uniquely identify whether the registered ITS
iTSapObCert
application object is certified or not, which is the issuing ITS security
authority, and when the certificate will expire. The format shall be as
given in the ASN.1 specification in clause A.2.3.
NOTE: The precise definition of "ITS security authority" is outside the scope of the present document.

Universal object identifiers to identify the standards organizations CEN, ETSI, IEEE and ISO shall be as specified in
clause A.2.3.
Further details of the technical elements shall be as specified in the ASN.1 module presented in clause A.2.
A.2 ASN.1 modules
A.2.1 Overview
The following two ASN.1 modules are specified in this annex:
• ITSaid0v0 { itu-t(0) identified-organization(4) etsi(0) itsDomain(5) wg2(2) itsaid(2860) operation(0)
version(0)}
• ITSaid1v0 { itu-t(0) identified-organization(4) etsi(0) itsDomain(5) wg2(2) itsaid(2860) management(1)
version(0)}
These modules import ASN.1 definitions from [i.1] on OIDs used for identification of ASN.1 modules in standards
from ETSI TC ITS.
A.2.2 Module ITSaid0v0
This module specifies the ASN.1 type definition of the data element ITS-AID illustrated in figure A.1 together with
useful ASN.1 value definitions.
Unaligned packed encoding rules (PER) as specified in [1] shall be applied for the ASN.1 module ITSaid0v0 in case the
data elements and value elements are used in an ITS communication link. Encoding rules for usage in a registration
authority are outside the scope of the present document.
This module imports ASN.1 definitions from ASN.1 modules specified in [i.1].
ITSaid0v0 { itu-t(0) identified-organization(4) etsi(0) itsDomain(5) wg2(2) itsaid(2860)
operation(0) version0(0)} DEFINITIONS AUTOMATIC TAGS::=BEGIN

IMPORTS
ETSI
18 ETSI TS 102 860 V1.1.1 (2011-05)
oidITSwg2 FROM ITSreg { itu-t(0) identified-organization(4) etsi(0) itsDomain(5) wg2(2)
version1(1)};
-- End of IMPORTS
-- Types
-- ITS-AID
ITSaid::=VarLengthNumber
VarLengthNumber::=CHOICE{
content [0] INTEGER(0.127), -- one octet length
extension [1] Ext1
}
Ext1::=CHOICE{
content [0] INTEGER(128.16511), -- two octets length
extension [1] Ext2
}
Ext2::=CHOICE{
content3 [0] INTEGER(16512.2113663), -- three octets length
extension [1] Ext3
}
Ext3::=INTEGER(211664.270549119,.) -- four and more octets length

-- Values
oidITSaid OBJECT IDENTIFIER::={ oidITSwg2 itsaid(2860) }
oidITSaid0 OBJECT IDENTIFIER::={ oidITSaid operation(0)}
oidITSaid0v0 OBJECT IDENTIFIER::={ oidITSaid0 version(0)}

version INTEGER(0.255)::=0 -- version of this module

/*
The ASN.1 specification
...
