ETSI TS 103 553-2 V1.1.1 (2021-11)

TECHNICAL SPECIFICATION
Environmental Engineering (EE);
Innovative energy storage technology for stationary use;
Part 2: Battery
2 ETSI TS 103 553-2 V1.1.1 (2021-11)

Reference
DTS/EE-0259-2
Keywords
battery, power
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2021.
All rights reserved.
ETSI
3 ETSI TS 103 553-2 V1.1.1 (2021-11)

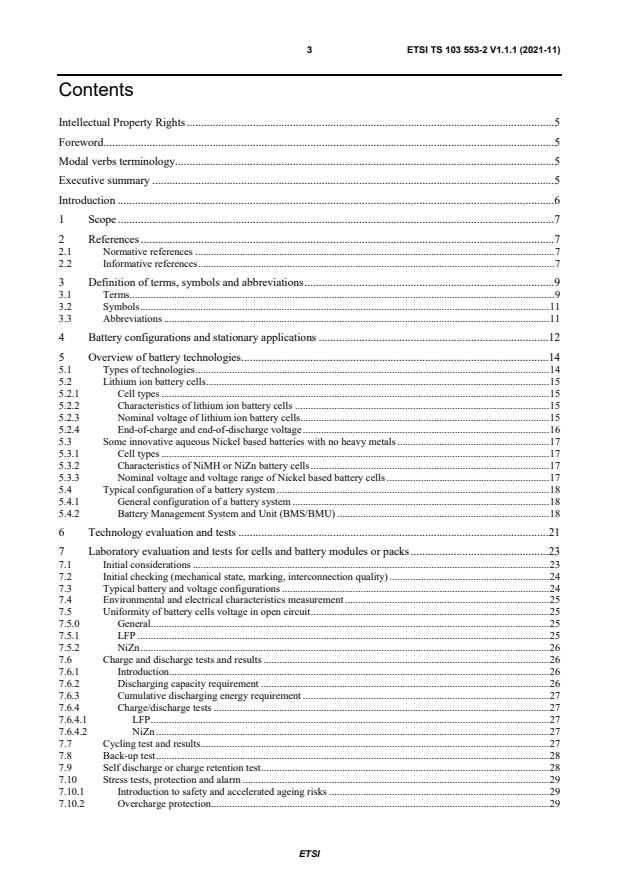

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
Executive summary . 5
Introduction . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 9
3.1 Terms . 9
3.2 Symbols . 11
3.3 Abbreviations . 11
4 Battery configurations and stationary applications . 12
5 Overview of battery technologies . 14
5.1 Types of technologies . 14
5.2 Lithium ion battery cells . 15
5.2.1 Cell types . 15
5.2.2 Characteristics of lithium ion battery cells . 15
5.2.3 Nominal voltage of lithium ion battery cells. 15
5.2.4 End-of-charge and end-of-discharge voltage . 16
5.3 Some innovative aqueous Nickel based batteries with no heavy metals . 17
5.3.1 Cell types . 17
5.3.2 Characteristics of NiMH or NiZn battery cells . 17
5.3.3 Nominal voltage and voltage range of Nickel based battery cells . 17
5.4 Typical configuration of a battery system . 18
5.4.1 General configuration of a battery system . 18
5.4.2 Battery Management System and Unit (BMS/BMU) . 18
6 Technology evaluation and tests . 21
7 Laboratory evaluation and tests for cells and battery modules or packs . 23
7.1 Initial considerations . 23
7.2 Initial checking (mechanical state, marking, interconnection quality) . 24
7.3 Typical battery and voltage configurations . 24
7.4 Environmental and electrical characteristics measurement . 25
7.5 Uniformity of battery cells voltage in open circuit . 25
7.5.0 General . 25
7.5.1 LFP . 25
7.5.2 NiZn . 26
7.6 Charge and discharge tests and results . 26
7.6.1 Introduction. 26
7.6.2 Discharging capacity requirement . 26
7.6.3 Cumulative discharging energy requirement . 27
7.6.4 Charge/discharge tests . 27
7.6.4.1 LFP . 27
7.6.4.2 NiZn . 27
7.7 Cycling test and results . 27
7.8 Back-up test . 28
7.9 Self discharge or charge retention test . 28
7.10 Stress tests, protection and alarm . 29
7.10.1 Introduction to safety and accelerated ageing risks . 29
7.10.2 Overcharge protection . 29
ETSI
4 ETSI TS 103 553-2 V1.1.1 (2021-11)
7.10.3 Over-discharge protection . 29
7.10.4 Short-circuit protection . 29
7.10.5 Overload protection . 30
7.10.6 Over temperature protection . 30
7.11 BMS/BMU requirements . 30
Annex A (informative): Implementation examples of stationary batteries in telecom/ICT sites . 32
Annex B (informative): SooGREEN European project . 35
Annex C (informative): Standard lithium cells commonly used in small battery modules and
packs . 36
Annex D (informative): Complementary information on possible stress tests and results . 37
Annex E (informative): Example of charge, discharging test curve and cycling result . 39
Annex F (informative): Example of tables of criteria for preselection of technologies adapted
to a use case and additional tests definition . 45
Annex G (informative): Technology and chemistry identification . 49
Annex H (informative): Public key infrastructure . 51
History . 52

ETSI
5 ETSI TS 103 553-2 V1.1.1 (2021-11)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Environmental Engineering (EE).
The present document is part 2 of a multi-part deliverable covering Innovative energy storage technology for stationary
use, as identified below:
Part 1: "Overview";
Part 2: "Battery";
Part 3: "Supercapacitor".
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
Executive summary
The present document is a part (Part 2: Battery) of a series of standards (the other standards in the series being ETSI
TS 103 553-1 [1] and ETSI TS 103 553-3 [i.19] on innovative energy storage systems for stationary power systems of
telecom/Information and Communication Technology (ICT) equipment used in telecom networks, data centres and
Customer Premises Equipment (CPE). The present document introduces technologies and methods for evaluating,
selecting and testing battery systems for defined applications.
ETSI
6 ETSI TS 103 553-2 V1.1.1 (2021-11)
Introduction
Conventional Valve Regulated Lead Acid (VRLA) batteries are widely used for their low cost, mature technology and
infrequent and easy maintenance. However, with the continuous development of broadband network technologies
(wireless base stations or optical access sites) associated with higher energy density core network sites and data centres,
traditional bulky batteries are gradually exposed to higher ambient temperatures and other stresses.
As alternatives, new battery technologies may provide better performances in size, weight, temperature range, cycling,
high-rate charging and discharging, environmental protection and many other advantages.
Other applications of stationary rechargeable batteries are now observed for resilience of customer home or office
telecom/ICT installations, that can be associated with renewable energy sources in countries with unstable AC grids.
More recently new requirements for uninterrupted power for Internet of Things (IoT) and Machine to Machine (M2M)
devices have also emerged using rechargeable batteries rather than primary batteries due to advantages in size, costs and
issues of replacement frequency.
However as discussed in IEEE Intelec2018 [i.23], the increasing demands on stationary batteries are driving innovation
and many new battery technologies are being developed. Consequently there is a need for a method to discriminate the
most appropriate technologies and products for one or several applications and for this purpose additional evaluations
and tests are still required.
The present document introduces basic requirements and tests methods for evaluating new batteries (lithium, nickel
based, etc.) for stationary use in power supply systems of ICT equipment. The present document also complements
existing general International Electrotechnical Commission (IEC) standards of electrochemical battery products.
In each family of technologies, a typical chemistry is taken as a basis for improved description, e.g. lithium iron
phosphate is in the lithium battery family, nickel-zinc is in the nickel based family, etc.
The present document was developed jointly by ETSI TC EE and ITU-T Study Group 5 and is published respectively
by ITU and ETSI as Recommendation ITU-T L.1221 [i.17] and the present document, which are technically equivalent.

ETSI
7 ETSI TS 103 553-2 V1.1.1 (2021-11)
1 Scope
The present document contains the main requirements for evaluating appropriate innovative batteries for stationary use
for powering ICT equipment in telecom sites, active network units and data centres or customer premises with
standardized power interfaces in -48 V, up to 400 VDC or 12 V.
Based on the general selection and evaluation method proposed in ETSI TS 103 553-1 [1], the present document
introduces the main battery technologies, characteristics and the method to select, evaluate and test battery products
adapted to a defined application.
The present document describes the selection criteria and possible tests for making the appropriate or optimal choice of
battery technology for an ICT stationary application. This includes mechanical performance, electrical performance,
(voltage, current, power and capacity ratings, efficiency and self-discharge, etc.), environmental performance
(temperature range), lifetime performance (cycling and calendar life, tolerance of partial charge and depth of discharge),
installation, operation and maintenance complexity (parallel operation), safety (risk to and protection of humans and
environment, error and fault tolerance), management/monitoring (including anti-theft solution) at battery and cell level
and Total Cost Ownership (TCO) assessment.
The present document specifies evaluation methods and tests which complement those of existing relevant standards
requirements.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 103 553-1: "Environmental Engineering (EE); Innovative energy storage technology for
stationary use; Part 1: Overview".
[2] ETSI ES 202 336-11 (V1.1.1) (2014): "Environmental Engineering (EE); Monitoring and control
interface for infrastructure equipment (Power, Cooling and environment systems used in
telecommunication networks); Part 11: Battery system with integrated control and monitoring
information model".
[3] IEC 60896-21:2004: "Stationary lead-acid batteries - Part 21: Valve regulated types - Methods of
test".
[4] IEC 60896-22:2004: "Stationary lead-acid batteries - Part 22: Valve regulated types -
Requirements".
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
ETSI
8 ETSI TS 103 553-2 V1.1.1 (2021-11)
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Recommendation ITU-T L.1001 (2012): "External universal power adapter solutions for stationary
information and communication technology devices".
[i.2] Recommendation ITU-T L.1200 (2012): "Direct current power feeding interface up to 400 V at the
input to telecommunication and ICT equipment".
[i.3] Recommendation ITU-T L.1201 (2014): "Architecture of power feeding systems of up to
400 VDC".
[i.4] ETSI ES 203 474: "Environmental Engineering (EE); Interfacing of renewable energy or
distributed power sources to 400 VDC distribution systems powering Information and
Communication Technology (ICT) equipment".
[i.5] ISO/IEC 17025 (2017): "General requirements for the competence of testing and calibration
laboratories".
[i.6] IEC 62619 (2017): "Secondary cells and batteries containing alkaline or other non-acid
electrolytes - Safety requirements for secondary lithium cells and batteries, for use in industrial
applications".
[i.7] IEC 61960-3 (2017): "Secondary cells and batteries containing alkaline or other non-acid
electrolytes - Secondary lithium cells and batteries for portable applications - Part 3: Prismatic and
cylindrical lithium secondary cells and batteries made from them".
[i.8] UN38.3 (ed.5 amendment 1): "Recommendations on the TRANSPORT OF DANGEROUS
GOODS - Manual of Tests and Criteria".
[i.9] Translated from Chinese Standard (GBT 2423.17-2008, GB/T2423.17-2008, GBT2423.17-2008):
"Environmental Testing for Electric and Electronic Products - Part 2: Test Methods - Test Ka: Salt
Mist".
[i.10] IEC 60068-2-11 (1981): "Basic environmental testing procedures - Part 2-11: Tests - Test Ka: Salt
mist".
[i.11] ETSI EN 300 132-2: "Environmental Engineering (EE); Power supply interface at the input to
telecommunications and datacom (ICT) equipment; Part 2: Operated by -48 V direct current (dc)".
[i.12] ETSI EN 300 132-3-1 (2012): "Environmental Engineering (EE); Power supply interface at the
input to telecommunications and datacom (ICT) equipment; Part 3: Operated by rectified current
source, alternating current source or direct current source up to 400 V; Sub-part 1: Direct current
source up to 400 V".
[i.13] ETSI TR 103 229 (2014): "Environmental Engineering (EE) Safety Extra Low Voltage (SELV)
DC power supply network for ICT devices with energy storage and grid or renewable energy
sources options".
[i.14] ETSI TR 102 532 (V1.1.1) (2009-06): "Environmental Engineering (EE) The use of alternative
energy sources in telecommunication installations".
[i.15] The European Association for Advanced Rechargeable Batteries Roadmap (2013): "E-mobility
Roadmap for the EU battery industry".
[i.16] IEC 60050-482 (2004): "International Electrotechnical Vocabulary - Part 482: Primary and
secondary cells and batteries".
[i.17] Recommendation ITU-T L.1221: "Innovative energy storage technology for stationary use; Part 2:
Battery".
[i.18] IEC 62620: "Secondary cells and batteries containing alkaline or other non-acid electrolytes -
Secondary lithium cells and batteries for use in industrial applications".
[i.19] ETSI TS 103 553-3: "Environmental Engineering (EE); Innovative energy storage technology for
stationary use; Part 3: Supercapacitor".
ETSI
9 ETSI TS 103 553-2 V1.1.1 (2021-11)
[i.20] Recommendation ITU-T L.1205(2016): Interfacing of renewable energy or distributed power
sources to up to 400 VDC power feeding systems.
[i.21] SooGREEN European Project (2016-2018): "Service-oriented optimization of Green mobile
networks", Invited paper, Rocha et alii.et alii Orange, Nokia, KTH, Royal Institute of Technology
Netherland, Electrum Tele2 Sweden, Institut Mines Telecom, France, Eurico Ferreira Portugal,
2017.
NOTE: Available at http://opendl.ifip-tc6.org/db/conf/wiopt/wiopt2017/1570349026.pdf.
[i.22] David Linden, Thomas B. Reddy: "Handbook of batteries-4th edition Library of Congress
Cataloging-in-Publication Data".
[i.23] D. Marquet et alii Orange, C. Campion (3C projects): "How to transform innovative battery
opportunities in field operational solutions for Telecom/IT application IEEE Intelec 2018", Torino.
[i.24] IEC 60896-11:2002: "Stationary lead-acid batteries - Part 11: Vented types - General requirements
and methods of tests".
[i.25] IEC 61427-1: "Secondary cells and batteries for renewable energy storage - General requirements
and methods of test - Part 1: Photovoltaic off-grid application".
[i.26] EUROBAT 2015.
[i.27] IEC 62485-2: "Safety requirements for secondary batteries and battery installations - Part 2:
Stationary batteries".
[i.28] IEC 62259: "Secondary cells and batteries containing alkaline or other non-acid electrolytes -
Nickel-cadmium prismatic secondary single cells with partial gas recombination".
[i.29] IEC 61434: "Secondary cells and batteries containing alkaline or other non-acid electrolytes -
Guide to designation of current in alkaline secondary cell and battery standards".
[i.30] IEC 60623: "Secondary cells and batteries containing alkaline or other non-acid electrolytes -
Vented nickel-cadmium prismatic rechargeable single cells".
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the following terms apply:
Battery Management System or Unit (BMS, BMU): electronic system associated with a battery which monitors
and/or manages its state, calculates secondary data, reports that data and/or controls its environment to influence the
battery's performance and service life and has the functions to cut off in case of abnormal conditions (e.g. over
charging, over current and over heating and charge balancing between cells or parallel cells blocks)
NOTE 1: Depending on the application and its size, the function of the BMS/BMU can be assigned to the battery
cell, module, string, pack or system and equipment using the battery. A common implementation is a
BMS/BMU made of several electronic modules located at different levels of the system.
NOTE 2: A Battery Management System (BMS) is sometimes also referred to as a Battery Management Unit
(BMU).
NOTE 3: Definition adapted from IEC 60050-482 [i.16] and IEC 62620 [i.18].
battery module: group of cells or blocks connected together either in a series and/or parallel configuration with or
without protective devices (e.g. fuse or PTC) and electronic circuitry
NOTE 1: Typically, this is parallel/serial arrangement of small cylindrical e.g. Lithium-ion or Ni based cells often
named mSnP module.
NOTE 2: Definition adapted from IEC 60050-482 [i.16] and IEC 62620 [i.18].
ETSI
10 ETSI TS 103 553-2 V1.1.1 (2021-11)
battery pack: energy storage device, which is comprised one or more cells or modules electrically connected together
inside a mechanical pack with electronics as required for safety and operation
NOTE 1: The battery pack may incorporate a protective housing and be provided with terminals or other
interconnection arrangement. It may include protective devices and control and monitoring required for
safe and proper operation. A typical example of a battery pack may be built by using 6s2p Lithium-ion
module. It may provide detailed information (e.g. cell voltage, temperature, capacity) to a higher level
battery system management device.
NOTE 2: Definition adapted from IEC 60050-482 [i.16] and IEC 62620 [i.18].
battery string: group of cells or battery modules of same technology and capacity connected in series to match the
battery system voltage
NOTE: Strings can work in parallel with or without protective device (e.g. fuse or PTC) depending on the
technology and safety risk.
battery system: system which incorporates one or more battery cells, modules, strings or battery packs and has one or
more BMS or BMU
NOTE 1: The battery system is generally defined for high power and capacity batteries made of several battery
strings or packs of blocks or modules it may include cooling or heating units and gas exhaust
arrangement.
NOTE 2: Definition adapted from IEC 60050-482 [i.16] and IEC 62620 [i.18].
cell, accumulator cell: cell where electrical energy is accumulated by electrochemical reactions between the negative
electrode and the positive electrode
NOTE: Definition adapted from IEC 60050-482 [i.16] and IEC 62620 [i.18].
cells block: group of cells connected together in parallel configuration with or without protective devices (e.g. fuse or
PTC) and electronic circuitry, generally not ready for use as battery system as not yet fitted with its final housing,
terminals arrangement, etc.
NOTE 1: Typically, this is parallel arrangement of n small cells e.g. Lithium-ion or Ni based cells often named nP
configuration.
NOTE 2: Definition adapted from IEC 60050-482 [i.16] and IEC 62620 [i.18].
charge recovery: charge capacity (generally in Ah) that a cell or battery can deliver after the charge following the
charge retention test
NOTE: As defined in IEC 62620 [i.18].
charge retention: charge capacity (generally in Ah) that a cell or battery can deliver after storage, at a specific
temperature, for a specific time without subsequent recharge as a percentage of the rated capacity
NOTE: As defined in IEC 62620 [i.18].
cumulative discharging energy (kWh): discharging energy (kWh) in the whole cycle life ending at a defined
remaining capacity e.g. 70 % of rated capacity under defined normal working condition (including the working
temperature, charging and discharging rate, and DoD)
end-of-discharge voltage: specified closed circuit voltage at which the discharge of a cell or battery is defined as
terminated by the manufacturer
NOTE: Definition adapted from IEC 60050-482] [i.16] and IEC 62620 [i.18].
genset: generator producing electricity by using fuel e.g. a diesel generator
NOTE: When associated with a battery system in a Hybrid Genset Battery (HGB) system the system energy
efficiency is optimized and thus the fuel consumption to produce the same electrical HGB system output
is reduced.
ETSI
11 ETSI TS 103 553-2 V1.1.1 (2021-11)
nickel based battery: aqueous battery that uses nickel metal and hydroxide in electrodes such NiFe, NiCd, NiMH and
NiZn batteries
nominal voltage: suitable approximate value of the voltage used to designate or identify a cell or a battery
NOTE 1: The cell or battery manufacturer may provide the nominal voltage.
NOTE 2: The nominal voltage of a battery of n series connected cells is equal to n times the nominal voltage of a
single cell.
NOTE 3: As defined in IEC 62620 [i.18].
rated capacity: capacity value of a cell or battery determined under specified conditions and declared by the
manufacturer
NOTE 1: The rated capacity is the quantity of electricity Cn Ah (ampere-hours) declared by the manufacturer
which a single cell or battery can deliver during a period of n hours when charging, storing and
discharging under specified conditions by the manufacturer.
NOTE 2: As defined in IEC 62620 [i.18].
3.2 Symbols
For the purposes of the present document, the following symbols apply:
A ICT equipment power feeding interface of -48 VDC
A3 ICT equipment power feeding interface of up to 400 VDC
NOTE: As defined in Recommendation ITU-T L.1200 [i.2].
C Battery capacity in Ah in n hours discharge rate
n
In Battery discharge current in n hours discharge rate
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
AGM Absorbent Glass Mat
Ah Ampere hour
B Battery Block
BMS Battery Management System
BMU Battery Management Unit
BMU (B) Battery Management Unit (Block)
BMU (M) Battery Management Unit (Module)
BMU (S) Battery Management Unit (String)
BS Battery System
CAPEX Capital Expenditure
CPE Customer Premises Equipment
DC Direct Current
DoD Depth of Discharge
E Evaluation
EoL End of Life
EUT Equipment Under Test
HARB Hybrid Aqueous Rechargeable Battery
HGB Hybrid Genset Battery system
ICT Information and Communication Technology
IoT Internet of Things
LA Lead-Acid
LCO Lithium Cobalt Oxide
LFP Lithium Iron Phosphate
LMO Lithium Manganese Oxide
ETSI
12 ETSI TS 103 553-2 V1.1.1 (2021-11)
LTO Lithium Titanate Oxide
M Module
M2M Machine to Machine
NCA Nickel Cobalt Aluminium
NCM Nickel Cobalt Manganese
NiCd Nickel Cadmium
NiFe Nickel Fer (Nickel-Iron in English)
NiMH Nickel Metal Hydride
NiZn Nickel Zinc
NMC Nickel Manganese Cobalt
OPEX Operational Expenditure
OPZS Ortsfest (stationary) PanZerplatte (tubular plate) Flüssig (flooded)
OPZV Ortsfest (stationary) PanZerplatte (tubular plate) Verschlossen (closed)
PbC Lead-Carbon
PSoC Partial State of Charge
PSU Power Supply Unit
PTC Positive Temperature Coefficient resistor
PV PhotoVoltaic
RES Renewable Energy System
S System
SCPS SCPS laboratory
SELV Safety Extra Low Voltage
SoC State of Charge
SoH State of Health
T Test
TCO Total Cost Ownership
U Unit
UPS Uninterrupted Power Supply
VDC Volt Direct Current
VRLA Valve Regulated Lead Acid
Wh Watt hour
4 Battery configurations and stationary applications
A battery is an assembly of cells contained in a more or less sealed jar made of:
• negative and positive electrodes having active material on electric collectors;
• separator between the electrode making galvanic insulation and containing ionic electrolyte;
• electrolyte allowing the movement of ions making the electric charge/discharge reactions (the electrolyte can
change its nature or not during the change of charge of the cell);
• electrical connection from interior to exterior of the jar from soldered set of negative and positive electrodes to
external poles.
Figure 1 shows some examples of battery cell structures. Some of these battery cells can be used both in stationary and
in mobile applications. Many battery cell structures, such as the common cylindrical cells, can be found in Linden [i.22]
and in Roadmap 2013 [i.15].
ETSI
13 ETSI TS 103 553-2 V1.1.1 (2021-11)
Internal structure of Lithium-ion Battery

Figure 1:Typical constitution of cylindrical and prismatic Lithium-ion cell
The stationary batteries are used for stationary application of power supplies of ICT equipment in telecom sites or
active network units, data centres or customer premises with standardized power interfaces in -48 V ETSI
EN 300 132-2 [i.11], up to 400 VDC [i.2] or ETSI EN 300 132-3-1 [i.12], or other voltages such as 12 V as defined in
Recommendation ITU-T L.1201 [i.3] for stationary use telecom termination devices.
The use modes include:
• back-up of electric grids of different quality;
• cycling use on intermittent public grids or Renewable Energy Systems (RESs) or engine generator sets (HGB);
• peak power shaving to reduce permanent power sizing of power supplies or remote lines.
Typical applications are as follows:
• telecom rectifier-battery DC systems;
• AC Uninterrupted Power Supply (UPS);
• renewable energy systems with charge-controller between generator, battery and load as presented in
Recommendation ITU-T L.1205 [i.20], ETSI ES 203 474 [i.4] and also in ETSI TR 102 532 [i.14];
• hybrid engine generator set with battery (HGB);
• power supply with back-up for fixed terminals;
• peak power shaving;
• Customer Premises Equipment (CPE) back-up network in a Safety Extra Low Voltage (SELV) circuit as
presented in ETSI TR 103 229 [i.13].
Typical implementation examples are given in Annex A.
ETSI
14 ETSI TS 103 553-2 V1.1.1 (2021-11)
5 Overview of battery technologies
5.1 Types of technologies
There are many types of battery technologies.
The main ones are:
• Aqueous ionic electrolyte:
- Acid:
 Lead:
- Flooded or vented Lead-Acid (LA)
- VRLA type
- Lead-carbon (PbC)
- Pure lead, bipolar LA
 Other metal acid batteries.
- Alkaline:
 Nickel based:
NiFe
NiCd
NiZn
NiMH
(NiMn, NiNi in research state)
- Neutral salt:
 Flow battery (vanadium, iron-boron, iron-iron, etc.)
 Sodium sulfate, etc.
 Metal-air (zinc, aluminium, magnesium, calcium other alloys, etc.)
• Non aqueous electrolyte (organic or low temperature solid) works by an insertion mechanism (change of solid
oxide crystal charge with ion insertion or intercalation rather than aqueous reduction/oxidation of metal/ion
couples):
- Lithium-ion (LCO, LMO, NCA, NMC, LFP, LTO)
- metal-air (lithium, sodium, potassium, other alloys, etc.)
• Hybrid Aqueous Rechargeable Battery (HARB) that uses both mechanisms (aqueous oxydo-reduction and ion
insertion). It may apply to aluminium-ion or zinc-ion solutions.
• Hot temperature solid (metal electrodes and melted salt electrolytes):
- hot temperature: nickel chloride-sodium, sodium-sulfur operating at much higher temperature than
ambient temperature with some melted material inside (e.g. sodium or sulfur at higher temperatures than
150 °C).
• Solutions with other separation mechanisms (e.g. by gravity) such as liquid bi-metal medium temperature alloy
battery are under research.
ETSI
15 ETSI TS 103 553-2 V1.1.1 (2021-11)
NOTE: The initial edition of the present document will not cover all the technologies emerging from recent
intensive research related to electric vehicles and renewable energy storage, but many considerations and
evaluation methods defined within, such as electrical characterization for an application, are applicable.
5.2 Lithium ion battery cells
5.2.1 Cell types
There are two types of lithium ion battery cells, these are known as hard case and soft case types.
The hard case types are typically of cylindrical or prismatic case type. The soft case type is a pouch.
In terms of the cathode and anode material, several types exist:
• For the cathode material: LCO, LMO, NCA, NMC, LFP, lithium-metal, etc.
• For the anode material: Graphite and LTO type, etc.
NOTE 1: Lithium metal cells have in general a solid electrolyte separator ensuring safety, but requiring operation at
higher than ambient temperature for improving electrical conductivity and output power. Due to heating,
energy efficiency is lower than on lithium-ion cell operating at ambient temperature.
NOTE 2: New aluminium, sodium, magnesium and potassium ion cells could provide a low cost alternative to
lithium-ion for stationary applications where the highest energy density is not required, if they prove to be
safe, reliable and use very few rare materials.
5.2.2 Characteristics of lithium ion battery cells
The lithium ion battery cells have the following main characteristics:
• High gravimetric and volumetric energy density
• Higher voltage than aqueous technologies (> 2 V)
• No memory effect and negative effect of Partial State of Charge (PSoC)
• Moderate environmental impact depending on chemical composition and features (less cobalt, less toxic
electrolyte, better recycling)
• High rate discharge
• Fast charge and long life cycle
• Safety
• Wide temperature ranges
NOTE: For some lithium technologies, permanent high State of Charge (SoC) and high voltage can accelerate
ageing effect compared to Partial State of Charge (PSoC).
5.2.3 Nominal voltage of lithium ion battery cells
Lithium-ion technologies used in portable devices can be used as a stationary battery and have a well-known high
nominal voltage of 3,6 V. Annex C lists standard secondary lithium cells defined in IEC 61960-3 [i.7].
Battery manufacturers are developing technologies to increase the nominal voltage to 3,7 V or 3,8 V in order to increase
the energy density enabling market for mobility and portable devices. However the nominal voltage varies depending
on the cathode and anode material chemical composition and some technologies that have a lower voltage are targeting
high capacity for stationary energy storage applications requiring high safety, long lifetime and good TCO. Here weight
and volume performances are less critical than for mobile applications.
Table 1 shows the nominal voltages for different cathode or anode materials.
ETSI
16 ETSI TS 103 553-2 V1.1.1 (2021-11)
Table 1: Nominal voltage for cathode or anode materials
Cathode/Anode material Nominal voltage (V)
LCO 3,8
LMO 3,8
NMC 3,7
NCA 3,6
LFP (LiFePO4) 3,2
LTO 2,2
5.2.4 End-of-charge and end-of-discharge voltage
Since lithium ion batteries present the possibility for violent fire in the case of over-charging or over-discharging, safety
is a key consideration. For lithium iron phosphate batteries the nominal voltage is commonly 3,2 V, with end-of-charge
and end-of-discharge voltage at ±0,5 V of the nominal value, i.e. 3,7 V and 2,7 V, respectively.
Voltage range is also of high importance when using them directly with telecom/ICT equipment standardized interfaces.
For example a -48 V interface ETSI EN 300 132-2 [i.11] specifies a voltage range of 40,5 V to 57 V at input of
equipment. The voltage range of an output power plant is defined by the operator, e.g. 43 V to 57 V.
This imposes the use of 24 lead-acid cells in a battery string, where each cell operates within a 1,8 V to 2,3 V voltage
range.
With lithium it is more complex as the battery voltage range has been historically defined for lead-acid batteries and
because lithium cells have a lot of different chemical compositions leading to different cell voltage ranges.
Some examples of configuration design are illustrated in the case of lithium iron phosphate (LFP) technology:
• 16 cells and uses a wide cell voltage range 2,7 V to 3,7 V:
- min voltage = 2,7 × 16 = 43
...
