ETSI TS 102 708-2-2 V1.2.1 (2012-02)

Technical Specification
Intelligent Transport Systems (ITS);
RTTT;
Test specifications for High Data Rate (HDR) data
transmission equipment operating in the 5,8 GHz ISM band;
Part 2: Application Layer;
Sub-Part 2: Test Suite Structure and Test Purposes (TSS&TP)

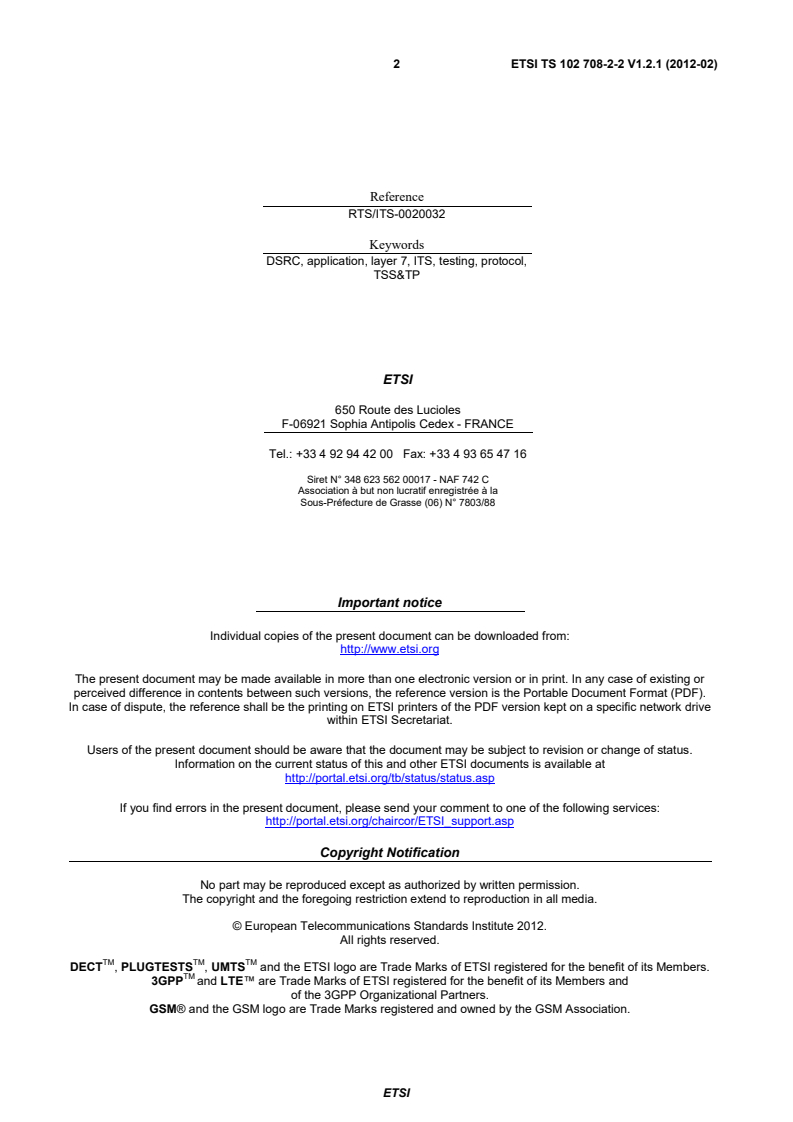

2 ETSI TS 102 708-2-2 V1.2.1 (2012-02)

Reference
RTS/ITS-0020032
Keywords
DSRC, application, layer 7, ITS, testing, protocol,
TSS&TP
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2012.
All rights reserved.
TM TM TM
DECT , PLUGTESTS , UMTS and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members.
TM
3GPP and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
Contents
Intellectual Property Rights . 5
Foreword . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions and abbreviations . 6
3.1 Definitions . 6
3.2 Abbreviations . 7
4 Test Suite Structure . 7
4.1 Structure . 7
4.2 Test groups . 7
4.3 Type of SUT . 7
4.4 Behaviour test groups . 7
4.4.1 Valid behaviour tests . 7
4.4.2 Invalid behaviour tests . 7
5 Test purposes . 8
5.1 Introduction . 8
5.1.1 Definition conventions . 8
5.1.2 Naming conventions . 8
5.1.3 Sources of TP definitions . 8
5.1.4 General reference . 9
5.1.5 General conditions . 9
5.1.6 Default PICS selection . 9
5.1.7 Presentation conventions . 9
5.2 Test purposes for on-board units . 10
5.2.1 Kernel Unit . 10
5.2.1.1 Valid behaviour . 10
5.2.1.2 Invalid behaviour . 11
5.2.2 Read access . 13
5.2.2.1 Valid behaviour . 13
5.2.2.2 Invalid behaviour . 15
5.2.3 Write Access . 16
5.2.3.1 Valid behaviour . 16
5.2.3.2 Invalid behaviour . 26
5.2.4 Optional functionality . 26
5.2.4.1 Valid behaviour . 26
5.2.4.2 Invalid behaviour . 28
5.2.5 Security . 28
5.2.5.1 Valid behaviour . 28
5.2.5.2 Invalid behaviour . 32
5.2.6 Integrity constraints . 34
5.3 Test purposes for road side units . 46
5.3.1 Kernel Unit . 46
5.3.2 Read access . 47
5.3.3 Write access . 49
5.3.4 Optional functionality . 52
5.3.5 Security . 54
Annex A (informative): Test coverage matrix . 57
A.1 Introduction . 57
A.2 OBU . 57
ETSI
4 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
A.3 RSU . . 61
History . 65

ETSI
5 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://ipr.etsi.org).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Intelligent Transport System (ITS).
The present document is part 2, sub-part 2 of a multi-part deliverable covering the test specifications for High Data Rate
(HDR) Dedicated Short Range Communication (DSRC).
Full details of the entire series can be found in part 2-1 [2].
ETSI
6 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
1 Scope
The present document contains the Test Suite Structure (TSS) and Test Purposes (TP) to test the Dedicated Short Range
Communication (DSRC) High Data Rate (HDR) Application Layer.
The objective of this test specification is to provide a basis for conformance tests for DSRC-HDR equipment specified
in [1] giving a high probability of inter-operability between different manufacturer's equipment.
The ISO standard for the methodology of conformance testing ISO/IEC 9646-1 [3] is used as a basis for the test
methodology.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] ETSI ES 200 674-1: "Intelligent Transport Systems (ITS); Road Transport and Traffic Telematics
(RTTT); Dedicated Short Range Communications (DSRC); Part 1: Technical characteristics and
test methods for High Data Rate (HDR) data transmission equipment operating in the 5,8 GHz
Industrial, Scientific and Medical (ISM) band".
[2] ETSI TS 102 708-2-1: "Intelligent Transport Systems (ITS); RTTT; Test specifications for High
Data Rate (HDR) data transmission equipment operating in the 5,8 GHz ISM band;
Part 2: Application Layer; Sub-Part 1: Protocol Implementation Conformance Statement (PICS)
proforma specification".
[3] ISO/IEC 9646-1 (1991): "Information technology - Open Systems Interconnection - Conformance
testing methodology and framework - Part 1: General concepts".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
Not applicable.
3 Definitions and abbreviations
3.1 Definitions
For the purpose of the present document, the terms and definitions given in [1] and [3] apply.
ETSI
7 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
3.2 Abbreviations
For the purpose of the present document, the abbreviations given in [1] and [3] apply.
4 Test Suite Structure
4.1 Structure
Table 1 shows the application layer test suite structure (TSS) including its groups defined for the conformance testing.
Table 1: Test suite structure for DSRC-HDR application layer
Group Type of system under test (SUT) Behaviour
Kernel unit On Board Unit Valid behaviour
Invalid behaviour
Road Side Unit Valid behaviour
Read access On Board Unit Valid behaviour
Invalid behaviour
Road Side Unit Valid behaviour
Write access On Board Unit Valid behaviour
Invalid behaviour
Road Side Unit Valid behaviour
Optional functionality On Board Unit Valid behaviour
Invalid behaviour
Road Side Unit Valid behaviour
Security On Board Unit Valid behaviour
Invalid behaviour
Road Side Unit Valid behaviour
Invalid behaviour
Integrity constraints On Board Unit Invalid behaviour

4.2 Test groups
There are six test groups defined for the application layer of DSRC-HDR as presented in table 1.
4.3 Type of SUT
Two types of systems under test (SUT) are distinguished, i.e. on board units (OBUs) and road side units (RSUs).
4.4 Behaviour test groups
4.4.1 Valid behaviour tests
Valid behaviour tests shall verify that the IUT reacts in conformity with the base standard [1], after receipt or exchange
of valid protocol data units (PDUs). "Valid PDU" means that the exchange of messages and the content of the
exchanged messages are considered as valid, i.e. compliant with the base standard.
4.4.2 Invalid behaviour tests
Invalid behaviour tests shall verify that the IUT reacts in conformity with the base standard [1], after receipt of a
syntactically invalid protocol data unit (PDU).
ETSI
8 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
5 Test purposes
5.1 Introduction
5.1.1 Definition conventions
Test purposes (TPs) are defined following particular rules as presented in table 2.
Table 2: TP definition rules
TP ID Title:
Reference:
PICS Selection:
TC Reference:
Initial condition:
Stimulus and Expected behaviour:

TP ID The TP ID is a unique identifier. It shall be specified according to the TP naming
conventions defined in the clause below.
Title Short description of test purpose objective.
Reference The reference should contain the references of the subject to be validated by the actual
TP (specification reference, clause, paragraph).
PICS Selection Reference to the PICS statement involved for selection of the TP. Contains a Boolean
expression. Only those ICS statements are shown that are explicitly related to the test.
TC reference
Shows the reference number of the related test case in the ATS.
Initial condition The condition defines in which initial state the IUT has to be to apply the actual TP.
Stimulus and Expected Definition of the events the tester performs, and the events that are expected from the
behaviour
IUT to conform to the base specification.

5.1.2 Naming conventions
The identifier of the TP is built according to table 3.
Table 3: TP naming convention
Identifier TP/////
= Type of SUT OBU On Board Unit
RSU Road Side Unit
AL Application Layer
KU Kernel Unit
RA Read Access
WA Write Access
OF Optional Functionality
IC Integrity Constraints
SC Security
x = Type of testing BV Valid Behaviour Test
BI Invalid Behaviour Test
= sequential number >0 = sequential number
NOTE: All tests specified in the present document are application layer tests. The term in the TP identifier is
used to have a consistent TP reference covering also the tests on the data link layer provided in a separate
part of this multi-part deliverable.

5.1.3 Sources of TP definitions
All TPs are specified according to the base standard ES 200 674-1 [1].
ETSI
9 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
5.1.4 General reference
All references in the test purposes, if not stated differently, are indicating clauses of the base standard ES 200 674-1 [1].
All references to PICS are indicating tables in part 2 sub-part 1 [2] of this multi-part deliverable.
5.1.5 General conditions
For all TPs related to OBUs the following pre-conditions shall apply, if not defined differently for a specific TP:
• The SUT (OBU) shall be ready for communication, i.e. it shall not be in sleep mode and all boot processes
shall be finalized.
• The "AP Invocation Identifier" used in the SUT shall be as defined by the applicant.
• "Responding Mode" used in the SUT (RSU) shall be set to "response-slow-speed", if not required differently
for a specific TP.
• The SUT (OBU) shall have no active association with the tester (RSU).
For all TPs related to RSUs, the following general conditions shall apply, if not defined differently for a specific TP:
• The SUT (RSU) shall provide means which allow issuing requests for APDUs to be transmitted.
• Repetition of a request message shall be possible only in case a reply was not received within due time.
NOTE: From this it follows that repetitive or periodic request messages are disabled in the SUT.
Additional pre-conditions may apply for specific TPs.
5.1.6 Default PICS selection
For all TPs related to OBUs the following PICS selections shall apply in addition to those specified for a specific TP:
• Tables A.1, A.3, A.5/1, A.5/2, A5/3 and A.5/7 of the PICS [2] shall be implicitly selected for all TPs.
For all TPs related to RSUs the following PICS selections shall apply in addition to those specified for a specific TP:
• Tables B.1, B.3, B.5, B.6/1, B.6/4, B.9/1, B.9/2, B.9/3 and B.9/7 of the PICS [2] shall be implicitly selected for
all TPs.
Further PICS selections may apply as specified for a specific TP. These either select options of the base standard [1] or
give hints on the major properties to be tested.
5.1.7 Presentation conventions
Concatenation of directives in a single frame shall be indicated with the symbol |.
EXAMPLE: Concatenation of Open-Rq with Close-Rq is presented as
Open-Rq | Close-Rq,
with Open-Rq sent first.
ETSI
10 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
5.2 Test purposes for on-board units
5.2.1 Kernel Unit
5.2.1.1 Valid behaviour
TP/OBU/AL/KU/BV/01
Verify that the IUT can handle Open-Rq
Reference: Clauses 11.5.2, 11.5.3, 11.6.1, 11.6.2, 11.6.3 and 11.6.4
PICS Selection: Table A.4/1 AND Table A.4/2 AND Table A.4/3 AND Table A.4/4
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open-Rq with new private LinkID and an “AP Invocation Identifier” having a valid value as
specified by the applicant.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H and with "AP Invocation
Identifier" having the same value as received
}
}
TP/OBU/AL/KU/BV/02 Verify that the IUT can handle Close-Rq
Reference: Clauses 11.5.2, 11.5.3, 11.6.1, 11.6.2, 11.6.3 and 11.6.4
PICS Selection: Table A.4/1 AND Table A.4/2 AND Table A.4/3 AND Table A.4/4
Initial conditions
with {
the IUT being in the "initial state"
and the IUT having received a valid Open-Rq with new private LinkID and a valid “AP Invocation Identifier”
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Close-Rq with LinkID having the same value as in the initial conditions
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H and with "AP Invocation
Identifier" having the same value as received
}
}
TP/OBU/AL/KU/BV/03 Verify that the IUT can handle Open-Rq and Close-Rq
Reference: Clauses 11.5.2, 11.5.3, 11.6.1, 11.6.2, 11.6.3 and 11.6.4
PICS Selection: Table A.4/1 AND Table A.4/2 AND Table A.4/3 AND Table A.4/4
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open-Rq | Close-Rq with new private LinkID
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H and with "AP Invocation
Identifier" having the same value as received
}
}
ETSI
11 ETSI TS 102 708-2-2 V1.2.1 (2012-02)

TP/OBU/AL/KU/BV/04
Verify that the IUT can handle Select-TBA-Id-Rq
Reference: Clauses 11.5.4, 11.6.1, 11.6.2 and 11.6.5
PICS Selection: Table A.4/5 AND Table A.4/6
TC reference:
Initial condition:
Initial conditions
with {
the IUT being in the "initial state"
and the IUT having received a valid Open-Rq | Close-Rq with new private LinkID
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open | Select-TBA-Id-Rq | Close-Rq with new private LinkID and with "Responding AP
Title" set equal to the value of "Called AP Title" as sent in the initial conditions
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H
}
}
5.2.1.2 Invalid behaviour
TP/OBU/AL/KU/BI/01 Verify that the IUT can manage Select-TBA-Id-Rq with an invalid length
Reference: Clauses 11.5.4, 11.6.1, 11.6.2 and 11.6.5
PICS Selection: Table A.4/5 AND Table A.4/6
Initial conditions
with {
the IUT being in the "initial state"
and the IUT having received a valid Open-Rq | Close-Rq with new private LinkID
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H
}
Expected behaviour
ensure that {
when {
the IUT receives a Open | Select-TBA-Id-Rq | Close-Rq with new private LinkID and with "Responding AP Title"
set equal to the value of "Called AP Title" as sent in the initial conditions, but with an invalid value of "Length"
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '05'H
}
}
ETSI
12 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
TP/OBU/AL/KU/BI/02 Verify that the IUT supporting the EETS profile can manage Select-TBA-Id-Rq with an invalid
value
Reference: Clauses 11.5.4, 11.6.1, 11.6.2, 11.6.5 and D.2.2
PICS Selection: Table A.4/5 AND Table A.4/6 AND Table A.2/1
Initial conditions
with {
the IUT being in the "initial state"
and the IUT having received a valid Open-Rq | Close-Rq with new private LinkID
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open | Select-TBA-Id-Rq | Close-Rq with new private LinkID and with "Responding AP
Title" set equal to a value different to "Called AP Title" as sent in the initial conditions
}
then {
the IUT does not respond
}
}
TP/OBU/AL/KU/BI/03 Verify that the IUT not supporting the EETS profile can manage Select-TBA-Id-Rq with an invalid
value
Reference: Clauses 11.5.4, 11.6.1, 11.6.2 and 11.6.5
PICS Selection: Table A.4/5 AND Table A.4/6 AND NOT Table A.2/1
Initial conditions
with {
the IUT being in the "initial state"
and the IUT having received a valid Open-Rq | Close-Rq with new private LinkID
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open | Select-TBA-Id-Rq | Close-Rq with new private LinkID and with "Responding AP
Title" set equal to a value different to "Called AP Title" noted previously
}
then {
the IUT does not respond OR the IUT responds with "Result" set to '15'H and "Diagnostic" set to '05'H.
}
}
TP/OBU/AL/KU/BI/04 Verify that the IUT handles an invalid application identifier
Reference: Clauses 11.5.2, 11.5.3, 11.6.1, 11.6.2, 11.6.3 and 11.6.4
PICS Selection: Table A.4/1 AND Table A.4/2 AND Table A.4/3 AND Table A.4/4
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open-Rq with new private LinkID and an invalid “AP Invocation Identifier” (diiferent from
valid values specified by the applicant)
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '06'H
}
}
ETSI
13 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
5.2.2 Read access
5.2.2.1 Valid behaviour
TP/OBU/AL/RA/BV/01
Verify that the IUT can manage Open-Rq | Read-Master-Core-Rq | Close-Rq
Reference: Clauses 11.5.6, 11.6.2 and 11.6.7
PICS Selection: Table A.4/9 AND Table A.4/10
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
repeat with different private LinkID and different combinations of “Offset” and “Length” parameters in order to cover
the whole Master Core.
when {
the IUT receives a valid Open-Rq | Read-Master-Core-Rq | Close-Rq with new private LinkID and with valid
combinations of "Offset" and "Length" in Read-Master-Core-Rq in order to retrieve a part of or the whole master
core.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H, and with the data of "Read-
Master-Core-Rs" as specified by the applicant for the selected range
}
}
TP/OBU/AL/RA/BV/02
Verify that the IUT can manage Read-Master-Core-Rq with broadcast LinkID
Reference: Clauses 11.5.6, 11.6.2 and 11.6.7
PICS Selection: Table A.4/9 AND Table A.4/10
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
repeat with different combinations of “Offset” and “Length” parameters in order to cover the whole Master Core.
when {
the IUT receives a valid Open-Rq | Read-Master-Core-Rq | Close-Rq with broadcast LinkID and with valid
combinations of "Offset" and "Length" in Read-Master-Core-Rq in order to retrieve a part of or the whole master
core.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H, and with the data of "Read-
Master-Core-Rs" as specified by the applicant for the selected range
}
}
ETSI
14 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
TP/OBU/AL/RA/BV/03 Verify that the IUT can manage Open-Rq | Get-Master-Record-Rq | Close-Rq
Reference: Clauses 11.5.7, 11.6.2 and 11.6.8
PICS Selection: Table A.4/11 AND Table A.4/12
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
repeat with different private LinkID and different combinations of “Offset” and “Length” parameters in order to cover
the whole Master Record.
when {
the IUT receives a valid Open-Rq | Get-Master-Record-Rq | Close-Rq with new private LinkID and with valid
combinations of "Offset" and "Length" in Get-Master-Record-Rq in order to retrieve a part of or the whole master
record.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H, and with the data of "Get-
Master-Record-Rs" as specified by the applicant for the selected range
}
}
TP/OBU/AL/RA/BV/04 Verify that the IUT can manage Open-Rq | Read-Appl-Core-Rq | Close-Rq
Reference: Clauses 11.5.8, 11.6.2 and 11.6.9
PICS Selection: Table A.4/13 AND Table A.4/14
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
repeat with different private LinkID and different combinations of “Offset” and “Length” parameters in order to cover
the whole Application Core.
when {
the IUT receives a valid Open-Rq | Read-Appl-Core-Rq | Close-Rq with new private LinkID and with valid
combinations of "Offset" and "Length" in Read-Appl-Core-Rq in order to retrieve a part of or the whole application
core.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H, and with the data of "Read-
Application-Core-Rs" as specified by the applicant for the selected range
}
}
TP/OBU/AL/RA/BV/05 Verify that the IUT can manage Read-Appl-Core-Rq with broadcast LinkId
Reference: Clauses 11.5.8, 11.6.2 and 11.6.9
PICS Selection: Table A.4/13 AND Table A.4/14
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
repeat with different combinations of “Offset” and “Length” parameters in order to cover the whole Application Core.
when {
the IUT receives a valid Open-Rq | Read-Appl-Core-Rq | Close-Rq with broadcast LinkID and with valid
combinations of "Offset" and "Length" in Read-Appl-Core-Rq in order to retrieve a part of or the whole application
core.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H, and with the data of "Read-
Application-Core-Rs" as specified by the applicant for the selected range
}
}
ETSI
15 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
TP/OBU/AL/RA/BV/06 Verify that the IUT can manage Open-Rq | Read-Appl-Record-Rq | Close-Rq
Reference: Clauses 11.5.13, 11.6.2 and 11.6.14
PICS Selection: Table A.4/23 AND Table A.4/24
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
repeat with different private LinkID and different combinations of “Offset” and “Length” parameters in order to cover
the whole Application Record.
when {
the IUT receives a valid Open-Rq | Read-Appl-record-Rq | Close-Rq with new private LinkID and with valid
combinations of "Offset" and "Length" in Read-Appl-Record-Rq in order to retrieve a part of or the whole
application record.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H, and with the data of "Read-
Application-Record-Rs" as specified by the applicant for the selected range
}
}
TP/OBU/AL/RA/BV/07 Verify that the IUT can manage Read-Appl-Record-Rq with broadcast LinkId
Reference: Clauses 11.5.13, 11.6.2 and 11.6.14
PICS Selection: Table A.3/23 AND Table A.3/24
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
repeat with different combinations of “Offset” and “Length” parameters in order to cover the whole Application Record.
when {
the IUT receives a valid Open-Rq | Read-Appl-Record-Rq | Close-Rq with broadcast LinkID and with valid
combinations of "Offset" and "Length" in Read-Appl-Record-Rq in order to retrieve a part of or the whole
application record.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H, and with the data of "Read-
Application-record-Rs" as specified by the applicant for the selected range
}
}
5.2.2.2 Invalid behaviour
TP/OBU/AL/RA/BI/01 Verify that the IUT can manage reception of Get-Master-Record-Rq outside a session
Reference: Clauses 11.5.7, 11.6.2 and 11.6.8
PICS Selection: Table A.4/11 AND Table A.4/12
Initial conditions
with {
the IUT being in the "initial state"
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Get-Master-Record-Rq with broadcast LinkID and with valid combinations of "Offset" and
"Length" in Get-Master-Record-Rq in order to retrieve a part of or the whole application record.
}
then {
the IUT issues a response with " Result” set to '15'H and "Diagnostic" set to '02'H
}
}
ETSI
16 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
5.2.3 Write Access
5.2.3.1 Valid behaviour
TP/OBU/AL/WA/BV/01 Verify that the IUT can manage Open-Rq | Select-TBA-Id-Rq | Write-Appl-Core-Rq | Close-Rq
with no restrictions due to EETS profile
Reference: Clauses 11.5.9, 11.6.2, 11.6.10
PICS Selection: Table A.4/15 AND Table A.4/16 AND NOT Table A.2/1
Initial conditions
repeat with different private LinkID and different combinations of “Offset” and “Length” parameters in order to cover
the whole Application Core.
with {
the IUT being in the "initial state"
and the IUT having received a valid Open-Rq | Read-Appl-Core-Rq | Close-Rq with new private LinkID and with valid
combinations of "Offset" and "Length" in Read-Appl-Core-Rq in order to retrieve a part of or the whole application
core.
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H. Note the value of
"Called AP Title" and the data received
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open-Rq | Select-TBA-Id-Rq | Write-Appl-Core-Rq | Close-Rq with new private LinkID
and with the same values of "Offset" and "Length" as in the previous Read-Appl-Core-Rq in order to write different
data in the same position as the data previously received.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H.
}
}
Final Conditions
ensure that {
when {
the IUT receives a valid Open-Rq | Read-Appl-Core-Rq | Close-Rq with new private LinkID and with the same
values of "Offset" and "Length" as used previously and with "Responding AP Title" set equal to the value of
"Called AP Title" noted previously.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H. Verify that the data received are
the same as the data sent previously.
}
}
ETSI
17 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
TP/OBU/AL/WA/BV/02 Verify that the IUT can manage Open-Rq | Select-TBA-Id-Rq | Write-Appl-Core-Rq | Close-Rq
with the restrictions due to EETS profile
Reference: Clauses 11.5.9, 11.6.2, 11.6.10 and D.2.2
PICS Selection: Table A.4/15 AND Table A.4/16 AND Table A.2/1
Initial conditions
repeat with different private LinkID and different combinations of “Offset” and “Length” parameters in order to cover
the whole Application Core.
with {
the IUT being in the “initial state”
and the IUT having received a valid Open-Rq | Read-Appl-Core-Rq | Close-Rq with new private LinkID and with
"Offset" set to 47 Decimal and "Length" set to 28 Decimal in Read-Appl-Core-Rq in order to retrieve the first writable
part of the Application Core.
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H. Note the value of
"Called AP Title" and the data received
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open-Rq | Select-TBA-Id-Rq | Write-Appl-Core-Rq | Read-Appl-Core | Close-Rq with new
private LinkID and with the same values of "Offset" and "Length" as in the previous Read-Appl-Core-Rq and with
"Responding AP Title" set equal to the value of "Called AP Title" noted previously in order to write data to the
application core being different to the data previously received and subsequently retrieve data from the same
memory in the application core
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H. Verify that the data received are
the same as the data sent previously.
}
}
TP/OBU/AL/WA/BV/03 Verify that the IUT can manage Write-Appl-Core-Rq | Read-Appl-Core-Rq with no restrictions
due to the EETS profile
Reference: Clauses 11.5.9, 11.6.2 and 11.6.10
PICS Selection: Table A.4/13 AND Table A.4/14 AND Table A.4/15 AND Table A.4/16 AND
NOT Table A.2/1
Initial conditions
repeat with different private LinkID and different combinations of “Offset” and “Length” parameters in order to cover
the whole Application Core.
with {
the IUT being in the “initial state”
and the IUT having received a valid Open-Rq | Read-Appl-Core-Rq | Close-Rq with new private LinkID and with valid
combinations of "Offset" and "Length" in Read-Appl-Core-Rq.
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open-Rq | Select-TBA-Id-Rq | Write-Appl-Core-Rq | Read_Appl-Core-Rq | Close-Rq with
new private LinkID and with the same values of "Offset" and "Length" as in the initial conditions and with
"Responding AP Title" set to the value of "Called AP Title" as sent in the initial conditions in order to write different
data in the same position as the data previously received, and then to read back that data.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H. Verify that the data received are
the same as the data sent previously.
}
}
ETSI
18 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
TP/OBU/AL/WA/BV/04 Verify that the IUT can manage multiple Write-Appl-Core-Rq in a single frame with no
restrictions due to the EETS profile
Reference: Clauses 11.5.9, 11.6.2 and 11.6.10
PICS Selection: Table A.4/15 AND Table A.4/16 AND NOT Table A.2/1
Initial conditions
with {
the IUT being in the “initial state”
and the IUT receives a valid Open-Rq | Read-Appl-Core-Rq | Close-Rq with new private LinkID and with "Offset" set
to zero and "Length" set to the maximum length D provided by the applicant in order to retrieve the whole application
core.
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H.
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open-Rq | Select-TBA-Id-Rq | Write-Appl-Core-Rq("Offset"=0, "Length"=A) | Write-Appl-
Core-Rq("Offset"=A, "Length"=B) | Write-Appl-Core-Rq("Offset"=A+B, "Length"=C) | Read-Appl-Core-
Rq("Offset"=0, "Length"=A+B+C=D) | Close-Rq with new private LinkID and with "Responding AP Title" set to the
value of "Called AP Title" sent in the initial conditions.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H. Verify that the data received are
the same as the data sent previously.
}
}
TP/OBU/AL/WA/BV/05
Verify that the IUT can manage Write-Appl-Core-Conf-Rq
Reference: Clauses 11.5.10, 11.6.2 and 11.6.11
PICS Selection: Table A.4/17 AND Table A.4/18
Initial conditions
with {
the IUT being in the “initial state”
and the IUT having received a valid Open-Rq | Read-Appl-Core-Rq | Close-Rq with new private LinkID and with valid
combinations of "Offset" and "Length" in Read-Appl-Core-Rq
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open-Rq | Select-TBA-Id-Rq | Write-Appl-Core-Conf-Rq | Close-Rq with new private
LinkID and with the same value of "Offset" and "Length" as used in the initial conditions and with "Responding AP
Title" set to the value of "Called AP Title" as sent in the initial conditions.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H.
}
}
Final Conditions
ensure that {
when {
the IUT receives a valid Open-Rq | Select-TBA-Id-Rq | Read-Appl-Core-Rq | Close-Rq with new private LinkID
and with the same values of "Offset" and "Length" as used previously and with "Responding AP Title" set to the
value of "Called AP Title" as sent in the initial conditions.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H. Verify that the data received are
the same as the data sent previously.
}
}
ETSI
19 ETSI TS 102 708-2-2 V1.2.1 (2012-02)
TP/OBU/AL/WA/BV/06 Verify that the IUT can manage Write-Appl-Record-Curr-Rq
Reference: Clauses 11.5.14, 11.6.2 and 11.6.15
PICS Selection: Table A.4/25 AND Table A.4/26
Initial conditions
repeat with different private LinkID and different combinations of “Offset” and “Length” parameters in order to cover
the whole Application Record.
with {
the IUT being in the “initial state”
and the IUT having received a valid Open-Rq | Read-Appl-Record-Rq | Close-Rq with new private LinkID and with
valid combinations of "Offset" and "Length" in Read-Appl-Record-Rq
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" set to '00'H.
}
Expected behaviour
ensure that {
when {
the IUT receives a valid Open-Rq | Select-TBA-Id-Rq | Write-Appl-Record-Curr-Rq | Close-Rq with new private
LinkID and with the same value of "Offset" and "Length" as received in the initial conditions and with "Responding
AP Title" set to the value of "Called AP Title" as sent in the initial conditions.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H.
}
}
Final Conditions
ensure that {
when {
the IUT receives a valid Open-Rq | Select-TBA-Id-Rq | Read-Appl-Record-Rq | Close-Rq with new private LinkID
and with the same values of "Offset" and "Length" as used previously and with "Responding AP Title" set equal to
the value of "Called AP Title" noted previously.
}
then {
the IUT issues a response with "Result" set to '06'H and "Diagnostic" set to '00'H. Verify that the data received are
the same as the data sent previously.
}
}
TP/OBU/AL/WA/BV/07 Verify that the IUT can manage Write-Appl-Record-Curr-Rq | Read-Appl-Record-Rq
Reference: Clauses 11.5.14, 11.6.2 and 11.6.15
PICS Selection: Table A.4/23 AND Table A.4/24 AND Table A.4/25 AND Table A.4/26
Initial conditions
repeat with different private LinkID and different combinations of “Offset” and “Length” parameters in order to cover
the whole Application Record.
with {
the IUT being in the “initial state”
and the IUT having received a valid Open-Rq | Read-Appl-Record-Rq | Close-Rq with new private LinkID and with
valid combinations of "Offset" and "Length" in Read-Appl-Record-Rq
and the IUT having issued a response with "Result" set to '06'H and "Diagnostic" se
...
