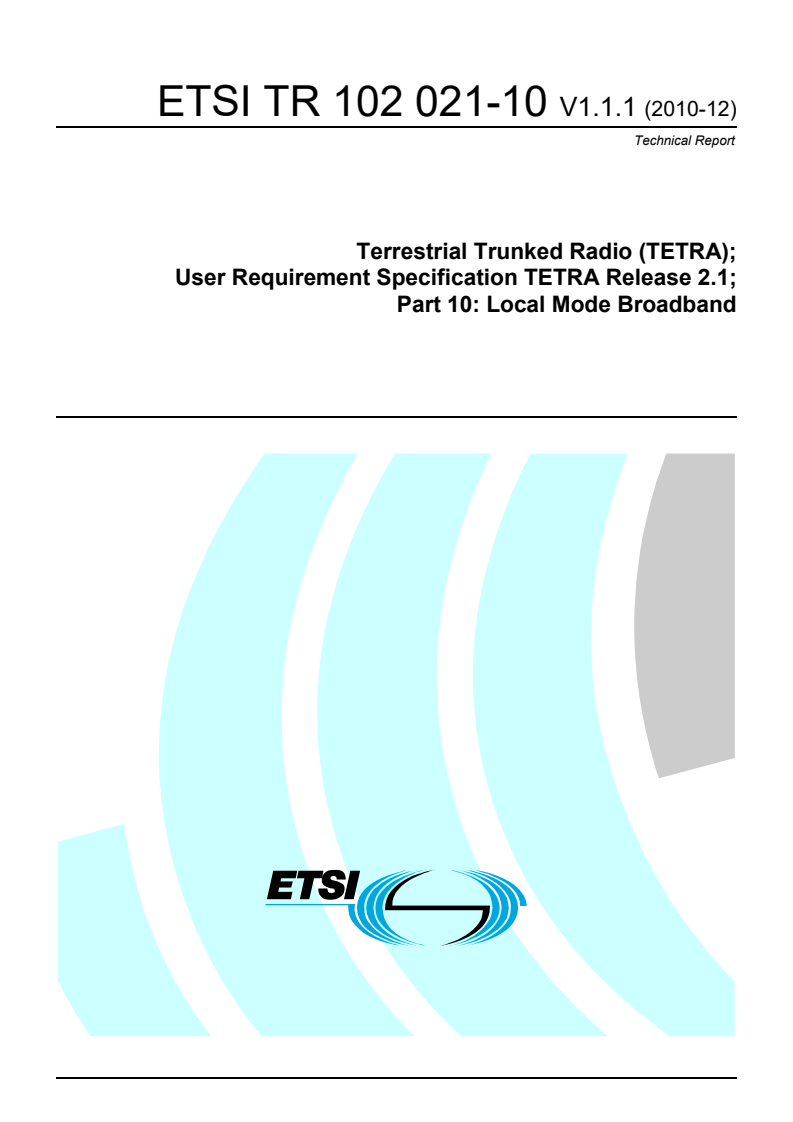

ETSI TR 102 021-10 V1.1.1 (2010-12)

Technical Report
Terrestrial Trunked Radio (TETRA);
User Requirement Specification TETRA Release 2.1;
Part 10: Local Mode Broadband

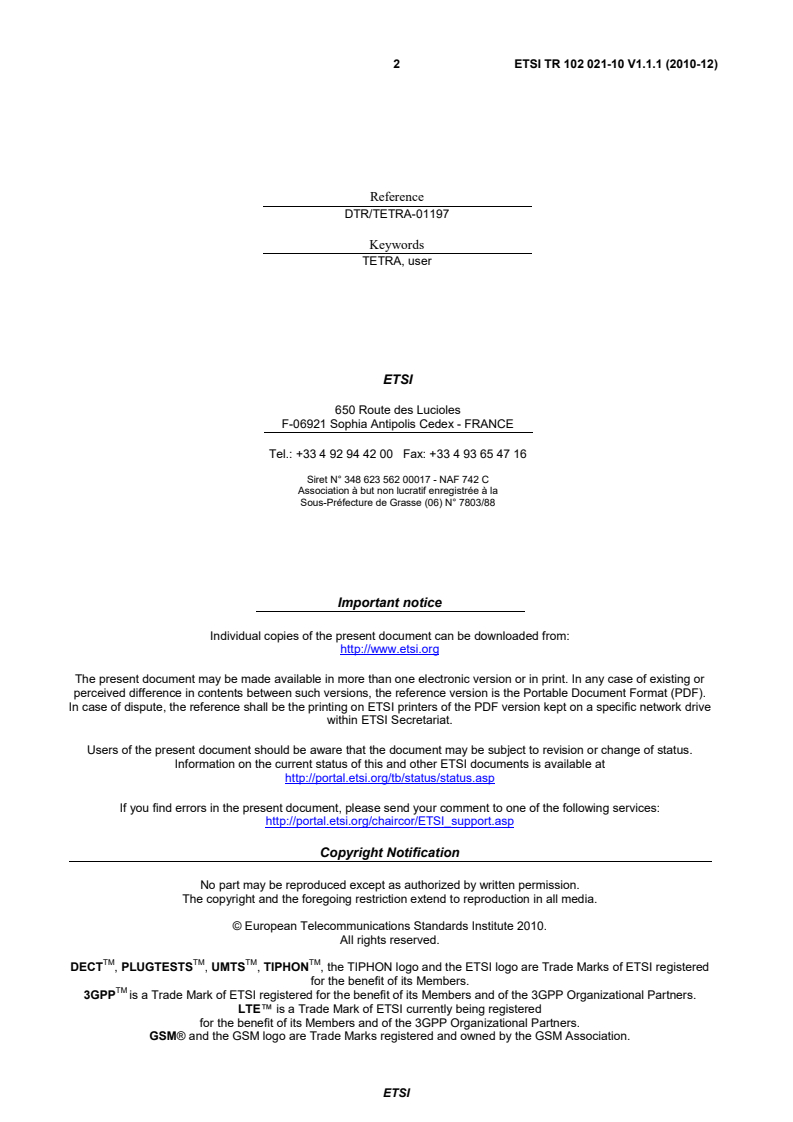

2 ETSI TR 102 021-10 V1.1.1 (2010-12)

Reference
DTR/TETRA-01197
Keywords
TETRA, user
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI TR 102 021-10 V1.1.1 (2010-12)
Contents
Intellectual Property Rights . 4
Foreword . 4
Introduction . 4
Background . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 6
3 Definitions and abbreviations . 6
3.1 Definitions . 6
3.2 Abbreviations . 7
4 Local Mode Broadband (LMB) . 7
4.1 Local . 7
4.2 Broadband . 8
5 Networking capability for Local Mode Broadband area to Local Mode Broadband area . 8
6 Frequency range and efficiency . 8
7 Service reliability/availability . 8
8 Data rate . 9
9 Voice . 9
10 Data . 9
11 Voice and data interaction . 9
12 Service transparency between TMO and LMB to allow seamless operation . 9
13 LMB gateway . 10
14 Security. 10
Annex A: TETRA World Congress 2007 workshop . 11
A.1 TETRA World Congress 2007 workshop enhancement area's . 11
A.2 TETRA World Congress 2007 workshop results . 12
A.3 Analysis current situation . 13
History . 14

ETSI
4 ETSI TR 102 021-10 V1.1.1 (2010-12)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Technical Report (TR) has been produced by ETSI Technical Committee Terrestrial Trunked Radio (TETRA).
The present document is part 10 of a multi-part deliverable covering the User Requirement Specifications (URSs) for
TETRA Release 2 and Release 2.1, as identified below:
Part 1: "General overview" (Release 2.1);
Part 2: "High Speed Data" (Release 2.1);
Part 3: "Codec" (Release 2);
Part 4: "Air Interface Enhancements" (Release 2.1);
Part 5: "Interworking and Roaming" (Release 2.1);
Part 6: "Subscriber Identity Module (SIM)" (Release 2.1);
Part 7: "Security" (Release 2.1);
Part 8: "Air - Ground - Air services" (Release 2);
Part 9 "Peripheral Equipment Interface" (Release 2.1);
Part 10: "Local Mode Broadband" (Release 2.1);
Part 11: "Over The Air Management" (Release 2.1);
Part 12: "Direct Mode Operation" (Release 2.1).
Introduction
The Terms of Reference for TC TETRA approved at ETSI Board meeting #69, November 2008 are to produce ETSI
deliverables (and maintenance thereafter) in accordance with the following requirements:
• The provision of user driven services, facilities and functionality as required by traditional Professional Mobile
Radio (PMR) user organizations such as the Emergency Services, Government, Military, Transportation,
Utility and Industrial organizations as well as Public Access Mobile Radio (PAMR) Operators.
• The evolution and enhancement of TETRA as required by the market with the provision of new services,
facilities and functionality made possible by new technology innovations and standards.
• Further enhancements of the TETRA standard in order to provide increased benefits and optimization in terms
of spectrum efficiency, network capacity, system performance, quality of service, security and other relevant
parameters.
ETSI
5 ETSI TR 102 021-10 V1.1.1 (2010-12)
• The backward compatibility and integration of the new services, facilities and functionality with existing
TETRA standards in order to future-proof the existing and future investments of TETRA users.
Technical Objective
TETRA is one of a number of digital wireless communication technologies standardized by ETSI.
ETSI TC TETRA produces standards and/or adapts existing standards for efficient digital PMR and PAMR voice and
data services, including broadband evolution.
The present document provides the User Requirement Specifications for the TETRA Local Mode Broadband.
Background
Before the initiation of TETRA Release 2, limited attention has been paid to the provision of IP-based wideband
multimedia services in Private Mobile Radio (PMR) wireless networks, such as those used by public safety
organizations in TETRA release 1. However, TETRA Release 2 has changed this by development of TEDS, which
intends to broaden the spectrum of multimedia services offered to TETRA users. As TEDS offers data rates comparable
to that of 2,5G/3G networks, then using real-time multimedia applications will be feasible in TETRA.
This is however only a development which improves fixed trunking network, based on an architecture which assumes a
fixed infrastructure with connections to a central intelligent switch, the SwMI. There are also needs to cover ad-hoc
incident area's with IP-based networks which should support all current services of TETRA (voice, SDS and IP) and
allow applications like sensor data and real-time multimedia applications like video images to be used.
TC TETRA organised a workshop at the TETRA World Congress 2007 to discuss the candidate TETRA enhancement
areas for TETRA Release 2 evolution. The workshop enhancement area are detailed in annex A.
Regarding to Local Mode Broadband, 2 enhancement areas were identified and specified as:
• Local Mode Broadband
Even though the TETRA standard has been enhanced for "wide-band" applications with the introduction of
TEDS, some suggestions have been made to further increase data throughput to match that offered by
broadband data services. For example, some suggestions have been to provide access to broadband services in
certain "hot zones" within a TETRA Voice and Data network coverage area. It was also suggested that "hot
zone" coverage should dynamically increased and/or decreased as required for communication purposes.
• Networking capability for Local Mode Broadband area to Local Mode Broadband area
To further enhance the capability of broadband services in certain "hot zones" as suggested above, there have
also been suggestions to increase "hot zone" coverage by interconnecting different "hot zones" together via the
TETRA Voice and Data network.
ETSI
6 ETSI TR 102 021-10 V1.1.1 (2010-12)
1 Scope
The present document provides the User Requirement Specifications for the TETRA Local Mode Broadband.
To improve TETRA on-site communication capabilities, the LMB aims at allowing the intervention teams to
dynamically deploy an ad-hoc wireless network within the incident area, supporting voice, video and data
communication (e.g. sensor-based data such as oxygen, gas, temperature). The ad-hoc wireless network should be made
robust and redundant, securely supporting intervention teams of different disciplines within the same incident area. This
ad-hoc wireless network should be capable of being securely connected, extended and integrated into the into a larger
outdoor TETRA network.
NOTE: Further study may be required before a standardization effort is initiated.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
Not applicable.
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI TR 102 621: "Terrestrial Trunked Radio (TETRA); TWC2007 Future of TETRA workshop
report".
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definition apply:
TETRA Release 2.1: Work Programme within TC TETRA to enhance the services and facilities of TETRA in order to
meet new user requirements, utilize new technology and increase the longevity of TETRA within the traditional market
domains of PMR and PAMR
ETSI
7 ETSI TR 102 021-10 V1.1.1 (2010-12)
3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
API Application Programming Interface
DMO Direct Mode of Operation
GoS Grade of Service
IP Interner Protocol
LMB Local Mode Broadband
LMW Local Mode Wideband
SDS Short Data Service
SwMI Switching and Management Infrastructure
TEDS TETRA Enhanced Data Service
TMO Trunked Mode Operation
VPN Virtual Private Network
4 Local Mode Broadband (LMB)
4.1 Local
The coverage area of LMB is (in the start-up) limited to "on-site", meaning the "incident area". LMB is an ad-hoc
wireless network that can be deployed anywhere very quickly by "intervention" teams. This means that the equipment
should be small and "simple", not needing people with technical knowledge.
For large scale disasters, the communication in general complies with the "hourglass model".
With the "hourglass model" the following is meant:
• At the incident area, a lot of information is gathered (video footage from different cameras, the different
conversations that are recorded, sensor data, etc.) In general, it is unnecessary and impossible to transmit all
this information to the crisis centre. The crisis centre has no use for individual sensor data, nor for every
individual conversation that takes place in the incident area.
• On the other hand, if the link
...
