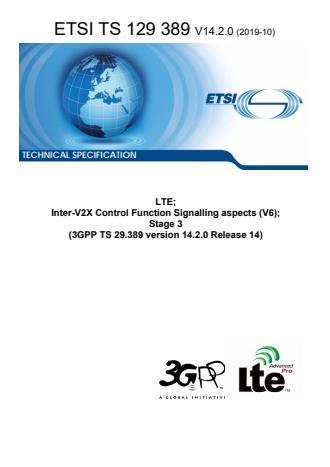

ETSI TS 129 389 V14.2.0 (2019-10)

TECHNICAL SPECIFICATION
LTE;
Inter-V2X Control Function Signalling aspects (V6);
Stage 3
(3GPP TS 29.389 version 14.2.0 Release 14)

3GPP TS 29.389 version 14.2.0 Release 14 1 ETSI TS 129 389 V14.2.0 (2019-10)

Reference
RTS/TSGC-0429389ve20
Keywords
LTE
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format at www.etsi.org/deliver.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx
If you find errors in the present document, please send your comment to one of the following services:
https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying
and microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2019.
All rights reserved.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and
of the 3GPP Organizational Partners.
oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and
of the oneM2M Partners. ®
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
3GPP TS 29.389 version 14.2.0 Release 14 2 ETSI TS 129 389 V14.2.0 (2019-10)

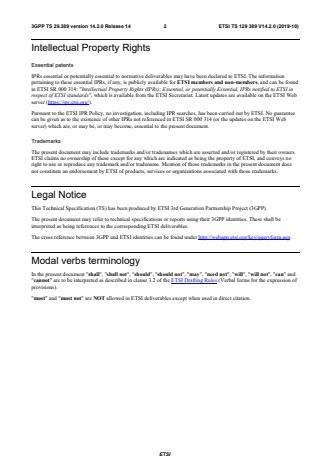

Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (https://ipr.etsi.org/).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
Legal Notice
This Technical Specification (TS) has been produced by ETSI 3rd Generation Partnership Project (3GPP).
The present document may refer to technical specifications or reports using their 3GPP identities. These shall be
interpreted as being references to the corresponding ETSI deliverables.
The cross reference between 3GPP and ETSI identities can be found under http://webapp.etsi.org/key/queryform.asp.
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
3GPP TS 29.389 version 14.2.0 Release 14 3 ETSI TS 129 389 V14.2.0 (2019-10)
Contents
Intellectual Property Rights . 2
Legal Notice . 2
Modal verbs terminology . 2
Foreword . 5
1 Scope . 6
2 References . 6
3 Definitions and abbreviations . 7
3.1 Definitions . 7
3.3 Abbreviations . 7
4 General Description . 7
4.1 Introduction . 7
5 Procedure Description . 7
5.1 Introduction . 7
5.2 V2X Service Authorization . 7
5.2.1 General . 7
5.2.2 Detailed behaviour of the V2X Control Function in the HPLMN . 8
5.2.3 Detailed behaviour of the V2X Control Function in the VPLMN . 9
6 Protocol Specification and Implementations . 9
6.1 Introduction . 9
6.1.1 Use of Diameter base protocol . 9
6.1.2 Securing Diameter Messages . 9
6.1.3 Accounting functionality . 9
6.1.4 Use of sessions . 9
6.1.5 Transport protocol . 10
6.1.6 Routing considerations . 10
6.1.7 Advertising Application Support . 10
6.1.8 Diameter Application Identifier . 10
6.1.9 Use of the Supported-Features AVP . 10
6.2 Commands . 11
6.2.1 Introduction. 11
6.2.2 Command-Code values . 11
6.2.3 ProSe-Authorization-Request (PAR) Command . 11
6.2.4 ProSe-Authorization-Answer (PAA) Command. 12
6.3 Information Elements . 12
6.3.1 General . 12
6.3.2 V2X-Authorization-Data . 13
6.3.3 V2X-Permission-in-VPLMN . 14
6.3.4 V2X-Application-Server . 14
6.3.5 Application-Server . 14
6.3.6 Geographical-Information . 14
6.3.7 OC-Supported-Features . 14
6.3.8 OC-OLR . 14
6.3.9 DRMP . 15
6.3.10 Load . 15
6.4 Result-Code AVP and Experimental-Result AVP Values . 15
6.4.1 General . 15
6.4.2 Success . 15
6.4.3 Permanent Failures . 15
6.4.3.1 General . 15
6.4.3.2 DIAMETER_ERROR_USER_UNKNOWN (5001) . 15
6.4.3.3 DIAMETER_ERROR_UNKNOWN_V2X_SUBSCRIPTION (5690) . 15
6.4.3.4 DIAMETER_ERROR_V2X_NOT_ALLOWED (5691) . 15
ETSI
3GPP TS 29.389 version 14.2.0 Release 14 4 ETSI TS 129 389 V14.2.0 (2019-10)
Annex A (normative): Diameter overload control mechanism . 16
A.1 General . 16
A.2 Responding V2X Control Function behaviour . 16
A.3 Requesting V2X Control Function behaviour . 16
Annex B (Informative): Diameter overload node behaviour . 17
B.1 Message prioritization . 17
Annex C (normative): Diameter message priority mechanism . 18
C.1 General . 18
C.2 V6 interfaces . 18
C.2.1 General . 18
C.2.2 V2X Control Function behaviour . 18
D.1 General . 18
D.2 Responding V2X Control Function behaviour . 18
D.3 Requesting V2X Control Function behaviour . 19
Annex E (informative): Change history . 20
History . 21

ETSI
3GPP TS 29.389 version 14.2.0 Release 14 5 ETSI TS 129 389 V14.2.0 (2019-10)
Foreword
rd
This Technical Specification has been produced by the 3 Generation Partnership Project (3GPP).
The contents of the present document are subject to continuing work within the TSG and may change following formal
TSG approval. Should the TSG modify the contents of the present document, it will be re-released by the TSG with an
identifying change of release date and an increase in version number as follows:
Version x.y.z
where:
x the first digit:
1 presented to TSG for information;
2 presented to TSG for approval;
3 or greater indicates TSG approved document under change control.
y the second digit is incremented for all changes of substance, i.e. technical enhancements, corrections,
updates, etc.
z the third digit is incremented when editorial only changes have been incorporated in the document.
ETSI
3GPP TS 29.389 version 14.2.0 Release 14 6 ETSI TS 129 389 V14.2.0 (2019-10)
1 Scope
The present document describes the Diameter-based interfaces between the V2X Control Function in the HPLMN and
the V2X Control Function in the VPLMN (V6 interface).
This specification defines the Diameter application for V6 reference points between the V2X Control Functions. The
interactions between the V2X Control Functions are specified.
The stage 2 description for V2X service features in EPS is specified in 3GPP TS 23.285 [2].
2 References
The following documents contain provisions which, through reference in this text, constitute provisions of the present
document.
- References are either specific (identified by date of publication, edition number, version number, etc.) or
non-specific.
- For a specific reference, subsequent revisions do not apply.
- For a non-specific reference, the latest version applies. In the case of a reference to a 3GPP document (including
a GSM document), a non-specific reference implicitly refers to the latest version of that document in the same
Release as the present document.
[1] 3GPP TR 21.905: "Vocabulary for 3GPP Specifications".
[2] 3GPP TS 23.285: "Architecture enhancements for V2X services; Stage 2".
[3] IETF RFC 6733: "Diameter Base Protocol".
[4] 3GPP TS 33.210: "3G Security; Network Domain Security; IP Network Layer Security".
[5] IETF RFC 4960: "Stream Control Transmission Protocol".
[6] 3GPP TS 29.229: "Cx and Dx interfaces based on the Diameter protocol".
[7] IETF RFC 5234: "Augmented BNF for Syntax Specifications: ABNF".
[8] 3GPP TS 23.003: "Numbering, addressing and identification".
[9] 3GPP TS 29.228: "IP multimedia (IM) Subsystem Cx and Dx Interfaces; Signalling flows and
Message Elements".
[10] 3GPP TS 29.272: "Evolved Packet System; MME and SGSN Related Interfaces Based on
Diameter Protocol".
[11] 3GPP TS 29.329: "Sh Interface based on the Diameter protocol".
[12] IETF RFC 7683: "Diameter Overload Indication Conveyance".
[13] 3GPP TS 29.336: "Home Subscriber Server (HSS) diameter interfaces for interworking with
packet data networks and applications".
[14] 3GPP TS 32.299: "Telecommunication management; Charging management; Diameter charging
applications".
[15] IETF RFC 7944: "Diameter Routing Message Priority".
[16] 3GPP TS 29.388: "V2X Control Function to V2X Control Function to Home Subscriber Server
(HSS) aspects (V4)".
[17] 3GPP TS 29.345: "Inter-Proximity-services (ProSe) Function signalling aspects".
[18] IETF RFC 8583: "Diameter Load Information Conveyance".
ETSI
3GPP TS 29.389 version 14.2.0 Release 14 7 ETSI TS 129 389 V14.2.0 (2019-10)
3 Definitions and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in 3GPP TR 21.905 [1] and the following
apply. A term defined in the present document takes precedence over the definition of the same term, if any, in
3GPP TR 21.905 [1].
example: text used to clarify abstract rules by applying them literally.

3.3 Abbreviations
For the purposes of the present document, the abbreviations given in 3GPP TR 21.905 [1] and the following apply. An
abbreviation defined in the present document takes precedence over the definition of the same abbreviation, if any, in
3GPP TR 21.905 [1].
ProSe Proximity-based Services
V2X Vehicle-to-Everything
4 General Description
4.1 Introduction
The V6 reference point is defined between a V2X Control Function in the HPLMN and a V2X Control Function in the
VPLMN.
The definition of the V6 reference points and related functionalities are given in 3GPP TS 23.285 [2].
As defined in 3GPP TS 23.285 [2], the V6 reference point is used for:
- HPLMN control of service authorization for V2X.
5 Procedure Description
5.1 Introduction
This clause describes the Diameter-based V6 interface related procedures and Information elements exchanged between
functional entities.
In the tables that describe the Information Elements transported by each Diameter command, each Information Element
is marked as (M) Mandatory, (C) Conditional or (O) Optional in the "Cat." column. For the correct handling of the
Information Element according to the category type, see the description detailed in clause 6 of the 3GPP TS 29.228 [9].
5.2 V2X Service Authorization
5.2.1 General
The V2X Service Authorization Procedure shall be used between the V2X Control Function in the HPLMN and the
V2X Control Function in the VPLMN to obtain service authorization information for V2X services. The procedure shall
be invoked by the V2X Control Function in the HPLMN of the UE and is used:
ETSI
3GPP TS 29.389 version 14.2.0 Release 14 8 ETSI TS 129 389 V14.2.0 (2019-10)
- to request service authorization information for V2X related to the UE from the V2X Control Function in the
VPLMN;
- to provide the V2X Control Function in the VPLMN with the UE identity (IMSI or MSISDN) in order to allow
to perform charging:
This procedure is mapped to the commands ProSe-Authorization-Request/Answer (PAR/PAA) in the Diameter
application specified in clause 6.
Table 5.2.1-1 specifies the involved information elements for the request.
Table 5.2.1-2 specifies the involved information elements for the answer.
Table 5.2.1-1: V2X Service Authorization Request
Information Mapping to Cat. Description
element name Diameter AVP
UE Identity User-Identifier M This information element shall contain either the user IMSI, formatted
(See according to 3GPP TS 23.003 [8], clause 2.2, or the user MSISDN, formatted
3GPP TS 29.3 according to 3GPP TS 29.329 [11].
36 [13])
PLMN Id Visited-PLMN- M This IE shall contain the PLMN-Id (3GPP TS 23.003 [8]) of the network in
(See Id which the V2X Control Function is located.
3GPP TS 29.2
72 [10])
Supported Supported- O If present, this information element shall contain the list of features supported
Features Features by the origin host.
(See
3GPP TS 29.2
29 [6])
Table 5.2.1-2: V2X Service Authorization Answer
Information Mapping to Cat. Description
element name Diameter AVP
Result Result-Code / M This IE shall contain the result of the operation.
(See 6.4) Experimental- The Result-Code AVP shall be used to indicate success / errors as defined
Result in the Diameter Base Protocol.
The Experimental-Result AVP shall be used for V6 errors. This is a
grouped AVP which shall contain the 3GPP Vendor ID in the Vendor-Id
AVP, and the error code in the Experimental-Result-Code AVP.
The following errors are applicable:
- User Unknown
- Unauthorized Service
- Unauthorized Service in this PLMN

Supported Supported- O If present, this information element shall contain the list of features
Features Features supported by the origin host.
(See
3GPP TS 29.2
29 [6])
V2X V2X- C This Information Element shall contain the V2X authorization information of
Authorization Authorization- the user. It shall be present if success is reported.
Data Data
(See 6.3.2)
5.2.2 Detailed behaviour of the V2X Control Function in the HPLMN
The V2X Control Function in the HPLMN shall make use of this procedure to request service authorization information
for V2X related to the UE from the V2X Control Function in the VPLMN. The V2X Control Function shall include in
the request the UE identity (IMSI or MSISDN) and the PLMN-Id identifying the PLMN of the requesting V2X Control
Function.
ETSI
3GPP TS 29.389 version 14.2.0 Release 14 9 ETSI TS 129 389 V14.2.0 (2019-10)
When receiving a V2X Service Authorization response from the V2X Control Function in the VPLMN, the V2X
Control Function in the HPLMN shall check the result code. If it indicates SUCCESS, the V2X Control Function shall
merge with its own policy.
5.2.3 Detailed behaviour of the V2X Control Function in the VPLMN
When receiving a V2X Service Authorization request, the V2X Control Function in the VPLMN shall, in the following
order:
1. Check whether the UE Identity (IMSI or MSISDN) exists. If not, a Result Code of
DIAMETER_ERROR_USER_UNKNOWN shall be returned.
2. Check whether V2X is authorized for this UE Identity. If not, a Result Code of
DIAMETER_ERROR_UNAUTHORIZED_SERVICE shall be returned.
If there is an error in any of t
...
