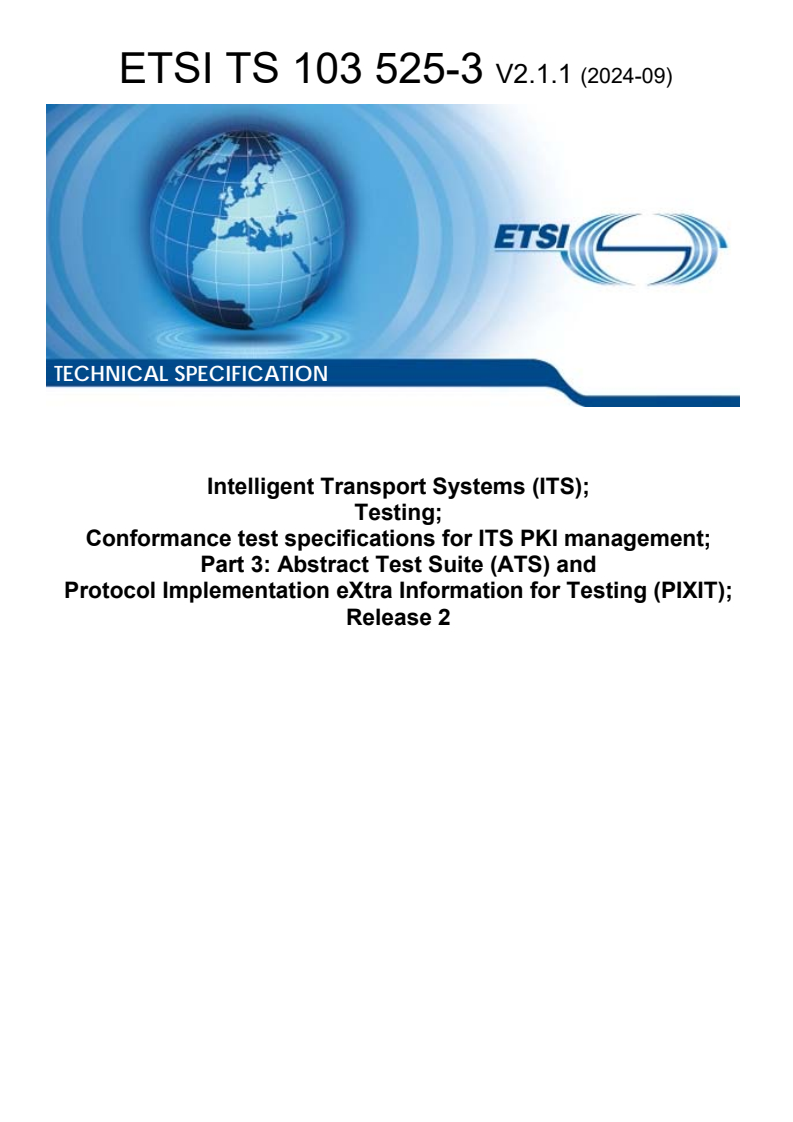

ETSI TS 103 525-3 V2.1.1 (2024-09)

TECHNICAL SPECIFICATION
Intelligent Transport Systems (ITS);
Testing;
Conformance test specifications for ITS PKI management;
Part 3: Abstract Test Suite (ATS) and
Protocol Implementation eXtra Information for Testing (PIXIT);
Release 2
2 ETSI TS 103 525-3 V2.1.1 (2024-09)

Reference
RTS/ITS-00599
Keywords
ATS, PIXIT, security, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00  Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - APE 7112B
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° w061004871

Important notice
The present document can be downloaded from the
ETSI Search & Browse Standards application.
The present document may be made available in electronic versions and/or in print. The content of any electronic and/or
print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any
existing or perceived difference in contents between such versions and/or in print, the prevailing version of an ETSI
deliverable is the one made publicly available in PDF format on ETSI deliver.
Users should be aware that the present document may be revised or have its status changed,
this information is available in the Milestones listing.
If you find errors in the present document, please send your comments to
the relevant service listed under Committee Support Staff.
If you find a security vulnerability in the present document, please report it through our
Coordinated Vulnerability Disclosure (CVD) program.
Notice of disclaimer & limitation of liability
The information provided in the present deliverable is directed solely to professionals who have the appropriate degree of
experience to understand and interpret its content in accordance with generally accepted engineering or
other professional standard and applicable regulations.
No recommendation as to products and services or vendors is made or should be implied.
No representation or warranty is made that this deliverable is technically accurate or sufficient or conforms to any law
and/or governmental rule and/or regulation and further, no representation or warranty is made of merchantability or fitness
for any particular purpose or against infringement of intellectual property rights.
In no event shall ETSI be held liable for loss of profits or any other incidental or consequential damages.

Any software contained in this deliverable is provided "AS IS" with no warranties, express or implied, including but not
limited to, the warranties of merchantability, fitness for a particular purpose and non-infringement of intellectual property
rights and ETSI shall not be held liable in any event for any damages whatsoever (including, without limitation, damages
for loss of profits, business interruption, loss of information, or any other pecuniary loss) arising out of or related to the use
of or inability to use the software.
Copyright Notification
No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and
microfilm except as authorized by written permission of ETSI.
The content of the PDF version shall not be modified without the written authorization of ETSI.
The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2024.
All rights reserved.
ETSI
3 ETSI TS 103 525-3 V2.1.1 (2024-09)

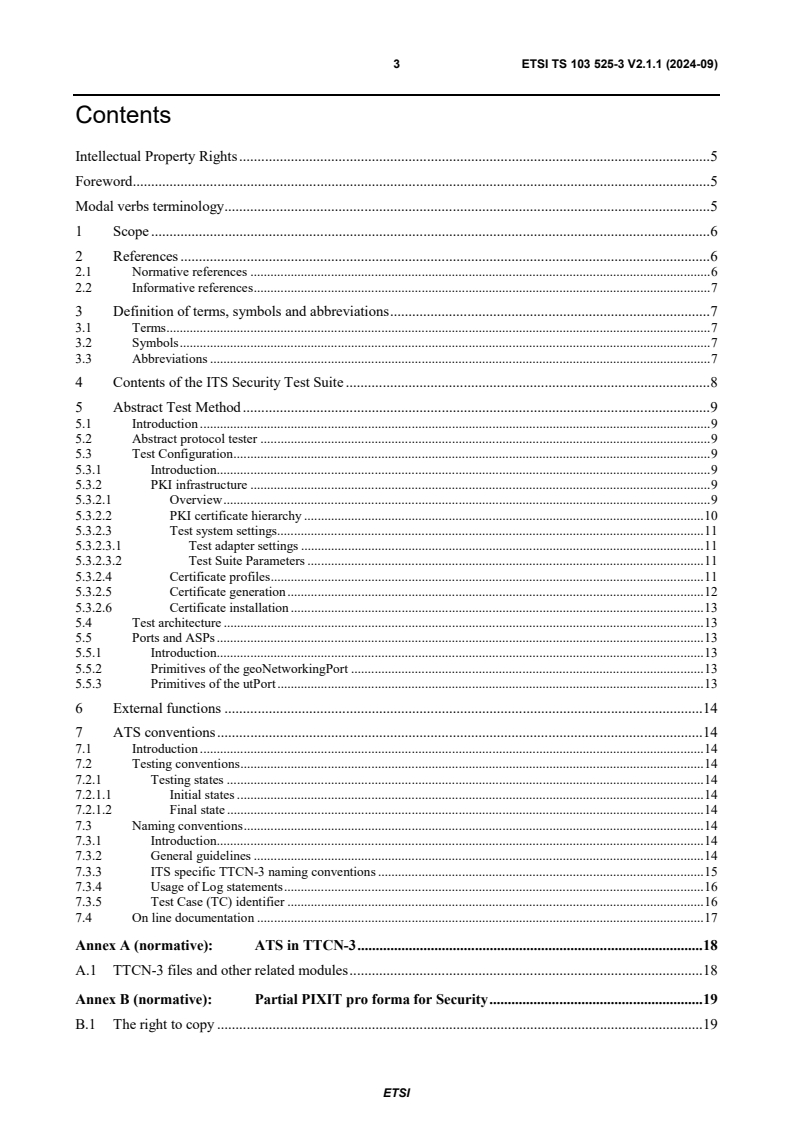

Contents
Intellectual Property Rights . 5
Foreword . 5
Modal verbs terminology . 5
1 Scope . 6
2 References . 6
2.1 Normative references . 6
2.2 Informative references . 7
3 Definition of terms, symbols and abbreviations . 7
3.1 Terms . 7
3.2 Symbols . 7
3.3 Abbreviations . 7
4 Contents of the ITS Security Test Suite . 8
5 Abstract Test Method . 9
5.1 Introduction . 9
5.2 Abstract protocol tester . 9
5.3 Test Configuration . 9
5.3.1 Introduction. 9
5.3.2 PKI infrastructure . 9
5.3.2.1 Overview . 9
5.3.2.2 PKI certificate hierarchy . 10
5.3.2.3 Test system settings. 11
5.3.2.3.1 Test adapter settings . 11
5.3.2.3.2 Test Suite Parameters . 11
5.3.2.4 Certificate profiles . 11
5.3.2.5 Certificate generation . 12
5.3.2.6 Certificate installation . 13
5.4 Test architecture . 13
5.5 Ports and ASPs . 13
5.5.1 Introduction. 13
5.5.2 Primitives of the geoNetworkingPort . 13
5.5.3 Primitives of the utPort . 13
6 External functions . 14
7 ATS conventions . 14
7.1 Introduction . 14
7.2 Testing conventions . 14
7.2.1 Testing states . 14
7.2.1.1 Initial states . 14
7.2.1.2 Final state . 14
7.3 Naming conventions . 14
7.3.1 Introduction. 14
7.3.2 General guidelines . 14
7.3.3 ITS specific TTCN-3 naming conventions . 15
7.3.4 Usage of Log statements . 16
7.3.5 Test Case (TC) identifier . 16
7.4 On line documentation . 17
Annex A (normative): ATS in TTCN-3 . 18
A.1 TTCN-3 files and other related modules . 18
Annex B (normative): Partial PIXIT pro forma for Security . 19
B.1 The right to copy . 19
ETSI
4 ETSI TS 103 525-3 V2.1.1 (2024-09)
B.2 Introduction . 19
B.3 Identification summary. 19
B.4 ATS summary . 19
B.5 Test laboratory . 20
B.6 Client identification . 20
B.7 SUT . 20
B.8 Protocol layer information. 21
B.8.1 Protocol identification . 21
B.8.2 IUT information . 22
Annex C (normative): PCTR pro forma for Security . 24
C.1 The right to copy . 24
C.2 Introduction . 24
C.3 Identification summary. 24
C.3.1 Protocol conformance test report . 24
C.3.2 IUT identification . 24
C.3.3 Testing environment . 25
C.3.4 Limits and reservation . 25
C.3.5 Comments. 25
C.4 IUT Conformance status . 25
C.5 Static conformance summary . 26
C.6 Dynamic conformance summary . 26
C.7 Static conformance review report . 26
C.8 Test campaign report . 26
C.9 Observations . 26
History . 27

ETSI
5 ETSI TS 103 525-3 V2.1.1 (2024-09)
Intellectual Property Rights
Essential patents
IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The declarations
pertaining to these essential IPRs, if any, are publicly available for ETSI members and non-members, and can be
found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to
ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the
ETSI Web server (https://ipr.etsi.org/).
Pursuant to the ETSI Directives including the ETSI IPR Policy, no investigation regarding the essentiality of IPRs,
including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not
referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become,
essential to the present document.
Trademarks
The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.
ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no
right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does
not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.
DECT™, PLUGTESTS™, UMTS™ and the ETSI logo are trademarks of ETSI registered for the benefit of its

Members. 3GPP™ and LTE™ are trademarks of ETSI registered for the benefit of its Members and of the 3GPP
Organizational Partners. oneM2M™ logo is a trademark of ETSI registered for the benefit of its Members and of the ®
oneM2M Partners. GSM and the GSM logo are trademarks registered and owned by the GSM Association.
Foreword
This Technical Specification (TS) has been produced by ETSI Technical Committee Intelligent Transport Systems
(ITS).
The present document is part 3 of a multi-part deliverable. Full details of the entire series can be found in part 1 [4].
Modal verbs terminology
In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and
"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of
provisions).
"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.
ETSI
6 ETSI TS 103 525-3 V2.1.1 (2024-09)
1 Scope
The present document provides parts of the Abstract Test Suite (ATS) for ITS PKI management as defined in ETSI
TS 102 941 [1] in accordance with the relevant guidance given in ISO/IEC 9646-7 [i.6]. The objective of the present
document is to provide a basis for conformance tests for security communication over GeoNetworking equipment in
order to guarantee interoperability between different manufacturers' equipment.
The ISO standards for the methodology of conformance testing (ISO/IEC 9646-1 [i.3] and ISO/IEC 9646-2 [i.4]) as
well as the ETSI rules for conformance testing (ETSI ETS 300 406 [i.7]) are used as a basis for the test methodology.
2 References
2.1 Normative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
https://docbox.etsi.org/Reference/.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are necessary for the application of the present document.
[1] ETSI TS 102 941 (V2.2.1): "Intelligent Transport Systems (ITS); Security; Trust and Privacy
Management; Release 2".
[2] ETSI TS 102 940 (V2.1.1): "Intelligent Transport Systems (ITS); Security; ITS communications
security architecture and security management; Release 2".
[3] ETSI TS 103 097 (V2.1.1): "Intelligent Transport Systems (ITS); Security; Security header and
certificate formats; Release 2".
[4] ETSI TS 103 525-1 (V2.1.1): "Intelligent Transport Systems (ITS); Testing; Conformance test
specifications for ITS PKI management; Part 1: Protocol Implementation Conformance Statement
(PICS); Release 2". .
[5] ETSI TS 103 525-2 (V2.1.1): " Intelligent Transport Systems (ITS); Testing; Conformance test
specifications for ITS PKI management; Part 2: Test Suite Structure and Test Purposes (TSS &
TP); Release 2".
[6] ETSI TS 102 871-2 (V1.5.1): "Intelligent Transport Systems (ITS); Testing; Conformance test
specifications for GeoNetworking; Part 2: Test Suite Structure and Test Purposes (TSS & TP)".
[7] ETSI TS 102 871-3 (V1.5.1): "Intelligent Transport Systems (ITS); Testing; Conformance test
specifications for GeoNetworking; Part 3: Abstract Test Suite (ATS) and Protocol Implementation
eXtra Information for Testing (PIXIT)".
[8] ETSI TS 103 096-2 (V2.1.1): "Intelligent Transport Systems (ITS); Testing; Conformance test
specifications for ITS Security; Part 2: Test Suite Structure and Test Purposes (TSS & TP);
Release 2".
[9] ETSI TS 103 096-3 (V2.1.1): "Intelligent Transport Systems (ITS); Testing; Conformance test
specifications for ITS Security; Part 3: Abstract Test Suite (ATS) and Protocol Implementation
eXtra Information for Testing (PIXIT); Release 2".
ETSI
7 ETSI TS 103 525-3 V2.1.1 (2024-09)
2.2 Informative references
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
referenced document (including any amendments) applies.
NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee
their long term validity.
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] ETSI EG 202 798: "Intelligent Transport Systems (ITS); Testing; Framework for conformance and
interoperability testing".
[i.2] ETSI TR 103 099 (V1.5.1): "Intelligent Transport Systems (ITS); Architecture of conformance
validation framework".
[i.3] ISO/IEC 9646-1 (1994): "Information technology -- Open Systems Interconnection --
Conformance testing methodology and framework - Part 1: General concepts".
[i.4] ISO/IEC 9646-2 (1994): "Information technology -- Open Systems Interconnection --
Conformance testing methodology and framework -- Part 2: Abstract Test Suite specification".
[i.5] ISO/IEC 9646-6 (1994): "Information technology -- Open Systems Interconnection --
Conformance testing methodology and framework -- Part 6: Protocol profile test specification".
[i.6] ISO/IEC 9646-7 (1995): "Information technology -- Open Systems Interconnection --
Conformance testing methodology and framework - Part 7: Implementation Conformance
Statements".
[i.7] ETSI ETS 300 406 (1995): "Methods for testing and Specification (MTS); Protocol and profile
conformance testing specifications; Standardization methodology".
[i.8] OpenSSL Project Toolkit Library V1.0.1j.
[i.9] ETSI ES 201 873-1: "Methods for Testing and Specification (MTS); The Testing and Test Control
Notation version 3; Part 1: TTCN-3 Core Language".
3 Definition of terms, symbols and abbreviations
3.1 Terms
For the purposes of the present document, the terms given in ETSI TS 102 940 [2], ETSI TS 102 941 [1], ETSI
TS 103 097 [3], ETSI TS 103 525-1 [4], ETSI TS 103 525-2 [5], ETSI TS 102 871-3 [7], ISO/IEC 9646-6 [i.5] and
ISO/IEC 9646-7 [i.6] apply.
3.2 Symbols
Void.
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AA Authorization Authority
AID Application ID
ASN Abstract Syntax Notation
AT Authorization Ticket
ETSI
8 ETSI TS 103 525-3 V2.1.1 (2024-09)
ATM Abstract Test Method
ATS Abstract Test Suite
BV Valid Behaviour tests
CAM Cooperative Awareness Message
CPOC Central Point Of Contact
CRL Certificate Revocation List
CTL Certificate Trust List
DC Distribution Center
DEN Decentralized Environmental Notification
DENM Decentralized Environmental Notification Message
EA Enrolment Authority
ECTL European CTL
EN European Norm
ENR ENRolment
ES ETSI Standard
GN GeoNetworking
HSM Hardware Security Machine
HTML HyperText Markup Language
HTTP Hypertext Transfer Protocol
ISO International Organization for Standardization
ITS Intelligent Transport System
ITS-S ITS-Station
IUT Implementation Under Test
PCTR Protocol Conformance Testing Report
PICS Protocol Implementation Conformance Statement
PIXIT Partial Protocol Implementation eXtra Information for Testing
PKI Public Key Infrastructure
PX PiXit
RCA Root Certificate Authority
SAP Service Access Point
SCS System Conformance Statement
SCTR Static Conformance Test Report
SSP Service Specific Permissions
SUT System Under Test
TC Test Case
TLM Trust List Manager
TP Test Purpose
TP Test Purposes
TR Technical Report
TS Test System
TSS Test Suite Structure
TTCN Testing and Test Control Notation
UT Upper Tester
WGS World Geodetic System
XML eXtensible Markup Language
XSLT Language for transforming XML documents
4 Contents of the ITS Security Test Suite
The ITS Security test suite contains:
• test implemented in TTCN-3 code;
• certificate profiles and certificate generation tool.
To execute the ITS Security Test Suite a Test Adapter implementation and a TTCN-3 compiler is required. The
reference Test Adapter implementation can be found at https://forge.etsi.org/rep/ITS/ttcn/ats_pki_ts103525-3.git.
TTCN-3 compilers can be acquired at http://www.ttcn-3.org.
ETSI
9 ETSI TS 103 525-3 V2.1.1 (2024-09)
5 Abstract Test Method
5.1 Introduction
This clause describes the ATM used to test the ITS-Pki framework.
5.2 Abstract protocol tester
The abstract protocol tester used by the ITS-Pki test suite is described in figure 1. The Test System simulates valid and
invalid protocol behaviour and analyses the reaction of the IUT.

Figure 1: Abstract protocol tester - Pki
5.3 Test Configuration
5.3.1 Introduction
This test suite shall use test configurations as defined in ETSI TS 103 525-2 [5], i.e. the tester simulates the
AA implementing the ITS Pki framework over HTTP protocol.
5.3.2 PKI infrastructure
5.3.2.1 Overview
Before executing tests:
• security certificates need to be generated, see clause 5.3.2.5;
• security certificates need to be installed onto the IUT, see clause 5.3.2.6; and
• some Test System settings need to be configured, see clause 5.3.2.3.
ETSI
10 ETSI TS 103 525-3 V2.1.1 (2024-09)
5.3.2.2 PKI certificate hierarchy
The required PKI certificate hierarchy of the test infrastructure shall be as specified in ETSI TS 102 940 [2] and ETSI
TS 102 941 [1].
The following certificates are required for the test execution:
1) The custom user-generated root certificate, referred as CERT_TEST_ROOT, is used to sign all CA certificates
used by the Test System and by the IUT to verify the Test System certificates. For the generation procedure
see clause 5.3.2.5. The IUT shall install this CERT_TEST_ROOT certificate and consider it as trusted. In the
case where the IUT cannot install the CERT_TEST_ROOT, no tests can be executed.
2) Further certificates to be installed on the IUT:
- Option 1: Certificates (CERT_TS_EA and CERT_IUT_AA) can be installed onto the IUT. See
clause 5.3.2.6 for further details on certificate installation.
If the IUT supports certificate selection using the UtInitialize Upper Tester command, than all mandatory
tests can be executed and PICS_CERTIFICATE_SELECTION shall be set to true.
- Option 2: The IUT can only use its own pre-installed certificates. In this case only a subset of mandatory
tests can be executed and PICS_CERTIFICATE_SELECTION shall be set to false.
In both cases it is necessary to copy these certificates to the subfolder of the location defined in
PX_CERTIFICATE_POOL_PATH. The name of the subfolder shall be provided in PX_IUT_SEC_CONFIG_NAME.
It is not necessary to install IUT_ROOT and AA certificates onto the Test System when IUT and TS are using different
PKIs. The TS trusts any root and AA certificate from the IUT.
A set of certificates and private keys to be used on the Test System side to sign various messages and other Test System
certificates. These files are generated by the generation script (see clause 5.3.2.5).
All certificates and private keys shall be stored as hexadecimal streams.
The TS selects certificate using its file name. Table 1 describes file extensions to be used to store certificates and private
keys.
Table 1: PKI file extensions
File extension File role
.crt Certificate
.vkey Verification private key
.ekey Encryption private key
Each Authorization Authority certificate contains:
• Start and End time
• Assurance level
• Permissions (AID list)
• Geographical Validity Restriction
Each Authorization Ticket certificate contains:
• Start and End time
• Assurance level as defined in ETSI TS 103 097 [3]
• Permissions (AID SSP list)
• Geographical Validity Restriction as defined in ETSI TS 103 097 [3].
ETSI
11 ETSI TS 103 525-3 V2.1.1 (2024-09)
5.3.2.3 Test system settings
5.3.2.3.1 Test adapter settings
A reference test adapter has been developed and validated on the TTCN-3 runtime environments as listed in table 2 and
can be downloaded at https://forge.etsi.org/rep/ITS/ttcn/ats_pki_ts103525-3.git.
Table 2: TTCN-3 Tool Test Adapter Location
TTCN-3 Tool Location
TITAN AtsPki.cfg
The relevant test adapter parameters for the Test System security and pki support are listed in table 3.
Table 3: TTCN-3 Tool Test Adapter Parameters
Parameter Role Default value
TsSecuredMode Shall be set to FALSE to be able to test security envelope on TTCN-3 level. false
TsSecuredMode Secured root path to access certificate files. "data/certificates"

TsSecuredConfiId Vendor specific configuration identifier. This should be actually a name of vendorA
the subfolder inside the TsSecuredPath, containing the IUT certificates or
digests, e.g. "data/certificates/vendorA".

5.3.2.3.2 Test Suite Parameters
The PKI test suite parameters defined in ETSI TS 103 525-2 [5] shall be applied. In addition the parameters defined in
ETSI TS 102 871-3 [7] and in ETSI TS 103 096-2 [8] shall be appl
...
