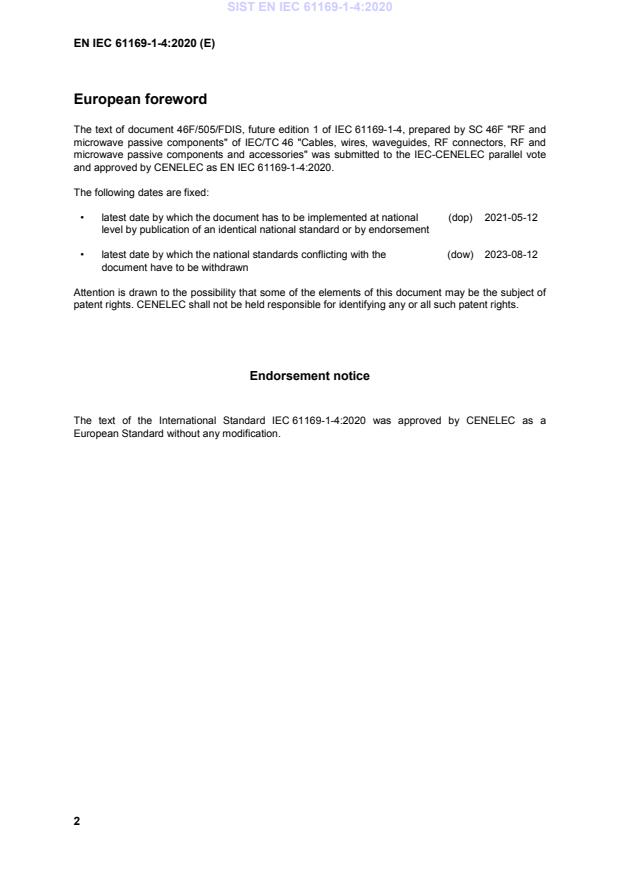

European foreword
The text of document 46F/505/FDIS, future edition 1 of IEC 61169-1-4, prepared by SC 46F "RF and
microwave passive components" of IEC/TC 46 "Cables, wires, waveguides, RF connectors, RF and
microwave passive components and accessories" was submitted to the IEC-CENELEC parallel vote
and approved by CENELEC as EN IEC 61169-1-4:2020.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2021-05-12
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2023-08-12
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice
The text of the International Standard IEC 61169-1-4:2020 was approved by CENELEC as a
European Standard without any modification.

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61169-1 - Radio frequency connectors - Part 1: Generic EN 61169-1 -
specification - General requirements and
measuring methods
IEC 61169-1-4 ®
Edition 1.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –
Part 1-4: Electrical test methods – Voltage standing wave ratio, return loss and

reflection coefficient
Connecteurs pour fréquences radioélectriques –

Partie -4: Méthodes d’essai électriques – Rapport d’ondes stationnaires

en tension, affaiblissement de réflexion et coefficient de réflexion

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.30 ISBN 978-2-8322-8428-5

– 2 – IEC 61169-1-4:2020 © IEC 2020
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Preparation of test sample (DUT) . 6
4.1 Cable RF connector .6
4.2 Microstrip connector .7
4.3 Adapter .7
5 Typical graphical symbols . 7
6 Test condition . 8
7 Test methods . 8
7.1 Frequency-domain method .8
7.1.1 Test theory .8
7.1.2 Test equipment .9
7.1.3 Test procedure .9
7.2 Time-domain method . 10
7.2.1 Test theory . 10
7.2.2 Equipment . 11
7.2.3 Test procedure . 11
7.3 Gating . 12
7.3.1 Test principle . 12
7.3.2 Equipment . 12
7.3.3 Test procedure . 12
8 Failure criterion . 13
9 Information to be given in the relevant specification . 13
10 Test report . 13

Figure 1 – Dual-connector assembly test sample (DUT) . 7
Figure 2 – Illustration of signal transmission and reflection in DUT . 8
Figure 3 – S-parameter representing transmission and reflection characteristics . 8
Figure 4 – System calibration outline . 9
Figure 5 – Outline of system calibration and verification when standard test adapter is
used . 9
Figure 6 – DUT test outline . 10
Figure 7 – Standard test adaptor calibration and verification outline. 10
Figure 8 – DUT test arrangement example . 10
Figure 9 – Principle of time-domain measurement . 11
Figure 10 – The position of DUT in the system . 12
