EN IEC 61169-54:2021

SLOVENSKI STANDARD
01-december-2021
Nadomešča:
SIST EN 61169-54:2017
Radiofrekvenčni konektorji - 54. del: Področna specifikacija za koaksialne
konektorje z notranjim premerom zunanjih vodnikov 10 mm in nazivno
karakteristično impendanco 50 ohm, serija 4,3-10 (IEC 61169-54:2021)
Radio frequency connectors - Part 54: Sectional specification for coaxial connectors with
10 mm inner diameter of outer conductor, nominal characteristic impedance 50 Ohms,
Series 4.3-10 (IEC 61169-54:2021)
Hochfrequenz-Steckverbinder – Teil 54: Rahmenspezifikation für koaxiale HF-
Steckverbinder mit 10 mm Innendurchmesser des Außenleiters, Wellenwiderstand 50 Ω,
Typ 4,3-10 (IEC 61169-54:2021)
Connecteurs pour fréquences radioélectriques - Partie 54: Spécification intermédiaire
relative aux connecteurs coaxiaux avec diamètre intérieur du conducteur extérieur de 10
mm, impédance caractéristique nominale de 50 Ohms, série 4.3-10 (IEC 61169-54:2021)
Ta slovenski standard je istoveten z: EN IEC 61169-54:2021
ICS:
33.120.30 Radiofrekvenčni konektorji RF connectors
(RF)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61169-54

NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2021
ICS 33.120.30 Supersedes EN 61169-54:2016 and all of its
amendments and corrigenda (if any)
English Version
Radio frequency connectors - Part 54: Sectional specification for
coaxial connectors with 10 mm inner diameter of outer
conductor, nominal characteristic impedance 50 Ω, Series 4,3-10
(IEC 61169-54:2021)
Connecteurs pour fréquences radioélectriques - Partie 54: Hochfrequenz-Steckverbinder - Teil 54:
Spécification intermédiaire relative aux connecteurs Rahmenspezifikation für koaxiale HF-Steckverbinder mit 10
coaxiaux avec diamètre intérieur du conducteur extérieur de mm Innendurchmesser des Außenleiters, Wellenwiderstand
10 mm, impédance caractéristique nominale 50 Ω, série 50 Ω, Typ 4,3-10
4,3-10 (IEC 61169-54:2021)
(IEC 61169-54:2021)
This European Standard was approved by CENELEC on 2021-10-01. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61169-54:2021 E

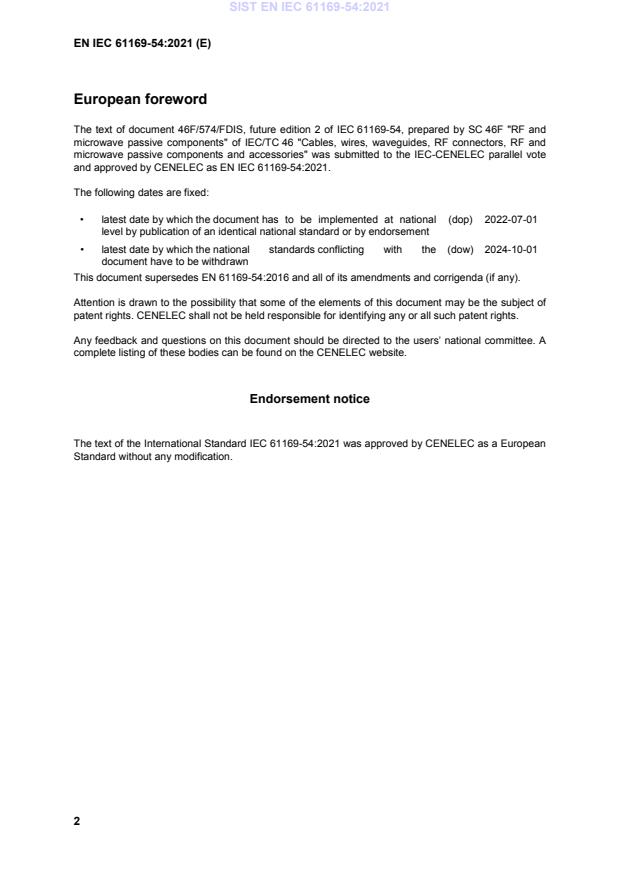

European foreword
The text of document 46F/574/FDIS, future edition 2 of IEC 61169-54, prepared by SC 46F "RF and
microwave passive components" of IEC/TC 46 "Cables, wires, waveguides, RF connectors, RF and
microwave passive components and accessories" was submitted to the IEC-CENELEC parallel vote
and approved by CENELEC as EN IEC 61169-54:2021.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2022-07-01
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2024-10-01
document have to be withdrawn
This document supersedes EN 61169-54:2016 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 61169-54:2021 was approved by CENELEC as a European
Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 61169-1 2013 Radio-frequency connectors - Part 1: EN 61169-1 2013
Generic specification - General
requirements and measuring methods
IEC 62037-1 2012 Passive RF and microwave devices, EN 62037-1 2012
intermodulation level measurement - Part
1: General requirements and measuring
methods
IEC 61169-54 ®
Edition 2.0 2021-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Radio-frequency connectors –
Part 54: Sectional specification for coaxial connectors with 10 mm inner

diameter of outer conductor, nominal characteristic impedance 50 Ω,

series 4,3-10
Connecteurs pour fréquences radioélectriques –

Partie 54: Spécification intermédiaire relative aux connecteurs coaxiaux avec

diamètre intérieur du conducteur extérieur de 10 mm, impédance caractéristique

nominale 50 Ω, série 4,3-10
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.120.30 ISBN 978-2-8322-1014-5

– 2 – IEC 61169-54:2021 © IEC 2021
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references. 7
3 Terms and definitions . 7
4 Mating face and gauge information . 7
4.1 Dimensions – General connectors – Grade 2 . 7
4.1.1 Connector with pin-centre contact (see Figure 1) . 7
4.1.2 Connector with socket-centre contact (see Figure 2) . 10
4.1.3 Presentation of possible coupling mechanisms . 12
4.2 Gauges . 15
4.2.1 Gauge pins for socket-centre contact (see Figure 6) . 15
4.2.2 Test procedure . 15
4.2.3 Gauge rings for plug outer contact (see Figure 7) . 16
4.2.4 Test procedure . 16
4.3 Dimensions – Standard test connectors – Grade 0 . 17
4.3.1 Connector with pin-centre contact (see Figure 8) . 17
4.3.2 Connector with socket-centre contact (see Figure 9) . 19
5 Quality assessment procedure . 20
5.1 General . 20
5.2 Ratings and characteristics . 21
5.3 Test schedule and inspection requirements. 23
5.3.1 Acceptance tests . 23
5.3.2 Periodic tests . 24
5.4 Procedures for quality conformance . 25
5.4.1 Quality conformance inspection . 25
5.4.2 Quality conformance and its maintenance . 26
5.5 Test and measurement procedures . 26
5.5.1 General . 26
5.5.2 Schedule of basic test groupings for acceptance and periodic tests . 26
5.6 Specifications . 27
5.6.1 Specification structures . 27
5.6.2 Sectional specification (SS) . 27
5.6.3 Detail specification (DS) . 27
5.6.4 Blank detail specification . 27
5.6.5 Blank detail specification pro-forma for 50 Ω type 4,3-10 connectors . 29
6 Marking . 33
6.1 Marking of component . 33
6.2 Marking and contents of package . 34

Figure 1 – Connector with pin-centre contact (for dimensions and key, see Table 1) . 8
Figure 2 – Connector with socket-centre contact (for dimensions and key, see Table 2) . 10
Figure 3 – Screw type . 12
Figure 4 – Hand screw type. 13
Figure 5 – Quick lock type . 14

IEC 61169-54:2021 © IEC 2021 – 3 –
Figure 6 – Gauge pins for socket-centre contact (for dimensions, see Table 3). 15
Figure 7 – Gauge rings for socket outer contact (for dimensions see Table 4) . 16
Figure 8 – Connector with pin-centre contact (for dimensions and key, see Table 5) . 17
Figure 9 – Connector with socket-centre contact (for dimensions and key, see Table 6) . 19

Table 1 – Dimensions of connector with pin-centre contact . 9
Table 2 – Dimensions of connector with socket-centre contact . 11
Table 3 – Dimensions of gauge pins for socket-centre contact . 15
Table 4 – Dimensions of gauge rings for socket outer contact . 16
Table 5 – Dimensions of connector with pin-centre contact . 18
Table 6 – Dimensions of connector with socket-centre contact . 20
Table 7 – Climatic categories . 21
Table 8 – Ratings and characteristics . 21
Table 9 – Acceptance tests . 24
Table 10 – Periodic tests . 25

– 4 – IEC 61169-54:2021 © IEC 2021
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
RADIO-FREQUENCY CONNECTORS –
Part 54: Sectional specification for coaxial connectors
with 10 mm inner diameter of outer conductor,
nominal characteristic impedance 50 Ω, series 4,3-10

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 61169-54 has been prepared by subcommittee 46F: RF and microwave passive
components, of IEC technical committee 46: Cables, wires, waveguides, RF connectors, RF
and microwave passive components and accessories. It is an International Standard.
This second edition cancels and replaces the first edition published in 2016. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) updated patent statement,
b) Table 8: some values changed.

IEC 61169-54:2021 © IEC 2021 – 5 –
The text of this International Standard is based on the following documents:
FDIS Report on voting
46F/574/FDIS 46F/577/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts of the IEC 61169 series, under the general title: Radio-frequency connectors,
can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
– 6 – IEC 61169-54:2021 © IEC 2021
INTRODUCTION
The International Electrotechnical Commission (IEC) draws attention to the fact that it is claimed
that compliance with this document may involve the use of a patent. IEC takes no position
concerning the evidence, validity, and scope of this patent right.
The holder of this patent right has assured IEC that s/he is willing to negotiate licences under
reasonable and non-discriminatory terms and conditions with applicants throughout the world.
In this respect, the statement of the holder of this patent right is registered with IEC. Information
may be obtained from the patent database available at http://patents.iec.ch.
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights other than those in the patent database. IEC shall not be held
responsible for identifying any or all such patent rights.

IEC 61169-54:2021 © IEC 2021 – 7 –
RADIO-FREQUENCY CONNECTORS –
Part 54: Sectional specification for coaxial connectors
with 10 mm inner diameter of outer conductor,
nominal characteristic impedance 50 Ω, series 4,3-10

1 Scope
This part of IEC 61169, which is a sectional specification (SS), provides information and rules
for the preparation of detail specifications (DS) for coaxial connectors with 10 mm inner
diameter of outer conductor, characteristic impedance 50 Ω, series 4,3-10 with screw type,
hand screw type or quick-lock type coupling, for an upper operating frequency limit of 6 GHz,
for use in wireless telecommunication and wireless network applications in conjunction with
appropriate transmission line types for these applications.
It also describes mating face dimensions for general purpose connectors, gauging information
and tests selected from IEC 61169-1, applicable to all detail specifications relating to
4,3-10 series connectors.
This specification indicates the recommended performance characteristics to be considered
when writing a detail specification and it covers test schedules and inspection requirements for
assessment levels M and H.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61169-1:2013, Radio-frequency connectors – Part 1: Generic specification – General
requirements and measuring methods
IEC 62037-1:2012, Passive RF and microwave devices, intermodulation level measurement –
Part 1: General requirements and measuring methods
3 Terms and definitions
No terms and definitions are listed in this document.
4 Mating face and gauge information
4.1 Dimensions – General connectors – Grade 2
4.1.1 Connector with pin-centre contact (see Figure 1)
Metric dimensions are original dimensions. All un-dimensioned pictorial configurations are for
reference purpose only.
– 8 – IEC 61169-54:2021 © IEC 2021
Dimensions in millimetres
Figure 1 – Connector with pin-centre contact
(for dimensions and key, see Table 1)

IEC 61169-54:2021 © IEC 2021 – 9 –
Table 1 – Dimensions of connector with pin-centre contact
Ref. mm Additional notes
Min. Max.
a
– 8,0
a
b – 2,9
c 5,0 –
d 4,4 –
e 8,3 8,5
f 8,0 8,5
g 10° 14°
h – 2,3 diameter
i 3,07 3,13 diameter
b
j 4,35 nom.
diameter
b
k 10,0 nom.
diameter
l 11,47 11,53 diameter
m 12,5 – diameter
n 14,7 14,8 diameter
o
M20 × 1         tolerance 6H thread
p 22 nom. wrench size
q 1,8 –
r 20° nom.
s 15,07 15,11 diameter
t – 4,1
u 0,5 nom. radius
v 5,1 5,5
a
Applicable for inner and outer contact.
b
For 50 Ω nominal impedance.
c
Electrical reference plane.
– 10 – IEC 61169-54:2021 © IEC 2021
4.1.2 Connector with socket-centre contact (see Figure 2)
Dimensions in millimetres
Figure 2 – Connector with socket-centre contact
(for dimensions and key, see Table 2)

IEC 61169-54:2021 © IEC 2021 – 11 –
Table 2 – Dimensions of connector with socket-centre contact
Ref. mm Additional notes
Min. Max.
a
8,5 –
b 5,0 –
a
c 3,1 3,5
d 30° nom.
g
e 45° nom.
g
f 1,7 1,9
g
g 1,44 1,50
h 8,7 9,0
i 13,9 14,1
j 20° nom.
c
k
b
l 4,35 nom.
diameter
b
m 9,8 10,2
diameter
d, f
n – 12,3
o
15,13 15,19 diameter
p 15,7 15,9 diameter
g
q 17,4 17,5
diameter
g
r 18,44 18,5
diameter
s M20 × 1           tolerance 6g thread
t 17,9 18,1 diameter
u 0,6 nom. radius
v 1,0 nom. radius
w 17,45 17,55 diameter
x 18,6 – diameter
a
Applicable for inner and outer contact.
b
For 50 Ω nominal impedance.
c
Resilient to meet the requirements with gauge pins for socket centre contact.
d
Expand to meet the requirements with gauge rings for socket outer contact.
e
Electrical reference plane.
f
In unmated condition.
g
Rim and groove on socket front provided for quick lock attachment.

– 12 – IEC 61169-54:2021 © IEC 2021
4.1.3 Presentation of possible coupling mechanisms
4.1.3.1 Screw type (see Figure 3)
Dimensions in millimetres
Figure 3 – Screw type
IEC 61169-54:2021 © IEC 2021 – 13 –
4.1.3.2 Hand screw type (see Figure 4)
Dimensions in millimetres
Figure 4 – Hand screw type
– 14 – IEC 61169-54:2021 © IEC 2021
4.1.3.3 Quick lock type (see Figure 5)
Dimensions in millimetres
a
Max 13,5 mm for this variant.
Figure 5 – Quick lock type
IEC 61169-54:2021 © IEC 2021 – 15 –
4.2 Gauges
4.2.1 Gauge pins for socket-centre contact (see Figure 6)

Figure 6 – Gauge pins for socket-centre contact
(for dimensions, see Table 3)
Table 3 – Dimensions of gauge pins for socket-centre contact
Gauge A Gauge B
Ref. mm mm
Min. Max. Min. Max.
a 2,27 2,33 2,27 2,33
b 3,13 3,137 3,063 3,07
c 4,8 5 4,8 5,0
α 44° 46° 36° 44°
Material: steel, polished, surface roughness: Ra = 0,4 μm maximum.

4.2.2 Test procedure
The gauge A shall be completely inserted three times into the socket centre contact. This is a
sizing operation.
After sizing, gauge A shall be inserted into socket centre contact. The insertion force shall not
exceed 20 N.
Separation force is measured with gauge B and shall require a minimum force of 1,5 N.

– 16 – IEC 61169-54:2021 © IEC 2021
4.2.3 Gauge rings for plug outer contact (see Figure 7)

Figure 7 – Gauge rings for socket outer contact (for dimensions see Table 4)
Table 4 – Dimensions of gauge rings for socket outer contact
Gauge A Gauge B
Ref. mm mm
Min. Max. Min. Max.
...
