EUROPEAN STANDARD EN 50128
NORME EUROPÉENNE
EUROPÄISCHE NORM March 2001
ICS 29.280; 45.060.10
English version
Railway applications -
Communications, signalling and processing systems -
Software for railway control and protection systems
Applications ferroviaires - Bahnanwendungen -
Systèmes de signalisation, de Telekommunikationstechnik, Signal-
télécommunication et de traitement - technik und Datenverarbeitungssysteme -
Logiciels pour systèmes de commande Software für Eisenbahnsteuerungs- und
et de protection ferroviaire Überwachungssysteme
This European Standard was approved by CENELEC on 2000-11-01. CENELEC members are bound
to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any
other language made by translation under the responsibility of a CENELEC member into its own
language and notified to the Central Secretariat has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Czech
Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg,
Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels
© 2001 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50128:2001 E

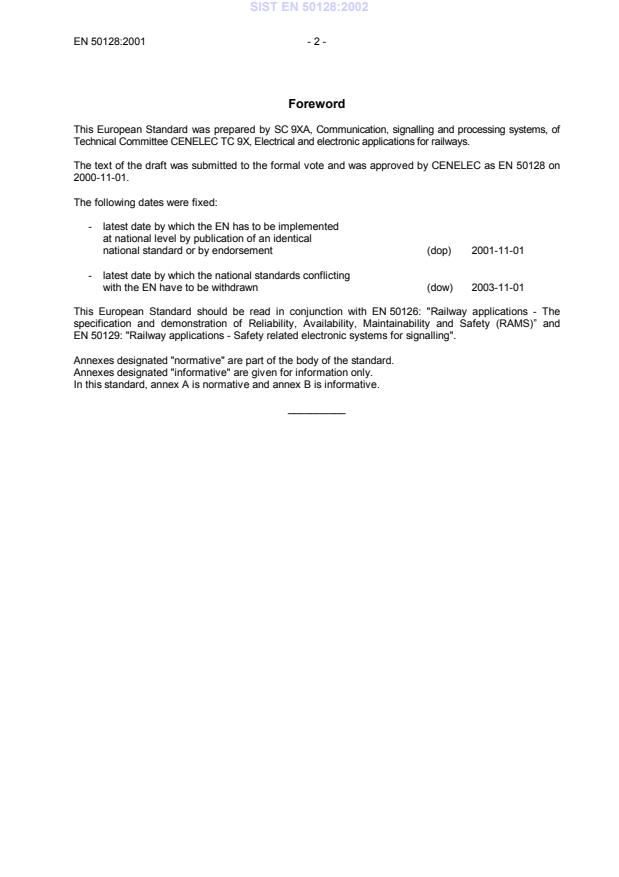

Foreword
This European Standard was prepared by SC 9XA, Communication, signalling and processing systems, of
Technical Committee CENELEC TC 9X, Electrical and electronic applications for railways.
The text of the draft was submitted to the formal vote and was approved by CENELEC as EN 50128 on
2000-11-01.
The following dates were fixed:
- latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2001-11-01
- latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2003-11-01
This European Standard should be read in conjunction with EN 50126: "Railway applications - The
specification and demonstration of Reliability, Availability, Maintainability and Safety (RAMS)” and
EN 50129: "Railway applications - Safety related electronic systems for signalling".
Annexes designated "normative" are part of the body of the standard.
Annexes designated "informative" are given for information only.
In this standard, annex A is normative and annex B is informative.
__________
- 3 - EN 50128:2001
Contents
Pages
Introduction.5
1 Scope .7
2 Normative references.7
3 Definitions.8
4 Objectives and conformance.11
5 Software safety integrity levels.11
5.1 Objective.11
5.2 Requirements.12
6 Personnel and responsibilities.13
6.1 Objective.13
6.2 Requirements.13
7 Lifecycle issues and documentation .14
7.1 Objectives.14
7.2 Requirements.14
8 Software requirements specification.17
8.1 Objectives.17
8.2 Input documents.17
8.3 Output documents.17
8.4 Requirements.17
9 Software architecture .18
9.1 Objectives.18
9.2 Input documents.19
9.3 Output documents.19
9.4 Requirements.19
10 Software design and implementation.20
10.1 Objectives.20
10.2 Input documents.21
10.3 Output documents.21
10.4 Requirements.21
11 Software verification and testing .24
11.1 Objective.24
11.2 Input documents.24
11.3 Output documents.24
11.4 Requirements.24
12 Software/hardware integration.27
12.1 Objectives.27
12.2 Input documents.27
12.3 Output documents.28
12.4 Requirements.28

13 Software validation.29
13.1 Objective.29
13.2 Input documents.29
13.3 Output documents.29
13.4 Requirements.29
14 Software assessment .31
14.1 Objective.31
14.2 Input documents.31
14.3 Output documents.31
14.4 Requirements.31
15 Software quality assurance.32
15.1 Objectives.32
15.2 Input documents.32
15.3 Output documents.32
15.4 Requirements.32
16 Software maintenance.34
16.1 Objective.34
16.2 Input documents.34
16.3 Output documents.35
16.4 Requirements.35
17 Systems configured by application data .36
17.1 Objectives.36
17.2 Input documents.36
17.3 Output documents.36
17.4 Requirements.37
17.4.1 Data Preparation Lifecycle .37
17.4.2 Data Preparation Procedures and Tools .37
17.4.3 Software Development.38
Annex A (normative) Criteria for the Selection of Techniques and Measures.45
Annex B (informative)  Bibliography of Techniques.60
Figures
Figure 1 – Integrity Levels for Safety-Related Systems .39
Figure 2 – Software Safety Route Map.40
Figure 3 – Development Lifecycle 1 .41
Figure 4 – Development Lifecycle 2 .42
Figure 5 - Independence Versus Software Integrity Level.43
Figure 6 – Relationship between Generic System Development and Application Development .44

- 5 - EN 50128:2001
Introduction
This Standard is part of a group of related Standards. The others are EN 50126 "Railway applications -
The specification and demonstration of Reliability, Availability, Maintainability and Safety (RAMS)” and
EN 50129 "Railway applications - Safety related electronic systems for signalling". EN 50126 addresses
system issues on the widest scale, while EN 50129 addresses the approval process for individual
systems which may exist within the overall railway control and protection system. This Standard
concentrates on the methods which need to be used in order to provide software which meets the
demands for safety integrity which are placed upon it by these wider considerations.
This Standard owes much of its direction to earlier work done by Working Group 9 of IEC/TC 65. The
work of WG 9 resulted in a generic standard for software for safety systems which is now part of
IEC 61508. A particular aspect of the work by WG 9 is its inclusion of Software Integrity Level 0, which
covers non-safety software, as well as Software Integrity Levels 1 to 4, which cover safety-related and
safety-critical software. This Standard also covers all five Software Integrity Levels.
Account has also been taken of the work of the Institution of Railway Signal Engineers (the IRSE), in
particular its Technical Report Number 1, which addressed the same topic.
The key concept of this European Norm is that of levels of software safety integrity. The more
dangerous the consequences of a software failure, the higher the software safety integrity level will be.
This European Standard has identified techniques and measures for 5 levels of software safety integrity
where 0 is the minimum level and 4 the highest level. Four of these levels, 1 to 4, refer to safety-related
software, whilst level 0 refers to non safety-related software. This level has been included as normative
in order to allow a smooth transition between software developments for non-safety related systems and
those for safety-related systems. The required techniques and measures for each software safety
integrity level and for the non safety-related level are shown in the tables. In this version, the required
techniques for level 1 are the same as for level 2, and the required techniques for level 3 are the same
as for level 4. This European Standard does not give guidance on which level of software integrity is
appropriate for a given risk. This decision will depend upon the many factors including the nature of the
application, the extent to which other systems carry out safety functions and social and economic factors.
It is the function of EN 50126 and EN 50129 to specify the safety functions allocated to software.
This European Standard specifies those measures necessary to achieve these requirements. The
process is illustrated in Figure 1.
EN 50126 and EN 50129 require that a systematic approach be taken to:
i) identifying hazards, risks and risk criteria;
ii) identifying the necessary risk reduction to meet the risk criteria;
iii) defining an overall System Safety Requirements Specification for the safeguards necessary to
achieve the required risk reduction;
iv) selecting a suitable system architecture;
v) planning, monitoring and controlling the technical and managerial activities necessary to translate
the System Safety Requirements Specification into a Safety-Related System of a validated safety
performance (or safety integrity).
As decomposition of the specification into a design comprising safety-related systems and components
takes place, further allocation of safety integrity levels is performed. Ultimately this leads to the required
software safety integrity levels.
The current state-of-the-art is such that neither the application of quality assurance methods (so-called
fault avoiding measures) nor the application of software fault tolerant approaches can guarantee the

absolute safety of the system. There is no known way to prove the absence of faults in reasonably
complex safety-related software, especially the absence of specification and design faults.
The principles applied in developing high integrity software include, but are not restricted to:
– top-down design methods;
– modularity;
– verification of each phase of the development lifecycle;
– verified modules and module libraries;
– clear documentation;
– auditable documents; and
– validation testing.
These and related principles must be correctly applied. This standard specifies the level of assurance
required to demonstrate this at each software safety integrity level.
After the System Safety Requirements Specification, which identifies all safety functions allocated to
software and determines the system safety integrity level, has been obtained or produced, the functional
steps in the application of this European Standard are shown in Figure 2 and are as follows:
i) define the Software Requirements Specification and in parallel consider the software architecture.
the software architecture is where the basic safety strategy is developed for the software and the
software safety integrity level (clauses 5, 8 and 9);
ii) design, develop and test the software according to the Software Quality Assurance Plan, software
safety integrity level and the software lifecycle (clause 10);
iii) integrate the software on the target hardware (clause 12);
iv) validate the software (clause 13);
v) if software maintenance is required during operational life then re-activate this European Standard
as appropriate (clause 16).
A number of activities run across the software development. These include verification (clause 11),
assessment (clause 14) and quality assurance (clause 15).
Requirements are given for systems which are configured by application data (clause 17).
Requirements are also given for the competency of staff involved in software development (clause 6).
The standard does not mandate the use of a particular software development lifecycle. However a
recommended lifecycle and documentation set are given (clause 7 and Figures 3 and 4).
Tables have been formulated ranking various techniques/measures against the 5 software safety
integrity levels. The tables are in annex A. Cross-referenced to the tables is a bibliography giving a brief
description of each technique/measure with references to further sources of information.
The bibliography is in annex B.

- 7 - EN 50128:2001
1 Scope
1.1 This European Standard specifies procedures and technical requirements for the development
of programmable electronic systems for use in railway control and protection applications. It is aimed at
use in any area where there are safety implications. These may range from the very critical, such as
safety signalling to the non-critical, such as management information systems. These systems may be
implemented using dedicated microprocessors, programmable logic controllers, multiprocessor
distributed systems, larger scale central processor systems or other architectures.
1.2 This European Standard is applicable exclusively to software and the interaction between
software and the system of which it is part.
1.3 Software safety integrity levels above zero are for use in systems in which the consequences of
failure could include loss of life. Economic or environmental considerations, however, may also justify
the use of higher software safety integrity levels.
1.4 This European Standard applies to all software used in development and implementation of
railway control and protection systems including:
application programming;
operating systems;
support tools;
firmware.
Application programming comprises high level programming, low level programming and special
purpose programming (for example: Programmable Logic Controller ladder logic).
1.5 The use of standard, commercially available software and tools is also addressed in this
European Standard.
1.6 This European Standard also addresses the requirements for systems configured by application
data.
1.7 This European Standard is not intended to address commercial issues. These should be
addressed as an essential part of any contractual agreement. All the clauses of this European Standard
will need careful consideration in any commercial situation.
1.8 This European Standard is not intended to be retrospective. It therefore applies primarily to
new developments and only applies in its entirety to existing systems if these are subjected to major
modifications. For minor changes, only clause 16 applies.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this European Standard only when incorporated in it by amendment or revision. For undated
references the latest edition of the publication referred to applies (including amendments).
EN 50126 Railway applications - The specification and demonstration of Reliability, Availability,
Maintainability and Safety (RAMS)
EN 50129* Railway applications - Safety related electronic systems for signalling

* at draft stage
EN 50159-1 Railway applications - Communication, signalling and processing systems
Part 1: Safety-related communication in closed transmission systems
EN 50159-2 Railway applications - Communication, signalling and processing systems
Part 2: Safety-related communication in open transmission systems
EN ISO 9001 Quality systems - Model for quality assurance in design/development, production,
installation and servicing
EN ISO 9000-3 Quality management and quality assurance standards – Part 3: Guidelines for the
application of ISO 9001:1994 to the development, supply, installation and
maintenance of computer software
3 Definitions
For the purposes of this European Standard, the following definitions apply. For terms not defined here,
the following references should be consulted in order of priority:
EN ISO 8402 Quality management and quality assurance – Vocabulary
IEC 60050-191 International Electrotechnical Vocabulary of Chapter 191: Dependability and quality of
service
IEEE 610.12 IEEE standard glossary of software engineering terminology
ISO/IEC 2382 Information Technology Vocabulary
ISO/IEC 9126 Information Technology – Software Product Evaluation – Quality characteristics and
guidelines for their use
3.1
assessment
process of analysis to determine whether the Design Authority and the Validator have achieved a product
that meets the specified requirements and to form a judgement as to whether the product is fit for its
intended purpose
3.2
assessor
person or agent appointed to carry out the assessment
3.3
availability
ability of a product to be in a state to perform a required function under given conditions at a given
instant of time or over a given time interval, assuming the required external resources are provided
3.4
commercial off-the-shelf (COTS) software
software defined by market-driven need, commercially available and whose fitness for purpose has been
demonstrated by a broad spectrum of commercial users
3.5
design authority
body responsible for the formulation of a design solution to fulfil the specified requirements and for
overseeing the subsequent development and setting to work of a system in its intended environment
3.6
designer
one or more persons assigned by the Design Authority to analyse and transform specified requirements
into acceptable design solutions which have the required safety integrity

- 9 - EN 50128:2001
3.7
element
part of a product that has been determined to be a basic unit or building block. An element may be
simple or complex
3.8
error
deviation from the intended design which could result in unintended system behaviour or failure
3.9
failure
deviation from the specified performance of a system. A failure is the consequence of a fault or error in
a system
3.10
fault
abnormal condition that could lead to an error or a failure in a system. A fault can be random or
systematic
3.11
fault avoidance
use of design techniques which aim to avoid the introduction of faults during the design and construction
of the system
3.12
fault tolerance
built-in capability of a system to provide continued correct provision of service as specified, in the
presence of a limited number of hardware or software faults
3.13
firmware
ordered set of instructions and associated data stored in a way that is functionally independent of main
storage, usually in a ROM
3.14
generic software
generic software is software which can be used for a variety of installations purely by the provision of
application-specific data
3.15
implementer
one or more persons assigned by the Design Authority to transform specified designs into their physical
realisation
3.16
product
collection of elements, interconnected to form a system, sub-system or item of equipment, in a manner
which meets the specified requirements. In this European Standard, a product may be considered to
consist entirely of elements of software or documentation
3.17
programmable logic controller (PLC)
solid-state control system which has a user programmable memory for storage of instructions to
implement specific functions
3.18
reliability
ability of an item to perform a required function under given conditions for a given period of time

3.19
requirements traceability
objective of requirements traceability is to ensure that all requirements can be shown to have been
properly met
3.20
risk
combination of the frequency, or probability, and the consequence of a specified hazardous event
3.21
safety
Freedom from unacceptable levels of risk
3.22
safety authority
body responsible for certifying that the safety-related system is fit for service and complies with relevant
statutory and regulatory safety requirements
3.23
safety-related software
software which carries responsibility for safety
3.24
software
intellectual creation comprising the programs, procedures, rules and any associated documentation
pertaining to the operation of a system
NOTE  Software is independent of the media used for transport.
3.25
software life-cycle
activities occurring during a period of time that starts when software is conceived and ends when the
software is no longer available for use. The software lifecycle typically includes a requirements phase,
development phase, test phase, integration phase, installation phase and a maintenance phase
3.26
software maintainability
capability of a system to be modified to correct faults, improve performance or other attributes, or adapt
it to a different environment
3.27
software maintenance
Action, or set of actions, carried out on software after its acceptance by the final user. The aim is to
improve, increase and/or correct its functionality
3.28
software safety integrity level
classification number which determines the techniques and measures that have to be applied in order to
reduce residual software faults to an appropriate level
3.29
system safety integrity level
number which indicates the required degree of confidence that a system will meet its specified safety
features
3.30
traceability
degree to which a relationship can be established between two or more products of a development
process, especially those having a predecessor/successor or master/subordinate relationship to one
another
- 11 - EN 50128:2001
3.31
validation
activity of demonstration, by analysis and test, that the product meets, in all respects, its specified
requirements
3.32
validator
person or agent appointed to carry out validation
3.33
verification
activity of determination, by analysis and test, that the output of each phase of the life-cycle fulfils the
requirements of the previous phase
3.34
verifier
person or agent appointed to carry out verification
4 Objectives and conformance
4.1 In each of the following clauses, the objectives and requirements of the clause are detailed.
4.2 To conform to this European Standard it shall be shown that each of the requirements have
been satisfied to the software safety integrity level defined and therefore the clause objective has been
met.
4.3 Where a requirement is qualified by the words "To the extent required by the software safety
integrity level", this indicates that a range of techniques and measures can be used to satisfy that
requirement.
4.4 Where 4.3 applies the tables detailed in this European Standard should be used to assist in the
selection of techniques and measures appropriate to the software safety integrity level.
4.5 If a technique or measure is ranked as highly recommended (HR) in the tables then the
rationale for not using that technique should be detailed and recorded either in the Software Quality
Assurance Plan or in another document referenced by the Software Quality Assurance Plan. This is not
necessary if an approved combination of techniques given in the corresponding table is used.
4.6 If a technique or measure is proposed to be used that is not contained in the tables then its
effectiveness and suitability in meeting the particular requirement and overall objective of the clause
shall be justified and recorded in either the Software Quality Assurance Plan or in another document
referenced by the Software Quality Assurance Plan.
4.7 Compliance with the requirements of a particular clause and their respective techniques and
measures detailed in the tables shall be assessed by the inspection of documents required by this
standard, other objective evidence, auditing and the witnessing of tests.
4.8 This European Standard requires the use of a package of techniques and their correct
application. These techniques are required from the tables and detailed in the bibliography.
5 Software safety integrity levels
5.1 Objective
To describe the assignment of software safety integrity levels to the software.

5.2 Requirements
5.2.1 There shall be produced, in accordance with EN 50126 and EN 50129
– System Requirements Specification,
– System Safety Requirements Specification,
– System Architecture Description,
– System Safety Plan,
which include:
– safety functions;
– configuration or architecture of the system;
– hardware reliability requirements;
– safety integrity requirements.
The software safety integrity level shall be specified through following the general process for obtaining a
safety integrity level identified in EN 50126.
5.2.2 The required software safety integrity level shall be decided on the basis of the level of risk
associated with the use of the software in the system and the system safety integrity level.
5.2.3 Without further precautions, the software safety integrity level shall be, as a minimum, identical
to the system safety integrity level. However, if mechanisms exist to prevent the failure of a software
module from causing the system to go to an unsafe state, the software safety integrity level of the
module may be reduced.
5.2.4 Risks which shall be taken into account are those associated with the following hazard
consequences:
– loss of human life or lives;
– injuries to or illness of persons;
– environmental pollution; and
– loss of or damage to property.
5.2.5 Risk may be quantified but it is not possible to specify the software safety integrity in the same
manner. Therefore for this European Standard the software safety integrity shall be specified as one of
the following five levels:
Software safety Description of software
integrity level safety integrity
4 Very High
3High
2 Medium
1 Low
0 Non safety-related
- 13 - EN 50128:2001
5.2.6 The software safety integrity level shall be specified in the Software Requirements
Specification (clause 8). If different software components have different software safety integrity levels,
these shall be specified in the Software Architecture Specification (clause 9).
6 Personnel and responsibilities
6.1 Objective
To ensure that all personnel who have responsibilities for the software are competent to discharge those
responsibilities.
6.2 Requirements
6.2.1 As a minimum, the supplier and/or developer and the customer shall implement the relevant
parts of EN ISO 9001, in accordance with the guidelines contained in EN ISO 9000-3.
6.2.2 Except at software safety integrity level zero, the safety process shall be implemented under
the control of an appropriate safety organisation which is compliant with the "Safety Organisation" sub-
clause in the "Evidence of Safety Management" clause of EN 50129.
6.2.3 All personnel involved in all the phases of the Software Lifecycle, including management
activities, shall have the appropriate training, experience and qualifications.
6.2.4 It is highly recommended that the training, experience and qualifications of all personnel
involved in all the phases of the Software Lifecycle, including management activities, be justified with
respect to the particular application, except at software safety integrity level zero.
6.2.5 The justification contained in 6.2.4 shall be recorded in the Software Quality Assurance Plan,
and shall include evidence of competency in the following areas, as appropriate:
i) engineering appropriate to the application area;
ii) software engineering;
iii) computer-systems engineering;
iv) safety engineering;
v) legal and regulatory framework.
6.2.6 An independent assessor for the software shall be appointed. See also 6.2.10 and 14.4.1.
6.2.7 The assessor shall be given authority to perform the assessment of the software.
6.2.8 Throughout the Software Lifecycle, the parties involved shall be independent, to the extent
required by the software safety integrity level, in accordance with Figure 5, which shall be interpreted as
follows.
At all software safety integrity levels, the Assessor shall be approved by the Safety Authority and
independent from the supplier except in the circumstances defined in 6.2.10.
The Designer/Implementer, Verifier and Validator can all belong to the same company but the following
rules for minimum independence shall be complied with:
At software safety integrity level 0:
There are no constraints; the Designer/Implementer, Verifier and Validator can all be the same
person.
At software safety integrity level 1 & 2:
The Verifier and Validator can be the same person but they shall not be the
Designer/Implementer. However, the Designer/Implementer, Verifier and Validator can all
report through the Project Manager.
At software safety integrity level 3 & 4 there are two permissible arrangements:
a) The Verifier and Validator can be the same person but they shall not also be the
Designer/Implementer. In addition, the Verifier and Validator shall not all report through
the Project Manager as the Designer/Implementer does and they shall have the authority
to prevent the release of the product.
b) The Designer/Implementer, Verifier and Validator must all be separate persons. The
Designer/Implementer and Verifier can report through the Project Manager, whereas the
Validator shall not and the Validator shall have the authority to prevent the release of the
product.
6.2.9 The parties responsible for the various clauses are as follows:
Software Requirements Specification (clause 8) Designer
Software Requirements Test Specification (clause 8) Validator
Software Architecture (clause 9) Designer
Software Design and Development (clause 10) Designer
Software Verification and Testing (clause 11) Verifier
Software/Hardware Integration (clause 12) Designer
Software Validation (clause 13) Validator
Software Assessment (clause 14) Assessor
6.2.10 At the discretion of the Safety Authority, the Assessor may be part of the supplier’s organisation
or of the customer’s organisation but, in such cases, the Assessor shall
– be authorised by the Safety Authority,
– be totally independent from the project team,
– report directly to the Safety Authority.
7 Lifecycle issues and documentation
7.1 Objectives
7.1.1 To structure the development of the software into defined phases and activities.
7.1.2 To record all information pertinent to the software throughout the lifecycle of the software.
7.2 Requirements
7.2.1 A lifecycle model for the development of software shall be selected. It shall be detailed in the
Software Quality Assurance Plan in accordance with clause 15 of this European Standard. For example,
two lifecycle models are shown in Figures 3 and 4.
7.2.2 Quality Assurance procedures shall run in parallel with lifecycle activities and use the same
terminology.
- 15 - EN 50128:2001
7.2.3 All activities to be performed during a phase shall be defined prior to the phase commencing.
Each phase of the software lifecycle shall be divided into elementary tasks with a well defined input,
output and activity for each of them.
7.2.4 The Software Quality Assurance Plan shall describe which verification steps and reports are
required.
7.2.5 All documents shall be structured to allow continued expansion in parallel with the design
process.
7.2.6 Traceability of documents shall be provided for by each document having a unique reference
number and a defined and documented relationship with other documents. Each term, acronym or
abbreviation shall have the same meaning in every document. If, for historical reasons, this is not
possible, the different meanings shall be listed and the references given.
In addition, each document except documents for COTS software (see 9.4.5) or previously developed
software (see 9.4.6) shall be written according to the following rules:
a) it shall contain or implement all applicable conditions and requirements of the predecessor
document with which it has a hierarchical relationship;
b) it shall not contradict the predecessor document;
c) each term, acronym or abbreviation shall have the same meaning in every document;
d) each item or concept shall be referred to by the same name or description in every document.
7.2.7 The contents of all documents shall be recorded in a form appropriate for manipulation,
processing and storage.
7.2.8 To the extent required by the software safety integrity level, the documents listed in the
Documents Cross Reference Table (see below) shall be produced.
7.2.9 Depending upon the size, complexity and lifecycle of the software being developed, the
number of separate documents required to be produced will vary. Some documents may be combined
(providing there is no loss of the required detail in the process). For large projects it may be necessary
to sub-divide the documentation listed (in a hierarchical manner) into a number of more manageable
child documents. Documents which have been produced by independent teams or entities shall not be
combined into a single document.
7.2.10 The relationship between the various documents identified in clause 7 can also be defined by
using a DCRT (a Document Cross Reference Table). For each document listed in the “Documents”
column, the phase and clause associated with its creation can be found by reading horizontally and
vertically from the cell containing the symbol “█”. The phases in which it is used can be found by reading
vertically from the cells marked with the symbol “♦“. The clause or other reference to the definition of
the document can be found in the “Where defined” column. Where a clause is given, the following
clauses should also be checked as they may contain further information. It should be noted that the
reference for the Software Configuration Management Plan is shown in brackets because that clause
simply references EN ISO 9001.

DOCUMENTS CROSS-REFERENCE TABLE
clause 8 9 10 11 12 13 14 15 16
title SRS SA SDD SVer S/H I SVal Ass Q Ma
PHASES DOCUMENTS where defined
(*) = in parallel with other
phases
SYSTEM INPUTS System Requirements Specification EN 50129 annex B.2.3
♦♦♦
System Safety Requirements EN 50129 annex B.2.4
♦♦ ♦ ♦ ♦ ♦
Specification
System Architecture Description EN 50129 annex B.2.1
♦♦
System Safety Plan EN 50129
EN 50126
█
SW PLANNING (*) Sw Quality Assurance Plan 15.4.3
♦ ♦ ♦ ♦ ♦ ♦
█
Sw Configuration Management Plan (15.4.2)
♦♦
█
Sw Verification Plan 11.4.1
♦ ♦
█
Sw Integration Test Plan 11.4.5
♦♦
█
Sw/Hw Integration Test Plan 12.4.1
♦ ♦
█
Sw Validation Plan 13.4.3
♦
█
Sw Maintenance Plan 16.4.3
♦
Data Preparation Plan 17.4.2.1
Data Test Plan 17.4.2.4
█
SW REQUIREMENTS Sw Requirements Specification 8.4.1
♦♦♦ ♦ ♦ ♦
Application Requirements 17.4.1.1
Specification
█
Sw Requirements Test Specification 8.4.13
♦ ♦ ♦ ♦
█
Sw Requirements Verification 11.4.11
Report
█
SW DESIGN Sw Architecture Specification 9.4.1
♦ ♦ ♦ ♦ ♦
█
Sw Design Specification 10.4.3
♦♦ ♦ ♦
█
Sw Arch. and Design Verification 11.4.12
Report
█
SW MODULE DESIGN Sw Module Design Specification 10.4.3
♦♦ ♦ ♦
█
Sw Module Test Specification 10.4.14
♦ ♦ ♦ ♦
█
Sw Module Verification Report 11.4.13
█
CODE Sw Source Code
♦ ♦ ♦ ♦
█
Sw Source Code Verification Report 11.4.14
♦♦
█
MODULE TESTING Sw Module Test Report 10.4.14
♦
█
SW INTEGRATION Sw Integration Test Report 11.4.15
Data Test Report 17.4.2.4
SW/HW INTEGRATION █ Sw/Hw Integration Test Report 12.4.8
█
VALIDATION (*) Sw Validation Report 13.4.10
█
ASSESSMENT (*) Sw Assesment Report 14.4.9
█
MAINTENANCE Sw Change Records 16.4.9
█
Sw Maintenance Records 16.4.8
------------------
...
