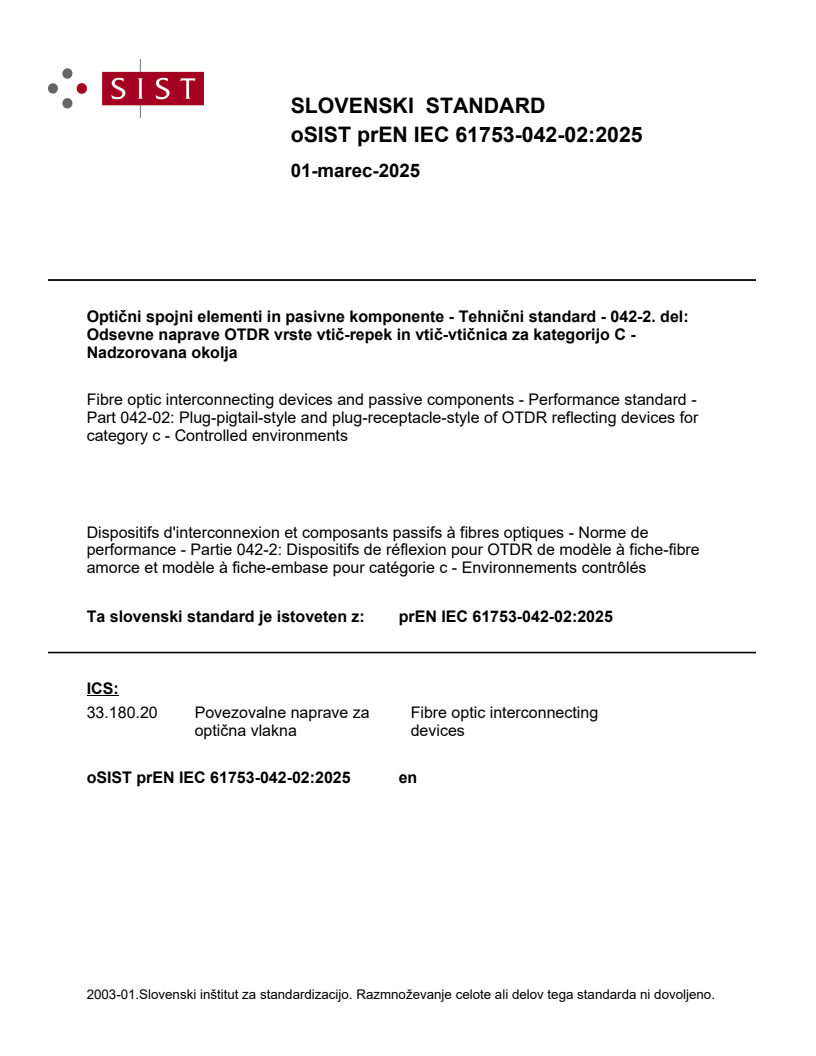

prEN IEC 61753-042-02:2025

SLOVENSKI STANDARD
01-marec-2025
Optični spojni elementi in pasivne komponente - Tehnični standard - 042-2. del:
Odsevne naprave OTDR vrste vtič-repek in vtič-vtičnica za kategorijo C -
Nadzorovana okolja
Fibre optic interconnecting devices and passive components - Performance standard -
Part 042-02: Plug-pigtail-style and plug-receptacle-style of OTDR reflecting devices for
category c - Controlled environments
Dispositifs d'interconnexion et composants passifs à fibres optiques - Norme de
performance - Partie 042-2: Dispositifs de réflexion pour OTDR de modèle à fiche-fibre
amorce et modèle à fiche-embase pour catégorie c - Environnements contrôlés
Ta slovenski standard je istoveten z: prEN IEC 61753-042-02:2025
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

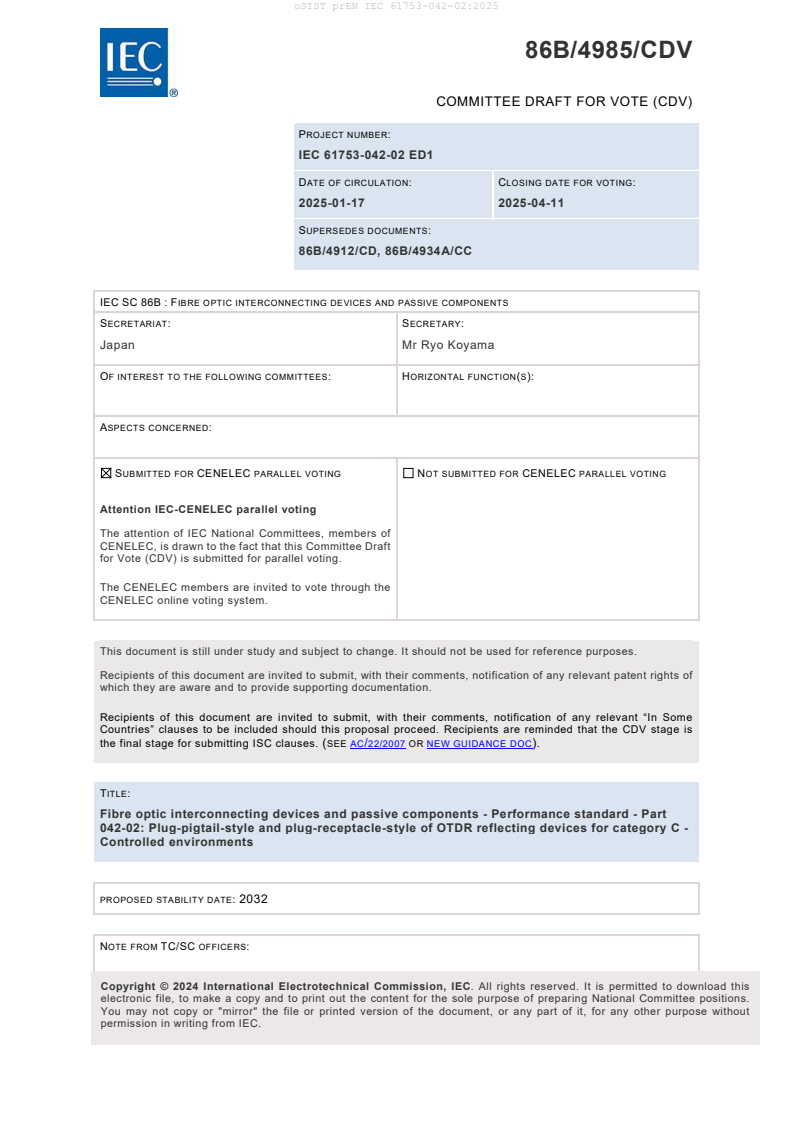

86B/4985/CDV
COMMITTEE DRAFT FOR VOTE (CDV)
PROJECT NUMBER:
IEC 61753-042-02 ED1
DATE OF CIRCULATION: CLOSING DATE FOR VOTING:
2025-01-17 2025-04-11
SUPERSEDES DOCUMENTS:
86B/4912/CD, 86B/4934A/CC
IEC SC 86B : FIBRE OPTIC INTERCONNECTING DEVICES AND PASSIVE COMPONENTS
SECRETARIAT: SECRETARY:
Japan Mr Ryo Koyama
OF INTEREST TO THE FOLLOWING COMMITTEES: HORIZONTAL FUNCTION(S):

ASPECTS CONCERNED:
SUBMITTED FOR CENELEC PARALLEL VOTING NOT SUBMITTED FOR CENELEC PARALLEL VOTING
Attention IEC-CENELEC parallel voting
The attention of IEC National Committees, members of
CENELEC, is drawn to the fact that this Committee Draft
for Vote (CDV) is submitted for parallel voting.
The CENELEC members are invited to vote through the
CENELEC online voting system.
This document is still under study and subject to change. It should not be used for reference purposes.
Recipients of this document are invited to submit, with their comments, notification of any relevant patent rights of
which they are aware and to provide supporting documentation.
Recipients of this document are invited to submit, with their comments, notification of any relevant “In Some
Countries” clauses to be included should this proposal proceed. Recipients are reminded that the CDV stage is
the final stage for submitting ISC clauses. (SEE AC/22/2007 OR NEW GUIDANCE DOC).

TITLE:
Fibre optic interconnecting devices and passive components - Performance standard - Part
042-02: Plug-pigtail-style and plug-receptacle-style of OTDR reflecting devices for category C -
Controlled environments
PROPOSED STABILITY DATE: 2032
NOTE FROM TC/SC OFFICERS:
electronic file, to make a copy and to print out the content for the sole purpose of preparing National Committee positions.
You may not copy or "mirror" the file or printed version of the document, or any part of it, for any other purpose without
permission in writing from IEC.

IEC CDV 61753-042-02 ED1 © IEC 2025 2 86B/4985/CDV

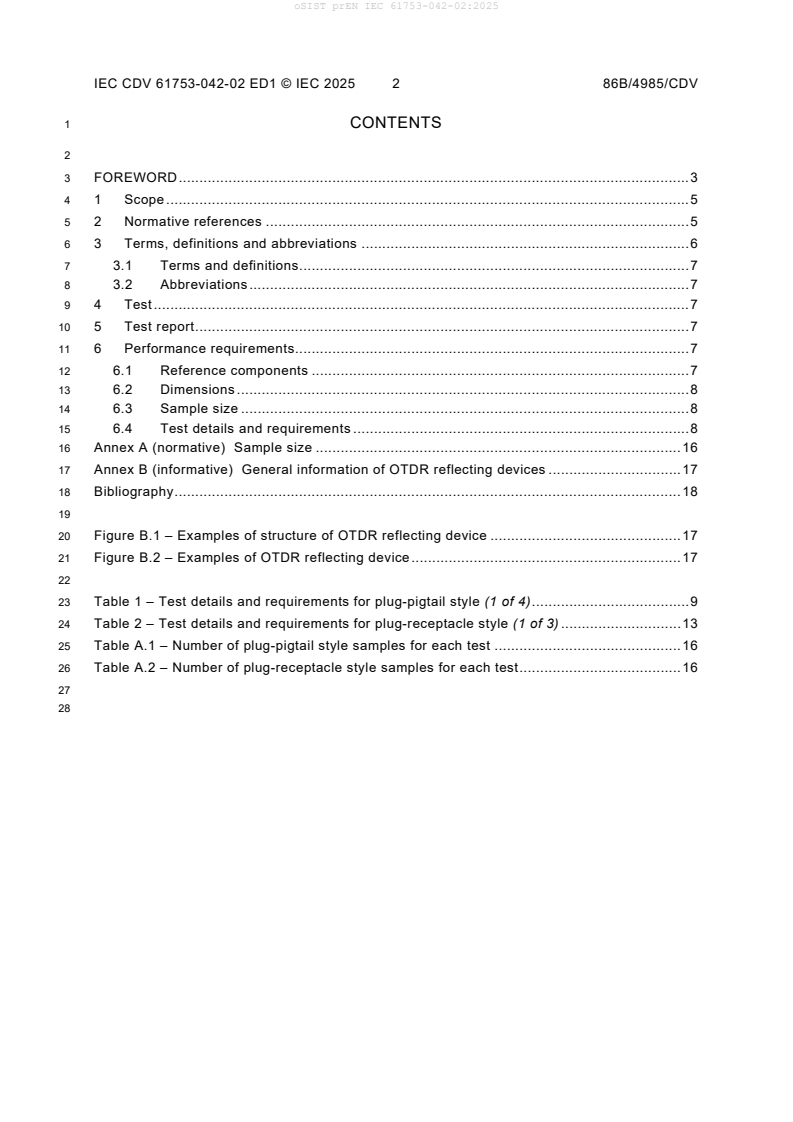

1 CONTENTS
3 FOREWORD . 3
4 1 Scope . 5
5 2 Normative references . 5
6 3 Terms, definitions and abbreviations . 6
7 3.1 Terms and definitions . 7
8 3.2 Abbreviations . 7
9 4 Test . 7
10 5 Test report . 7
11 6 Performance requirements. 7
12 6.1 Reference components . 7
13 6.2 Dimensions . 8
14 6.3 Sample size . 8
15 6.4 Test details and requirements . 8
16 Annex A (normative) Sample size . 16
17 Annex B (informative) General information of OTDR reflecting devices . 17
18 Bibliography . 18
20 Figure B.1 – Examples of structure of OTDR reflecting device . 17
21 Figure B.2 – Examples of OTDR reflecting device . 17
23 Table 1 – Test details and requirements for plug-pigtail style (1 of 4) . 9
24 Table 2 – Test details and requirements for plug-receptacle style (1 of 3) . 13
25 Table A.1 – Number of plug-pigtail style samples for each test . 16
26 Table A.2 – Number of plug-receptacle style samples for each test . 16
IEC CDV 61753-042-02 ED1 © IEC 2025 3 86B/4985/CDV

29 INTERNATIONAL ELECTROTECHNICAL COMMISSION
30 ____________
32 FIBRE OPTIC INTERCONNECTING DEVICES AND
33 PASSIVE COMPONENTS – PERFORMANCE STANDARD –
35 Part 042-02: Plug-pigtail-style and plug-receptacle-style
36 OTDR reflecting devices for category C –
37 Controlled environments
39 FOREWORD
40 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
41 all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
42 co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
43 in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
44 Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
45 preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
46 may participate in this preparatory work. International, governmental and non-governmental organizations liaising
47 with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
48 Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
49 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
50 consensus of opinion on the relevant subjects since each technical committee has representation from all
51 interested IEC National Committees.
52 3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
53 Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
54 Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
55 misinterpretation by any end user.
56 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
57 transparently to the maximum extent possible in their national and regional publications. Any divergence between
58 any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
59 5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
60 assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
61 services carried out by independent certification bodies.
62 6) All users should ensure that they have the latest edition of this publication.
63 7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
64 members of its technical committees and IEC National Committees for any personal injury, property damage or
65 other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
66 expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
67 8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
68 indispensable for the correct application of this publication.
69 9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
70 rights. IEC shall not be held responsible for identifying any or all such patent rights.
71 International Standard IEC 61753-042-02 has been prepared by subcommittee 86B: Fibre optic
72 interconnecting devices and passive components of IEC technical committee 86: Fibre optics.
73 This first edition cancels and replaces the first edition of IEC 61753-042-2, published in 2014,
74 and constitutes a technical revision.
75 This edition includes the following significant technical changes with respect to IEC 61753-042-
76 2.:
78 a) Harmonization of test requirements with requirements from IEC 61753-1:2018
79 b) Harmonization of tests with tests from IEC 61753-1:2018
80 The text of this standard is based on the following documents:

IEC CDV 61753-042-02 ED1 © IEC 2025 4 86B/4985/CDV

FDIS Report on voting
86B/xxxx/FDIS 86B/xxxx/RVD
82 Full information on the voting for the approval of this standard can be found in the report on
83 voting indicated in the above table.
84 This publication has been drafted in accordance with the ISO/IEC Directives, Part 3.
85 A list of all parts of IEC 61753 series, under the general title Fibre optic interconnecting devices
86 and passive components performance standards, can be found on the IEC website.
87 The committee has decided that the contents of this publication will remain unchanged until the
88 stability date indicated on the IEC web site under "https://webstore.iec.ch" in the data related
89 to the specific publication. At this date, the publication will be
90 • reconfirmed,
91 • withdrawn,
92 • replaced by a revised edition, or
93 • amended.
IEC CDV 61753-042-02 ED1 © IEC 2025 5 86B/4985/CDV

96 FIBRE OPTIC INTERCONNECTING DEVICES AND
97 PASSIVE COMPONENTS – PERFORMANCE STANDARD –
99 Part 042-02: Plug-pigtail-style and plug-receptacle-style
100 OTDR reflecting devices for category C –
101 Controlled environments
106 1 Scope
107 This part of IEC 61753 contains the minimum initial performance, test and measurement
108 requirements and severities which plug-pigtail style and plug-receptacle style OTDR reflecting
109 devices need to satisfy in order to be categorized as meeting the requirements of category C-
110 Controlled environments, as defined in Annex A of IEC 61753-1 [1] . These devices are utilized
111 for out-of-band OTDR testing of an optical fibre system.
112 Annex B provides information concerning these devices.
113 2 Normative references
114 The following documents are referred to in the text in such a way that some or all of their content
115 constitutes requirements of this document. For dated references, only the edition cited applies.
116 For undated references, the latest edition of the referenced document (including any
117 amendments) applies.
118 IEC 60793-2-50, Optical fibres – Part 2-50: Product specifications – Sectional specification for
119 class B single-mode fibres
120 IEC 61300 (all parts), Fibre optic interconnecting devices and passive components – Basic test
121 and measurement procedures
122 IEC 61300-1, Fibre optic interconnecting devices and passive components – Basic test and
123 measurement procedures – Part 1: General and guidance
124 IEC 61300-2-1, Fibre optic interconnecting devices and passive components – Basic test and
125 measurement procedures – Part 2-1: Tests – Vibration (sinusoidal)
126 IEC 61300-2-2, Fibre optic interconnecting devices and passive components – Basic test and
127 measurement procedures – Part 2-2: Tests – Mating durability
128 IEC 61300-2-4, Fibre optic interconnecting devices and passive components – Basic test and
129 measurement procedures – Part 2-4: Tests–Fibre or cable retention
130 IEC 61300-2-5, Fibre optic interconnecting devices and passive components – Basic test and
131 measurement procedures – Part 2-5: Tests – Torsion
132 IEC 61300-2-6, Fibre optic interconnecting devices and passive components – Basic test and
133 measurement procedures – Part 2-6: Tests – Tensile strength of coupling mechanism
—————————
Numbers in square brackets refer to the Bibliography.

IEC CDV 61753-042-02 ED1 © IEC 2025 6 86B/4985/CDV

134 IEC 61300-2-9, Fibre optic interconnecting devices and passive components – Basic test and
135 measurement procedures – Part 2-9: Tests –Shock
136 IEC 61300-2-14, Fibre optic interconnecting devices and passive components – Basic test and
137 measurement procedures – Part 2-14: Tests – High optical power
138 IEC 61300-2-17, Fibre optic interconnecting devices and passive components – Basic test and
139 measurement procedures – Part 2-17: Tests – Cold
140 IEC 61300-2-18, Fibre optic interconnecting devices and passive components – Basic test and
141 measurement procedures – Part 2-18: Tests – Dry heat
142 IEC 61300-2-19, Fibre optic interconnecting devices and passive components – Basic test and
143 measurement procedures – Part 2-19: Tests – Damp heat (steady state)
144 IEC 61300-2-22, Fibre optic interconnecting devices and passive components – Basic test and
145 measurement procedures – Part 2-22: Tests – Change of temperature
146 IEC 61300-2-42, Fibre optic interconnecting devices and passive components – Basic test and
147 measurement procedures – Part 2-42: Tests – Static side load for strain relief
148 IEC 61300-2-44, Fibre optic interconnecting devices and passive components – Basic test and
149 measurement procedures – Part 2-44: Tests – Flexing of the strain relief of fibre optic devices
150 IEC 61300-3-2, Fibre optic interconnecting devices and passive components – Basic test and
151 measurement procedures – Part 3-2: Examination and measurements – Polarization dependent
152 loss in a single-mode fibre optic device
153 IEC 61300-3-6, Fibre optic interconnecting devices and passive components - Basic test and
154 measurement procedures - Part 3-6: Examination and measurements – Return loss
156 IEC 61300-3-7, Fibre optic interconnecting devices and passive components - Basic test and
157 measurement procedures - Part 3-7: Examination and measurements – Wavelength
158 dependence of attenuation and return loss of single mode components
159 IEC 62074-1, Fibre optic interconnecting devices and passive components – Fibre optic WDM
160 devices - Part 1: Generic specification
161 IEC TS 62627-09, Fibre optic interconnecting devices and passive components - Vocabulary
162 for passive optical devices
163 3 Terms, definitions and abbreviations
164 For the purposes of this document, the terms and definitions given in IEC 62074-1 and
165 IEC TS 62627-09 and the following terms and definitions apply.
166 ISO and IEC maintain terminological databases for use in standardization at the following
167 addresses:
.
168 IEC Electropedia: available at https://www.electropedia.org/
.
169 ISO Online browsing platform: available at https://www.iso.org/obp

IEC CDV 61753-042-02 ED1 © IEC 2025 7 86B/4985/CDV

170 3.1 Terms and definitions
171 3.1.1
172 OTDR reflecting device
173 optical filter that has two ports in which light in the signal wavelength ranges transmits from the first port
174 to the second port and OTDR light in the OTDR wavelength range launched into one port is (partly)
175 reflected back to that launch port
176 NOTE 1 to entry: It is used for out of band testing of optical fibre systems.
177 3.1.2
178 passband wavelength range
179 the wavelength ranges of 1 260 nm to 1 360 nm, 1 480 nm to 1 500 nm and 1 550 nm to 1 560 nm
180 3.1.3
181 reflection-band wavelength range
182 the wavelength ranges of 1 620 nm to 1 630 nm or 1 645 nm to 1 655 nm
183 3.2 Abbreviations
FBG fibre bragg grating
ONU optical network unit
OTDR optical time-domain reflectometer
PDL polarisation dependent loss
TFF thin-film filter
185 4 Test
186 Unless otherwise specified, all test methods shall be in accordance with a specific IEC 61300
187 series standard. Each test defines the number of samples to be evaluated. The samples used
188 for each test are intended to be previously unstressed new samples but may also be selected
189 from previously used samples if desired. The samples shall use single-mode fibres as per IEC
190 60793-2-50 category B-652.B, B-652.D or B-657 in either coated fibres (primary and secondary)
191 or reinforced cable format. All measurements shall be carried out at standard atmosphere
192 condition defined in IEC 61300-1, unless otherwise stated.
193 All tests shall be carried out over the operating wavelength range: the signal wavelength ranges
194 of 1 260 nm to 1 360 nm, 1 480 nm to 1 500 nm and 1 550 nm to 1 560 nm, and the OTDR
195 wavelength of 1 620 nm to 1 630 nm or 1 645 nm to 1 655 nm, unless otherwise specified.
196 NOTE 1 310 nm, 1 490 nm and 1 550 nm are the nominal or centre wavelengths, stated for the ranges 1 260 nm to
197 1 360 nm, 1 480 nm to 1 500 nm and 1 550 nm to 1 560 nm as defined in ITU-T Recommendations G.983.3 [2],
198 G.984.2 [3] and IEEE standard 802.3-2022 [4].
199 5 Test report
200 Fully documented test reports and supporting evidence shall be prepared and be available for
201 inspection as evidence that the tests have been carried out and complied with.
202 6 Performance requirements
203 6.1 Reference components
204 The performance testing in this document does not require the use of reference components.

IEC CDV 61753-042-02 ED1 © IEC 2025 8 86B/4985/CDV

205 6.2 Dimensions
206 Dimensions shall comply with either an appropriate IEC interface standard as defined in the
207 IEC 61754 series or with those given in appropriate manufacturers drawings, where the IEC
208 interface standard does not exist or cannot be used.
209 6.3 Sample size
210 Sample sizes for the test are defined in Table A.1 of Annex A for plug-pigtail style and in Table
211 A.2 of Annex A for plug-receptacle style.
212 6.4 Test details and requirements
213 Test details and requirements are shown in Table 1 for plug-pigtail style and Table 2 for plug-
214 receptacle style.
IEC CDV 61753-042-02 ED1 © IEC 2025 9 86B/4985/CDV

217 Table 1 – Test details and requirements for plug-pigtail style (1 of 4)
No Tests Requirements Details
1 Attenuati
...
