EN 60317-51:2014

SLOVENSKI STANDARD
01-september-2014
1DGRPHãþD
SIST EN 60317-51:2002
6SHFLILNDFLMH]DSRVHEQHYUVWHQDYLMDOQLKåLFGHO6SDMNOMLYDVSROLXUHWDQRP
SUHYOHþHQDRNURJODEDNUHQDåLFDUD]UHG,(&
Specifications for particular types of winding wires -- Part 51: Solderable polyurethane
enamelled round copper wire, class 180
Spécifications pour types particuliers de fils de bobinage -- Partie 51: Fil brasable de
section circulaire en cuivre émaillé avec polyuréthane, classe 180
Ta slovenski standard je istoveten z: EN 60317-51:2014
ICS:
29.060.10 Žice Wires
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60317-51

NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2014
ICS 29.060.10 Supersedes EN 60317-51:2001
English Version
Specifications for particular types of winding wires - Part 51:
Solderable polyurethane enamelled round copper wire, class
(IEC 60317-51:2014)
Spécifications pour types particuliers de fils de bobinage - To be completed
Partie 51: Fil brasable de section circulaire en cuivre (IEC 60317-51:2014)
émaillé avec polyuréthane, classe 180
(CEI 60317-51:2014)
This European Standard was approved by CENELEC on 2014-03-19. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60317-51:2014 E

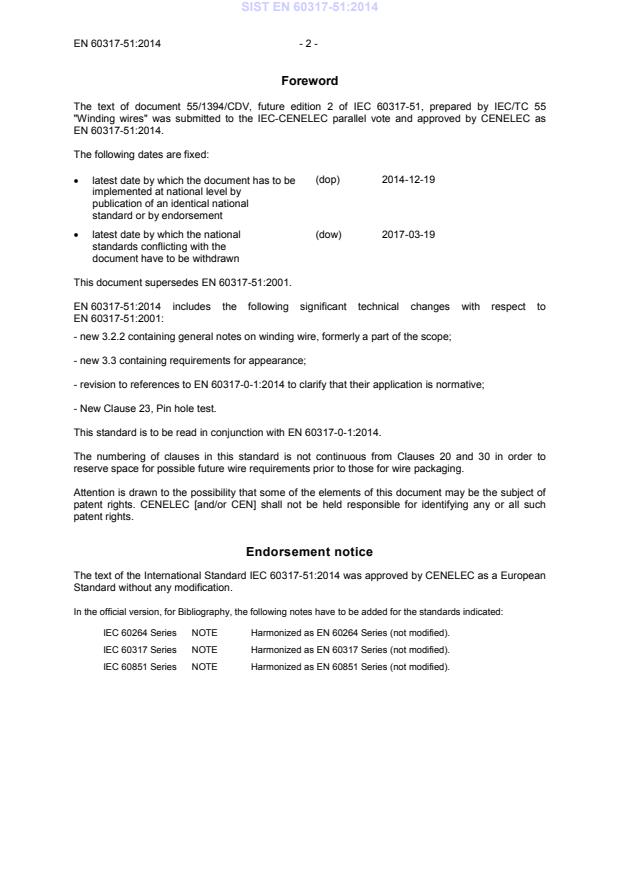

Foreword
The text of document 55/1394/CDV, future edition 2 of IEC 60317-51, prepared by IEC/TC 55
"Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2014-12-19
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2017-03-19
standards conflicting with the
document have to be withdrawn
This document supersedes EN 60317-51:2001.

EN 60317-51:2001:
- new 3.2.2 containing general notes on winding wire, formerly a part of the scope;

- new 3.3 containing requirements for appearance;

- revision to references to EN 60317-0-1:2014 to clarify that their application is normative;

- New Clause 23, Pin hole test.

This standard is to be read in conjunction with EN 60317-0-1:2014.

The numbering of clauses in this standard is not continuous from Clauses 20 and 30 in order to
reserve space for possible future wire requirements prior to those for wire packaging.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 60317-51:2014 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60264 Series NOTE Harmonized as EN 60264 Series (not modified).
IEC 60317 Series NOTE Harmonized as EN 60317 Series (not modified).
IEC 60851 Series NOTE Harmonized as EN 60851 Series (not modified).

- 3 - EN 60317-51:2014
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60317-0-1 2013 Specifications for particular types EN 60317-0-1 2014
of winding wires -
Part 0-1: General requirements - Enamelled
round copper wire
IEC 60317-51 ®
Edition 2.0 2014-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 51: Solderable polyurethane enamelled round copper wire, class 180

Spécifications pour types particuliers de fils de bobinage –

Partie 51: Fil brasable de section circulaire en cuivre émaillé avec polyuréthane,

classe 180
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX K
ICS 29.060.10 ISBN 978-2-8322-1419-0

– 2 – 60317-51 © IEC:2014
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearance . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 6
3.3 Appearance. 7
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence. 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion (nominal conductor diameters from 0,250 mm up to and
including 1,000 mm). 7
12 Resistance to solvents . 8
13 Breakdown voltage . 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 9
17.1 General . 9
17.2 Nominal conductor diameters up to and including 0,100 mm . 9
17.3 Nominal conductor diameters over 0,100 mm . 9
18 Heat or solvent bonding . 9
19 Dielectric dissipation factor . 9
20 Resistance to transformer oil . 9
21 Loss of mass . 9
23 Pin hole test. 9
30 Packaging .
...
