EN 60335-2-67:2009

SLOVENSKI STANDARD
01-december-2009
1DGRPHãþD
SIST EN 60335-2-67:2003
SIST EN 60335-2-67:2003/A1:2007
*RVSRGLQMVNLLQSRGREQLHOHNWULþQLDSDUDWL9DUQRVWGHO3RVHEQH]DKWHYH
]DLQGXVWULMVNHLQNRPHUFLDOQHVWURMH]DQHJRLQþLãþHQMHWDO,(&
$VSUHPHQMHQ
Household and similar electrical appliances - Safety -- Part 2-67: Particular requirements
for floor treatment and floor cleaning machines, for industrial and commercial use
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke -- Teil 2-67:
Besondere Anforderungen für Bodenbehandlungs- und Bodenreinigungsmaschinen für
industrielle und gewerbliche Zwecke
Appareils électrodomestiques et analogues - Sécurité -- Partie 2-67: Règles particulières
pour les machines de traitement et de nettoyage des sols à usage industriel et
commercial
Ta slovenski standard je istoveten z: EN 60335-2-67:2009
ICS:
97.080 Aparati za nego tal Floor treatment appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60335-2-67
NORME EUROPÉENNE
September 2009
EUROPÄISCHE NORM
ICS 23.080; 91.140.65 Supersedes EN 60335-2-67:2003 + A1:2006 + corr. Dec.2006

English version
Household and similar electrical appliances -
Safety -
Part 2-67: Particular requirements for floor treatment
and floor cleaning machines for commercial use
(IEC 60335-2-67:2002 + A1:2005, modified)

Appareils électrodomestiques  Sicherheit elektrischer Geräte
et analogues - für den Hausgebrauch
Sécurité - und ähnliche Zwecke -
Partie 2-67: Règles particulières Teil 2-67: Besondere Anforderungen
pour les machines de traitement für Bodenbehandlungs- und
et de nettoyage des sols Bodenreinigungsmaschinen
à usage commercial für den gewerblichen Gebrauch
(CEI 60335-2-67:2002 (IEC 60335-2-67:2002
+ A1:2005, modifiés) + A1:2005, modifiziert)

This European Standard was approved by CENELEC on 2009-09-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: Avenue Marnix 17, B - 1000 Brussels

© 2009 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60335-2-67:2009 E

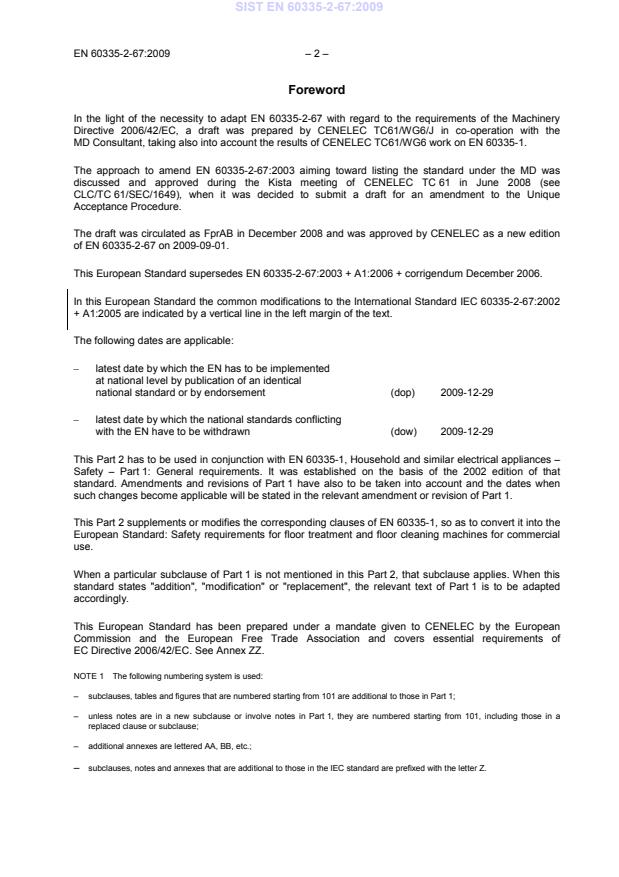

Foreword
In the light of the necessity to adapt EN 60335-2-67 with regard to the requirements of the Machinery
Directive 2006/42/EC, a draft was prepared by CENELEC TC61/WG6/J in co-operation with the
MD Consultant, taking also into account the results of CENELEC TC61/WG6 work on EN 60335-1.
The approach to amend EN 60335-2-67:2003 aiming toward listing the standard under the MD was
discussed and approved during the Kista meeting of CENELEC TC 61 in June 2008 (see
CLC/TC 61/SEC/1649), when it was decided to submit a draft for an amendment to the Unique
Acceptance Procedure.
The draft was circulated as FprAB in December 2008 and was approved by CENELEC as a new edition
of EN 60335-2-67 on 2009-09-01.
This European Standard supersedes EN 60335-2-67:2003 + A1:2006 + corrigendum December 2006.
In this European Standard the common modifications to the International Standard IEC 60335-2-67:2002
+ A1:2005 are indicated by a vertical line in the left margin of the text.
The following dates are applicable:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2009-12-29
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-12-29
This Part 2 has to be used in conjunction with EN 60335-1, Household and similar electrical appliances –
Safety – Part 1: General requirements. It was established on the basis of the 2002 edition of that
standard. Amendments and revisions of Part 1 have also to be taken into account and the dates when
such changes become applicable will be stated in the relevant amendment or revision of Part 1.
This Part 2 supplements or modifies the corresponding clauses of EN 60335-1, so as to convert it into the
European Standard: Safety requirements for floor treatment and floor cleaning machines for commercial
use.
When a particular subclause of Part 1 is not mentioned in this Part 2, that subclause applies. When this
standard states "addition", "modification" or "replacement", the relevant text of Part 1 is to be adapted
accordingly.
This European Standard has been prepared under a mandate given to CENELEC by the European
Commission and the European Free Trade Association and covers essential requirements of
EC Directive 2006/42/EC. See Annex ZZ.
NOTE 1 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including those in a
replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.;
– subclauses, notes and annexes that are additional to those in the IEC standard are prefixed with the letter Z.

– 3 – EN 60335-2-67:2009
NOTE 2 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the associated noun
are also in bold.
Special national conditions causing a deviation from this European Standard are listed in Annex ZA and
are in addition to those in EN 60335-1.
There are no national deviations from this European Standard, other than those listed in Annex ZB to
EN 60335-1.
____________
Contents
Introduction .6
1 Scope .7
2 Normative references .8
3 Definitions .9
4 General requirement . 10
5 General conditions for the tests . 10
6 Classification . 11
7 Marking and instructions . 11
8 Protection against access to live parts . 14
9 Starting of motor-operated appliances . 14
10 Power input and current . 14
11 Heating . 14
12 Void . 14
13 Leakage current and electric strength at operating temperature . 14
14 Transient overvoltages . 15
15 Moisture resistance . 15
16 Leakage current and electric strength . 16
17 Overload protection of transformers and associated circuits . 16
18 Endurance . 16
19 Abnormal operation . 17
20 Stability and mechanical hazards . 17
21 Mechanical strength . 18
22 Construction . 20
23 Internal wiring . 22
24 Components . 22
25 Supply connection and external flexible cords . 23
26 Terminals for external conductors . 24
27 Provision for earthing . 24
28 Screws and connections . 24
29 Clearances, creepage distances and solid insulation . 24
30 Resistance to heat and fire . 24
31 Resistance to rusting . 25
32 Radiation, toxicity and similar hazards . 25

Annex AA (normative) Precast paving slabs . 30
Annex ZAA (normative) Measurement of acoustical noise . 31
Annex ZBB (normative) Requirements for internal combustion engine powered machines using
liquefied petroleum gas (LPG) . 33
Annex ZA (normative) Special national conditions . 36
Annex ZC (normative) Normative references to international publications with their
corresponding European publications . 37

– 5 – EN 60335-2-67:2009
Annex ZE (informative) Specific additional requirements for appliances and machines intended
for commercial use . 39
Annex ZZ (informative) Coverage of Essential Requirements of Directive 2006/42/EC . 39

Bibliography . 40

Figure 101 – Impact test apparatus . 26
Figure 102 – Apparatus for testing the abrasion resistance of current-carrying hoses . 27
Figure 103 – Apparatus for testing the resistance to flexing of current-carrying hoses . 28
Figure 104 – Configuration of the hose for the freezing treatment . 28
Figure 105 – Flexing positions for the hose after removal from the freezing cabinet . 29

Introduction
It has been assumed in the drafting of this European Standard that the execution of its provisions is
entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such as
electrical, mechanical, thermal, fire and radiation of machines when operated as in normal use taking into
account the manufacturer's instructions. It also covers abnormal situations that can be expected in
practice and takes into account the way in which electromagnetic phenomena can affect the safe
operation of machines.
This standard takes into account the requirements of IEC 60364 as far as possible so that there is
compatibility with the wiring rules when the machine is connected to the supply mains. However, national
wiring rules may differ.
If a machine within the scope of this standard also incorporates functions that are covered by another
Part 2 of EN 60335, the relevant Part 2 is applied to each function separately, as far as is reasonable. If
applicable, the influence of one function on the other is taken into account.
This standard is a product family standard dealing with the safety of machines and takes precedence over
horizontal and generic standards covering the same subject.
A machine that complies with the text of this standard will not necessarily be considered to comply with
the safety principles of the standard if, when examined and tested, it is found to have other features that
impair the level of safety covered by these requirements.
A machine employing materials or having forms of construction differing from those detailed in the
requirements of this standard may be examined and tested according to the intent of the requirements
and, if found to be substantially equivalent, may be considered to comply with the standard.

– 7 – EN 60335-2-67:2009
Household and similar electrical appliances –
Safety –
Part 2-67: Particular requirements for floor treatment
and floor cleaning machines
for commercial use
1 Scope
This clause of Part 1 is replaced by the following.
This European Standard deals with the safety of powered floor treatment and floor cleaning machines
intended for commercial indoor or outdoor use for the following applications:
– scrubbing,
– wet or dry pick-up,
– polishing and dry buffing,
– application of wax, sealing products and powder based detergents,
– shampooing,
– stripping, grinding and scarifying
of floors with an artificial surface.
Their cleaning motion is more lateral or periodic than linear.
NOTE Z101 By contrast, the cleaning motion of machines covered by IEC 60335-2-72 is more linear than lateral or periodic.
NOTE Z102 Commercial use of these floor treatment machines is for example their use in hotels, schools, hospitals, factories,
shops and offices for other than normal housekeeping purposes.
The following power systems are covered:
– internal combustion engines,
– mains powered motors up to a rated voltage of 250 V for single-phase appliances and 480 V for
other appliances,
– battery-powered motors.
Battery powered machines may be equipped with a built-in battery charger.
This Part 2 applies in conjunction with EN 60335-1:2002 and its amendments, which is referred to in this
text as “Part 1”. This Part 2 supplements or modifies the corresponding clauses of Part 1 as indicated in
the text.
This standard does not apply to
– machines designed to be part of a production process;
– machines designed for use in corrosive or explosive environments (dust, vapour or gas);
– machines designed for picking up hazardous dusts as defined in IEC 60335-2-69, inflammable
substances, or aflame particles;
– ride-on and walk-behind floor treatment machines as covered by IEC 60335-2-72;
– spray extraction machines;
NOTE Z103 IEC 60335-2-68 gives requirements for spray extraction machines for commercial use.
– wet and dry vacuum cleaners;
NOTE Z104 IEC 60335-2-69 gives requirements for wet and dry vacuum cleaners.

– floor treatment appliances for household use as covered by IEC 60335-2-10;
– hand-held and transportable motor-operated electric tools;
NOTE Z105 The IEC 60745 series covers hand-held motor-operated electric tools; the IEC 61029 series covers
transportable motor-operated electric tools.
– machines designed for use in vehicles or on board of ships or aircraft.
NOTE Z106 Attention is drawn to the fact that in many countries additional requirements on the safe use of the equipment covered
may be specified by the national health authorities, the national authorities responsible for the protection of labour, the national
water supply authorities and similar authorities.
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60312, Vacuum cleaners for household use – Methods of measuring the performance
IEC 60335-2-10, Household and similar electrical appliances – Safety – Part 2-10: Particular
requirements for floor treatment machines and wet scrubbing machines
IEC 60335-2-69, Household and similar electrical appliances – Safety – Part 2-69: Particular
requirements for wet and dry vacuum cleaners, including power brush, for industrial and commercial use
IEC 60335-2-72, Household and similar electrical appliances – Safety – Part 2-72: Particular
requirements for automatic machines for floor treatment for commercial and industrial use
ISO 3743-1, Acoustics – Determination of sound power levels of noise sources – Engineering methods
for small, movable sources in reverberant fields – Part 1: Comparison method for hardwalled test rooms
ISO 3744, Acoustics – Determination of sound power levels of noise sources using sound pressure –
Engineering method in an essentially free field over a reflecting plane
ISO 4871, Acoustics – Declaration and verification of noise emission values of machinery and equipment
ISO 5349-1, Mechanical vibration – Measurement and evaluation of human exposure to handtransmitted
vibration – Part 1: General requirements
ISO 6344-2, Coated abrasives – Grain size analysis – Part 2: Determination of grain size distribution of
macrogrits P12 to P220
ISO 7574-1, Acoustics – Statistical methods for determining and verifying stated noise emission values of
machinery and equipment – Part 1: General considerations and definitions
ISO 7574-4, Acoustics – statistical methods for determining and verifying stated noise emission values of
machinery and equipment – Part 4: methods for stated values for batches of machines
ISO 11201, Acoustics – Noise emitted by machinery and equipment – Measurement of emission sound
pressure levels at a work station and at other specified positions – Engineering method in an essentially
free field over a reflecting plane
ISO 11688-1, Acoustics – Recommended practice for the design of low-noise machinery and equipment –
Part 1: Planning
– 9 – EN 60335-2-67:2009
3 Definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
conditions under which the machine is operated in normal use, as intended by the manufacturer. It
denotes the load corresponding to the rated power input or the highest obtainable load of all particular
loads of the various functions that can be operated at the same time according to the manufacturer’s
instructions.
Tanks of machines, if applicable, are filled before starting the operation to the highest level as indicated
on the tank, or completely if no marking is provided.
Power outlets for accessories are loaded with a resistive load in accordance with the marking. Suction
functions, if applicable, are switched on during operation.
The normal operation related to the operational functions is specified in 3.1.9.101 to 3.1.9.104.
3.1.9.101 Scrubbing, stripping, grinding and scarifying machines are operated with the appropriate
brushes or pads on a surface of hydraulically pressed concrete paving slabs (see Annex AA).
An alternative is a smooth concrete area of a surface consistency comparable with hydraulically pressed
concrete paving slabs.
3.1.9.102 Void
3.1.9.103 Polishing and dry buffing machines are operated as follows.
PVC-surfaces are considered to be suitable for establishing normal operation. The peak of input
occurring during the drying process of the chemical applied to treat the surface shall not be taken as
normal operation but shall be averaged by extending measurements over a period of at least 10 min.
3.1.9.104 Carpet shampooers are operated on a test surface consisting of a carpet, in accordance with
IEC 60312, the carpet being fastened to the floor.
Prior to testing, the brush of the shampooing machine is conditioned by operating it for 15 min on a clean,
dry concrete surface. After running on the concrete surface the brush is immersed in a shampoo solution
for at least 30 min.
3.Z101
water-suction cleaning machine
machine for applying and sucking up a water-based cleaning solution
3.Z102
motorized cleaning head
hand-held or hand-guided cleaning device connected to the machine, with an integrated electrical motor
NOTE The permanently attached main cleaning head is not regarded as a motorized cleaning head.
3.Z103
operator presence control (OPC)
control device that automatically interrupts the power, e.g. to a drive or an engine, when the operator's
actuating force is removed
NOTE Such devices may be, for example, continuous action controls ("hold-to-run" controls).

3.Z104
guard
part of the machine specifically designed to provide protection by means of a physical barrier
3.Z105
operator
person installing, operating, adjusting, maintaining, cleaning or moving the machine
3.Z106
test solution
solution which consists of 20 g of NaCl and 1 ml of a solution of 28 % by mass of dodecyl sodium
sulphate in each 8 l of water
NOTE The chemical designation of dodecyl sodium sulphate is C12H25NaSO4.
3.Z107
risk
probability of being exposed to an injury or damage to health
3.Z108
commercial use
intended use of machines covered by this standard in a professional way.
For the purpose of this standard commercial use may be read as not intended for domestic use
4 General requirement
This clause of Part 1 is applicable except as follows.
Replace the first paragraph by the following:
Machines shall be constructed so that they function safely so as to cause no danger to persons or
surroundings during normal use, even in the event of carelessness, and during installation, adjusting,
maintenance, cleaning, repairing or transportation.
Addition:
For the purpose of this standard, the term ‘appliance’ as used in Part 1 is to be read as ‘machine’.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
Addition:
5.Z101 The test solution is to be stored in a cool atmosphere and used within seven days after its
preparation.
– 11 – EN 60335-2-67:2009
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Replacement:
Machines shall be one of the following classes with respect to the protection against contact with live
parts:
– class I,
– class II or
– class III.
Compliance is checked by inspection and by the relevant tests.
6.2 Addition:
Mains supplied machines for indoor use and intended for dry cleaning only, shall be at least IPX0. Other
machines shall be at least IPX4.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
th
7.1 Replace the 4 dashed item as follows:
– the business name and address of the manufacturer and, if applicable, his authorized representative;
any address shall be sufficient to ensure postal contact;
Addition:
Machines shall be marked in addition with the following:
– serial number, if any;
– designation of the machine, may be achieved by a combination of letters and/or numbers;
– designation of series or type, allowing the technical identification of the product. This may be
achieved by a combination of letters and/or numbers and may be combined with the designation of
machine;
– year of construction, i.e. the year in which the manufacturing process is completed.
Machines equipped with wheels shall be marked with the mass of the most usual configuration in kg.
Compliance is checked by inspection.
7.1.Z101 Motorized cleaning heads shall be marked with their model or type reference.
Compliance is checked by inspection.
7.1.Z102 Power outlets for accessories shall be marked with the maximum load in watts on the power
outlet or close to it.
Compliance is checked by inspection.
[additions to 7.6 and 7.9 deleted]

7.12 Addition:
The front cover of the instructions shall include the substance of the following warning:
WARNING Read the instructions before using the machine.
This wording may be replaced by symbols 0434 and either 1641 or 0790 of ISO 7000.
The words “Original instructions” shall appear on the language version(s) verified by the manufacturer.
The instructions shall contain at least the following:
– the business name and full address of the manufacturer and, if applicable, his authorized
representative;
– designation of series or type of the machine as marked on the machine itself, except for the serial
number;
– the general description of the machine;
– the intended use of the machine and the auxiliary equipment as covered by the scope of this
standard;
– the meaning of the symbols used on the machine and in the instructions;
– drawings, diagrams, descriptions and explanations necessary for the safe use, maintenance and
repair of the machine and for checking its correct functioning;
– technical data including the markings on the machine;
– information regarding putting into service, safe operation, handling, transportation, and storage of the
machine taking into account its weight;
– instructions to enable adjustment and maintenance to be carried out safely, including the protective
measures that should be taken during these operations;
– the conditions in which the machine meets the requirement of stability during use, transportation,
assembly, dismantling when out of service, testing or foreseeable breakdowns;
– the operating method to be followed in the event of accident (e.g. contact with detergents: rinse with
an abundance of clean water) or breakdown to prevent unsafe situations;
– the substance of the following:
This appliance is intended for commercial use, for example in hotels, schools, hospitals, factories,
shops, offices and rental businesses.
The instructions shall indicate the type and frequency of inspections and maintenance required for safe
operation, including preventive maintenance measures. They shall, if applicable, give the specifications of
the spare parts if they affect the health and safety of the operator.
In addition, the instructions shall give the following information, if applicable:
– for battery operated machines, instructions regarding the precautions to be taken for safe charging;
– precautions to be taken when changing brushes or other attachments;
– information on the detergents or other liquids that may be used including the choice and use of
Personal Protective Equipment (PPE);
– essential characteristics of auxiliary equipment which may be fitted to the machine;
– information regarding safe disposal of batteries;
– the intended use of the brushes specified for the machine.

– 13 – EN 60335-2-67:2009
7.12.Z101 The instructions shall include information on airborne noise emission as indicated in ZAA.2.7.
NOTE Regarding this information the requirements of Annex I of Directive 2006/42/EC should be taken into account; due to that
the sound pressure level shall be given only where it exceeds 70 dB(A), the sound power level shall be given only where the
A-weighted emission sound pressure exceeds 80 dB(A).
7.12.Z102 The instructions shall give the following information:
– the vibration total value to which the hand-arm system is subjected, measured in accordance with
ISO 5349-1 for arm vibrations, the machine being supplied at rated voltage or at the maximum
rated voltage for machines with a range of voltages, if it exceeds 2,5 m/s². Where this value does
not exceed 2,5 m/s², this shall be mentioned;
– the uncertainty surrounding these values.
These values shall be either those actually measured for the machine in question or those established on
the basis of measurements taken for a technically comparable machine which is representative of the
machine being produced.
Regarding operating conditions during measurement and the methods used for measurement, the
reference of the harmonised standard applied (EN 60335-2-67) must be specified.
7.12.Z103 The instructions shall include warnings concerning ways in which the machine shall not be
used that experience has shown might occur. At least, it shall include the substance of the following
warnings, if applicable.
– WARNING Operators shall be adequately instructed on the use of these machines.
– WARNING Only use the brushes provided with the appliance or those specified in the
instructions. The use of other brushes may impair safety.
– WARNING This machine is for dry use only.
– CAUTION This machine is for indoor use only.
– CAUTION This machine shall be stored indoors only.
– A warning that the machine shall be disconnected from its power source during cleaning or
maintenance and when replacing parts or converting the machine to another function:
• for mains operated machines by removing the plug from the socket-outlet;
• for battery operated machines by safely disconnecting at least the non-earthed pole of the battery
or by an equivalent method (disconnecting device);
• for internal combustion engine powered machines with a battery starter by disconnecting the
battery.
Instructions for mains operated machines shall also include the substance of the following:
– WARNING Do not allow the supply cord to come into contact with the rotating brushes or pads.
Instructions for machines having a current-carrying hose for dry suction, operating at other than safety
extra-low voltage, shall also include the substance of the following:
– WARNING This hose contains electrical connections: do not use it to collect water and do not
immerse in water for cleaning.
Compliance is checked by inspection.

8 Protection against access to live parts
This clause of Part 1 is applicable except as follows.
8.1 Addition:
Water and water-borne cleaning agents are considered conductive.
[addition to 8.1.4 deleted]
9 Starting of motor-operated appliances
This clause of Part 1 is applicable except as follows.
It shall only be possible to start the machine by intended actuation of a control device provided for the
purpose. The same requirement applies when restarting the machine after a stoppage, whatever the
cause.
NOTE This requirement does not apply to components such as suction units, pumps, etc.
Compliance is checked by inspection and by test.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.4 Not applicable.
11.6 Not applicable.
11.7 Addition:
Machines are operated until steady conditions are established.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable except as follows.
13.2 Addition:
For class I appliances where several motors operate at the same time, the leakage current shall not
exceed 3,5 mA.
– 15 – EN 60335-2-67:2009
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.1.2 Addition:
Wet cleaning machines, except shampooing machines, are operated for 10 min with to and fro
movements over a distance of 1 m at 15 cycles per minute on a floor of paving slabs with a smooth
surface that are fastened to the bottom of a tray. At the beginning of the test, the tray is filled with the test
solution to a level of approximately 5 mm above the surface of the floor.
15.2 Replacement:
Machines having a liquid container shall be so constructed that
– spillage of liquid due to normal operation,
– filling including overfilling and,
– overturning of hand-held appliances and unstable machines
does not affect their electrical insulation.
Compliance is checked by the following tests:
The machine is placed on a support inclined at an angle of 10° to the horizontal, the liquid container being
filled to half the level indicated in the instructions. A machine is considered to be unstable if it overturns
when a force of 180 N is applied to the top of the machine in the most unfavourable horizontal direction.
Machines having a liquid container and provided with an appliance inlet are fitted with an appropriate
connector and flexible cable or cord; machines having a liquid container and type X attachment are fitted
with the lightest cross-sectional area specified in Table 11. Other machines are tested as delivered.
The liquid container of the machine is completely filled with a saline solution of water containing
approximately 1 % NaCl and a further quantity, equal to 15 % of the capacity of the container or 0,25 l,
whichever is the greater, is poured in steadily over a period of 1 min.
Hand-held appliances and machines that are unstable are then, with the container completely filled and
with the cover or lid in place, overturned from the most unfavourable of the normal positions of use, and
are left in that position for 5 min unless the machine returns automatically to its normal position of use.
Motorized cleaning heads of water-suction cleaning machines are placed in a tray, the base of which
is level with the surface supporting the machine. The tray is filled with the test solution to a level of 5 mm
above its base, this level being maintained throughout the test. The machine including the motorized
cleaning head is operated until its liquid container is completely full and afterwards for a further 5 min.
After each of these tests, the machine shall withstand the electric strength test of 16.3.
There shall be no trace of liquid on insulation that reduces the clearances or creepage distances below
the values specified in Clause 29.

15.3 Modification:
The relative humidity shall be (93 ± 6) %.
15.101 The insulation of motorized cleaning heads of water-suction cleaning machines shall be
resistant to the mechanical impact of picked up debris and sucked up liquids expected under normal use.
The following test is not applicable to motorized cleaning heads of class III construction having a
working voltage up to 24 V.
Compliance is checked by the following four tests.
The motorized cleaning head is subjected to an impact test as described in IEC 60068-2-75, the value
of the impact being 2 J. The motorized cleaning head is rigidly supported and three blows are applied to
every point of the enclosure that is likely to be weak.
It is then subjected to the free fall test procedure 1 of IEC 60068-2-32. It is dropped 4 000 times from a
height of 100 mm onto a steel plate having a thickness of not less than 15 mm. It is dropped
– 1 000 times on its right side;
– 1 000 times on its left side;
– 1 000 times on its front face;
– 1 000 times on its cleaning surface.
The motorized cleaning head is then subjected to the test described in 14.2.7 of IEC 60529, using the
test solution.
The motorized cleaning head shall then withstand the electric strength test of 16.3, the voltage being
applied between the live parts and the test solution. There shall be no trace of saline solution on
insulation that reduces the clearances and creepage distances below the values specified in Clause 29.
16 Leakage current and electric strength
This clause of Part 1 is applicable except as follows.
16.3 Addition:
Current-carrying hoses, except for their electrical connections, are immersed for 1 h in a saline solution of
water containing approximately 1 % NaCl, at a temperature of 20 °C ± 5 °C. While the hose is still
immersed, a voltage of 2 000 V is applied for 5 min between each conductor and all the other conductors
connected together. A voltage of 3 000 V is then applied for 1 min between all the conductors and the
saline solution.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is not applicable.

– 17 – EN 60335-2-67:2009
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.2 Addition:
The machine is tested without liquid in the container.
NOTE 101 The term restricted heat dissipation of Part 1 means without liquid in the container.
19.7 Addition:
Brushes are not regarded as parts liable to get blocked.
Motorized cleaning heads are tested with the rotating brush or similar device locked for 30 s.
19.9 Not applicable.
19.10 Addition:
For this test the lowest possible load is obtained either by lifting the brushes from the floor or in case of
machines fitted with a clutch drive that disengages the drive to the brushes, by disengaging the clutch.
For machines that include suction equipment, the inlet shall be closed.
19.13 In the second paragraph add “and 22.Z101” after “20.2”.
20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.
20.1 Addition:
Motorized cleaning heads are not subjected to this test.
20.2 Addition:
These requirements do not apply to rotating brushes and similar devices, or to moving parts exposed
during the fitting of accessories that allow conversion from one application to another.
20.Z101 Machines shall be provided with an OPC.
Compliance is checked by inspection and functional test.
20.Z102 Shaft ends and similar rotating parts shall be protected if they protrude by more than a quarter
of their diameter. Shafts up to 50 mm diameter do not need to be protected if they are rotating at less
than 5 revolutions per second and their ends are rounded and smooth.
The unintentional closing and lowering of doors, lids, covers etc., which could cause injury, shall be
prevented.
Machines heavier than 20 kg (empty) shall be equipped with wheels or rollers for transport, which shall be
located or protected so as to prevent injury to the feet of the operator.
Compliance is checked by inspection, by measurement and by functional test.

20.Z103 Vibration
The machine shall be designed and constructed in such a way that risks resulting from vibrations
produced by the machine are reduced to the lowest level, taking account of technical progress and the
availability of means of reducing vibration, in particular at source.
The handles shall be designed and constructed in such a way as to reduce the vibrations transmitted to
the upper limbs of the operator to the lowest level that is reasonably possible.
Compliance is checked by inspection.
20.Z104 Fuel tank
If a fuel tank is within or contiguous to the engine compartment and excessively high temperatures may
occur, the tank and/or filling arrangement shall be isolated from the electrical and exhaust systems by
suitable protection, e.g. a separate enclosure or baffles.
The tank location and facilities for filling shall be such that spillage or leakage will not drain onto electrical
or exhaust system parts.
Fuel spillage shall not be possible under normal operation.
Compliance is checked by inspection.
20.Z105 Internal combustion engine powered machines using liquefied petroleum gas
Internal combustion engine powered machines using liquefied petroleum gas (LPG) shall be constructed
in accordance with the additional requirements specified in Annex ZBB. Requirements for the LPG
container itself are not part of this standard.
Compliance is checked by inspection and by measurement.
21 Mechanical strength
This clause of Part 1 is applicable except as follows.
21.1 Replacement of the first paragraph:
Machines and their components and fittings shall have adequate mechanical strength and be constructed
to withstand such rough handling that may be expected in normal use, during transportation, assembly,
dismantling, scrapping and any other action involving the machine.
Modification in the third paragraph:
The impact value is increased to 1,0 J ± 0,04 J.
21.101 Those parts of the machine that are subjected to impact in normal use are tested as follows.
If failure of the part subject to impact would cause a failure to comply with this specification, any spot of
the machine that may be exposed during normal operation to impacts or blows shall be subjected to a
single blow with an impact energy of 6,75 Nm. The impact stress on the free-standing machines shall be
exerted by a steel sphere with a diameter of 50,8 mm and mass of 0,535 kg dropped from a height of
1,3 m or hanging on a string acting as a pendulum, falling from a height of 1,3 m.

– 19 – EN 60335-2-67:2009
21.102 Current-carrying hoses shall be resistant to crushing.
Compliance is checked by the following test.
The hose is placed between two parallel steel plates each having a length of 100 mm, a width of 50 mm
and the edges of the longer sides rounded with a radius of 1 mm. The axis of the hose is
...
