EN IEC 62896:2024

(Main)

Hybrid insulators for AC and DC for high-voltage applications greater than 1 000 V AC and 1 500 V DC - Definitions, test methods and acceptance criteria

Hybrid insulators for AC and DC for high-voltage applications greater than 1 000 V AC and 1 500 V DC - Definitions, test methods and acceptance criteria

IEC 62896:2024 applies to hybrid insulators for AC and DC applications greater than 1 000 V AC and 1 500 V DC consisting of a load-bearing insulating solid or hollow core consisting of ceramic or glass, a housing (defined geometry, outside the insulating core) made of polymeric material and end fittings permanently attached to the insulating core. Hybrid insulators covered by this document are intended for use as suspension/tension long rod and cap and pin type insulators, line post insulators, station post insulators and hollow core insulators for apparatus. The object of this document is to: - define the terms used; - prescribe test methods; - prescribe acceptance criteria This document does not include requirements dealing with the choice of insulators for specific operating conditions. This first edition cancels and replaces the IEC TS 62896 published in 2015. This edition includes the following significant technical changes with respect to the previous edition: - modifications of terms and definitions; - modifications of tests procedures included in IEC TR 62039 and IEC 62217 (Hydrophobicity transfer test); - harmonization of Table 1 (Tests to be carried out after design and type changes) with other product standards and IEC 62217.

Hybridisolatoren für Wechsel- und Gleichspannungsanwendungen für Spannungen größer 1 000 V AC und 1 500 V DC - Begriffe, Prüfverfahren und Annahmebedingungen

Isolateurs hybrides pour applications haute tension en courant alternatif et en courant continu supérieures à 1 000 V en courant alternatif et 1 500 V en courant continu - Définitions, méthodes d’essai et critères d’acceptation

L’IEC 62896:2024 s’applique aux isolateurs hybrides pour applications en courant alternatif et en courant continu supérieures à 1 000 V en courant alternatif et 1 500 V en courant continu, constitués d’un noyau isolant supportant la charge mécanique, plein ou creux, fabriqué en matière céramique ou en verre, d’un revêtement (de géométrie définie, à l’extérieur du noyau isolant) en matériau polymère et d’armatures d’extrémité fixées de façon permanente au noyau isolant. Les isolateurs hybrides couverts par le présent document sont destinés à être utilisés comme isolateurs de suspension/d’ancrage de type à long fût et de type capot et tige, isolateurs rigides à socle, isolateurs supports et isolateurs à noyau creux, pour l’appareillage. Le présent document a pour objets: - de définir les termes employés; - de prescrire des méthodes d’essai; - de prescrire les critères d’acceptation. Cette première édition annule et remplace l’IEC TS 62896 parue en 2015. Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente: - modifications des termes et définitions; - modifications des procédures d’essai incluses dans l’IEC TR 62039 et l’IEC 62217 (Essai de transfert d’hydrophobicité); - harmonisation du Tableau 1 (Essais à réaliser après les modifications de conception et de type) avec d’autres normes de produit l’IEC 62217.

Hibridni izolatorji za izmenične in enosmerne visokonapetostne aplikacije za izmenične napetosti nad 1000 V in enosmerne napetosti nad 1500 V - Definicije, preskusne metode, merila sprejemljivost (IEC 62896:2024)

General Information

Status
Published
Publication Date
27-Jun-2024
ICS
29.080.10 - Insulators
Technical Committee
CLC/SR 36 - Insulators for substations
Drafting Committee
IEC/TC 36 - IEC_TC_36
Current Stage
6060 - Document made available - Publishing
Start Date
28-Jun-2024
Due Date
30-Dec-2022
Completion Date
28-Jun-2024
Ref Project
SIST EN IEC 62896:2024 - Hybrid insulators for AC and DC for high-voltage applications greater than 1 000 V AC and 1 500 V DC - Definitions, test methods and acceptance criteria (IEC 62896:2024)

Buy Standard

EN IEC 62896:2024EN IEC 62896:2024
PreviousNext
Standard
EN IEC 62896:2024
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-november-2024
Hibridni izolatorji za izmenične in enosmerne visokonapetostne aplikacije za
izmenične napetosti nad 1000 V in enosmerne napetosti nad 1500 V - Definicije,
preskusne metode, merila sprejemljivost (IEC 62896:2024)
Hybrid insulators for AC and DC for high-voltage applications greater than 1 000 V AC
and 1 500 V DC - Definitions, test methods and acceptance criteria (IEC 62896:2024)
Hybridisolatoren für Wechsel- und Gleichspannungsanwendungen für Spannungen
größer 1000 V AC und 1500 V DC – Definitionen, Prüfmethoden und
Annahmebedingungen (IEC 62896:2024)
Isolateurs hybrides pour applications haute tension en courant alternatif et en courant
continu supérieures à 1 000 V en courant alternatif et 1 500 V en courant continu -
Définitions, méthodes d’essai et critères d’acceptationb (IEC 62896:2024)
Ta slovenski standard je istoveten z: EN IEC 62896:2024
ICS:
29.080.10 Izolatorji Insulators
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

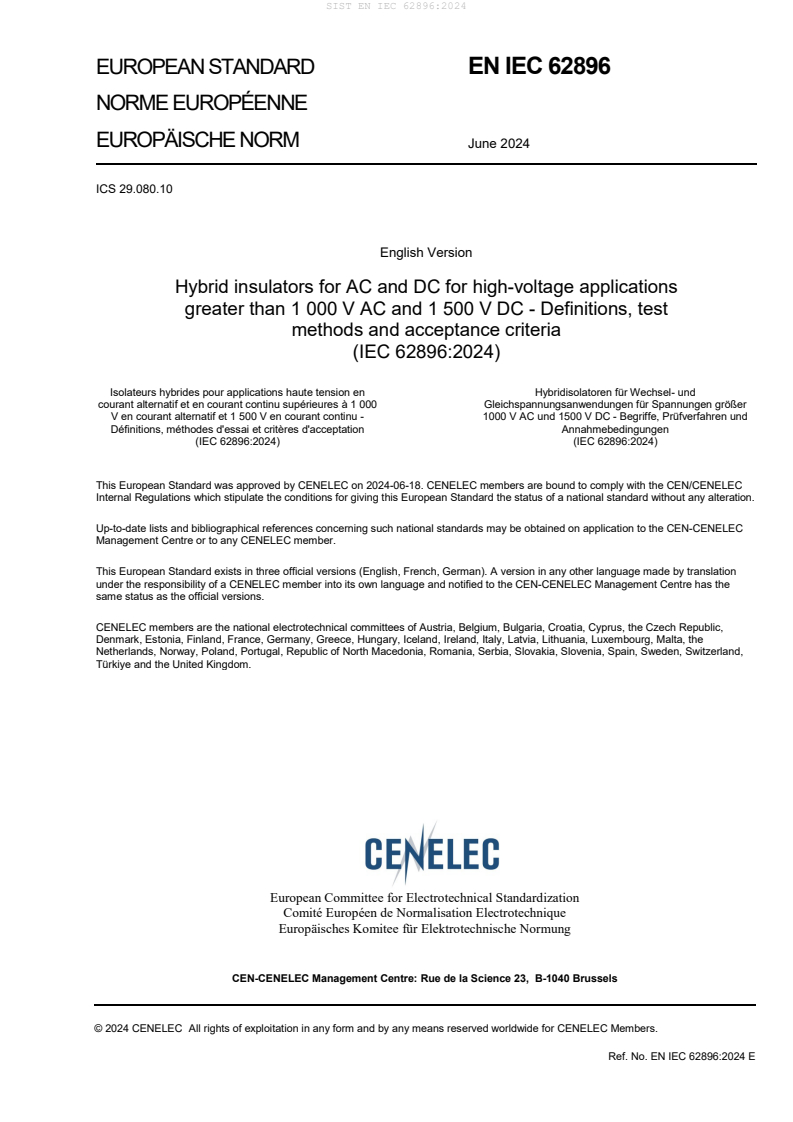

EUROPEAN STANDARD EN IEC 62896

NORME EUROPÉENNE
EUROPÄISCHE NORM June 2024
ICS 29.080.10
English Version
Hybrid insulators for AC and DC for high-voltage applications
greater than 1 000 V AC and 1 500 V DC - Definitions, test
methods and acceptance criteria
(IEC 62896:2024)
Isolateurs hybrides pour applications haute tension en Hybridisolatoren für Wechsel- und
courant alternatif et en courant continu supérieures à 1 000 Gleichspannungsanwendungen für Spannungen größer
V en courant alternatif et 1 500 V en courant continu - 1000 V AC und 1500 V DC - Begriffe, Prüfverfahren und
Définitions, méthodes d'essai et critères d'acceptation Annahmebedingungen
(IEC 62896:2024) (IEC 62896:2024)
This European Standard was approved by CENELEC on 2024-06-18. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62896:2024 E

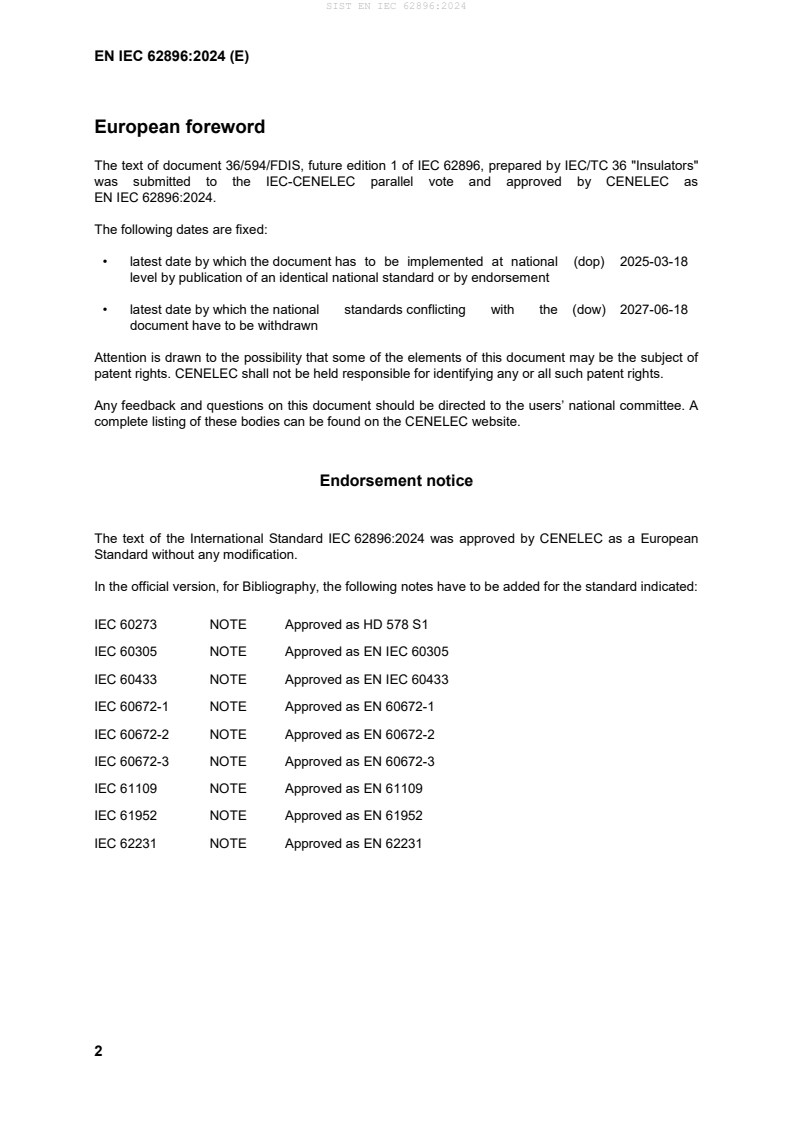

European foreword
The text of document 36/594/FDIS, future edition 1 of IEC 62896, prepared by IEC/TC 36 "Insulators"
was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-03-18
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-06-18
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 62896:2024 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standard indicated:
IEC 60273 NOTE Approved as HD 578 S1
IEC 60305 NOTE Approved as EN IEC 60305
IEC 60433 NOTE Approved as EN IEC 60433
IEC 60672-1 NOTE Approved as EN 60672-1
IEC 60672-2 NOTE Approved as EN 60672-2
IEC 60672-3 NOTE Approved as EN 60672-3
IEC 61109 NOTE Approved as EN 61109
IEC 61952 NOTE Approved as EN 61952
IEC 62231 NOTE Approved as EN 62231
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Publication Year Title EN/HD Year
IEC 60050-471 2007 International Electrotechnical Vocabulary - - -
Part 471: Insulators
IEC 60168 - Tests on indoor and outdoor post EN 60168 -
insulators of ceramic material or glass for
systems with nominal voltages greater than
1000 V
IEC 60383-1 2023 Insulators for overhead lines with a EN IEC 60383-1 2023
nominal voltage above 1000 V - Part 1:
Ceramic or glass insulator units for a.c.
systems - Definitions, test methods and
acceptance criteria
IEC 60383-2 - Insulators for overhead lines with a EN 60383-2 -
nominal voltage above 1000 V - Part 2:
Insulator strings and insulator sets for a.c.
systems - Definitions, test methods and
acceptance criteria
IEC 62155 - Hollow pressurized and unpressurized EN 62155 -
ceramic and glass insulators for use in
electrical equipment with rated voltages
greater than 1 000 V
IEC 62217 - Polymeric HV insulators for indoor and EN 62217 -
outdoor use - General definitions, test
methods and acceptance criteria
IEC 61211 - Insulators of ceramic material or glass for EN 61211 -
overhead lines with a nominal voltage
greater than 1 000 V - Impulse puncture
testing in air
IEC 61325 - Insulators for overhead lines with a EN 61325 -
nominal voltage above 1000 V - Ceramic
or glass insulator units for d.c. systems -
Definitions, test methods and acceptance
criteria
IEC 62896 ®
Edition 1.0 2024-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hybrid insulators for AC and DC for high-voltage applications greater than

1 000 V AC and 1 500 V DC – Definitions, test methods and acceptance criteria

Isolateurs hybrides pour applications haute tension en courant alternatif et en

courant continu supérieures à 1 000 V en courant alternatif et 1 500 V en courant

continu – Définitions, méthodes d’essai et critères d’acceptation

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.080.10  ISBN 978-2-8322-8755-2

– 2 – IEC 62896:2024  IEC 2024
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Identification . 11
5 Environmental conditions . 11
6 Tolerances . 11
7 Classification of tests. 11
7.1 Design tests . 11
7.2 Type tests . 12
7.3 Sample tests . 12
7.4 Routine tests. 12
8 Design tests . 15
8.1 General . 15
8.2 Tests on interfaces and connections of end fittings . 15
8.2.1 General . 15
8.2.2 Pre-stressing . 15
8.2.3 Verification tests . 16
8.3 Tests on Shed and Housing Material . 16
8.3.1 Hardness test . 16
8.3.2 Accelerated weathering test . 16
8.3.3 Tracking and erosion test . 17
8.3.4 Flammability test . 17
8.3.5 Hydrophobicity transfer test . 17
8.4 Test on core material . 17
8.4.1 Porosity test . 17
9 Type tests . 17
9.1 General . 17
9.2 Electrical tests . 17
9.3 Mechanical tests . 18
10 Sample tests . 18
11 Routine tests . 18
11.1 General . 18
11.2 Visual examination . 18
Bibliography . 19

Figure 1 – Classification of insulator designs . 8
Figure 2 – Thermal cycle test . 16

Table 1 – Required design and type tests . 13
Table 2 – Design tests . 15

IEC 62896:2024  IEC 2024 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HYBRID INSULATORS FOR AC AND DC HIGH-VOLTAGE
APPLICATIONS GREATER THAN 1 000 V AC AND 1 500 V DC –
DEFINITIONS, TEST METHODS AND ACCEPTANCE CRITERIA

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in t
...
