EN 50090-9-1:2004

SLOVENSKI SIST EN 50090-9-1:2005

STANDARD
september 2005
Stanovanjski in stavbni elektronski sistemi (HBES) – 9-1. del: Inštalacijske
zahteve – Upravljalni proces – Splošno pokabljenje za HBES razreda 1, zviti
par
Home and Building Electronic Systems (HBES) – Part 9-1: Installation requirements
– Generic cabling for HBES Class 1 Twisted Pair
ICS 97.120 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD EN 50090-9-1
NORME EUROPÉENNE
EUROPÄISCHE NORM May 2004
ICS 97.120
English version
Home and Building Electronic Systems (HBES)
Part 9-1: Installation requirements -
Generic cabling for HBES Class 1 Twisted Pair

Systèmes électroniques pour les foyers Elektrische Systemtechnik für Heim
domestiques et les bâtiments (HBES) und Gebäude (ESHG)
Partie 9-1: Spécifications d'installation - Teil 9-1: Installationsanforderungen -
Câblage générique pour paire torsadée Verkabelung von Zweidrahtleitungen
Classe 1 ESHG Klasse 1
This European Standard was approved by CENELEC on 2003-12-01. CENELEC members are bound to
comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and
notified to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2004 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 50090-9-1:2004 E

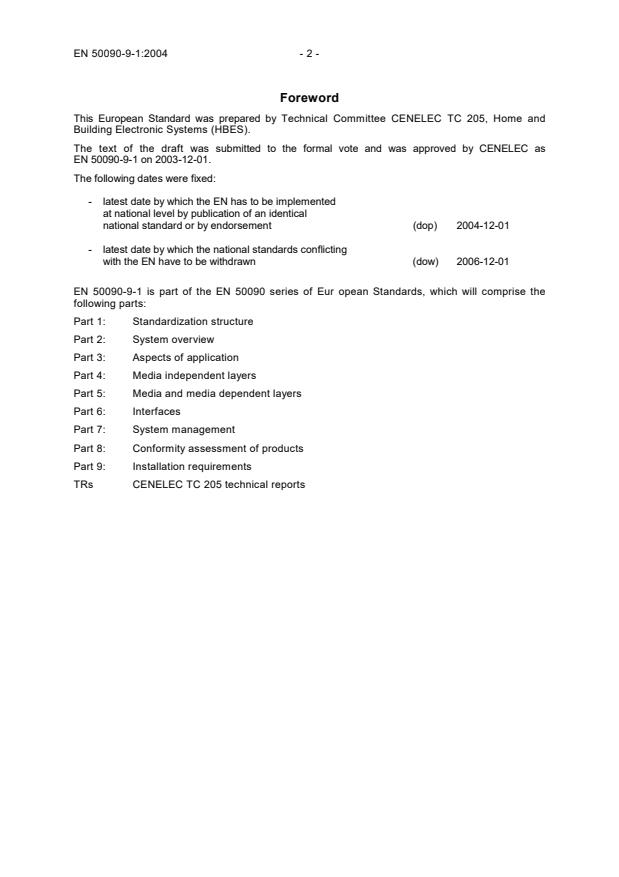

Foreword
This European Standard was prepared by Technical Committee CENELEC TC 205, Home and
Building Electronic Systems (HBES).
The text of the draft was submitted to the formal vote and was approved by CENELEC as
EN 50090-9-1 on 2003-12-01.
The following dates were fixed:

- latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2004-12-01

- latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2006-12-01

EN 50090-9-1 is part of the EN 50090 series of Eur opean Standards, which will comprise the
following parts:
Part 1: Standardization structure
Part 2: System overview
Part 3: Aspects of application
Part 4: Media independent layers
Part 5: Media and media dependent layers
Part 6: Interfaces
Part 7: System management
Part 8: Conformity assessment of products
Part 9: Installation requirements
TRs CENELEC TC 205 technical reports

- 3 - EN 50090-9-1:2004
Contents
Introduction. 5
1 Scope . 5
2 Normative references . 5
3 Definitions and abbreviations . 7
3.1 Definitions .7
3.2 Abbreviations.11
4 Aspects of system and cabling.11
5 Cabling model and general requirements.12
5.1 Connection of segments, general requirements .12
5.2 Coexistence between HBES control bus, broadband multimedia and mains.13
6 Infrastructure requirements.15
6.1 General .15
6.2 Predisposition of Installation Spaces.18
6.2.1 Campus infrastructure.18
6.2.2 Building infrastructure .19
6.2.3 Floor infrastructure.20
6.2.4 Flat unit and single home infrastructure.21
6.2.5 Room infrastructure .22
7 Connectors for HBES Class 1 Twisted Pair.23
8 Cables and installation accessories requirements.24
8.1 Channel and link performance .24
8.2 TP cable characteristics .24
8.3 Accessories.25
8.3.1 Enclosures and cabinets .25
8.3.2 Cabling systems (conduits, ductings, trunkings, pathways) and other
accessories.26
9 Electrical safety and functional safety .26
9.1 Electrical safety .26
9.2 Functional insulation of Bus segments.27
9.3 Functional safety .27
10 EMC .27
11 Earthing and bonding for lightning protection .28
12 Fire reaction and resistance requirements .28
13 Environmental aspects.28
14 Administration and documentation .28
15 Inspection and tests.28
Annex A (informative) Cabling models .29
A.1 Bus and building structure overview.29
A.2 The cabling models .29
Annex B (informative) Predisposition and planning aspects .33
B.1 Comfort classes.33
B.2 Building comfort classes performance .34
B.3 Planning aspects .35
Annex C (informative) Building comfort classes performance.37
C.1 Arrangement of premises e.g. for Italy .37
C.2 Arrangement of premises e.g. for Germany .50
Annex D (informative) Existing connectors standardized for HBES Class 1,
TP Type 0 and Type 1 .51

Annex E (informative) Documentation.53
E.1 Introduction .53
E.2 Documentation step by step.53
E.3 Format of documentation.53
Annex F (informative) Cables/channels and links requirements .54
Bibliography.56
Figure 1 – Examples of possible topology.12
Figure 2 – HBES Installation Spaces (IS) principle .13
Figure 3 – Location of HBES Installation Spaces.14
Figure 4 – Example of a generic infrastructure for a cabling in system in buildings.17
Figure 5 – Campus infrastructure.18
Figure 6 – Building infrastructure.19
Figure 7 – Horizontal infrastructure .20
Figure 8 – Flat unit and single home infrastructure .21
Figure 9 – Physical location of Installation Spaces in a room .22
Figure 10 – Standardized HBES Connectors .23
Figure A.1 – General cabling models .30
Figure A.2 – Topology - Case A .31
Figure A.3 – Topology - Case B .32
Figure B.1 – Field of performance levels of building cabling and building comfort.34
Figure C.1 – Positions of applications/devices .49
Figure D.1 – Existing connectors for HBES and mains.52
Table 1 – Examples of applications and HBES classes .14
Table 2 – Minimum requirements for Installation Space functionality .16
Table 3 – Standardized HBES connectors .24
Table 4 – HBES standard cable requirements .25
Table 5 – Distribution of cables to canalisations .26
Table B.1 – Networks with shall coexist within cabling concept .33
Table C.1 – Abbreviation for Tables C.2 – C.14.37
Table C.2 – Single multi-storey or multi-area villa - Economic finishing level .38
Table C.3 – Single multi-storey or multi-area villa - Civil finishing level .39
Table C.4 – Single multi-storey or multi-area villa - Luxury finishing level .40
Table C.5 – Flat - Economic finishing level .41
Table C.6 – Flat - Civil finishing level.42
Table C.7 – Flat - Luxury finishing level.43
Table C.8 – Hotel.44
Table C.9 – Nursing home.45
Table C.10 – Shop.46
Table C.11 – Bar Restaurant.47
Table C.12 – Office .48
Table C.13 – Positions recommended for the applications inside the room .49
Table C.14 – Comfort classes (e.g. Germany).50
Table D.1 – Existing connectors standardized for HBES Class 1 TP0 and TP1.51
Table F.1 – General requirements .54
Table F.2 – HBES standard cable requirements .55

- 5 - EN 50090-9-1:2004
Introduction
Home and Building Electronic Systems (HBES) are intended to control devices on networks
supporting HBES Class 1 applications (simple control and command) according to CENELEC
R205-004.
HBES may be installed in homes and buildings together with other networks. In the past the
different networks have been installed independently, usually by different installers. Such
separated systems are only widely accepted by the user when the implementation is simple and
the cost of installation is low.
One of the primary functions of HBES is to control mains powered devices and therefore in
particular the cabling for HBES needs to coexist with the mains distribution network and needs to
follow the mains installation rules. Consequently, this document contains description of
coexistence of HBES Class 1 Twisted Pair and other networks concerning electrical safety and
EMC matters.
1 Scope
This standard provides common rules for the planning and engineering as well as installation of
HBES cabling systems taking into account the layout of the cable support, cables and connectors,
and the commissioning of HBES.
It applies to HBES networks installed according to the legal boundaries of the electrical utilities
additionally.
The assessment of an installation shall be based on this standard and CLC/TS 50090-9-2.
Rules for co-existence of HBES Class 1 cabling with mains power, and other networks (i.e. those
covered by EN 50173 series, EN 50174 series, EN 50083 series) are also specified.
This part of EN 50090 recommends one specific implementation but allows any solution which
supports the required HBES functionality without disturbing, or being disturbed by, other
application systems or networks.
This part of EN 50090 is also intended as a predisposition and pre-cabling guide-line for Twisted
Pair Class 1.
This document concerns only HBES Class 1 application supported by Twisted Pair (TP) media,
and coexistence with HBES Class 2 (Class 1 plus simple voice and stable picture transmission),
HBES Class 3 (Class 2 plus complex video transfers, e.g. CAT V, and IT) and power networks.
Network coexistence is ensured by infrastructure (see 5.2) and installation requirements.
This document applies specifically to the installation of copper cables.
Power line carrier, and optical fibre communication are outside the scope of this document.
The environmental conditions of EN 50090-2-2 apply to enclosure, connectors and generally to all
Twisted Pair HBES devices of the installation.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 50083 series Cable networks for television signals, sound signals and interactive services
EN 50090-2-2 Home and Building Electronic Systems (HBES) - Part 2-2: System
overview - General technical requirements
1)
EN 50090-2-3 Home and Building Electronic Systems (HBES) - Part 2-2: System
overview - General functional safety requirements for products intended to
be integrated in HBES
1)
At draft stage.
2)
CLC/TS 50090-9-2 Home and Building Electronic Systems (HBES) - Part 9-2: Installation
requirements - Inspection and testing of HBES installation
EN 50173-1:2002 Information technology – Generic cabling systems – Part 1: General
requirements and office areas
EN 50174-1:2000 Information technology – Cabling installation - Part 1: Specification and
quality assurance
EN 50174-2:2000 Information technology – Cabling installation - Part 2: Installation planning
and practices inside buildings
EN 50290 series Communication cables
EN 55022 + A1 Information technology equipment - Radio disturbance characteristics -
Limits and methods of measurement (CISPR 22:1997, modified)
EN 55024 Information technology equipment – Immunity characteristics - Limits and
methods of measurement (CISPR 22:1997, modified)
EN 60603-7 Connectors for frequencies below 3 MHz for use with printed boards -
Part 7: Detail specification for connectors, 8-way, including fixed and free
connectors with common mating features, with assessed quality
(IEC 60603-7:1996)
EN 60603-8 Connectors for frequencies below 3 MHz for use with printed boards -
Part 8: Two-part connectors for printed boards, for basic grid of 2,54 mm
(0,1 in), with square male contacts of 0,63 mm x 0,63 mm
(IEC 60603-8:1990)
EN 60715 Dimensions of low-voltage switchgear and controlgear - Standardized
mounting on rails for mechanical support of electrical devices in
switchgear and controlgear installations (IEC 60715:1981 + A1:1995)
ENV 61024-1 Protection of structures against lightning - Part 1 General Principles
(IEC 61024-1:1990, modified)
EN 61140 Protection against electric shock - Common aspects for installation and
:uipment (IEC 61140:2001)
EN 61508 series Functional safety of electrical/electronic/programmable electronic safety-
related systems (IEC 61508 series)
HD 384.5.54 Electrical installations of buildings - Part 5: Selection and erection of
electrical equipment - Chapter 54: Earthing arrangements and protective
conductors (IEC 60364-5-54:1980, modified)
HD 625.1 Insulation coordination for equipment within low-voltage systems - Part 1:
Principles, requirements and tests (IEC 60664-1:1992, modified)
IEC 60189-2 Low-frequency cables and wires with PVC insulation and PVC sheath -
Part 2: Cables in pairs, triples, quads and quintuples for inside installations
IEC 60364-4-44 Electrical installations of buildings - Part 4-44: Protection for safety -
Protection against voltage disturbance and electromagnetic disturbances
IEC 60670-1:2002 Boxes and enclosures for electrical accessories for household and similar
fixed electrical installations - Part 1: General requirements
IEC 60807-2 Rectangular connectors for frequencies below 3 MHz - Part 2: Detail
specification for a range of connectors, with assessed quality, with
trapezoidal shaped metal shells and round contacts - Fixed solder contact
types
IEC 60807-3 Rectangular connectors for frequencies below 3 MHz - Part 3: Detail
specification for a range of connectors with trapezoidal shaped metal
shells and round contacts - Removable crimp contact types with closed
crimp barrels, rear insertion/rear extraction

2)
Under consideration
- 7 - EN 50090-9-1:2004
3)
ISO/IEC 15018 Information technology - Integrated cabling system for homes
EN ISO 16484-2 Building automation and control systems (BACS) - Part 2: Hardware
3 Definitions and abbreviations
3.1 Definitions
For the purposes of this document the following definitions apply.
3.1.1
application (in the sense of network application)
a system with its associated transmission method which is supported by telecommunications/
HBES cabling
[EN 50173-1:2002, definition 3.1.2, with /HBES modified]
3.1.2
bridge
device that connects two or more segments of a network at the physical and data link layers of
layers the ISO-OSI basic reference model.
NOTE  This device can also perform message filtering based upon MAC layer addresses.
[EN ISO 16484-2, definition 3.28]
3.1.3
broadband
signals requiring a wide bandwidth for their transmission, e.g. video
3.1.4
building
an individual fixed structure. This may contain commercial residential, or light industrial premises
3.1.5
bus
a common path within an apparatus or station over which signals from a number of channels pass
with separation achieved by time division multiplexing
[IEC 60050, Part 704]
3.1.6
cable
assembly of one or more cable units of the same type and category in an overall sheath. It may
include an overall screen
[EN 50173-1:2002, definition 3.1.7]
3.1.7
cable element
the smallest construction unit in a cable. A cable element may have a screen
[EN 50173-1:2002, definition 3.1.8]
3.1.8
cable type
description of a cable according to its construction e.g. coaxial, TP, etc.
3.1.9
cable unit
single assembly of one or more cable elements usually of the same type or category. A cable unit
may have a screen
[EN 50173-1:2002, definition 3.1.9]
3.1.10
cabling
system of telecommunication/HBES cables, cords and connecting hardware that support the
operation of information technology respectively HBES equipment
[EN 50173-1:2002, definition 3.1.10, with /HBES modified]

3)
At draft stage.
3.1.11
campus
a premises containing one or more buildings
[EN 50173-1:2002, definition 3.1.11]
3.1.12
canalisation
ducting, trunking, conduits, etc.
3.1.13
channel
end to end transmission path connecting any two pieces of application specific equipment.
Equipment cables and work area cables are included in the channel
[EN 50173-1:2002, definition 3.1.14]
3.1.14
circuit breaker
mechanical switching device, capable of making, carrying and breaking currents under normal
circuit conditions and also making, carrying for a specified time, and automatically breaking
currents under specified abnormal circuit conditions such as those of short-circuit
3.1.15
comfort class
level of service options provided by the HBES system
3.1.16
cross-connect
a facility enabling the termination of cable elements and their connection, primarily by means of
patch cords or jumpers
3.1.17
distribution board
an assembly containing switching or protective devices (e.g. fuses or miniature circuit-breakers)
associated with one or more outgoing circuits fed by one or more incoming circuits, together with
terminals for the neutral and protective circuit conductors. It may also include signalling and other
control devices
3.1.18
double pole mains switch
device designed to make and break the current in a single phase or in a double phase circuit
3.1.19
feeding zone
space in which the mains power supply cables are installed
3.1.20
functional insulation
insulation between conductive parts which is necessary for the proper functioning of the
equipment
3.1.21
fuse
switching device that, by the melting of one or more of its specially designed and proportioned
components, opens the circuit in which it is inserted and breaks the current when this exceeds a
given value for a sufficient time
3.1.22
gateway
unit connecting different networks or parts of one network and performing any necessary protocol
translations
3.1.23
Handover Box
box containing an interface between networks within a building and networks of external service
suppliers (generally located in IS1). In certain cases this Handover Box is a legally required
boundary
- 9 - EN 50090-9-1:2004
3.1.24
Home and Building Electronic Systems (HBES)
a multi-application data bus system where the functions are decentrally distributed and linked
through a common communication process
NOTE  HBES is used in homes and buildings plus their surroundings. Functions of the system are e.g.
switching, open loop controlling, closed loop controlling, monitoring and supervising
[EN 50090-2-3, definition 3.10]
3.1.25
HBES Class 1
HBES with capabilities for telecontrol applications such as:
• control
• monitoring
• measurement
• alarm
• low speed data transfer
NOTE These capabilities are typically provided for by:
- single packet-mode low bandwidth channel,
- digital transmission.
3.1.26
HBES Class 2
HBES with Class 1 capabilities plus:
• Switched voice or other information transfer with similar bandwidth
NOTE These capabilities are typically provided for by a Class 1 system enhanced with:
- multiple switched medium bandwidth channels,
- analogue or digital transmission or both.
In principle all Class 2 capabilities can be supported on a single Class 2 channel. For practical
reasons, however, HBES Class 2 may contain a separate channel or use a separate medium to
support Class 1 capabilities
3.1.27
HBES Class 3
HBES with Class 2 capabilities plus:
• Switched high quality sound and video transfer and high speed data transfer
NOTE These capabilities are typically provided for by a Class 2 system enhanced with:
- multiple switched high bandwidth channels,
- analogue or digital transmission or both.
In principle all Class 3 capabilities can be supported on a single Class 3 channel. For practical
reasons, however, HBES Class 3 may contain a separate channel or use a separate medium to
support Class 1 and Class 2 capabilities
3.1.28
home
fixed residential premises for use by a single family or household as a dwelling place. This may
be an individual building or a part of a larger building e.g. an apartment
3.1.29
house
single building used as a home villa or as a small office
3.1.30
Installation Spaces (IS)
void part or wall surface of the building specifically intended to host boxes, cabinets, enclosure,
mounted-in-wallbox containing themselves active and/or passive devices, and their cables
3.1.31
interface
the point at which application specific equipment is connected to the cabling
3.1.32
line coupler
device for connecting two different lines in the logical topology of a network

3.1.33
link
transmission path between any two interfaces of generic cabling. It excludes equipment cords and
work area cords
[EN 50173-1:2002, definition 3.1.36]
3.1.34
link segment
the part of a link
3.1.35
multimedia
the use of a number of different media e.g. sound, vision etc.
3.1.36
protective separation
double insulation or reinforced insulation for rated insulation voltages in mains
NOTE  In the context of installation the following definition applies: separation of live parts to provide
protection against electric shock.
3.1.37
separation
routing of cables that maintain a minimum distance for EMC purposes, or for insulation
3.1.38
screened cable
assembly of two or more balanced Twisted Pair cable elements or one or more quad cable
elements where each element is individually screened and/or the elements are contained within
an overall screen
[EN 50173-1:2002, definition 3.1.45]
3.1.39
screen
screen used to minimize interference between cable elements and to protect cables and attached
equipment from extraneous electric and/or magnetic fields and to reduce the emission of
electromagnetic radiation generated by applications connected to the cabling
3.1.40
terminal block
an insulating part carrying one or more mutually insulated terminal assemblies and intended to be
fixed to a support
3.1.41
Twisted Pair
cable element that consists of two insulated conductors twisted together in a determined fashion
to form a balanced transmission line
[EN 50173-1:2002, definition 3.1.55]
3.1.42
Twisted Pair Class 1 bus outlet
connection point between Twisted Pair Class 1 network and flexibly connected HBES devices
3.1.43
passive tap
connection point for short cable link for extension

- 11 - EN 50090-9-1:2004
3.2 Abbreviations
AC Alternating Current
AM Application Module
BAU Bus Access Unit
CATV Cable TV
HBES Class 1 refers to simple control and command
HBES Class 2 refers to Class 1 plus simple voice and stable picture transmission
HBES Class 3 refers to Class 2 plus complex video transfers
TP Type 0 HBES Class 1, Twisted Pair Type 0
TP Type 1 HBES Class 1, Twisted Pair Type 1
DC Direct Current
EMC Electromagnetic Compatibility
HVAC Heating, Ventilation & Air Conditioning
HBES Home and Building Electronic Systems
IS Installation Space
in this standard ISO/IEC 15018)
IS1 Space for campus entrance facility
IS2 Space for building distributor BEF Building Entrance Facility
IS3 Space for floor distributor HD Home Distributor
IS4 Space for home distributor HD Home Distributor
SHD Secondary HD
IS5 Room connection point Primary ACP
IS6 Application connection point ACP Application Connection Point
IT Information Technology
LV Low Voltage
PC Personal Computer
PE Protective Earth (conductor)
TNV Telecommunication Network Voltage
TO Telecommunication Outlet
TP Twisted Pair
4 Aspects of system and cabling
An HBES cabling system can be installed on residential premises as well as in other buildings. It
is designed to support the new construction, extension or retrofitting of buildings.
An appropriate design of a HBES network shall pay attention to the following factors: size,
infrastructure and purpose of the building (home, commercial or light industrial environment),
whether it is a new or an existing building and the type of occupancy of the building.
Depending on the application specification, the cabling for TP may be configured as bus tree, star
and loop or/and their combinations (see Figure 1). TP may be cut everywhere for providing
branches.
For example: In retrofitting, a new actuator for HVAC control could be simply installed with a new
branch and a passive tap.
In any building, both indoor and outdoor installations have to be taken into account. Outdoor
installation includes front doors, garages, shafts, etc.
In a HBES system, the devices are usually fixed, a lighting point in the ceiling will stay in place, as
will a window-shutter or HVAC fixture. Nevertheless moveable appliances can be connected.
Many modifications, however, will occur during the building life (e.g. change of devices, the
addition or removal of walls.). Therefore flexibility is required which can be achieved by aligning
the HBES installation with that of the mains network as far as possible. Twisted Pair can be
branched off for the installation of an extension at each point one chooses.
HBES itself contains several wired media. An overview of these is given in Table B.1.

┌─┐
└┬┘
──┬──────┬──────────┬───────┴─────────┬────
┌┴┐  ┌┴┐  ┌────┴────────────┐  ─┴──┐   ┌─┐
└─┘  └─┘  │         │    │   └┬┘
└─┬──────────┬────┘  ┌───┴┬─────┴──┬─────
┌┴┐    ┌┴┐    │  ┌┴┐   ┌┴┐
└─┘    └─┘    │  └─┘   └─┘
┌─┐ │ ┌─┐
└┬┘ │ └┬┘
───────┴──┴───┴──────
┌─┐
└┬┘  TP network device
──┬── passive connection
Figure 1 – Example of possible topology
5 Cabling model and general requirements
Introduction
Cabling solutions offer flexibility for many applications. These applications may be linked with one
other or may be independent sharing only the same wiring.
5.1 Connection of segments, general requirements
The cabling system specified in this standard consists of interfaces, where application specific
equipment may be connected, and the links between such interfaces. A link may consist of more
than one segment. At every point in a segment where other link segments are to be connected
and at the interfaces of links Installation Spaces shall be provided. The type of Installation
Spaces needed is shown in the hierarchy in Figure 2.
Installation Spaces IS1 to IS6 are spaces intended for fixing cabinets, enclosures and/or boxes,
e.g. according to IEC 60670 and containing active and/or passive devices as well as connecting
hardware.
The requirements for Installation Space and related equipment are specified in Clause 8.
The Installation Space shall:
- make apparent the change in level in the hierarchy,
- offer appropriate standardized connection hardware for fixing the equipment in an Installation
Space,
- enable location of active and passive (modular) devices, including any insulation and
separation required,
- facilitate access to the media and related equipment,
- allow management and extension of the network.
An Installation Space may also be used for the Handover Box to all external services. All IS shall
be provided according to the building structure, as a minimum IS4 shall be provided.
The Installation Spaces also allow the cable network to be divided into distinct physical segments
so that any failure or disturbance may be limited to a single segment and not affect the entire
network. For electrical safety requirements see 9.1 and 9.2.

- 13 - EN 50090-9-1:2004
IS1
IS : external campus
= belongs to campus
IS : Campus to building
IS2
= belongs to building
IS : Building to floor
IS3
= belongs to floor
IS4 IS : Floor to flat
= belongs to flat
IS5
IS : Flat to room
=belongs to room
IS : Room to application
IS6
= belongs to application
NOTE 1  IS6 is to be provided for each termination. IS6 can be moved into IS5 according to the
application.
NOTE 2  See 3.2 for abbreviations compared to ISO/IEC 15018.
Figure 2 – HBES Installation Spaces (IS) principle

5.2 Coexistence between HBES control bus, broadband multimedia and mains
The intention of this standard is to allow the cables for different media and for mains to use the
same canalisation and ducts etc., so far as is appropriate, in order to simplify installation and,
where possible, to allow all wired media to be combined in one canalisation. Table 1 lists
examples of applications the cabling of which may be desired to use the same canalisation.
The coexistence of different media and mains can also be provided within the Installation Spaces,
within enclosures and boxes as well as within the interfaces/components.
In some areas of the cabling hierarchy relevant characteristics e.g. for lightning protection, EMC
and availability, see Clauses 9 and 10, have to comply with respective requirements.
In any case the national regulations, if any, prevail on these requirements.

Single
Family Home
ISIS55 IS5
ISIS44
IS5
IS5
IS5
IS6
Building
IS1 IS2
IS3
Floor
Flat 1 Flat 2 Flat 3
IS4 IS4 IS4
room
IS5
Campus
IS6
IS6
Figure 3 – Location of HBES Installation Spaces
For planning aspects see Annex A which gives information on several Installation Spaces for
intelligent entrance boxes in IS4 and different services.

Table 1 – Examples of applications and HBES classes
Class Applications Class Applications
Control applications Sound and voice control
1 - Lighting commands 1 - Control
1 - Control commands 2 - Speaker
1 - Bus-actors Temperature control
1 - HVAC control 1 - Sensor
1 - Actuator
1 - Control
Communication
2 - Telephone Alarm
2 - Outdoor phone 1 GPL/Methane-detector
2 - Indoor phone 1 - CO-detector
1 - Fire alarm
Blind control
1 - Command 1 - Help alarm
1 - Actuator 1 - Technical alarm
1 - Active IR receiver 1 - Intrusion alarm
3 High bandwidth video 1 Emergency light

- 15 - EN 50090-9-1:2004
The use of common cabling shall not impair the operation of any of the participating networks.
This refers to signalling (e.g. cross talk, link performance), EMC and safety requirements. The
coexistence requirements, in particular with mains are summarized in 9.1 and in Clause10 and
the distribution of cables to canalisation in Table 5.
6 Infrastructure requirements
6.1 General
Figure 4 shows the relationships among the elements of a generic infrastructure, with reference
to the connections in Installation Spaces IS1 to IS6.
In all cases installation and in accordance with the principle of predisposition, Installation Space
shall be provided in the infrastructure, according to the structure given in Figure 2.
NOTE 1  If not possible cabinets and enclosures could ensure themselves the IS requirements.
Table 2 indicates if the provision of facilities for installation of various features within each of an
IS is:
Mandatory (M),
Optional (O) or
usually provided in accordance with conventional practise (P).
NOTE 2  The fact that an IS is intended to receive control-command devices for various applications, does
not imply that those applications are required to be provided. If command and control devices are
provided, it is not a requirement of this standard that those devices be contained either wholly or partly
within that IS.
Table 2 - Minimum requirements for Installation Space functionality
Typical Functions Level
Service (1) Components (2)
IS1 IS2 IS3 IS4 IS5 IS6 IS4
Home
1 Mains Mains disconnection means, Fuse, MCB M M M M O P M
Power
Mains (230/400V + PE) entrance feeding, Fuse, MCCB M M M M -- -- M
feeding
Electrical meter O M M M O -- M
&
Controllers, data collectors M M O M O -- M
mains
signalling HVAC central units M M O O O -- O
Distribution board M M O M -- -- M
Terminal block M M M M M M M
Gateway, bridge, line coupler M M M M O -- M
Amplifier/converter M M O M O -- M
Filters (e.g. for power line communication) M M O O -- -- M
TP-bus outlet O O O O O M O
Mains outlet O O O O O M O
Repeater M M M M O -- M
2 IT Mains disconnection means, fuse, MCB M M M M M O M
Telephone
Controllers, data collectors M M M M O -- M
&
Distribution board M M O M -- -- M
Data-lines
Cross connect O O M M M -- M
Terminal block M M M M M M M
Gateway, bridge, line coupler M M M M O -- M
Amplifier/+converter M M O M O -- M
Filters (e.g. EMC) M M M M O -- M
Broad-band interface O O O M M O M
Bus & IT cable management  M M -- M
Passive network termination  M -- -- M
Active network termination  M O -- M
TP-bus outlet O O O O O M O
Mains outlet O O O O O M O
Repeater M M M M M -- M
3 CATV Mains disconnection means, fuse, MCB M M M M M O M
Controllers, data collectors M M M M O -- M
Cross connect O O M M M -- M
Terminal block M M M M M M M
Gateway, bridge, line coupler M M M M O -- M
Amplifier/converter M M O M O -- M
Filters (e.g. EMC) M M M M O -- M
Broad-band interface M M M M M O M
Bus & CATV cable management M M M M M -- M
Passive network termination  M -- -- M
Active network termination  M O -- M
TP -bus outlet O O O O O M O
Mains outlet O O O O O M O
Repeater M M M M M -- M
4 Radio Mains disconnection means, fuse, MCB M M M M O O M
Frequency
Receivers, transmitters e.g. HVAC central units M M M M O -- M
for
Controllers, data collectors M M M M O -- M
Remote
Gateway, bridge, line coupler M M M M O -- M
Services
and Amplifier/converter M M M M M O M
Control
Filters (e.g. EMC) M M M M M -- M
Passive network termination  M -- -- M
Active network termination  M O -- M
Repeater M M M M M -- M
(1) Services used from Different Service Providers in parallel (e.g. two different telephone services) may require additional
equipment accordingly.
(2) The final size of the Installation Space depends on the equipment used by the installer/planner.

- 17 - EN 50090-9-1:2004
In Figure 4 the building in the foreground shows one single vertical backbone distribution, the
building in the background shows two vertical ways of distribution connected with each other.
The public connection cabinet (handover box) which connects the campus with an external
communication service may be located in an extra enclosure (IS1), which can be mandatory in
certain cases, e.g. public telephone network. Taking into account the maximum length specified
e.g. in CENELEC R205-002 and in manufacturers’ specifications if any, provisions for signal
restoration (repeaters) shall be provided when necessary; see also Annex B.
The general infrastructure may consist of campus, building, floors, flat, rooms, distribution
systems and shall be adapted to the needs by taking into account different types of buildings:
- service classes (see Table 1),
- building comfort classes performance, see Annex C.
Define types and number of networks to be installed. Note that in an existing building where some
of the networks mentioned in Annex B are already installed, it will be possible to add the HBES
network Class 1, 2 or 3 so as to let the existing network coexist with the new HBES network.

Vertical backbone distribution
IS6
IS6
IS5
ROOM
IS4 IS3
FLOOR
IS5 IS5
IS2
UNIT
IS4
IS3
IS2
To other
IS2
IS3
IS4
Building
FLOOR
IS2
Horizontal distribution
Campus backbone
...
