EN 14404:2004

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.RORåDMXPersönliche Schutzausrüstung - Knieschutz für Arbeiten in kniender HaltungEquipements de protection individuelle - Protection des genoux pour le travail a genouxPersonal protective equipment - Knee protectors for work in the kneeling position13.340.50Varovanje nog in stopalLeg and foot protectionICS:Ta slovenski standard je istoveten z:EN 14404:2004SIST EN 14404:2005en01-april-2005SIST EN 14404:2005SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14404November 2004ICS 13.340.10 English versionPersonal protective equipment - Knee protectors for work in thekneeling positionEquipements de protection individuelle - Protection desgenoux pour le travail à genouxPersönliche Schutzausrüstung - Knieschutz für Arbeiten inkniender HaltungThis European Standard was approved by CEN on 2 September 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14404:2004: ESIST EN 14404:2005

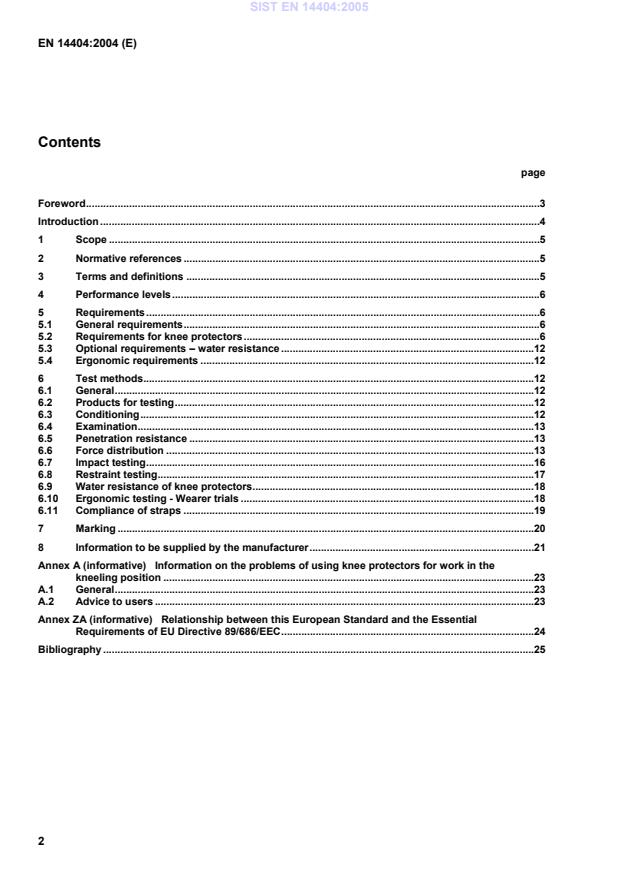

Information on the problems of using knee protectors for work in the kneeling position.23 A.1 General.23 A.2 Advice to users.23 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 89/686/EEC.24 Bibliography.25
Type 3 knee protectors devices not attached to the body, but put into place as the user moves around. These may be for each knee or both knees together 3.5 Type 4 knee protectors knee protectors for one or both knees, which are parts of devices with additional functions such as a frame to aid standing up, or a kneeling seat. The knee protectors may be worn on the body or be independent 3.6 fastening part of a knee protector, which keeps it in the right position 3.7 zone of protection area of protective equipment that is intended to provide protection, and is subject to specific testing SIST EN 14404:2005

Requirement Clause number Subject Type of protector to which the requirement applies Clauses describing the tests applicable 5.1 Innocuousness All Types EN 340 and
6.3.1 + 6.4 5.2.2 Type 4 protectors to meet requirements for Type 1 or Type 3 protectors as applicable Type 4 - 5.2.3 Size designation and marking All Types 6.3.1 + 6.4 5.2.4 Dimensions All Types 6.3.1 + 6.4 5.2.5 Penetration resistance (Performance levels 1 and 2) All Types 6.3.1 + 6.5 (EN 863:1995) 5.2.6 Force distribution (Performance levels 1 and 2) All Types 6.3.2 + 6.3.1 + 6.6 5.2.7 Peak transmitted force in impact (Performance levels 1 and 2) All Types 6.3.2 + 6.3.1 + 6.7 5.2.8.1 General requirements for restraint Type 1, Type 2 and Type 4 a 6.4 + 8 5.2.8.2 Restraint by straps or equivalent system Type 1. Type 4 a 6.3.1 + 6.8.1 5.2.8.3 Restraint in pockets or by attachment to trousers Type 2 6.3.1 + 6.8.2 SIST EN 14404:2005

Table 1 (concluded) Requirement Clause number Subject Type of protector to which the requirement applies Clauses describing the tests applicable 5.3
Optional requirement for water resistance Any type for which the claim is made. (Type 2 water resistance will depend on the properties of the trousers) 6.3.1 + 6.9 Type 1, 6.9.1 Type 3, 6.9.2 Type 4, 6.9.3 5.4 5.4.1
Ergonomics
Restraint and comfort during use
All Types All types
6.3.1 +
Type 1, 6.10.1
Type 2, 6.10.2
Type 3, 6.10.3
Type 4, 6.10.4 5.4.2 Compliance of straps Type 1 and Type 4 a 6.3.1 + 6.10.5 7 Marking All Types Comparison with 7 8 Information for users All Types Comparison with 8 a Applicable if the Type 4 protector is of similar design to the Type of protector to which this clause applies directly.
5.2.2 Type 4 – Knee protectors Type 4 knee protectors shall meet the requirements for Type 1 or Type 3 knee protectors depending on whether they are worn on the body or are independent, as applicable. 5.2.3 Size All knee protectors shall be marked with their size based on the waist girth of the users they are intended to fit. The sizing shall be explained in the information supplied by the manufacturers. 5.2.4 Dimensions The zones of protection shall have dimensions as specified in Table 2. The values of the dimensions shall be calculated from the waist girth of largest size of the user the protector is designed to fit, or in the case of “one size fits all” products a waist girth of 120 cm. The shapes of the zones of protection are shown in Figure 1. When measured according to 6.4 on the inside of the knee protector the material providing protection shall be larger than the minimum zone of protection calculated from Table 2. SIST EN 14404:2005

l1 Width
l2 Proximal
r1 Distal
r2 Type 1 18 12 70 25 Type 2
-
not adjustable, or loose
in a pocket
- adjustable in a vertical direction by at least 4% of the waist girth of the largest intended user and capable of being fixed in position 24
20 12
12 25 25 Type 3 24 40 100 25
Key
l1 Height of the zone of protection l2 Width of the zone of protection r1 Radius of curvature of a proximal (upper) corner of a knee protector r2 Radius of curvature of a distal (lower) corner of a knee protector a) Type 1 knee protector b) Type 2 knee protector c) Type 3 knee protector
Figure 1 — Shapes of the zones of protection of knee protectors
5.2.8 Restraint 5.2.8.1 General Type 1 and Type 2 knee protectors that are worn on the body shall be provided with a restraint system that ensures that they are correctly placed for working in the kneeling position. This restraint may be achieved using integral straps with buckles, touch and close fasteners, separate “harness” or other items of protective equipment or clothing. The manufacturer shall give details of how adequate restraint of the knee protectors may be achieved in the Information supplied by the manufacturer. 5.2.8.2 Type 1 Knee protectors Knee protectors that fasten around the leg shall be provided with straps at least 40 mm wide. Straps shall be continuously adjustable. No part of a strap shall pass within 10 mm of the centre of the back of the knee when the protector is on a leg and the knee is bent. Assessment shall be made according to 6.4. The restraint system for the knee protectors shall be assessed as described in 6.8.1. The knee protector shall not be displaced by more than 5 cm, when the test force is applied and shall return to within 2 cm of its initial position when the force is removed. The force to be resisted shall be (10 ± 1) N. If knee protectors are restrained by a system that does not use straps the manufacturer shall demonstrate that venous drainage is unlikely to be impaired. (See informative Annex A) 5.2.8.3 Type 2 Knee protectors Knee protectors in trousers shall be held in closed pockets or attached to the trousers in another way. If not in pockets they shall not be removable by a force of (100 ± 5) N as described in 6.8.2. SIST EN 14404:2005

min. SIST EN 14404:2005
...
