EUROPEAN STANDARD
EN ISO 10423
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2004
ICS 75.180.10 Supersedes EN ISO 10423:2001
English version
Petroleum and natural gas industries - Drilling and production
equipment - Wellhead and christmas tree equipment (ISO
10423:2003)
Indutries du pétrole et du gaz naturel - Equipement de Erdöl- und Erdgasindustrie - Bohr- und Förderausrüstung -
forage et de production - Equipement pour têtes de puits et Bohrlochkopf- und Eruptionskreuz-Ausrustung (ISO
arbre de Noël (ISO 10423:2003) 10423:2003)
This European Standard was approved by CEN on 8 August 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10423:2004: E
worldwide for CEN national Members.

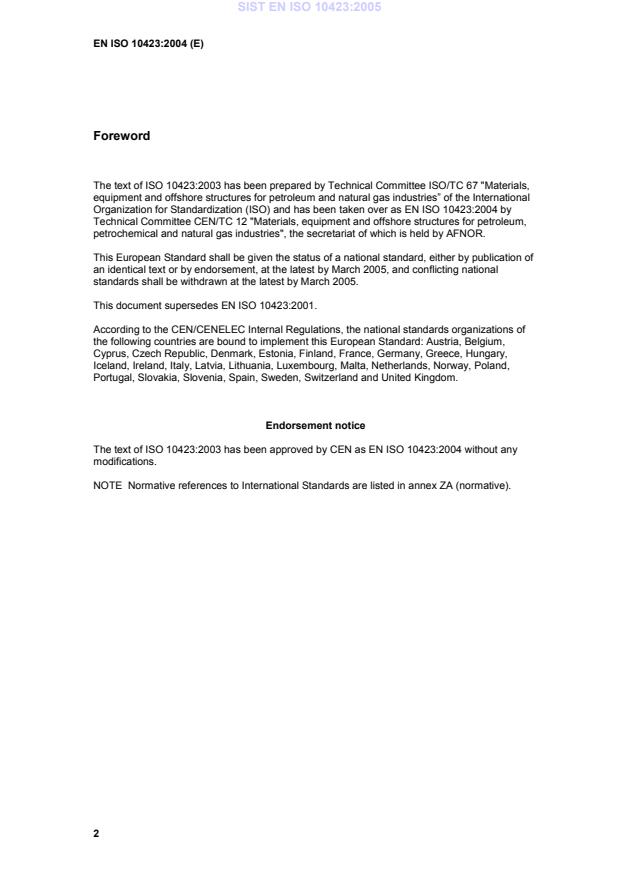

Foreword
The text of ISO 10423:2003 has been prepared by Technical Committee ISO/TC 67 "Materials,
equipment and offshore structures for petroleum and natural gas industries” of the International
Organization for Standardization (ISO) and has been taken over as EN ISO 10423:2004 by
Technical Committee CEN/TC 12 "Materials, equipment and offshore structures for petroleum,
petrochemical and natural gas industries", the secretariat of which is held by AFNOR.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by March 2005, and conflicting national
standards shall be withdrawn at the latest by March 2005.

This document supersedes EN ISO 10423:2001.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 10423:2003 has been approved by CEN as EN ISO 10423:2004 without any
modifications.
NOTE Normative references to International Standards are listed in annex ZA (normative).

Annex ZA
(normative)
Normative references to international publications
with their relevant European publications

This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of
any of these publications apply to this European Standard only when incorporated in it by
amendment or revision. For undated references the latest edition of the publication referred to
applies (including amendments).

NOTE Where an International Publication has been modified by common modifications, indicated
by (mod.), the relevant EN/HD applies.

Publication Year Title EN Year

ISO 13628-4 1999 Petroleum and natural gas EN ISO 13628-4 1999
industries - Design and operation of
subsea production systems - Part 4:
Subsea wellhead and tree
equipment
INTERNATIONAL ISO
STANDARD 10423
Third edition
2003-12-15
Petroleum and natural gas industries —
Drilling and production equipment —
Wellhead and christmas tree equipment
Industries du pétrole et du gaz naturel — Équipement de forage et de
production — Équipement pour têtes de puits et arbre de Noël

Reference number
ISO 10423:2003(E)
©
ISO 2003
ISO 10423:2003(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2003 – All rights reserved

ISO 10423:2003(E)
Contents Page
Foreword . vi
Introduction. vii
1 Scope. 1
1.1 Purpose. 1
1.2 Applicability. 1
1.3 Service conditions. 2
1.4 Product specification levels (PSL) . 3
2 Normative references. 6
3 Terms, definitions and abbreviated terms. 8
3.1 Terms and definitions. 8
3.2 Abbreviated terms. 20
4 Design and performance — General requirements . 21
4.1 Performance requirements — General . 21
4.2 Service conditions. 21
4.3 Design methods. 23
4.4 Miscellaneous design information . 27
4.5 Design documentation. 28
4.6 Design review. 28
4.7 Design verification. 28
5 Materials — General requirements. 28
5.1 General. 28
5.2 Written specifications. 28
5.3 Mandrel tubing and casing hangers. 29
5.4 Bodies, bonnets, end and outlet connections . 32
5.5 Ring gaskets. 39
5.6 Test coupons (TC). 40
5.7 Qualification test coupons (QTC). 43
5.8 Heat-treating equipment qualification. 46
5.9 Material qualification. 46
5.10 Bullplugs and valve-removal plugs. 46
5.11 Back-pressure valves. 46
5.12 Pressure-boundary penetrations. 46
5.13 Wear bushings. 46
5.14 Hub-end connectors. 46
6 Welding — General requirements . 47
6.1 General. 47
6.2 Non-pressure-containing weldments other than weld overlays (PSL 1 to PSL 3) . 47
6.3 Pressure-containing fabrication weldments for bodies, bonnets, end and outlet connections,
bullplugs, valve-removal plugs and back-pressure valves . 47
6.4 Pressure-containing repair weldments for bodies, bonnets, end and outlet connections,
bullplugs, valve-removal plugs and back-pressure valves . 52
6.5 Weld overlay for corrosion resistance and/or hard facing and other material surface property
controls . 54
ISO 10423:2003(E)
7 Quality control. 57
7.1 General. 57
7.2 Measuring and testing equipment. 57
7.3 QuaIity control personnel qualifications . 58
7.4 Quality control requirements. 58
7.5 Quality control records requirements. 95
8 Equipment marking. 100
8.1 Marking requirements. 100
8.2 Wellhead equipment. 102
8.3 Connectors and fittings. 102
8.4 Casing and tubing hangers . 102
8.5 Valves and chokes. 103
8.6 Loose connectors [flanged, threaded, other end connectors (OEC) and welded]. 104
8.7 Other equipment. 104
8.8 Studs and nuts. 105
8.9 Christmas trees. 105
8.10 Valve-removal plugs. 105
8.11 Bullplugs. 105
8.12 Back-pressure valves. 106
9 Storing and shipping. 106
9.1 Draining after testing. 106
9.2 Rust prevention. 106
9.3 Sealing surface protection . 106
9.4 Assembly and maintenance instructions . 106
9.5 Ring gaskets. 106
9.6 Age control of non-metallic materials. 106
10 Equipment-specific requirements. 107
10.1 Flanged end and outlet connections. 107
10.2 Threaded end and outlet connections . 140
10.3 Studs and nuts. 146
10.4 Ring gaskets. 148
10.5 Valves. 154
10.6 Casing and tubing heads. 169
10.7 Casing and tubing hangers . 174
10.8 Tubing-head adapters. 179
10.9 Chokes. 181
10.10 Tees and crosses . 184
10.11 Test and gauge connections for 103,5 MPa and 138,0 MPa (15 000 psi and 20 000 psi)
equipment . 189
10.12 Fluid sampling devices. 189
10.13 Christmas trees. 192
10.14 Cross-over connectors. 192
10.15 Adapter and spacer spools . 197
10.16 Actuators. 198
10.17 Lock screws, alignment pins and retainer screw packing mechanisms. 202
10.18 Other end connectors (OECs). 203
10.19 Top connectors. 204
10.20 Surface and underwater safety valves and actuators . 205
10.21 Bullplugs. 210
10.22 Valve-removal plugs. 213
10.23 Other pressure-boundary penetrations . 213
10.24 Back-pressure valves. 214
11 Repair and remanufacture. 214
iv © ISO 2003 – All rights reserved

ISO 10423:2003(E)
Annex A (informative) Purchasing guidelines . 215
Annex B (informative) US Customary unit tables and data for this International Standard . 234
Annex C (informative) Method of calculating stud bolt lengths for type 6B and 6BX flanges . 289
Annex D (informative) Recommended flange bolt torque . 291
Annex E (informative) Recommended weld groove design dimensions . 295
Annex F (informative) Performance verification procedures . 299
Annex G (informative) Design and rating of equipment for use at elevated temperatures . 333
Annex H (normative) Design and manufacture of surface wellhead running, retrieving and testing
tools, clean-out tools and wear bushings . 336
Annex I (normative) Performance verification procedures for surface safety valves and underwater
safety valves . 340
Annex J (normative) Repair and remanufacture requirements . 348
Annex K (informative) Recommended specifications for top connectors for christmas trees . 361
Annex L (normative) Specifications for valve-removal preparations and valve-removal plugs . 376
Annex M (informative) List of tables and figures. 391
Bibliography. 401

ISO 10423:2003(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights.
ISO shall not be held responsible for identifying any or all such patent rights.
ISO 10423 was prepared by Technical Committee ISO/TC 67, Materials, equipment and offshore structures for
petroleum, petrochemical and natural gas industries, Subcommittee SC 4, Drilling and production equipment.
This third edition cancels and replaces the second edition (ISO 10423:2001), of which it constitutes a minor
revision. Details of the differences between this third edition and the second edition may be obtained, upon
request, from ISO/TC 67/SC 4.
vi © ISO 2003 – All rights reserved

ISO 10423:2003(E)
Introduction
This International Standard is based on API Spec 6A, seventeenth edition, February 1996, its errata and
supplement, and API Spec 6AV1, first edition, February 1996.
The contents of API Spec 14D (upon which ISO 10433 was based) and API Recommended Practice 14H (upon
which ISO 10419 was based) have been incorporated in API Spec 6A, seventeenth edition.
The International System of units (SI) is used in this International Standard. However, nominal sizes are shown as
fractions in the inch system.
The fractions and their decimal equivalents are equal and interchangeable. Metric conversions and inch
dimensions in this International Standard are based on the original fractional inch designs. Functional dimensions
have been converted into the metric system to ensure interchangeability of products manufactured in metric or inch
systems (see also Annex B).
Tables referenced in the main body of this International Standard which are marked with an asterisk are repeated
in Annex B in US Customary units with the same table number as in the main body but with the prefix B. In figures
where dimensions are only given in inches, the values of surface roughness have been indicated in accordance
with US draughting conventions. See also Annex M for listings of tables and figures.
Users of this International Standard should be aware that further or differing requirements may be needed for
individual applications. This International Standard is not intended to inhibit a vendor from offering, or the purchaser
from accepting, alternative equipment or engineering solutions for the individual application. This may be
particularly applicable where there is innovative or developing technology. Where an alternative is offered, the
vendor should identify any variations from this International Standard and provide details.

INTERNATIONAL STANDARD ISO 10423:2003(E)

Petroleum and natural gas industries — Drilling and production
equipment — Wellhead and christmas tree equipment
1 Scope
1.1 Purpose
This International Standard specifies requirements and gives recommendations for the performance, dimensional
and functional interchangeability, design, materials, testing, inspection, welding, marking, handling, storing,
shipment, purchasing, repair and remanufacture of wellhead and christmas tree equipment for use in the petroleum
and natural gas industries.
This International Standard does not apply to field use, field testing or field repair of wellhead and christmas tree
equipment.
1.2 Applicability
This International Standard is applicable to the following specific equipment.
a) Wellhead equipment:
 casing head housings;
 casing head spools;
 tubing head spools;
 cross-over spools;
 multi-stage head housings and spools.
b) Connectors and fittings:
 cross-over connectors;
 tubing head adapters;
 top connectors;
 tees and crosses;
 fluid-sampling devices;
 adapter and spacer spools.
c) Casing and tubing hangers:
 mandrel hangers;
ISO 10423:2003(E)
 slip hangers.
d) Valves and chokes:
 single valves;
 multiple valves;
 actuated valves;
 valves prepared for actuators;
 check valves;
 chokes;
 surface and underwater safety valves and actuators;
 back-pressure valves.
e) Loose connectors [flanged, threaded, other end connectors (OEC), and welded]:
 weld neck connectors;
 blind connectors;
 threaded connectors;
 adapter and spacer connectors;
 bullplugs;
 valve-removal plugs.
f) Other equipment:
 actuators;
 hubs;
 pressure boundary penetrations;
 ring gaskets;
 running and testing tools (in Annex H);
 wear bushings (in Annex H).
The nomenclature used in this International Standard for typical equipment is shown in Figure 1 and Figure 2. All
parts whose physical dimensions conform to the metric tables incorporated into the body of this International
Standard or to the US Customary units tables in Annex B are acceptable (see Introduction).
1.3 Service conditions
This International Standard defines service conditions, in terms of pressure, temperature and material class for the
well-bore constituents, and operating conditions.
2 © ISO 2003 – All rights reserved

ISO 10423:2003(E)
1.4 Product specification levels (PSL)
This International Standard establishes requirements for five product specification levels. These five PSL
designations define different levels of technical quality requirements. Annex A provides guidelines (not
requirements) for selecting an acceptable PSL.

Key
1 back-pressure valve preparation 12 double studded adapter
2 subsurface safety valve control line 13 annular casing pack-off
3 subsurface safety valve control line outlet 14 casing hanger (slip style)
4 tubing head adapter 15 threaded outlet connection
5 lock screw 16 bullplug
6 tubing hanger pack-off 17 casing head housing
7 extended neck tubing hanger with downhole safety valve control line 18 surface casing
8 studded side outlet 19 wellhead support plate
9 valve removal preparation 20 tubing pack-off retainer
10 bottom casing pack-off 21 tubing hanger (slip style)
11 tubing head spool 22 tubing
Figure 1 — Typical wellhead assembly nomenclature
ISO 10423:2003(E)
Key
23 studded side outlet connection 29 casing head spool
24 extended neck tubing hanger seal 30 inner casing
25 annular tubing hanger seal 31 intermediate casing
26 tubing hanger mandrel 32 flanged end connection
27 flanged outlet connection 33 tubing hanger mandrel seals
28 casing hanger mandrel 34 wrap-around hanger pack-off
Figure 1 — Typical wellhead assembly nomenclature (continued)
4 © ISO 2003 – All rights reserved

ISO 10423:2003(E)
Key
1 gauge valve 7 tee
2 bonnet nut 8 wing valve
3 blanking plug 9 choke
4 body 10 master valve
5 top connector 11 tubing head adapter
6 swab or crown valve
Figure 2 — Typical christmas tree nomenclature
ISO 10423:2003(E)
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
ISO 2859-1:1999, Sampling procedures for inspection by attributes  Part 1: Sampling schemes indexed by
acceptance quality limit (AQL) for lot-by-lot inspection
ISO 10414-1, Petroleum and natural gas industries  Field testing of drilling fluids  Part 1: Water-based fluids
ISO 10422:1993, Petroleum and natural gas industries  Threading, gauging, and thread inspection of casing,
tubing and line pipe threads  Specification
ISO 11960, Petroleum and natural gas industries  Steel pipes for use as casing or tubing for wells
ISO 13533, Petroleum and natural gas industries  Drilling and production equipment  Drill-through equipment
ISO 13628-4, Petroleum and natural gas industries  Design and operation of subsea production systems 
Part 4: Subsea wellhead and tree equipment
ISO 13678, Petroleum and natural gas industries  Evaluation and testing of thread compounds for use with
casing, tubing and line pipe
1)
API Spec 7:1997, Specification for rotary drill stem elements
API RP 14F, Recommended practice for design and installation of electrical systems for fixed and floating offshore
petroleum production facilities for unclassified and class 1, division 1 and division 2 locations
2)
ASME B1.1, Unified inch screw threads
ASME B1.2, Gages and gaging for unified inch screw threads
ASME B1.20.1, Pipe threads, general purpose (inch)
ASME Boiler and Pressure Vessel Code:1998, Section V, Non destructive examination
ASME Boiler and Pressure Vessel Code:1998, Section VIII, Division 1, Rules for construction of pressure vessels
ASME Boiler and Pressure Vessel Code:1998, Section VIII, Division 2, Alternative rules for construction of pressure
vessels
ASME Boiler and Pressure Vessel Code:1998, Section IX, Welding and brazing qualifications
3)
ASNT SNT-TC-1A, Personnel qualifications and certification in non destructive testing
4)
ASTM A 193/A 193M, Standard Specification for Alloy-Steel and Stainless Steel Bolting Materials for High-
Temperature Service
1) American Petroleum Institute, 1220 L Street North West, Washington, D.C. 20005, USA.
th
2) ASME International, 345 East 47 Street, New York, NY 10017-2392, USA.
3) American Society for Non destructive Testing, 4153 Arlingate Plaza, Columbus, OH 43228-0518, USA.
4) American Society for Testing and Materials, 100 Barr Harbor Drive, West Conshohoken, PA 19428-2959, USA.
6 © ISO 2003 – All rights reserved

ISO 10423:2003(E)
ASTM A 194/A 194M, Standard Specification for Carbon and Alloy Steel Nuts for Bolts for High Pressure or High
Temperature Service, or Both
ASTM A 320/A 320M, Standard Specification for Alloy-Steel and Stainless Steel Bolting Materials for Low-
Temperature Service
ASTM A 370, Standard Test Methods and Definitions for Mechanical Testing of Steel Products
ASTM A 388/A 388M, Standard Practice for Ultrasonic Examination of Heavy Steel Forgings
ASTM A 453/A 453 M, Standard Specification for High-Temperature Bolting Materials, With Expansion Coefficients
Comparable to Austenitic Stainless Steels
ASTM A 703/A 703M:1999, Standard Specification for Steel Castings, General Requirements, for Pressure-
Containing Parts
ASTM D 395, Standard Test Methods for Rubber Property  Compression Set
ASTM D 412, Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers  Tension
ASTM D 471, Standard Test Method for Rubber Property  Effect of Liquids
ASTM D 1414, Standard Test Methods for Rubber O-Rings
ASTM D 1415, Standard Test Method for Rubber Property — International Hardness
ASTM D 1418, Standard Practice for Rubber and Rubber Latices — Nomenclature
ASTM D 2240, Standard Test Method for Rubber Property — Durometer Hardness
ASTM E 10, Standard Test Method for Brinell Hardness of Metallic Materials
ASTM E 18, Standard Test Methods for Rockwell Hardness and Rockwell Superficial Hardness of Metallic
Materials
ASTM E 92, Standard Test Method for Vickers Hardness of Metallic Materials
ASTM E 94, Standard Guide for Radiographic Examination
ASTM E 140, Standard Hardness Conversion Tables for Metals — Relationship Among Brinell Hardness, Vickers
Hardness, Rockwell Hardness, Superficial Hardness, Knoop Hardness and Scleroscope Hardness
ASTM E 165, Standard Test Method for Liquid Penetrant Examination
ASTM E 428, Standard Practice for Fabrication and Control of Steel Reference Blocks Used in Ultrasonic
Examination
ASTM E 709, Standard Guide for Magnetic Particle Examination
ASTM E 747, Standard Practice for Design, Manufacture and Material Grouping Classification of Wire Image
Quality Indicators (IQI) Used for Radiology
5)
EN 473, Non-destructive testing — Qualification and certification of NDT personnel  General principles

5) European Committee for Standardization, rue de Stassart 36, Brussels B-1050, Belgium.
ISO 10423:2003(E)
6)
MSS SP-55, Quality standard for steel castings for valves, flanges and fittings and other piping components,
visual method for evaluation of surface irregularities
7)
NACE MR 0175:1999, Standard material requirements  Sulfide stress cracking resistant metallic materials for
oilfield equipment
8)
SAE AS 568A:1974, Aerospace size standard for O-rings
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
acceptance criteria
defined limits placed on characteristics of materials, products or services
3.1.2
accessible wetted surface
wetted surface which can be viewed, for purposes of non-destructive examination, by direct line of sight
NOTE This excludes test ports, control line ports, lockdown screw holes and other penetrations of these types.
3.1.3
actuator
mechanism for the remote or automatic operation of a valve or choke
3.1.4
adapter
pressure-containing piece of equipment having end connections of different nominal sizes and/or pressure ratings,
used to connect other pieces of equipment of different nominal sizes and/or pressure ratings
3.1.5
annular packoff
mechanism that seals off annular pressure between the outside diameter of a suspended tubular member or
hanger and the inside diameter of the head or spool through which the tubular member passes or hanger is
suspended
3.1.6
as-shipped condition
condition of the product or equipment when it is ready for shipment
3.1.7
back-pressure valve
unidirectional or bidirectional check valve that is installed through the christmas tree, into the tubing hanger, and
prevents well fluids from flowing out of the well

6) Manufacturers Standardization Society of the Valve & Fittings Industry, 127 Park Street, N.E., Vienna, VA 22180, USA.
7) NACE, P.O. Box 218340, Houston, TX 77218, USA.
8) SAE International, 400 Commonwealth Drive, Warrendale, PA 15096-0001, USA.
8 © ISO 2003 – All rights reserved

ISO 10423:2003(E)
3.1.8
body
any portion of wellhead and christmas tree equipment between end connections, with or without internal parts,
which contains well-bore pressure
3.1.9
bolting closure
threaded fastener used to assemble well-bore pressure-containing parts or join end or outlet connections
EXAMPLES Studs, nuts, bolts and capscrews.
3.1.10
exposed bolting
bolting that is exposed directly to the sour environment or that is buried, insulated, equipped with flange protectors,
or otherwise denied direct atmospheric exposure
3.1.11
non-exposed bolting
bolting that is not directly exposed to sour environments and is not intended to be buried, insulated, equipped with
flange protectors, or otherwise denied direct atmospheric exposure
3.1.12
bonnet
pressure-containing closure for a body, other than an end or outlet connection
3.1.13
bottom casing packoff
mechanism that seals off annular pressure between the outside diameter of a suspended tubular member or
hanger and the inside diameter of the spool or tubing head adapter placed over the suspended tubular or hanger
3.1.14
bullplug
pressure-containing closure for a female threaded end or outlet connection, which may have an internal counter
bore and/or test port
3.1.15
calibration
comparison and adjustment to a standard of known accuracy
3.1.16
carbon steel
alloy of carbon and iron containing a maximum of 2 % carbon (mass fraction), 1,65 % manganese (mass fraction),
and residual quantities of other elements, except those intentionally added in specific quantities for deoxidation
(usually silicon and/or aluminium)
3.1.17
casing
pipe run from the surface and intended to line the walls of a drilled hole
3.1.18
casing hanger mandrel
mechanism used to support a casing string in a casing head by means of a male or female thread attached to the casing
3.1.19
slip-type casing hanger
mechanism used to support a casing string in a casing head by gripping the pipe with wedge-type members
3.1.20
casing head housing
equipment attached to the uppermost end of the surface casing which serves to suspend and seal a casing string
ISO 10423:2003(E)
3.1.21
casing head spool
equipment attached to another casing head which serves to suspend and seal a secondary casing string
3.1.22
casting, noun
object at or near finished shape obtained by solidification of a fluid substance in a mould
NOTE HIP components are not considered to be a casting.
3.1.23
chemical analysis
determination of the chemical composition of material
3.1.24
choke
equipment used to restrict and control the flow of fluids
3.1.25
choke bean
flow bean
replaceable orifice part used in positive chokes to control flowrate
3.1.26
choke trim
pressure-controlling choke component, including choke beans, used to control or regulate the flow of fluids
NOTE One-piece stems, and that segment of multi-piece stems that passes through the pressure boundary, are pressure-
containing components.
3.1.27
christmas tree
assembly of equipment, including tubing head adapters, valves, tees, crosses, top connectors and chokes attached
to the uppermost connection of the tubing head, used to control well production
3.1.28
conformance
compliance with specified requirements
3.1.29
loose connector
connector, as-manufactured, not intended to be made integral with another piece of wellhead and christmas tree
equipment
EXAMPLE There are blind, threaded, spacer, welding neck, flanged, studded, or other loose connectors.
3.1.30
corrosion-resistant alloy
CRA
nonferrous-based alloy in which any one or the sum of the specified amount of the elements titanium, nickel, cobalt,
chromium, and molybdenum exceeds 50 % (mass fract
...
