Railway applications - External visible and audible warning devices for trains - Part 1: Head, marker and tail lamps

This European Standard defines the functional and technical requirements for head, marker and tail lamps for trains, including high speed and conventional rail, but excluding road, metro and self-contained systems.
This European Standard also defines the requirements for testing and conformity assessment.
Portable lamps are excluded from the scope of this European Standard.

Bahnanwendungen - Optische und akustische Warneinrichtungen für Schienenfahrzeuge - Teil 1: Fernlichter, Spitzensignale und Zugschlusssignale

Diese Europäische Norm legt die funktionellen und technischen Anforderungen an Fernlichter, Spitzensignale und Zugschlusssignale von Schienenfahrzeugen einschließlich Hochgeschwindigkeits- und konventionelle Eisenbahnfahrzeuge fest, schließt aber Straßenbahnen, U-Bahnen und netzunabhängige Systeme aus.
Diese Europäische Norm legt auch die Anforderungen für die Prüfung und Konformitätsbewertung fest.
Tragbare Leuchten sind vom Anwendungsbereich dieser Europäischen Norm ausgeschlossen.

Applications ferroviaires - Dispositifs externes d'avertissement optiques et acoustiques pour les trains - Partie 1: Signaux de face avant, signaux d'extrémité avant et signaux de face arrière

La présente Norme européenne spécifie les exigences fonctionnelles et techniques applicables aux signaux de face avant, signaux d’extrémité avant et signaux de face arrière pour les trains, y compris la grande vitesse et le rail conventionnel, mais à l’exclusion de l’urbain, du métro et des systèmes autonomes.
La présente Norme définit également les exigences relatives aux essais et à l'évaluation de la conformité.
Les lampes portatives sont exclues du domaine d’application de la présente Norme.

Železniške naprave - Zunanje vidne in zvočne opozorilne naprave za vlake - 1. del: Čelne, označevalne in sklepne luči

Ta evropski standard določa funkcionalne in tehnične zahteve za čelne, označevalne in sklepne luči za vlake, vključno z železnicami za visoke hitrosti in konvencionalnimi železnicami, pri čemer so izključeni cestni, podzemni železniški in samostojni sistemi. Ta evropski standard določa tudi zahteve za preskušanje in oceno skladnosti. Prenosne luči so izključene s področja uporabe tega evropskega standarda.

General Information

Status
Withdrawn
Publication Date
15-Jan-2013
Withdrawal Date
25-Oct-2016
Current Stage
9960 - Withdrawal effective - Withdrawal
Completion Date
26-Oct-2016

Relations

Buy Standard

Standard
EN 15153-1:2013
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Bahnanwendungen - Optische und akustische Warneinrichtungen für Schienenfahrzeuge - Teil 1: Fernlicht, Spitzensignale und ZugschlusssignaleApplications ferroviaires - Dispositifs d'avertissement optiques et acoustiques pour les trains - Partie 1: Signaux de face avant, signaux d'extrémité avant et signaux de face arrièreRailway applications - External visible and audible warning devices for trains
- Part 1: Head, marker and tail lamps93.100Gradnja železnicConstruction of railways03.220.30Železniški transportTransport by railICS:Ta slovenski standard je istoveten z:EN 15153-1:2013SIST EN 15153-1:2013en,fr01-marec-2013SIST EN 15153-1:2013SLOVENSKI
STANDARDSIST EN 15153-1:20071DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15153-1
January 2013 ICS 45.060.10 Supersedes EN 15153-1:2007English Version
Railway applications - External visible and audible warning devices for trains
- Part 1: Head, marker and tail lamps
Applications ferroviaires - Dispositifs externes d'avertissement optiques et acoustiques pour les trains - Partie 1: Signaux de face avant, signaux d'extrémité avant et signaux de face arrière
Bahnanwendungen - Optische und akustische Warneinrichtungen für Schienenfahrzeuge - Teil 1: Fernlichter, Spitzensignale und Zugschlusssignale This European Standard was approved by CEN on 27 October 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15153-1:2013: ESIST EN 15153-1:2013

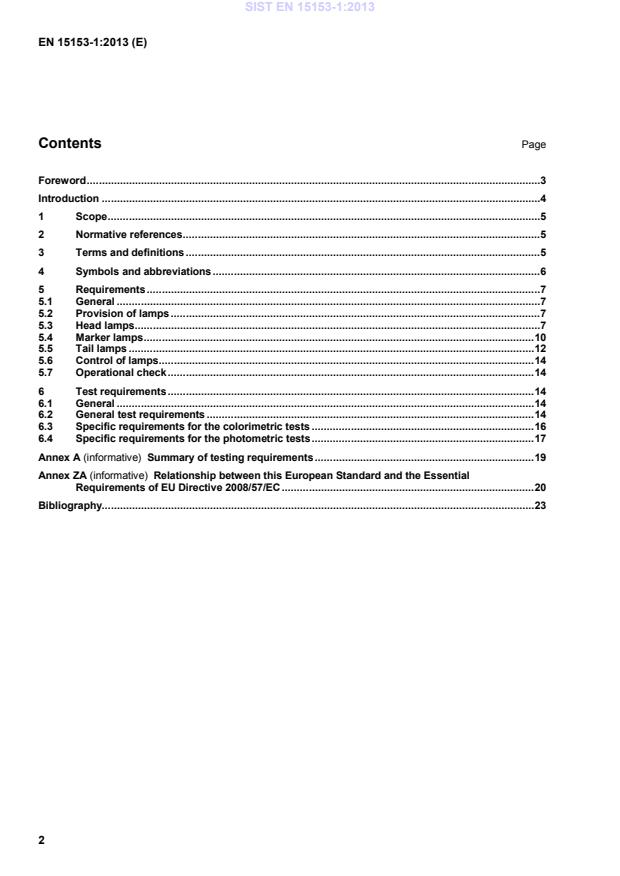

Summary of testing requirements . 19 Annex ZA (informative)
