EN ISO 15015:2007

SLOVENSKI STANDARD
01-februar-2008
3ROLPHUQLPDWHULDOL(NVWUXGLUDQHSORãþHL]PRGLILFLUDQLKDNULORQLWULOVWLUHQVNLK
NRSROLPHURY$%6$(3'6LQ$6$RGSRUQLKSURWLXGDUFHP=DKWHYHLQ
SUHVNXVQHPHWRGH,62
Plastics - Extruded sheets of impact-modified acrylonitrile-styrene copolymers (ABS,
AEPDS and ASA) - Requirements and test methods (ISO 15015:2007)
Kunststoffe - Extrudierte Tafeln aus schlagzäh-modifizierten Acrylnitril/Styrol-
Copolymeren (ABS, AEPDS oder ASA) - Anforderungen und Prüfverfahren (ISO
15015:2007)
Plastiques - Plaques extrudées en copolymeres d'acrylonitrile-styrene modifiés choc
(ABS, AEPDS ou ASA) - Exigences et méthodes d'essai (ISO 15015:2007)
Ta slovenski standard je istoveten z: EN ISO 15015:2007
ICS:
83.140.10
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 15015
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2007
ICS 83.140.10
English Version
Plastics - Extruded sheets of impact-modified acrylonitrile-
styrene copolymers (ABS, AEPDS and ASA) - Requirements
and test methods (ISO 15015:2007)
Plastiques - Plaques extrudées en copolymères Kunststoffe - Extrudierte Tafeln aus schlagzäh-
d'acrylonitrile-styrène modifiés choc (ABS, AEPDS ou ASA) modifizierten Acrylnitril/Styrol-Copolymeren (ABS, AEPDS
- Exigences et méthodes d'essai (ISO 15015:2007) oder ASA) - Anforderungen und Prüfverfahren (ISO
15015:2007)
This European Standard was approved by CEN on 13 September 2007.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2007 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 15015:2007: E
worldwide for CEN national Members.

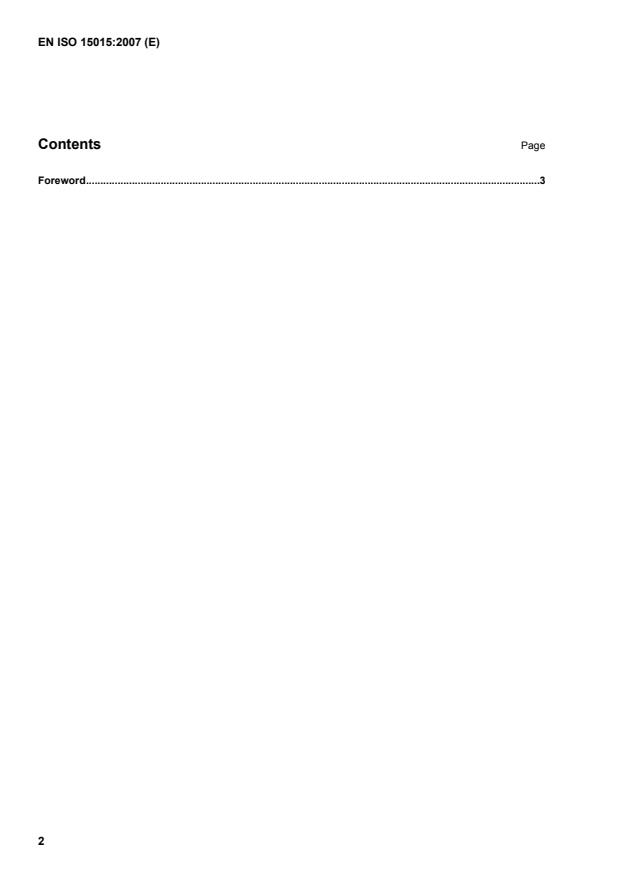

Contents Page
Foreword.3

Foreword
This document (EN ISO 15015:2007) has been prepared by Technical Committee ISO/TC 61 "Plastics" in
collaboration with Technical Committee CEN/TC 249 “Plastics” the secretariat of which is held by NBN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2008, and conflicting national standards shall be withdrawn at the
latest by April 2008.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
Endorsement notice
The text of ISO 15015:2007 has been approved by CEN as a EN ISO 15015:2007 without any modification.

INTERNATIONAL ISO
STANDARD 15015
First edition
2007-10-01
Plastics — Extruded sheets of impact-
modified acrylonitrile-styrene copolymers
(ABS, AEPDS and ASA) — Requirements
and test methods
Plastiques — Plaques extrudées en copolymères d'acrylonitrile-styrène
modifiés choc (ABS, AEPDS ou ASA) — Exigences et méthodes
d'essai
Reference number
ISO 15015:2007(E)
©
ISO 2007
ISO 15015:2007(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2007
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2007 – All rights reserved

ISO 15015:2007(E)
Contents Page
Foreword. iv
1 Scope .1
2 Normative references .1
3 Material .2
4 Requirements.2
4.1 Appearance .2
4.2 Dimensional tolerances .2
4.3 Properties .3
5 Test methods.4
5.1 Test specimens.4
5.2 Delivery condition.5
5.3 Appearance .5
5.4 Dimensions.5
5.5 Density .6
5.6 Mechanical properties.6
5.7 Thermal properties .6
6 Designation .8
6.1 Example for ABS sheets .8
6.2 Example for ASA sheets in rolled form .8
7 Marking .9
Annex A (informative) Additional guide values.10
Bibliography .11

ISO 15015:2007(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 15015 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 11, Products, in
collaboration with Technical Committee CEN/TC 249, Plastics, of the European Committee for
Standardization (CEN).
iv © ISO 2007 – All rights reserved

INTERNATIONAL STANDARD ISO 15015:2007(E)

Plastics — Extruded sheets of impact-modified acrylonitrile-
styrene copolymers (ABS, AEPDS and ASA) — Requirements
and test methods
1 Scope
This International Standard specifies the requirements and test methods for solid flat extruded sheets of
impact-modified acrylonitrile-styrene copolymer materials: acrylonitrile-butadiene-styrene (ABS), acrylonitrile-
(ethylene-propylene-diene)-styrene (AEPDS) (commonly known as AES) and acrylonitrile-styrene-acrylate
(ASA), without fillers or reinforcing materials. This International Standard also applies to ABS, AEPDS and
ASA sheet in rolled form. It applies only to thicknesses from 0,25 mm to 20,0 mm.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 179-1, Plastics — Determination of Charpy impact properties — Part 1: Non-instrumented impact test
ISO 179-2, Plastics — Determination of Charpy impact properties — Part 2: Instrumented impact test
ISO 291, Plastics — Standard atmospheres for conditioning and testing
ISO 306:2004, Plastics — Thermoplastic materials — Determination of Vicat softening temperature (VST)
ISO 527-2, Plastics — Determination of tensile properties — Part 2: Test conditions for moulding and
extrusion plastics
ISO 1183 (all parts), Plastics — Methods for determining the density of non-cellular plastics
ISO 2039-1, Plastics — Determination of hardness — Part 1: Ball indentation method
ISO 2818, Plastics — Preparation of test specimens by machining
ISO 2580-1, Plastics — Acrylonitrile-butadiene-styrene (ABS) moulding and extrusion materials — Part 1:
Designation system and basis for specifications
ISO 6402-1, Plastics — Acrylonitrile-styrene-acrylate (ASA), acrylonitrile-(ethylene-propylene-diene)-styrene
(AEPDS) and acrylonitrile-(chlorinated polyethylene)-styrene (ACS) moulding and extrusion materials —
Part 1: Designation system and basis for specifications
ISO 6603-1:2000, Plastics — Determination of puncture impact behaviour of rigid plastics — Part 1:
Non-instrumented impact testing
ISO 11501, Plastics — Film and sheeting — Determination of dimensional change on heating
ISO 15015:2007(E)
3 Material
Sheets shall be made of either ABS extrusion materials as defined in ISO 2580-1 or AEPDS (AES) or ASA
extrusion materials as defined in ISO 6402-1, without fillers or reinforcing materials. The extrusion materials
can contain additives such as processing aids, stabilizers, flame-protective agents and colorants. Compounds
and additives of unknown identity shall not be used.
NOTE Legal conditions may necessitate a specific choice of extrusion material (see 4.3.3).
4 Requirements
4.1 Appearance
Sheets shall be substantially free from bubbles, voids, cracks, visible impurities and other defects which would
make them unfit for the intended use. Surfaces shall be substantially smooth, if not embossed, and free from
grooves, sink marks or damage. Colorants shall be homogeneously distributed throughout the material. Slight
colour variations due to variations in the extrusion compound or processing conditions ar
...
