EN 3155-061:2006
(Main)Aerospace series - Electrical contacts used in elements of connection - Part 061: Contacts, electrical, coaxial, size 12, female, type D, solder, class R Product standard
Aerospace series - Electrical contacts used in elements of connection - Part 061: Contacts, electrical, coaxial, size 12, female, type D, solder, class R Product standard
This standard specifies the required characteristics, tests and tooling applicable to size 12, female coaxial, electrical contacts, type D, solder, class R, used in elements of connection according to EN 3155-002.
It shall be used together with EN 3155-001.
The associated male contacts are defined in EN 3155-060.
Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 061: Elektrische koaxiale Buchsenkontakte Größe 12,Typ D, zum Löten, Klasse R - Produktnorm
Diese Norm legt die Anforderungen, Prüfungen und Werkzeuge für elektrische koaxiale Buchsenkontakte, Größe 12, Typ D, zum Löten, Klasse R, zur Verwendung in elektrischen Verbindungselementen nach EN 3155 002 fest.
Sie ist in Verbindung mit EN 3155 001 anzuwenden.
Die zugehörigen Stiftkontakte sind in EN 3155 060 festgelegt.
Série aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 061 : Contacts, électriques, coaxiaux, taille 12, femelle, type D, à souder, class R - Norme de produit
Aeronavtika - Električni kontakti za uporabo v veznih elementih - 061. del: Kontakti, električni, koaksialni, velikost 12, ženski, tip D, za spajkanje, razred R - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 11-Jul-2006
- Withdrawal Date
- 30-Jan-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3155-061:2006 is a CEN product standard in the Aerospace series that defines the requirements for size 12, female, coaxial electrical contacts, type D, solder, class R. It applies to contacts used in elements of connection per EN 3155-002 and is intended to be used together with EN 3155-001 (technical specification). The contacts are derived from MIL-C-39029 series and are intermateable with MIL-C-39029/75.
Key Topics
- Scope & intermateability: Size 12 coaxial female (type D) solder contacts, class R (operating range −65 °C to 150 °C).
- Dimensions & mass: Detailed dimensions provided (see Figure 1 in the standard); maximum contact mass 1.45 g.
- Materials & coatings:
- Body: copper alloy
- Protective coating: gold over appropriate undercoat for copper alloy
- Dielectric: ETFE fluoropolymer
- Heat-shrink tubing: radiation-crosslinked PVDF
- Solder rings: Sn63 per QQ‑S‑571
- Permissible cables & assembly:
- Cable dimensional limits specified (jacket, shield, dielectric, conductor)
- Permissible cable codes (e.g., XE, XY, WL per TR 6058)
- Stripping and wiring figures and three cable-preparation methods (straight shield, fold-back shield, small-dielectric workaround)
- Assembly requires heating until solder flows; tooling and positioner details provided
- Tooling:
- Termination tooling: hot-air generator ≥800 W with heating zone ~420 ± 20 °C
- Insertion/extraction tools referenced to MIL‑I‑81969 series
- Testing requirements (based on EN 2591 methods):
- Electrical: low-level and rated-current contact resistance limits, capacitance, shielding effectiveness, discontinuity ≤100 ns during mechanical tests
- Environmental: temperature endurance (1 000 h at 150 °C), rapid temperature change, salt mist, fluid resistance (fuel, hydraulic fluids, lubricants, de‑icing, cleaning agents)
- Mechanical: shock, sinusoidal/random vibration, tensile, bending, insertion/extraction force gauges
Applications
- Designed for aerospace and defense connectors where coaxial signal integrity and screening are critical (avionics, RF interconnects, harness assemblies).
- Primary users: connector manufacturers, cable/harness assemblers, aerospace electrical designers, procurement specialists, test & quality engineers, and maintenance/repair organizations.
- Typical uses: mating with EN 3155-060 (male contacts), installation in MIL‑style connectors, and in systems requiring rigorous environmental and mechanical qualification.
Related Standards
- EN 3155-001 (Technical specification)
- EN 3155-002 (List and utilization of contacts)
- EN 3155-060 (Size 12 male, type D)
- EN 2591 (Aerospace test methods)
- MIL standards cited (e.g., MIL‑C‑39029 series, MIL‑I‑81969 tooling)
This standard is essential for ensuring consistent performance, testability and interchangeability of size‑12 coaxial female solder contacts in aerospace electrical connection systems.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3155-061:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical contacts used in elements of connection - Part 061: Contacts, electrical, coaxial, size 12, female, type D, solder, class R Product standard". This standard covers: This standard specifies the required characteristics, tests and tooling applicable to size 12, female coaxial, electrical contacts, type D, solder, class R, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated male contacts are defined in EN 3155-060.
This standard specifies the required characteristics, tests and tooling applicable to size 12, female coaxial, electrical contacts, type D, solder, class R, used in elements of connection according to EN 3155-002. It shall be used together with EN 3155-001. The associated male contacts are defined in EN 3155-060.
EN 3155-061:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3155-061:2006 has the following relationships with other standards: It is inter standard links to EN 2591-708:2001, EN 2591-6318:2001, EN 2591-416:2001, EN 2591-401:1996, EN 2591-407:1999, EN 2591-427:2001, EN 2591-6301:2001, EN 2591-508:2023, EN 2591-502:2001, EN 2591-409:1999, EN 2591-312:1997, EN 2591-6406:2001, EN 2591-208:1996, EN 2591-503:2001, EN 2591-301:1996. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3155-061:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

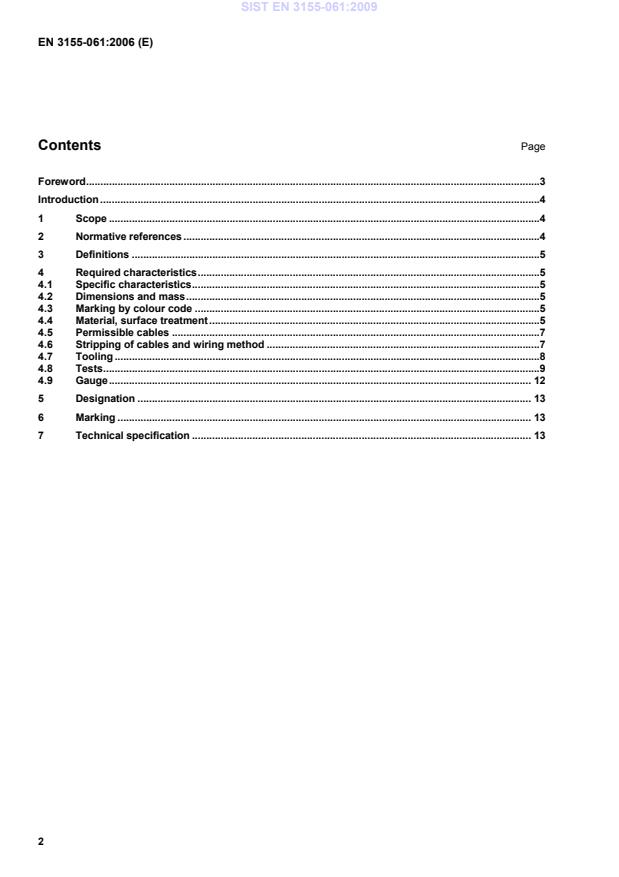

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische Kontakte zur Verwendung in Verbindungselementen - Teil 061: Elektrische koaxiale Buchsenkontakte Größe 12,Typ D, zum Löten, Klasse R - ProduktnormSérie aérospatiale - Contacts électriques utilisés dans les organes de connexion - Partie 061 : Contacts, électriques, coaxiaux, taille 12, femelle, type D, à souder, class R - Norme de produitAerospace series - Electrical contacts used in elements of connection - Part 061: Contacts, electrical, coaxial, size 12, female, type D, solder, class R - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3155-061:2006SIST EN 3155-061:2009en01-januar-2009SIST EN 3155-061:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3155-061July 2006ICS 49.060 English VersionAerospace series - Electrical contacts used in elements ofconnection - Part 061: Contacts, electrical, coaxial, size 12,female, type D, solder, class R Product standardSérie aérospatiale - Contacts électriques utilisés dans lesorganes de connexion - Partie 061 : Contacts, électriques,coaxiaux, taille 12, femelle, type D, à souder, class R -Norme de produitLuft- und Raumfahrt - Elektrische Kontakte zur Verwendungin Verbindungselementen - Teil 061: Elektrische KoaxialBuchsenkontakte Größe 12,Typ D, zum Löten, Klasse R -ProduktnormThis European Standard was approved by CEN on 9 March 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3155-061:2006: ESIST EN 3155-061:2009
...
