EN 13451-3:2011+A3:2016

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Oprema za plavalne bazene - 3. del: Dodatne posebne varnostne zahteve in preskusne metode za bazenski pribor za pripravo vodeSchwimmbadgeräte - Teil 3: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Ein- und Ausläufe sowie Wasser-LuftattraktionenÉquipement de piscine - Partie 3: Exigences de sécurité et méthodes d'essai complémentaires propres aux pièces d'aspiration et de refoulement et aux équipements de loisirs aquatiques disposant d'introduction et d’extraction d'eau/d’airSwimming pool equipment - Part 3: Additional specific safety requirements and test methods for inlets and outlets and water/air based water leisure features97.220.10Športni objektiSports facilitiesICS:Ta slovenski standard je istoveten z:EN 13451-3:2011+A3:2016SIST EN 13451-3:2011+A3:2016en,fr,de01-maj-2016SIST EN 13451-3:2011+A3:2016SLOVENSKI
STANDARDSIST EN 13451-3:2011+A2:20141DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13451-3:2011+A3
February 2016 ICS 97.220.10 Supersedes EN 13451-3:2011+A2:2014
English Version
Swimming pool equipment - Part 3: Additional specific safety requirements and test methods for inlets and outlets and water/air based water leisure features
Équipement de piscine - Partie 3: Exigences de sécurité et méthodes d'essai complémentaires propres aux pièces d'aspiration et de refoulement et aux équipements de loisirs aquatiques disposant d'introduction et d'extraction d'eau/d'air
Schwimmbadgeräte - Teil 3: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Ein- und Ausläufe sowie Wasser-Luftattraktionen This European Standard was approved by CEN on 29 July 2011 and includes Amendment 1 approved by CEN on 14 June 2013, Amendment 2 approved by CEN on 6 March 2014 and Amendment 3 approved by CEN on 14 December 2015.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2016 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13451-3:2011+A3:2016 E SIST EN 13451-3:2011+A3:2016

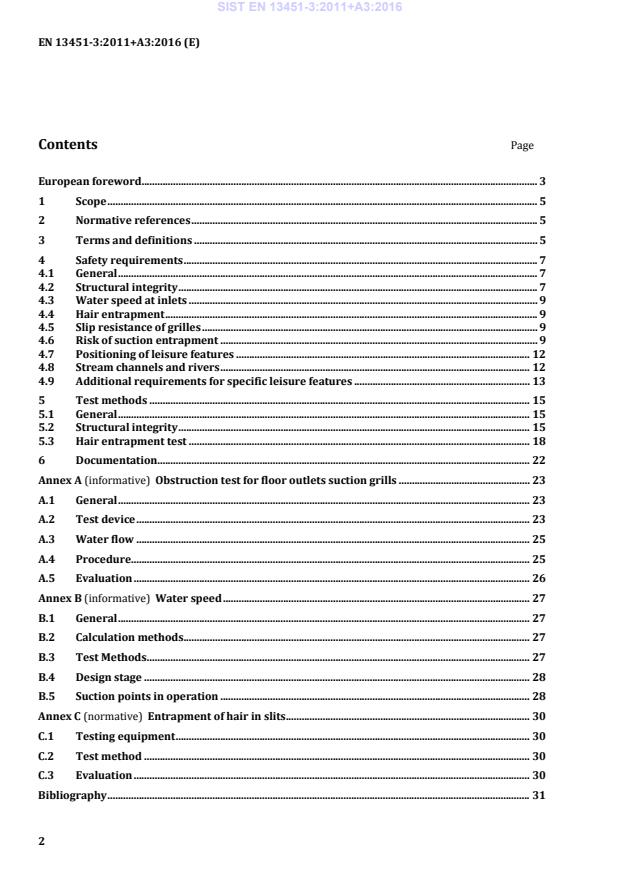

Obstruction test for floor outlets suction grills . 23 A.1 General . 23 A.2 Test device . 23 A.3 Water flow . 25 A.4 Procedure. 25 A.5 Evaluation . 26 Annex B (informative)
Water speed . 27 B.1 General . 27 B.2 Calculation methods . 27 B.3 Test Methods . 27 B.4 Design stage . 28 B.5 Suction points in operation . 28 Annex C (normative)
Entrapment of hair in slits . 30 C.1 Testing equipment . 30 C.2 Test method . 30 C.3 Evaluation . 30 Bibliography . 31 SIST EN 13451-3:2011+A3:2016

European foreword This document (EN 13451-3:2011+A3:2016) has been prepared by Technical Committee CEN/TC 136 “Sports, playground and other recreational facilities and equipment”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by August 2016, and conflicting national standards shall be withdrawn at the latest by August 2016. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document includes Amendment 1, approved by CEN on 2013-06-14, Amendment 2, approved by CEN on 2014-03-06 and Amendment 3, approved by CEN on 2015-12-14. This document supersedes %EN 13451-3:2011+A2:2014&. The start and finish of text introduced or altered by amendment is indicated in the text by tags
!", #$ and %&. The European Standard EN 13451 Swimming pool equipment consists of: — Part 1: General safety requirements and test methods; — Part 2: Additional specific safety requirements and test methods for ladders, stepladders and handle bends; — Part 3: Additional specific safety requirements and test methods for inlets and outlets and water/air based water leisure features; — Part 4: Additional specific safety requirements and test methods for starting platforms; — Part 5: Additional specific safety requirements and test methods for lane lines; — Part 6: Additional specific safety requirements and test methods for turning boards; — Part 7: Additional specific safety requirements and test methods for water polo goals; — Part 10: Additional specific safety requirements and test methods for diving platforms, diving springboards and associated equipment; — Part 11: Additional specific safety requirements and test methods for moveable pool floors and moveable bulkheads. %deleted text& According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, SIST EN 13451-3:2011+A3:2016

¶ 15 m/s, except for vertical injection from the swimming pool floor in water depth <
y r r mmá where it shall be
¶ 2 m/s. NOTE Typical values of water speed are: — inlet for circulation for water treatment purposesã
¶ 4 m/s; — water leisure features (e. g.
15 m/s For water speed test see Annex B. 4.4 Hair entrapment Wall water outlets and floor water outlets shall pass the hair entrapment test in accordance with 5.3. 4.5 Slip resistance of grilles Slip resistance of any walkable grilles shall comply with the requirements in accordance with
EN 13451-1:2011, Table 1. 4.6 Risk of suction entrapment 4.6.1 General Suction devices shall be designed and installed so as to reduce the potential for entrapment of the user. Water speed at outlets shall be
¶ 0,5 m/s. #Additionally at least one of the either a), b) or c) shall be met: a) multiple suction outlet system designed in such a way that:$ 1) a minimum of two functioning suction outlets per pump are installed; 2) the distance between the nearest points of the perimeters of the devices is
· 2 m; 3) if any one of the suction outlets becomes blocked, the flow through the remaining suction outlet/s shall accommodate 100 % of the flow rate. b) #in case of suction outlet systems with only one grille, the grille shall be designed in such a way that either$ 1) one user can not cover more than 50 % of the opening; #or$ 2) raised grilles domed opposite to the flow direction, with prevalent peripheric suction. The height of the dome shall be at least 10 % of the main dimension. Obstruction test are available (for an example see Annex A); #or$ SIST EN 13451-3:2011+A3:2016

· 1 m² (see Figure 1).
Figure 1 — Identification of the area circumscribed to the suction openings c) a gravity feed tank. NOTE 1 Frequency of testing should be determined by risk assessment. When retrofitting existing installations that have a single suction outlet which does not comply with the requirements of this clause, then the following actions are required: — the existing suction outlet shall be retrofitted with a grille conforming to b), or; — one or more additional suction outlets shall be provided as in a) !." !deleted text" In addition to the requirements in a) to c), a vacuum release system may be provided. Vacuum release systems typically respond to a blockage of a single outlet by: — releasing the vacuum by turning the pump off; — drawing water out of a vent tube to allow air into the suction system; — mechanically operating valves to reverse flow through the suction outlet(s); — opening a valve to atmosphere to cause a pump to lose prime. All vacuum release systems shall be tested on outlets which meet the structural integrity and design requirements for grilles given earlier in this standard. NOTE 2 These devices/systems are not considered “fail safe” systems as there is no known suction vacuum release system that will completely protect against all outlet entrapment hazards. Presenting Vacuum Release Systems as “fail safe” systems would promote a false sense of security among the users of these devices/systems. Safety requirements a) to c) are not applicable to: — skimmers, because they are vented (see 4.6.3) and partly above the water level; — integrated swim jet systems, because the users are pushed away from the outlet by the action of the inlet. NOTE 3 It is recommended to install at the deck an accessible general emergency switch for the pumps level. SIST EN 13451-3:2011+A3:2016

Key a indicates suggested sump configuration D inside diameter of the pipe Dmin dimension
· D Figure 2 — Samples of sumps 4.6.3 Skimmers Skimmers shall be effectively vented to atmosphere through openings in the lid (see Figure 3), or through a separate vent pipe.
Key 1 vent trough lid Figure 3 — Skimmer, vent through lid Skimmers shall fulfil all the general entrapment requirements in accordance with EN 13451-1; otherwise they shall be subjected to a specific risk assessment. SIST EN 13451-3:2011+A3:2016

¶ 30 kPa. For water speed test see Annex B. 4.7.3 Influence of features on the users The introduction of water and/or air under pressure shall not compromise the safety of the users (e.g. by impact against obstacles or the pool wall). Features shall not operate at full pressure immediately; they shall build up to their full pressure over a period of time, sufficient for the users to become aware. 4.8 Stream channels and rivers 4.8.1 General The speed of the water and the path of stream shall not compromise the safety of a user entering or exiting the feature. The feature shall be designed to avoid unintentional collisions, which can cause hazards for the users. NOTE The different body masses and buoyancy of users should be considered as they can affect the action of any particular feature. The average speed of the water in the cross section of the stream channel shall be
¶ 3,5 m/s. The water depth in a stream channel shall be between 600 mm and 1 350 mm. The need of supervision of a stream channel shall be considered by a risk assessment according to EN 15288-1. 4.8.2 Other swimming pool components installed in a stream channel To prevent risks of impact and/or entrapment caused by involuntary movement of the users, special attention shall be paid to t
...
