EN 13451-10:2014

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Schwimmbadgeräte - Teil 10: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Sprungplattformen, Sprungbretter und zugehörige GeräteÉquipement de piscines - Partie 10: Exigences de sécurité et méthodes d'essai complémentaires propres aux plates-formes de plongeon, plongeoirs et à l'équipement associéSwimming pool equipment - Part 10: Additional specific safety requirements and test methods for diving platforms, diving springboards and associated equipment97.220.10Športni objektiSports facilitiesICS:Ta slovenski standard je istoveten z:EN 13451-10:2014SIST EN 13451-10:2014en,fr,de01-marec-2014SIST EN 13451-10:2014SLOVENSKI
STANDARDSIST EN 13451-10:20041DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13451-10
January 2014 ICS 97.220.10 Supersedes EN 13451-10:2004English Version
Swimming pool equipment - Part 10: Additional specific safety requirements and test methods for diving platforms, diving springboards and associated equipment
Équipement de piscine - Partie 10: Exigences de sécurité et méthodes d'essai complémentaires propres aux plates-formes de plongeon, plongeoirs et à l'équipement associé Schwimmbadgeräte - Teil 10: Zusätzliche besondere sicherheitstechnische Anforderungen und Prüfverfahren für Sprungplattformen, Sprungbretter und zugehörige Geräte This European Standard was approved by CEN on 6 December 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13451-10:2014 ESIST EN 13451-10:2014

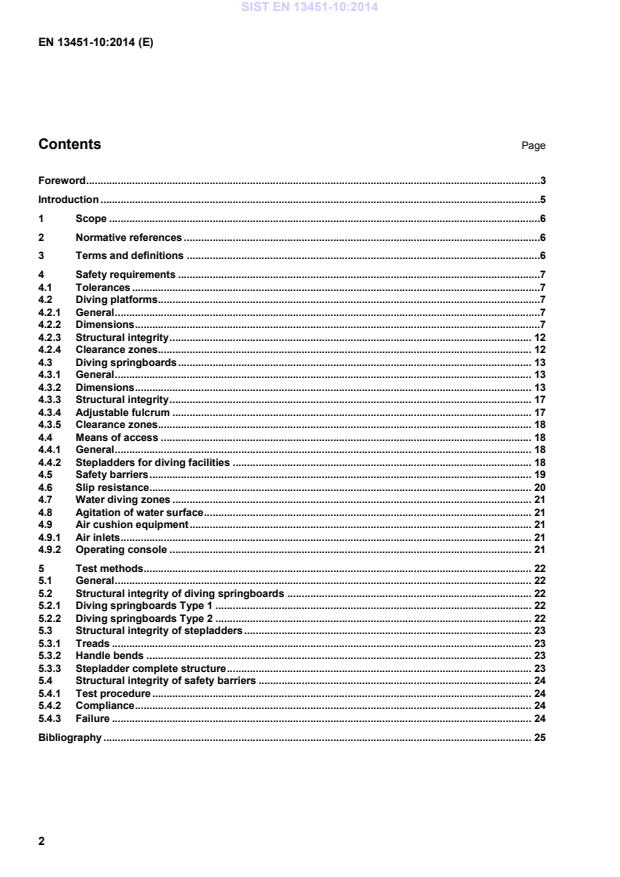

Foreword .3 Introduction .5 1 Scope .6 2 Normative references .6 3 Terms and definitions .6 4 Safety requirements .7 4.1 Tolerances .7 4.2 Diving platforms.7 4.2.1 General .7 4.2.2 Dimensions .7 4.2.3 Structural integrity . 12 4.2.4 Clearance zones. 12 4.3 Diving springboards . 13 4.3.1 General . 13 4.3.2 Dimensions . 13 4.3.3 Structural integrity . 17 4.3.4 Adjustable fulcrum . 17 4.3.5 Clearance zones. 18 4.4 Means of access . 18 4.4.1 General . 18 4.4.2 Stepladders for diving facilities . 18 4.5 Safety barriers . 19 4.6 Slip resistance . 20 4.7 Water diving zones . 21 4.8 Agitation of water surface . 21 4.9 Air cushion equipment . 21 4.9.1 Air inlets . 21 4.9.2 Operating console . 21 5 Test methods . 22 5.1 General . 22 5.2 Structural integrity of diving springboards . 22 5.2.1 Diving springboards Type 1 . 22 5.2.2 Diving springboards Type 2 . 22 5.3 Structural integrity of stepladders . 23 5.3.1 Treads . 23 5.3.2 Handle bends . 23 5.3.3 Stepladder complete structure . 23 5.4 Structural integrity of safety barriers . 24 5.4.1 Test procedure . 24 5.4.2 Compliance . 24 5.4.3 Failure . 24 Bibliography . 25
from water level Minimum usable width Length reserved for the diver a 1 0,60 0,75 3 0,60 1,25 5 1,50 1,25 7,5 1,50 1,50 10 3,00 1,50 a Minimum distance back from plummet. NOTE 1 In addition to the length reserved for the diver (minimum distance back from plummet), additional space can be necessary for other purposes, as wider range of dives (e.g. dives with preliminary run), space for waiting for the dive, space for divers passing to the next platform. SIST EN 13451-10:2014

from water level 1 m 3 m 5 m 7,5 m 10 m horizontal vertical horizontal vertical horizontal vertical horizontal vertical horizontal vertical A From plummet back to pool wall 0,75 — 1,25 — 1,25
1,50 — 1,50 — A/Aa From plummet back to platform plummet vertically below — — — — 0,75 — 0,75 — 0,75 — B From plummet to pool wall at side 2,30 — 2,80 — 3,25 — 4,25 — 5,25 — Cb From plummet to adjacent plummet 1,65 — 2,00 — 2,25 — 2,50 — 2,75 — D From plummet to pool wall ahead 8,00 — 9,50 — 10,25 — 11,00 — 13,50 — E From plummet, on board to ceiling — 3,25 — 3,25 — 3,25 — 3,25 — 4,00 F Clear overhead behind and each side of plummet 2,75 3,25 2,75 3,25 2,75 3,25 2,75 3,25 2,75 4,00 G Clear overhead ahead of plummet 5,00 3,25 5,00 3,25 5,00 3,25 5,00 3,25 6,00 4,00 H Depth of water at plummet — 3,20 — 3,50 — 3,70 — 4,10 — 4,50 J/K Distance and depth ahead of plummet 4,50 3,10 5,50 3,40 6,00 3,60 8,00 4,00 11,00 4,25 L/M Distance and depth each side of plummet 1,40 3,10 1,80 3,40 3,00 3,60 3,75 4,00 4,50 4,25 N Maximum slope to reduce dimensions beyond full requirements pool depth 30° NOTE The dimension C applies also to combinations of platform and spring board (e.g. 5 m platform combined with a 3 m spring board). ceiling 30° a If a platform is vertically below another platform the dimension E shall be applied. b Dimensions C apply to platfor
...
