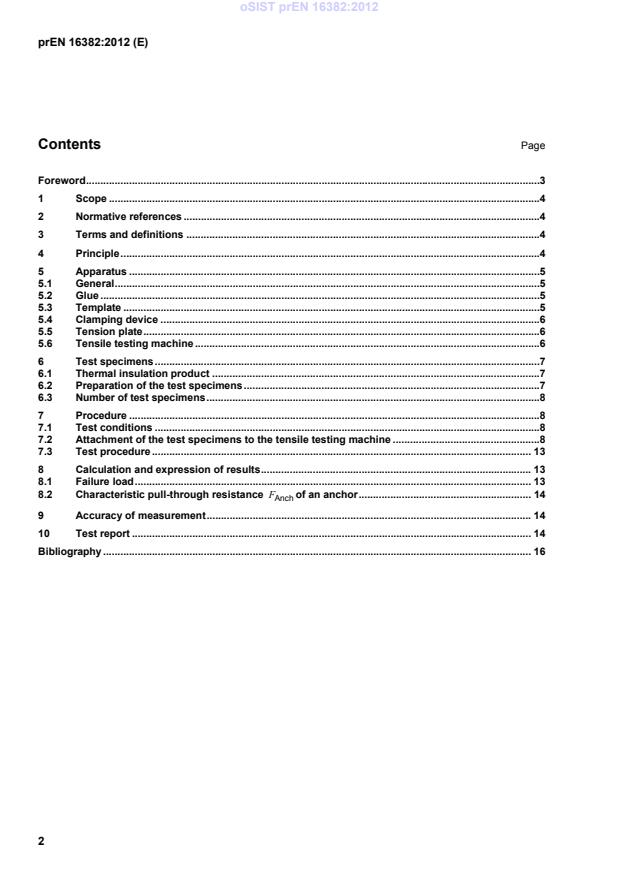

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 Principle .4
5 Apparatus .5
5.1 General .5
5.2 Glue .5
5.3 Template .5
5.4 Clamping device .6
5.5 Tension plate .6
5.6 Tensile testing machine .6
6 Test specimens .7
6.1 Thermal insulation product .7
6.2 Preparation of the test specimens .7
6.3 Number of test specimens .8
7 Procedure .8
7.1 Test conditions .8
7.2 Attachment of the test specimens to the tensile testing machine .8
7.3 Test procedure . 13
8 Calculation and expression of results . 13
8.1 Failure load . 13
8.2 Characteristic pull-through resistance F of an anchor . 14
Anch
9 Accuracy of measurement . 14
10 Test report . 14
Bibliography . 16

Foreword
This document (prEN 16382:2012) has been prepared by Technical Committee CEN/TC 88 “Thermal
insulating materials and products”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
1 Scope
This document specifies equipment and procedures for determining the pull-trough resistance of anchors
through thermal insulation products.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 206-1, Concrete — Part 1: Specification, performance, production and conformity
EN 823, Thermal insulating products for building applications — Determination of thickness
EN 1607, Thermal insulating products for building applications — Determination of tensile strength
perpendicular to faces
EN 12089, Thermal insulating products for building applications — Determination of bending behaviour
EN ISO 9229, Thermal insulation — Vocabulary (ISO 9229)
ISO 12491:1997, Statistical methods for quality control of building materials and components
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 9229 and the following apply.
3.1
external thermal insulation composite system (ETICS)
system of factory-made products, delivered as a kit from the manufacturer and applied on site
NOTE It is comprised of the following components, specifically designed for use with the substrate:
 an adhesive and/or mechanical fixing device;
 a thermal insulation product;
 one or more layers of base coat, where at least one layer contains a reinforcement;
 a finishing material.
4 Principle
The pull-through resistance of anchors through thermal insulation products is determined by a direct tensile
load perpendicular to the surface of the thermal insulation product. The tensile load is applied by means of a
tension plate glued to the test area of the thermal insulation products.
5 Apparatus
5.1 General
The anchor to be tested is pulled through the thermal insulation product. The edges of the thermal insulation
product are fixed so by using a template with circular opening and clamps that they cannot get out of place
and twist during pulling through of the anchor. The tension load is introduced to the thermal insulation product
by a circular tension plate which fits into the circular opening of the template. The anchoring area of the
anchor is fixed by a suitable device.
5.2 Glue
The glue shall be suitable for surfaces of the thermal insulation product and for timber (e. g. solvent-free
epoxy adhesive or polyurethane adhesive). The glue shall not damage the thermal insulation material or the
anchors and not influence the results.
5.3 Template
The square templates (see Key 2 in Figure 3) are to choose so that they do not influence the results by
deformation. Suitable are e.g. glued wood plates of at least 20 mm thickness or steel plates of at least 7 mm
thickness. The circular recess is to choose so that for the anchor plate and thermal insulation product
thickness used the breakout cone is at each place at least 50 mm remote from the edge of the circular recess
of the template.
The distance of the circular recess from the edge of the template should be at least 25 mm.
The specimen of the thermal insulation product shall be at least as large as the outer dimensions of the
template.
NOTE 1 The diameter of the circular recess in the template, d , can be calculated from the diameter of the anchor plate
S
d , the thickness of the thermal insulation product t and the thermal insulation product variable m as follows:
P I
d = d + m × t. The constant m is a value that depends on the breaking appearance of the thermal insulation product.
S P I
Experience shows that the circular recess for anchor plates of 60 mm diameter and a thermal insulation product thickness
of 60 mm should be at least 300 mm, and the outer dimensions of the template should be 350 mm.
NOTE 2 The dimension of m should be given by a minimum distance of 25 mm between the breaking cone and the
circular recess of the template (see Figure 1).
Dimensions in millimetres
Key
F tensile load
NOTE This is one of possible modes of failure.
Figure 1 — Schematic presentation of the failure of the insulation product with a breaking cone
5.4 Clamping device
The clamping devices serve for the fixation of the thermal insulation product between the templates. For each
edge of the template at least 2 clamps should be used so that shifting and twisting of the thermal insulation
products at
...
