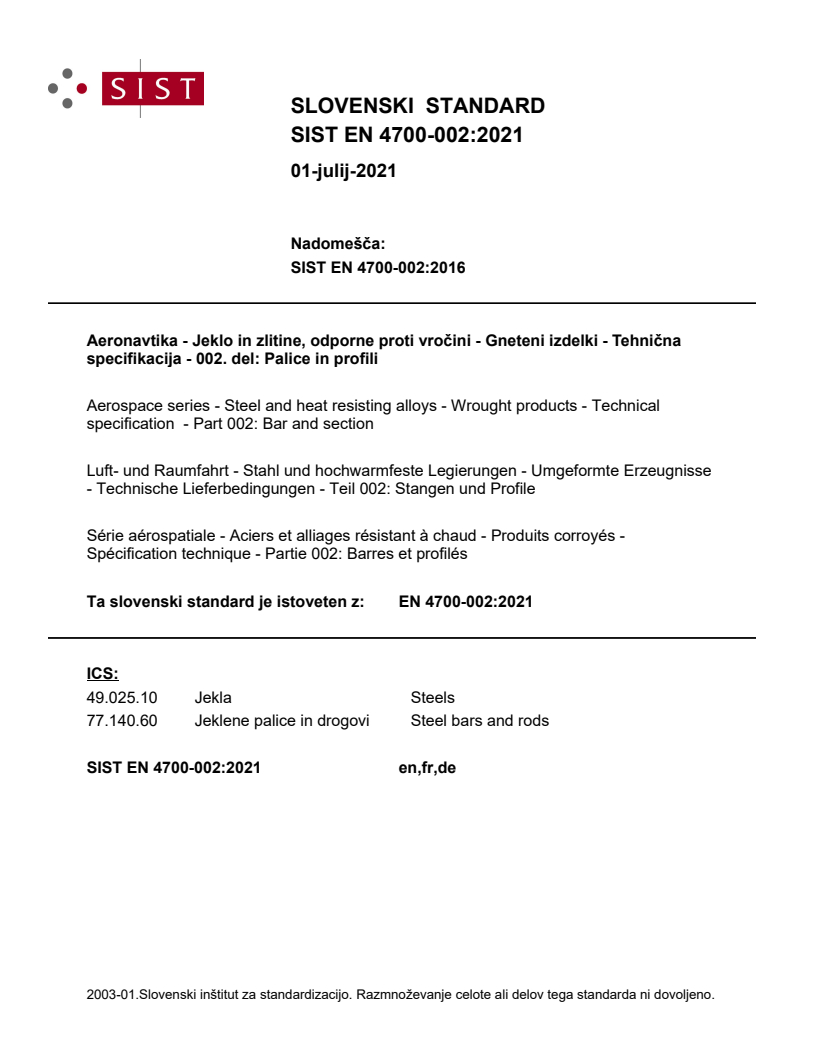

EN 4700-002:2021

SLOVENSKI STANDARD
01-julij-2021
Nadomešča:
SIST EN 4700-002:2016
Aeronavtika - Jeklo in zlitine, odporne proti vročini - Gneteni izdelki - Tehnična
specifikacija - 002. del: Palice in profili
Aerospace series - Steel and heat resisting alloys - Wrought products - Technical
specification - Part 002: Bar and section
Luft- und Raumfahrt - Stahl und hochwarmfeste Legierungen - Umgeformte Erzeugnisse
- Technische Lieferbedingungen - Teil 002: Stangen und Profile
Série aérospatiale - Aciers et alliages résistant à chaud - Produits corroyés -
Spécification technique - Partie 002: Barres et profilés
Ta slovenski standard je istoveten z: EN 4700-002:2021
ICS:
49.025.10 Jekla Steels
77.140.60 Jeklene palice in drogovi Steel bars and rods
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

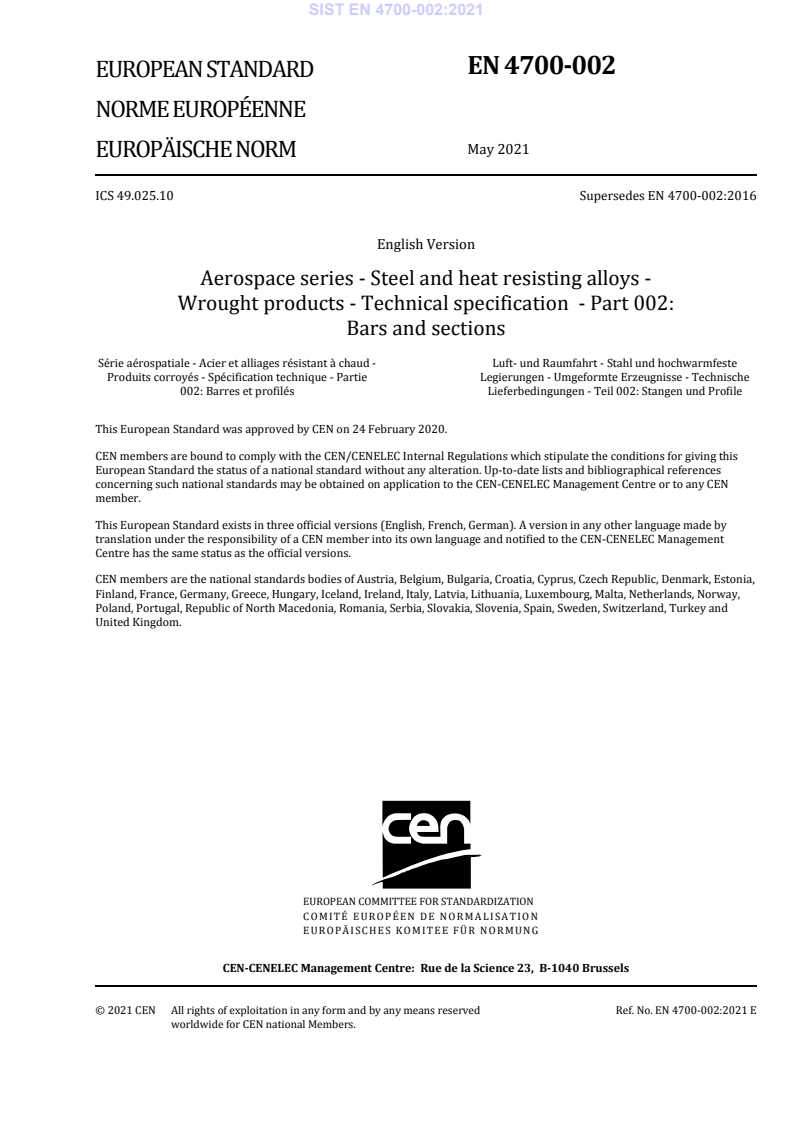

EN 4700-002
EUROPEAN STANDARD
NORME EUROPÉENNE
May 2021
EUROPÄISCHE NORM
ICS 49.025.10 Supersedes EN 4700-002:2016
English Version
Aerospace series - Steel and heat resisting alloys -
Wrought products - Technical specification - Part 002:
Bars and sections
Série aérospatiale - Acier et alliages résistant à chaud - Luft- und Raumfahrt - Stahl und hochwarmfeste
Produits corroyés - Spécification technique - Partie Legierungen - Umgeformte Erzeugnisse - Technische
002: Barres et profilés Lieferbedingungen - Teil 002: Stangen und Profile
This European Standard was approved by CEN on 24 February 2020.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4700-002:2021 E
worldwide for CEN national Members.

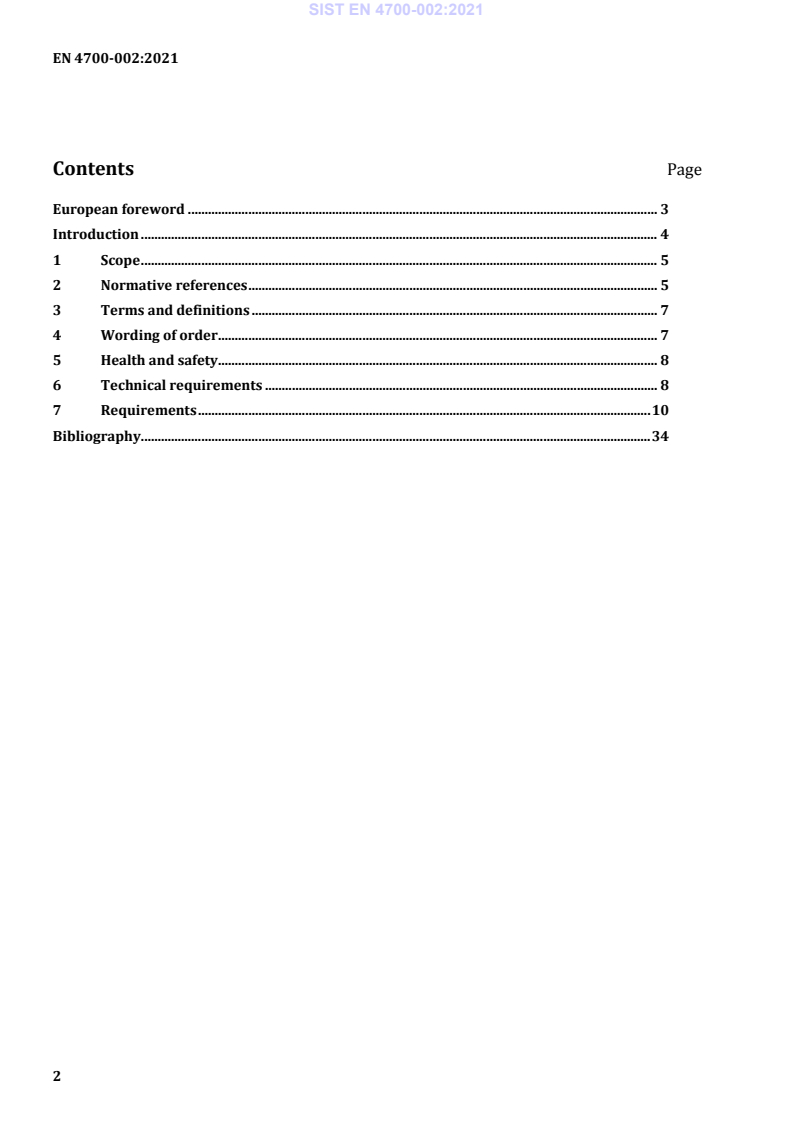

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 7
4 Wording of order . 7
5 Health and safety . 8
6 Technical requirements . 8
7 Requirements . 10
Bibliography . 34

European foreword
This document (EN 4700-002:2021) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by November 2021, and conflicting national standards shall be
withdrawn at the latest by November 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 4700-002:2017.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this document: Austria, Belgium, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
Introduction
This document is part of the series of EN metallic material standards for aerospace applications.
The general organization of this series is described in EN 4258.

1 Scope
This document defines the requirements for the ordering, manufacture, testing, inspection and delivery
of steel and heat resisting alloy bars and sections. It is presupposed to be applied when referred to and
in conjunction with the EN material standard unless otherwise specified on the drawing, order or
inspection schedule.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2002-001, Aerospace series — Metallic materials — Test methods — Part 001: Tensile testing at
ambient temperature
EN 2002-002, Aerospace series — Metallic materials — Test methods — Part 002: Tensile testing at
elevated temperature
EN 2002-005, Aerospace series — Test methods for metallic materials — Part 005: Uninterrupted creep
and stress-rupture testing
EN 2002-16, Aerospace series — Metallic materials — Test methods — Part 16: Non-destructive testing —
Penetrant testing
EN 2032-001, Aerospace series — Metallic materials — Part 001: Conventional designation
EN 2032-2, Aerospace series — Metallic materials — Part 2: Coding of metallurgical condition in delivery
condition
EN 2078, Aerospace series — Metallic materials — Manufacturing schedule, inspection schedule, inspection
and test report — Definition, general principles, preparation and approval
EN 2950, Aerospace series — Test method — Wrought heat resisting alloys — Semi-finished products and
parts — Conditions for macrographic and micrographic examination — Atlas of structures and defects
EN 2951, Aerospace series — Metallic materials — Micrographic determination of content of non-metallic
inclusions
EN 3874, Aerospace series — Test methods for metallic materials — Constant amplitude force-controlled
1)
low cycle fatigue testing
EN 3987, Aerospace series — Test methods for metallic materials — Constant amplitude force-controlled
high cycle fatigue testing
EN 3988, Aerospace series — Test methods for metallic materials — Constant amplitude strain-controlled
1)
low cycle fatigue testing
1) Published as ASD-STAN Standard at the date of publication of this document by AeroSpace and Defence
industries Association of Europe — Standardization (ASD-STAN), http://www.asd-stan.org/
EN 4050-1, Aerospace series — Test method for metallic materials — Ultrasonic inspection of bars, plates,
forging stock and forgings — Part 1: General requirements
EN 4050-4, Aerospace series — Test method for metallic materials — Ultrasonic inspection of bars, plates,
forging stock and forgings — Part 4: Acceptance criteria
1)
EN 4259, Aerospace series — Metallic materials — Definition of general terms
EN 10027-1, Designation systems for steels — Part 1: Steel names
EN 10079, Definition of steel products
EN ISO 148-1, Metallic materials — Charpy pendulum impact test — Part 1: Test method
EN ISO 642, Steel — Hardenability test by end quenching (Jominy test)
EN ISO 643, Steels — Micrographic determination of the apparent grain size
EN ISO 3651-1, Determination of resistance to intergranular corrosion of stainless steels —
Part 1: Austenitic and ferritic-austenitic (duplex) stainless steels — Corrosion test in nitric acid medium by
measurement of loss in mass (Huey test)
EN ISO 3651-2, Determination of resistance to intergranular corrosion of stainless steels — Part 2: Ferritic,
austenitic and ferritic-austenitic (duplex) stainless steels — Corrosion test in media containing sulfuric acid
EN ISO 3887, Steels — Determination of depth of decarburization
EN ISO 6506-1, Metallic materials — Brinell hardness test — Part 1: Test method
EN ISO 6507-1, Metallic materials — Vickers hardness test — Part 1: Test method
EN ISO 6508-1, Metallic materials — Rockwell hardness test — Part 1: Test method
EN ISO 6892-1, Metallic materials — Tensile testing — Part 1: Method of test at room temperature
EN ISO 6892-2, Metallic materials — Tensile testing — Part 2: Method of test at elevated temperature
EN ISO 15549, Non-destructive testing — Eddy current testing — General principles
ISO 4967, Steel — Determination of content of non-metallic inclusions — Micrographic method using
standard diagrams
2)
AMS 2315, Determination of Delta Ferrite Content
2)
AMS 2750, Pyrometry
ASTM A604, Standard Practice for Macroetch Testing of Consumable Electrode Remelted Steel Bars and
3)
Billets
2)
Published by SAE international (US) Society of Automotive Engineers, http://www.sae.org/
3)
Published by ASTM international (US) American Society for Testing and Materials, http://www.astm.org/
3)
ASTM E45, Standard Test Methods for Determining the Inclusion Content of Steel
3)
ASTM E340, Standard Practice for Macroetching Metals and Alloys
3)
ASTM E381, Standard Method of Macroetch Testing Steel Bars, Billets, Blooms and Forgings
ASTM E399, Standard Test Method for Linear-Elastic Plane-Strain Fracture Toughness KIc of Metallic
3)
Materials
3)
ASTM E407, Standard Practice for Microetching Metals and Alloys
3)
ASTM E1444, Standard Practice for Magnetic Particle Testing
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 4259 apply.
For definitions specific to steel, see EN 10079.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• ISO Online browsing platform: available at http://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
3.1
term
• for the general case, see EN 4259;
• for heat treatment using a continuous furnace, a continuous run of less than or equal to eight h may
be considered as the same heat treatment charge.
4 Wording of order
The order shall clearly indicate:
a) quantities to be supplied;
b) dates of delivery;
c) material standard number;
d) delivery condition and metallurgical code of products;
e) dimensions and tolerances or reference to an appropriate dimensional standard;
f) product designation, when required;
g) forwarding address;
h) nature and type of packing, if required;
i) surface protection, if appropriate;
j) definition and frequency of any special tests and their retest procedures, if required.
5 Health and safety
The product in the delivery condition shall fulfil the current health and safety laws of the area of the
country where it is to be delivered.
A product safety data sheet shall be available.
6 Technical requirements
6.1 General
The product shall be manufactured in accordance with the requirements of the relevant material
standard and the applicable requirements of this specification. A manufacturing schedule shall be
established and applied in accordance with EN 2078.
Product shall satisfy the requirements of the material standard and/or order and shall be free from
irregularities prejudicial to the subsequent manufacture or use of this product.
Notwithstanding previous acceptance complying with this material standard, any product that is found,
at a later stage, to contain such imperfection shall be rejected.
Unless otherwise specified, the requirements in Tables 1 and 2 shall apply in conjunction with those of
the relevant material standard. Table 1 relates to lines 1 to 29 (inclusive) of the material standard and
Table 2 relates to lines 30 onwards in which the sub-line format is also used. Lines 2 to 98 may also be
opened in line 100 if the material standard details specific qualification requirements. If a specific line
number is not shown in Tables 1 and 2, the requirement is stated in the material standard and/or order.
6.2 Qualification requirements
Qualification requirements when invoked by th
...
