EN 1007-6:2007
(Main)Advanced technical ceramic - Ceramic composites - Methods of test for reinforcements - Part 6: Determination of tensile properties of filaments at high temperature
Advanced technical ceramic - Ceramic composites - Methods of test for reinforcements - Part 6: Determination of tensile properties of filaments at high temperature
This European Standard specifies the conditions for measurement of tensile properties of single filament of ceramic fibres at high temperatures in air or inert atmosphere (vacuum or controlled atmosphere). The method applies to continuous ceramic filaments taken from tows, yarns, staple fibre, braids and knitting, that have strain to fracture less or equal to 5 % and show linear elastic behaviour to fracture.
The method does not apply to testing for homogeneity of strength properties of fibres, nor does it assess the effects of volume under stress. Statistical aspects of fibre failure are not included.
Two methods are proposed depending on the temperature of the filament end:
Hot end method: this method allows determination of tensile strength, of Young's modulus and of the stress strain curve.
NOTE 1 Current experience with this technique is limited to 1 300 °C, because of the application temperature of ceramic glue.
Cold end method.
NOTE 2 This method is limited to 1 700 °C in air and 2 000 °C in inert atmosphere because of the limits of furnaces.
Hochleistungskeramik - Keramische Verbundwerkstoffe - Verfahren zur Prüfung der Faserverstärkungen - Teil 6: Bestimmung der Zugeigenschaften von Fasern bei hoher Temperatur
Diese Europäische Norm legt die Bedingungen fest, die für die Bestimmung der Zugeigenschaften einzelner Fäden keramischer Fasern bei hoher Temperatur in Luft oder inerter Atmosphäre (in Vakuum oder einer geregelten Atmosphäre) einzuhalten sind. Das Verfahren gilt für keramische Endlosfasern mit einer Bruchdehnung gleich oder kleiner als 5 % und mit linearem elastischem Verhalten bis zum Bruch, die
Fa¬serbündeln, Fäden, Stapelfasern, Geflechten und Gewirken entnommen werden.
Das Verfahren dient weder zur Überprüfung der Homogenität der Festigkeitseigenschaften der Fasern noch zur Beurteilung der Wirkungen, die von einem unter Spannung stehenden Volumen ausgehen. Statistische Aspekte des Faserbruchs werden nicht erfasst.
In Abhängigkeit von der Temperatur des Faserendes sind zwei Verfahren anwendbar:
- Verfahren mit erhitzten Probenenden: Mit diesem Verfahren sind die Zugfestigkeit, der Youngsche Elastizitätsmodul und die Spannungs Dehnungs Kurve zu bestimmen;.
ANMERKUNG 1 Für dieses Verfahren liegen wegen der maximalen Anwendungstemperatur des Keramikklebstoffs bisher nur Erfahrungen bis zu einer Temperaturgrenze von 1 300 °C vor.
- Verfahren mit kalten Probenenden
ANMERKUNG 2 Die Temperaturgrenzen für dieses Verfahren liegen bedingt durch die verfügbaren Öfen bei Tempera¬turen von 1 700 °C in Luft und 2 000 °C in inerter Atmosphäre.
Céramiques techniques avancées - Céramiques composites - Méthodes d'essai pour renforts - Partie 6 : Détermination des propriétés en traction du filament à haute température
La présente Norme européenne spécifie les conditions de mesure des propriétés en traction d'un filament individuel en fibres céramiques à hautes températures dans l'air ou sous atmosphère inerte (sous vide ou atmosphère contrôlée). La méthode s'applique à des filaments céramiques continus issus de mèches, fils, fibre discontinue, tresses et tricots ayant un allongement à la rupture inférieur ou égal à 5 % et montrant un comportement linéaire élastique jusqu'à la rupture.
La méthode ne permet pas de soumettre à essai l'homogénéité des propriétés de traction des fibres, elle ne permet pas plus d'évaluer les effets de volume sous contrainte. L'aspect statistique de la rupture des fibres n'est pas envisagé.
Deux méthodes sont proposées en fonction de la température de l'extrémité du filament :
Méthode avec mors chauds : cette méthode permet de déterminer la résistance en traction, le module de Young et la courbe contrainte-déformation.
NOTE 1 L'expérience actuelle acquise avec cette technique se limite à 1 300 °C du fait de la température d'application de la colle céramique.
Méthode avec mors froids.
NOTE 2 Cette méthode est limitée à 1 700 °C dans l'air et à 2 000 °C en atmosphère inerte du fait des limites des fours.
Sodobna tehnična keramika - Keramični kompoziti - Preskusne metode za ojačitve - 6. del: Določanje nateznih lastnosti vlaken pri visoki temperaturi
General Information
- Status
- Published
- Publication Date
- 27-Nov-2007
- Technical Committee
- CEN/TC 184 - Advanced technical ceramics
- Drafting Committee
- CEN/TC 184/SC 1 - Ceramic composites
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Apr-2025
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 22-Dec-2008
Overview
EN 1007-6:2007 is a CEN standard that defines test methods for determining the tensile properties of single ceramic filaments at high temperature. It applies to continuous ceramic filaments (from tows, yarns, staple fibre, braids and knitting) that show linear elastic behaviour to fracture and have strain-to-fracture ≤ 5%. Tests are performed in air or inert atmospheres (vacuum or controlled gas) and are intended to measure tensile strength, Young’s modulus and stress–strain behavior under elevated temperatures.
Key topics and technical requirements
- Scope and limitations
- Applies only to single-filament tensile tests at high temperature; does not address strength homogeneity, volume-under-stress effects, or statistical failure analysis.
- Filaments must be linear-elastic to fracture with strain ≤ 5%.
- Two test methods
- Hot end method - filament heated over its full length; enables determination of tensile strength, Young’s modulus and full stress–strain curve. Practical experience limited to ≈ 1 300 °C due to ceramic adhesive limits.
- Cold end method - only the central gauge section is heated; avoids high-temp adhesive issues and extends testing limits (up to ≈ 1 700 °C in air and 2 000 °C in inert atmospheres, limited by furnace capability).
- Test preparation and measurement
- Gauge length control: 25 mm specimens for force–displacement curves; 10 mm and 40 mm specimens for load-train compliance determination (tolerance ±1 mm).
- Minimum valid results: five tests at 25 mm; three additional tests at 10 mm and 40 mm for strain-related properties.
- Temperature uniformity requirement: variation within the gauge length ≤ 20 °C at test temperature.
- Equipment and accuracy: force measurement to EN ISO 7500-1 grade 1; displacement accuracy better than 1 µm; calibrated thermocouples or pyrometers (EN 60584 series).
- Data handling: force and displacement recorded simultaneously; elongation often derived via compliance correction.
- Environmental control
- Gastight chambers for inert atmosphere; vacuum levels must not destabilize filament material.
- Choice of gas and pressure depends on material and test temperature.
Applications and users
- Intended for manufacturers and developers of ceramic composites and advanced technical ceramics needing validated high-temperature filament data.
- Useful for:
- Materials scientists and R&D labs characterizing high-temp fibre behavior.
- Quality-control and certification labs performing tensile testing of ceramic fibres.
- Designers of high-temperature components (aerospace, automotive, energy, thermal protection) relying on filament mechanical data.
- Provides reproducible test protocols for comparing filament tensile strength, modulus and stress–strain response at elevated temperatures.
Related standards
- EN 1007-3 - Determination of filament diameter and cross-section area
- EN 1007-4 - Tensile properties of filaments at ambient temperature
- EN ISO 7500-1 - Verification of tension/compression testing machines
- EN ISO/IEC 17025 - Laboratory competence
- EN 60584-1 / EN 60584-2 - Thermocouple reference tables and tolerances
Keywords: EN 1007-6:2007, ceramic fibres, high temperature tensile test, filament tensile properties, hot end method, cold end method, Young’s modulus, ceramic composites.
Frequently Asked Questions
EN 1007-6:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Advanced technical ceramic - Ceramic composites - Methods of test for reinforcements - Part 6: Determination of tensile properties of filaments at high temperature". This standard covers: This European Standard specifies the conditions for measurement of tensile properties of single filament of ceramic fibres at high temperatures in air or inert atmosphere (vacuum or controlled atmosphere). The method applies to continuous ceramic filaments taken from tows, yarns, staple fibre, braids and knitting, that have strain to fracture less or equal to 5 % and show linear elastic behaviour to fracture. The method does not apply to testing for homogeneity of strength properties of fibres, nor does it assess the effects of volume under stress. Statistical aspects of fibre failure are not included. Two methods are proposed depending on the temperature of the filament end: Hot end method: this method allows determination of tensile strength, of Young's modulus and of the stress strain curve. NOTE 1 Current experience with this technique is limited to 1 300 °C, because of the application temperature of ceramic glue. Cold end method. NOTE 2 This method is limited to 1 700 °C in air and 2 000 °C in inert atmosphere because of the limits of furnaces.
This European Standard specifies the conditions for measurement of tensile properties of single filament of ceramic fibres at high temperatures in air or inert atmosphere (vacuum or controlled atmosphere). The method applies to continuous ceramic filaments taken from tows, yarns, staple fibre, braids and knitting, that have strain to fracture less or equal to 5 % and show linear elastic behaviour to fracture. The method does not apply to testing for homogeneity of strength properties of fibres, nor does it assess the effects of volume under stress. Statistical aspects of fibre failure are not included. Two methods are proposed depending on the temperature of the filament end: Hot end method: this method allows determination of tensile strength, of Young's modulus and of the stress strain curve. NOTE 1 Current experience with this technique is limited to 1 300 °C, because of the application temperature of ceramic glue. Cold end method. NOTE 2 This method is limited to 1 700 °C in air and 2 000 °C in inert atmosphere because of the limits of furnaces.
EN 1007-6:2007 is classified under the following ICS (International Classification for Standards) categories: 81.060.30 - Advanced ceramics. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1007-6:2007 has the following relationships with other standards: It is inter standard links to ENV 1007-6:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 1007-6:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.XULHochleistungskeramik - Keramische Verbundwerkstoffe - Verfahren zur Prüfung der Faserverstärkungen - Teil 6: Bestimmung der Zugeigenschaften von Fasern bei hoher TemperaturCéramiques techniques avancées - Céramiques composites - Méthodes d'essai pour renforts - Partie 6 : Détermination des propriétés en traction du filament à haute températureAdvanced technical ceramic - Ceramic composites - Methods of test for reinforcements - Part 6: Determination of tensile properties of filaments at high temperature81.060.30Sodobna keramikaAdvanced ceramicsICS:Ta slovenski standard je istoveten z:EN 1007-6:2007SIST EN 1007-6:2009en,fr,de01-januar-2009SIST EN 1007-6:2009SLOVENSKI
STANDARDSIST ENV 1007-6:20071DGRPHãþD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1007-6November 2007ICS 81.060.30Supersedes ENV 1007-6:2002
English VersionAdvanced technical ceramic - Ceramic composites - Methods oftest for reinforcements - Part 6: Determination of tensileproperties of filaments at high temperatureCéramiques techniques avancées - Céramiquescomposites - Méthodes d'essai pour renforts - Partie 6 :Détermination des propriétés en traction du filament àhaute températureHochleistungskeramik - Keramische Verbundwerkstoffe -Verfahren zur Prüfung der Faserverstärkungen - Teil 6:Bestimmung der Zugeigenschaften von Fasern bei hoherTemperaturThis European Standard was approved by CEN on 13 October 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1007-6:2007: ESIST EN 1007-6:2009

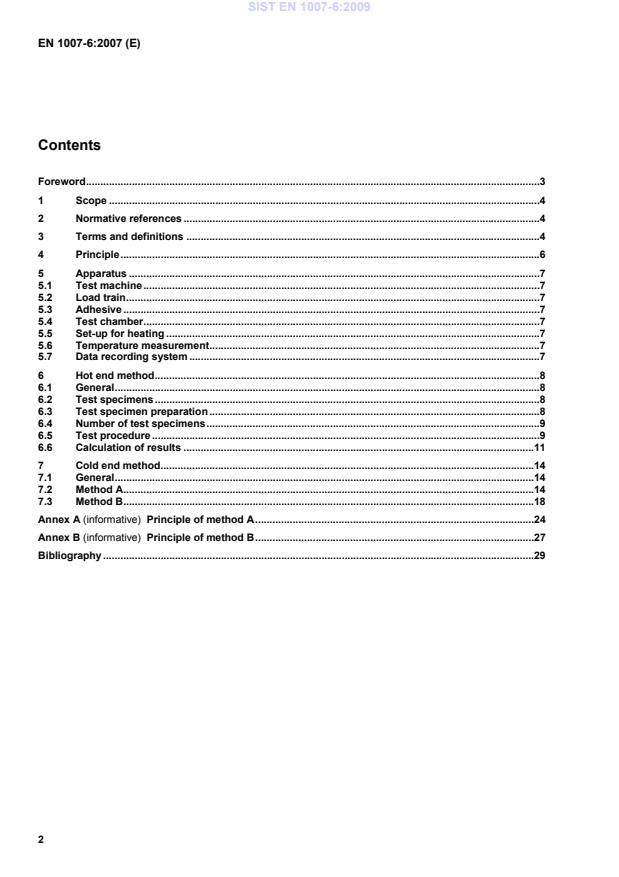

Principle of method A.24 Annex B (informative)
Principle of method B.27 Bibliography.29
Alternatively, pyrometers or thermocouples which are not covered by EN 60584-1 and EN 60584-2, but which are appropriately calibrated, can be used. 5.7 Data recording system Calibrated recorders may be used to record force-displacement curves. The use of a digital data recording system combined with an analogue recorder is recommended. SIST EN 1007-6:2009
key 1 alumina tubes 2 temporary screw attachment 3 test specimen 4 high temperature joints between the test specimen and the alumina tubes 5 alumina rod Figure 1 — Test specimen assembly SIST EN 1007-6:2009
key 1 rupture at the grips : rupture not valid 2 valid rupture Figure 2 — Rupture at the grips 6.6 Calculation of results 6.6.1 Calculation of the load train compliance, Cl The load train compliance is determined at each test temperature. NOTE This is because some of the contributions to the load train compliance (for example the cement used for fixing the filament) may vary with temperature. Calculate the total compliance Ct for the tests at each of the gauge lengths from the inverse slope in the linear part of the force/cross-head displacement curve.
For each test, plot the total compliance Ct versus L0/A0. Perform a linear regression analysis of Ct versus L0/A0 and determine the load train compliance Cl from the intercept with the ordinate axis (Figure 3). SIST EN 1007-6:2009
key 1 total compliance, Ct
(mm/N) 2 Lo = 10 mm 3 Lo = 25 mm 4 Lo = 40 mm 5 Lo/Ao (mm-1) Figure 3 — Determination of the load train compliance Cl 6.6.2 Tensile strength Calculate the tensile strength from the following equation: 0mmAF=σ (1) where σm is the filament strength, in megapascals (MPa); Fm is the maximum load
...
