EN 4468:2007
(Main)Aerospace series - Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) - Vacuum induction melted and consumable electrode remelted - Solution treated and precipitation treated - Bar - a or D ≤ 150 mm - Rm ≥ 1 300 MPa
Aerospace series - Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) - Vacuum induction melted and consumable electrode remelted - Solution treated and precipitation treated - Bar - a or D ≤ 150 mm - Rm ≥ 1 300 MPa
This standard specifies the requirements relating to:
Steel FE-PM1505 (X1CrNiMoAlTi12-9-2)
Vacuum induction melted and consumable electrode remelted
Solution treated and precipitation treated
Bar
a or D ≤ 150 mm
Rm ≥ 1 300 MPa
for aerospace applications.
Luft- und Raumfahrt - Stahl FE-PM1505 (X1CrNiMoAlTi 12-9-2) - Vakuuminduktionserschmolzen und mit selbstverzehrender Elektrode umgeschmolzen - Lösungsgeglüht und ausgehärtet - Stangen - a oder D ≤ 150 mm - Rm ≥ 1 300 MPa
Diese Norm legt die Anforderungen an
Stahl FE PM1505 (X1CrNiMoAlTi12-9-2)
Vakuuminduktionserschmolzen und mit selbstverzehrender Elektrode umgeschmolzen
Lösungsgeglüht und ausgehärtet
Stangen
a oder D 150 mm
Rm ≥ 1 300 MPa
für Anwendungen in der Luft- und Raumfahrt fest.
Série aérospatiale - Acier FE-PM1505 (X1CrNiMoAlTi12-9-2) - Élaboré sous vide par induction et refondu à l'électrode consommable - Mis en solution et vieilli - Barres - a ou D ≤ 150 mm - Rm ≥ 1 300 MPa
Aeronavtika - Jeklo FE-PM1505 (X1CrNiMoAlTi12-9-2) - Palice a ali D ≤ 150 mm - Rm ≥ 1300 MPa, taljene z vakuumsko indukcijo in pretaljene s talilno elektrodo, žarjene v topilu in utrjene
General Information
- Status
- Published
- Publication Date
- 10-Jul-2007
- Withdrawal Date
- 30-Jan-2008
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 4 - Metallic
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 30-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4468:2007 is a European standard published by CEN that defines the technical requirements for steel FE-PM1505 (X1CrNiMoAlTi12-9-2) intended for aerospace applications. This specific steel grade is vacuum induction melted and consumable electrode remelted, ensuring superior purity and homogeneity. The standard covers bars with diameters or thicknesses (a or D) up to 150 mm, subjected to solution treatment and precipitation treatment to achieve high mechanical performance.
Key features of this aerospace steel include a minimum tensile strength (Rm) of 1300 MPa, making it suitable for critical structural components in the aerospace industry where high strength-to-weight ratio and reliability are essential.
Key Topics
Material Composition:
The standard specifies a strict chemical composition with key alloying elements including Chromium (11.5 - 12.5%), Molybdenum (1.85 - 2.15%), Nickel (8.5 - 9.5%), Aluminum (0.6 - 0.8%), Titanium (0.28 - 0.37%), and Nitrogen (up to 0.010%). Carbon, Silicon, Manganese, Phosphorus, and Sulfur are tightly controlled to optimize mechanical properties and corrosion resistance.Melting and Remelting Processes:
The steel is produced using vacuum induction melting followed by consumable electrode remelting, a process that improves cleanliness and reduces inclusions, key for aerospace-grade materials.Heat Treatments:
The bars undergo solution treatment at 820-860 °C followed by cooling to ≤ 20 °C, and precipitation treatment between 525-545 °C for at least 4 hours to enhance strength and toughness.Mechanical Properties:
- Minimum tensile strength (Rm) ≥ 1300 MPa
- Proof stress (Rp0.2) ≥ 1200 MPa
- Elongation ≥ 9-11%
- Reduction of area ≥ 45-50%
- Hardness ≤ 363 HB in the solution treated state and ≥ 380 HB after precipitation treatment
- Impact strength requirements ensure material toughness at various notch directions and temperatures.
Dimensional and Testing Requirements:
Bars are limited to a maximum diameter or thickness of 150 mm. Testing includes ferrite content, microstructure, grain size, and cleanliness to guarantee conformity with aerospace standards.
Applications
EN 4468:2007 steel FE-PM1505 is specifically tailored for demanding aerospace applications, such as:
- Structural components requiring very high strength and excellent fatigue resistance
- Aircraft engine parts that must maintain toughness and strength under extreme temperatures and stresses
- High-performance bars used in aerospace manufacturing where dimensional precision and material reliability are critical
This standard ensures that manufacturers and purchasers adhere to rigorous quality criteria, resulting in safer, reliable aerospace materials optimized for performance.
Related Standards
EN 4468:2007 works within a suite of aerospace material standards that include:
- EN 4258: General organization of aerospace metallic material standards
- EN 2043: General requirements for semi-finished aerospace metallic products qualification
- EN 4436: Test methods for determining δ-ferrite content in steel
- EN 4700-2: Technical specifications for steel bar and section products in aerospace
- EN 4500-5: Rules for drafting and presentation of steel material standards
These related standards complement EN 4468 by providing frameworks for material qualification, testing, and consistency across aerospace manufacturing.
Keywords: aerospace steel standard, FE-PM1505 steel, vacuum induction melted steel, consumable electrode remelted, aerospace bar steel, solution treated steel, precipitation treated steel, high strength aerospace steel, CEN aerospace standards, EN 4468:2007 steel specifications
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4468:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) - Vacuum induction melted and consumable electrode remelted - Solution treated and precipitation treated - Bar - a or D ≤ 150 mm - Rm ≥ 1 300 MPa". This standard covers: This standard specifies the requirements relating to: Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) Vacuum induction melted and consumable electrode remelted Solution treated and precipitation treated Bar a or D ≤ 150 mm Rm ≥ 1 300 MPa for aerospace applications.
This standard specifies the requirements relating to: Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) Vacuum induction melted and consumable electrode remelted Solution treated and precipitation treated Bar a or D ≤ 150 mm Rm ≥ 1 300 MPa for aerospace applications.
EN 4468:2007 is classified under the following ICS (International Classification for Standards) categories: 49.025.10 - Steels. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4468:2007 has the following relationships with other standards: It is inter standard links to EN 4258:2024, EN 4700-002:2025, EN 4632-004:2012. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4468:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-maj-2009
$HURQDYWLND-HNOR)(30 ;&U1L0R$O7L 3DOLFHDDOL'”PP
5P•03DWDOMHQH]YDNXXPVNRLQGXNFLMRLQSUHWDOMHQHVWDOLOQRHOHNWURGR
åDUMHQHYWRSLOXLQXWUMHQH
$HURVSDFHVHULHV6WHHO)(30 ;&U1L0R$O7L 9DFXXPLQGXFWLRQPHOWHG
DQGFRQVXPDEOHHOHFWURGHUHPHOWHG6ROXWLRQWUHDWHGDQGSUHFLSLWDWLRQWUHDWHG%DUD
RU'”PP5P•03D
/XIWXQG5DXPIDKUW6WDKO)(30 ;&U1L0R$O7L
9DNXXPLQGXNWLRQVHUVFKPRO]HQXQGPLWVHOEVWYHU]HKUHQGHU(OHNWURGHXPJHVFKPRO]HQ
/|VXQJVJHJOKWXQGDXVJHKlUWHW6WDQJHQDRGHU'”PP5P•03D
6pULHDpURVSDWLDOH$FLHU)(30 ;&U1L0R$O7L eODERUpVRXVYLGHSDU
LQGXFWLRQHWUHIRQGXjO
pOHFWURGHFRQVRPPDEOH0LVHQVROXWLRQHWYLHLOOL%DUUHVDRX
'”PP5P•03D
Ta slovenski standard je istoveten z: EN 4468:2007
ICS:
49.025.10 Jekla Steels
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 4468
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2007
ICS 49.025.10
English Version
Aerospace series - Steel FE-PM1505 (X1CrNiMoAlTi12-9-2) -
Vacuum induction melted and consumable electrode remelted -
Solution treated and precipitation treated - Bar - a or D ≤ 150
mm - Rm ≥ 1 300 MPa
Série aérospatiale - Acier FE-PM1505 (X1CrNiMoAlTi12-9- Luft- und Raumfahrt - Stahl FE-PM1505 (X1CrNiMoAlTi12-
2) - Élaboré sous vide par induction et refondu à l'électrode
9-2) - Vakuuminduktionserschmolzen und mit
consommable - Mis en solution et vieilli - Barres - a ou D ≤ selbstverzehrender Elektrode umgeschmolzen -
150 mm - Rm ≥ 1 300 MPa Lösungsgeglüht und ausgelagert - Stangen - a oder D ≤
150 mm - Rm ≥ 1 300 MPa
This European Standard was approved by CEN on 15 February 2007.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2007 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4468:2007: E
worldwide for CEN national Members.

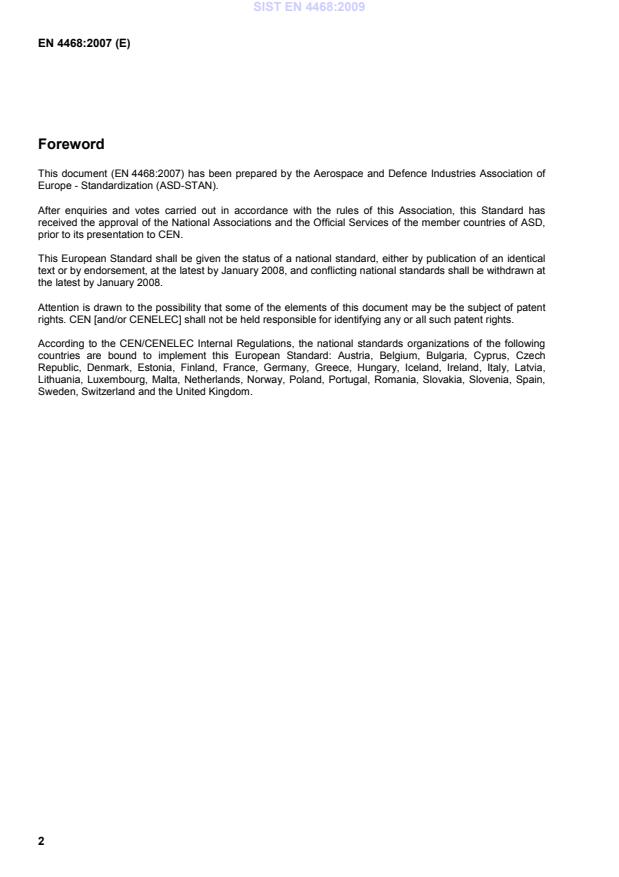

Foreword
This document (EN 4468:2007) has been prepared by the Aerospace and Defence Industries Association of
Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of ASD,
prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by January 2008, and conflicting national standards shall be withdrawn at
the latest by January 2008.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
----
...
