EN 6059-303:2017
(Main)Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 303: Resistance to fluids
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 303: Resistance to fluids
This European Standard specifies a method for determining the fluid resistance of protection sleeves for electrical cable and cable bundles for aerospace application.
It shall be used together with EN 6059-100.
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche - Prüfverfahren - Teil 303: Beständigkeit gegen Flüssigkeiten
Diese Europäische Norm legt ein Verfahren zur Ermittlung der Flüssigkeitsbeständigkeit von Schutzschläu-chen für elektrische Leitungen und Kabelbündel für Anwendungen in der Luft- und Raumfahrt fest.
Die Norm ist zusammen mit EN 6059-100 anzuwenden.
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes d'essais - Partie 303 : Résistance aux fluides
Aeronavtika - Električni kabli, namestitev - Zaščitne obojke - Preskusne metode - 303. del: Odpornost proti tekočinam
Ta evropski standard določa metodo za določanje odpornost proti tekočinam zaščitnih obojk za električne kable in snope kablov za uporabo v aeronavtiki.
Uporabljati ga je treba skupaj s standardom EN 6059-100.
General Information
- Status
- Published
- Publication Date
- 14-Nov-2017
- Withdrawal Date
- 30-May-2018
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2/S 8 - Installation Technologies
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 15-Nov-2017
- Completion Date
- 15-Nov-2017
Overview
EN 6059-303:2017 is a European Standard established by CEN, specifying test methods for assessing the resistance to fluids of protection sleeves used to insulate electrical cables and cable bundles in aerospace applications. This standard ensures that protection sleeves maintain their integrity and performance when exposed to various fluids common in aircraft environments. EN 6059-303:2017 should be used in conjunction with EN 6059-100, which covers general test methods for aerospace electrical cable protection sleeves.
Key Topics
- Scope: Defines fluid resistance testing for protection sleeves utilized in aerospace electrical cable installations.
- Test Methodology: Specimens of sleeves (up to 600 mm in length) are immersed in various fluids at specified temperatures for 24 hours. Afterward, samples are examined for damage, dimensional changes, and tensile strength variations.
- Test Fluids: The standard lists compulsory fluids for testing, relevant to both textile and non-textile sleeves. These include fuels, hydraulic fluids, lubricants, cleaning fluids, de-icing liquids, fire extinguishing fluids, and avionic coolants.
- Requirements: After testing, specimens must meet dimensional and tensile strength criteria outlined in the product-specific standards without damage to fibers, closures, or sleeve structure.
- Normative References: Relies on additional documents, including:
- EN 3909 (Test fluids and methods)
- EN 6059-100 (General protection sleeve test methods)
- ISO standards for liquids and aircraft de-icing fluids
- Various SAE, ASTM, and military specifications relevant to aerospace fluids
Applications
EN 6059-303:2017 plays a critical role in the aerospace industry by ensuring the reliability and safety of electrical cable protection sleeves under exposure to operational fluids such as:
- Fuel Resistance: Ensures protection sleeves withstand fuels like kerosene and biofuels without degradation.
- Hydraulic Fluids Compatibility: Assesses sleeve materials against synthetic, phosphate, and silicone-based hydraulic fluids.
- Lubricant Exposure: Verifies durability when in contact with mineral and synthetic lubricating oils.
- Cleaning and De-Icing Agents: Certifies sleeves resist solvents, detergents, and de-icing fluids, critical for aircraft maintenance and operation in harsh environments.
- Cooling and Fire Safety Fluids: Confirms sleeve resistance to avionic coolants and some fire extinguishing agents used onboard aircraft.
By adhering to this standard, aerospace manufacturers and maintenance providers can:
- Ensure long-term protection of electrical cables from fluid damage
- Maintain system safety and electrical integrity under typical aerospace conditions
- Facilitate compliance with regulatory and quality assurance requirements
Related Standards
- EN 6059-100: General test methods for aerospace electrical cable protection sleeves.
- EN 3909: Specifies appropriate test fluids and methods for electrical and optical aerospace components.
- ISO 1817: Method for evaluating rubber resistance to liquids, relevant for sleeve materials.
- ISO 11075 & ISO 11078: Standards covering aircraft de-icing and anti-icing fluids.
- SAE AMS and ASTM Standards: Provide specifications for aerospace fluids such as hydraulic fluids, de-icing agents, and cleaning compounds.
- Military Standards (MIL-PRF series): Include fluid specifications used in aerospace environments ensuring compatibility with military-grade products.
Keywords: EN 6059-303, aerospace electrical cables, protection sleeves, fluid resistance testing, aerospace cable installation, aerospace fluids, hydraulic fluid resistance, fuel resistance, de-icing fluid compatibility, aerospace standards, electrical cable protection, CEN standards, aerospace cable sleeves, test methods aerospace.
Frequently Asked Questions
EN 6059-303:2017 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 303: Resistance to fluids". This standard covers: This European Standard specifies a method for determining the fluid resistance of protection sleeves for electrical cable and cable bundles for aerospace application. It shall be used together with EN 6059-100.
This European Standard specifies a method for determining the fluid resistance of protection sleeves for electrical cable and cable bundles for aerospace application. It shall be used together with EN 6059-100.
EN 6059-303:2017 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 6059-303:2017 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2018
$HURQDYWLND(OHNWULþQLNDEOLQDPHVWLWHY=DãþLWQHRERMNH3UHVNXVQHPHWRGH
GHO 2GSRUQRVWSURWLWHNRþLQDP
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods -
Part 303: Resistance to fluids
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche -
Prüfverfahren - Teil 303: Beständigkeit gegen Flüssigkeiten
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes
d'essais - Partie 303 : Résistance aux fluides
Ta slovenski standard je istoveten z: EN 6059-303:2017
ICS:
29.060.20 Kabli Cables
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 6059-303
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2017
EUROPÄISCHE NORM
ICS 49.060
English Version
Aerospace series - Electrical cables, installation -
Protection sleeves - Test methods - Part 303: Resistance to
fluids
Série aérospatiale - Câbles électriques, installation - Luft- und Raumfahrt - Elektrische Leitungen,
Gaines de protection - Méthodes d'essais - Partie 303 : Installation - Schutzschläuche - Prüfverfahren - Teil
Résistance aux fluides 303: Beständigkeit gegen Flüssigkeiten
This European Standard was approved by CEN on 28 August 2017.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6059-303:2017 E
worldwide for CEN national Members.

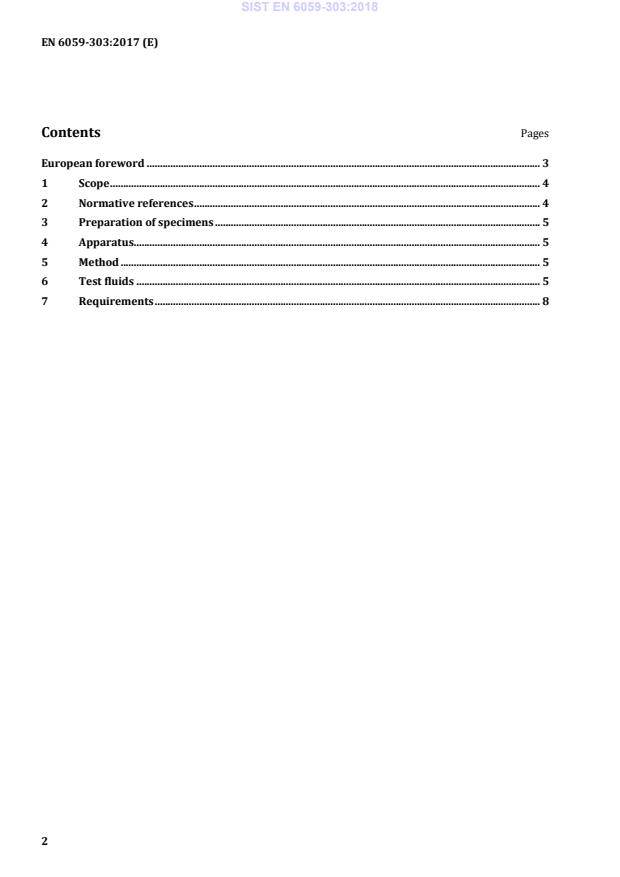

Contents Pages
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Preparation of specimens . 5
4 Apparatus. 5
5 Method . 5
6 Test fluids . 5
7 Requirements . 8
European foreword
This document (EN 6059-303:2017) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this European
Standard has received the approval of the National Associations and the Official Services of the member
countries of ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2018, and conflicting national standards shall be
withdrawn at the latest by May 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
the United Kingdom.
1 Scope
This European Standa
...
