Fire detection and fire alarm systems - Part 4: Power
supply equipment
Systèmes de détection et d'alarme incendie - Partie 4: Brandmeldeanlagen - Teil 4:
Equipement d'alimentation électrique Energieversorgungseinrichtungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 72.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 54-4:2015 E
worldwide for CEN national Members.

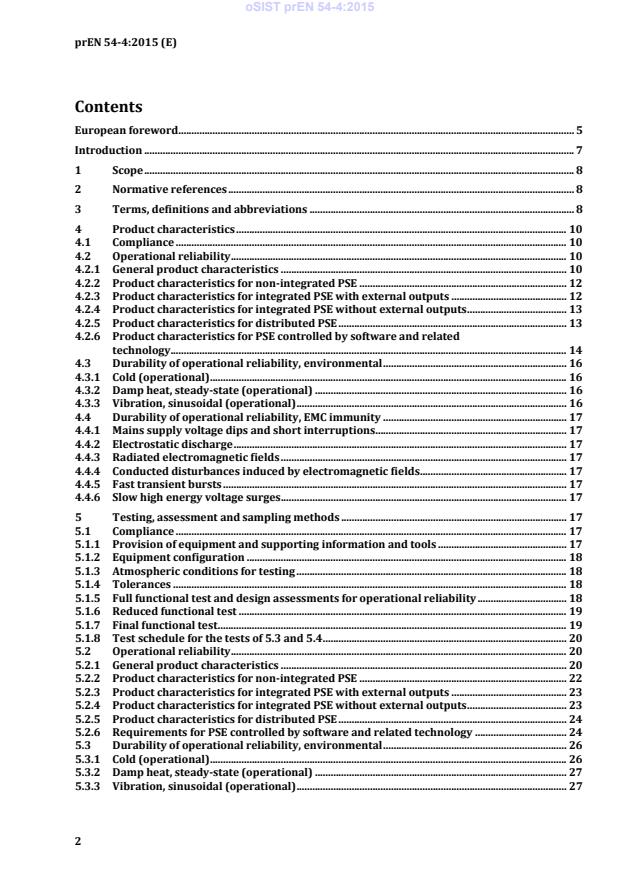

Contents
European foreword . 5
Introduction . 7
1 Scope . 8
2 Normative references . 8
3 Terms, definitions and abbreviations . 8
4 Product characteristics . 10
4.1 Compliance . 10
4.2 Operational reliability . 10
4.2.1 General product characteristics . 10
4.2.2 Product characteristics for non-integrated PSE . 12
4.2.3 Product characteristics for integrated PSE with external outputs . 12
4.2.4 Product characteristics for integrated PSE without external outputs . 13
4.2.5 Product characteristics for distributed PSE . 13
4.2.6 Product characteristics for PSE controlled by software and related
technology . 14
4.3 Durability of operational reliability, environmental . 16
4.3.1 Cold (operational) . 16
4.3.2 Damp heat, steady-state (operational) . 16
4.3.3 Vibration, sinusoidal (operational) . 16
4.4 Durability of operational reliability, EMC immunity . 17
4.4.1 Mains supply voltage dips and short interruptions . 17
4.4.2 Electrostatic discharge . 17
4.4.3 Radiated electromagnetic fields . 17
4.4.4 Conducted disturbances induced by electromagnetic fields . 17
4.4.5 Fast transient bursts . 17
4.4.6 Slow high energy voltage surges . 17
5 Testing, assessment and sampling methods . 17
5.1 Compliance . 17
5.1.1 Provision of equipment and supporting information and tools . 17
5.1.2 Equipment configuration . 18
5.1.3 Atmospheric conditions for testing . 18
5.1.4 Tolerances . 18
5.1.5 Full functional test and design assessments for operational reliability . 18
5.1.6 Reduced functional test . 19
5.1.7 Final functional test . 19
5.1.8 Test schedule for the tests of 5.3 and 5.4 . 20
5.2 Operational reliability . 20
5.2.1 General product characteristics . 20
5.2.2 Product characteristics for non-integrated PSE . 22
5.2.3 Product characteristics for integrated PSE with external outputs . 23
5.2.4 Product characteristics for integrated PSE without external outputs . 23
5.2.5 Product characteristics for distributed PSE . 24
5.2.6 Requirements for PSE controlled by software and related technology . 24
5.3 Durability of operational reliability, environmental . 26
5.3.1 Cold (operational) . 26
5.3.2 Damp heat, steady-state (operational) . 27
5.3.3 Vibration, sinusoidal (operational) . 27
5.4 Durability of operational reliability, EMC immunity . 28
5.4.1 Mains supply voltage dips and short interruptions . 28
5.4.2 Electrostatic discharge . 29
5.4.3 Radiated electromagnetic fields . 29
5.4.4 Conducted disturbances induced by electromagnetic fields . 30
5.4.5 Fast transient bursts . 31
5.4.6 Slow high energy voltage surges . 31
6 Assessment and verification of constancy of performance (AVCP) . 32
6.1 General . 32
6.2 Type testing . 32
6.2.1 General . 32
6.2.2 Test samples, testing and compliance criteria . 33
6.2.3 Test reports . 33
6.3 Factory production control (FPC) . 34
6.3.1 General . 34
6.3.2 Requirements . 34
6.3.3 Product specific requirements . 36
6.3.4 Initial inspection of factory and FPC . 37
6.3.5 Continuous surveillance of FPC . 38
6.3.6 Procedure for modifications . 38
6.3.7 One-off products, pre-production products, (e.g. prototypes) and products
produced in very low quantities . 38
7 Classification and designation . 39
8 Marking, labelling and packaging . 39
Annex A (normative) Documentation and manufacturer's declarations. 40
A.1 General requirements and manufacturer's declarations . 40
A.2 Installation and user documentation . 40
A.3 Design documentation . 41
A.4 Software design documentation . 41
Annex B (normative) PSE loading and charger tests . 43
B.1 General . 43
B.2 Test procedures . 43
B.2.1 General . 43
B.2.2 Test 1 . 44
B.2.3 Test 2 . 44
B.2.4 Test 3 . 44
B.2.5 Test 4 . 45
B.2.6 Test 5 . 45
B.2.7 Test 6 . 45
B.2.8 Test 7 . 46
B.2.9 Test 8 . 46
B.2.10 Test 9 . 46
B.2.11 Test 10 . 46
B.2.12 Test 11 . 47
Annex C (normative) Laboratory procedure for testing compliance with the
requirements of 4.2.1.9 c) . 48
C.1 Test procedure for non-integrated PSE . 48
C.2 Test procedure for integrated PSE . 49
Annex D (informative) Examples of integrated, non-integrated and distributed PSE . 51
D.1 Examples of non-integrated PSE . 51
D.2 Examples of integrated PSE (without and with external outputs) . 52
D.3 Example of a distributed PSE (Multi Standby Power Sources and Main Power
Sources) . 55
Annex E (informative) PSE controlled by software and related technology . 56
Annex ZA (informative) Clauses of this European Standard addressing the
provisions of the EU Construction Products Regulation . 58
ZA.1 Scope and relevant characteristics . 58
ZA.2 Procedure for assessment and verification of constancy of performance
(AVCP) of power supply equipment . 59
ZA.2.1 System of AVCP . 59
ZA.2.2 Declaration of performance (DoP) . 60
ZA.2.2.1 General . 60
ZA.2.2.2 Content . 60
ZA.2.2.3 Example of DoP . 61
ZA.3 CE marking and labelling. 64
Bibliography . 67

European foreword
This document (prEN 54-4:2015) has been prepared by Technical Committee CEN/TC 72 “Fire
detection and fire alarm systems”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 54-4:1997.
This document has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of
EU Directive(s).
For relationship with EU Regulation, see informative Annex ZA, which is an integral part of this
document.
EN 54-4 has been revised so as to align with the second answer to Mandate M/109.
It includes new clauses and annexes as follows:
- Requirement for software control devices (4.2.5);
- Clause 6, Assessment and verification of consistency of performance (AVCP);
- Clause 7, Classification and designation;
- Clause 8, Marking labelling and packaging;
- Annex B PSE loading and charger tests
- Annex C Laboratory procedure for testing compliance with the requirements of 4.2.1.9 c)
- Annex D Examples of integrated, non-integrated and distributed PSE
- Annex E ((informative) PSE controlled by software and related technology
- Annex ZA has been revised to align with the Construction Products Regulation (CPR).”
EN 54, Fire detection and fire alarm systems, consists of the following parts:
Part 1: Introduction
Part 2: Control and indicating equipment
Part 3: Fire alarm devices – Sounders
Part 4: Power supply equipment
Part 5: Heat detectors – Point detectors
Part 7: Smoke detectors – Point detectors using scattered light, transmitted light or ionization
Part 10: Flame detector – Point detectors
Part 11: Manual call points
Part 12: Smoke detectors – Line detector using an optical light beam
Part 13: Compatibility assessment of system components
Part 14: Guidelines for planning, design, installation, commissioning, use and maintenance
Part 15: Point detectors using a combination of detected phenomena
Part 16: Voice alarm control and indicating equipment
Part 17: Short circuit isolators
Part 18: Input/output devices
Part 20: Aspirating smoke detectors
Part 21: Alarm transmission and fault warning routine equipment
Part 22: Line-type heat detectors
Part 23: Fire alarm devices – Visual alarms
Part 24: Components of voice alarm systems – Loudspeakers
Part 25: Components using radio links and system requirements
Part 26: Carbon monoxide detectors – Point detectors
Part 27: Duct smoke detectors
Part 28: Non-resettable (digital) line type heat detectors
Part 29: Multi-sensor fire detectors - Point detectors using a combination of smoke and heat
sensors
Part 30: Multi-sensor fire detectors - Point detectors using a combination of carbon monoxide
and heat sensors
Part 31: Multi-sensor detector – Point detectors using a combination of smoke, carbon
monoxide and optionally heat sensors
Part 32: Guidelines for the planning, design, installation, commissioning, use and maintenance
of voice alarm
NOTE This list includes standards that are in preparation and other standards may be added. For
current status of published standards refer to www.cen.eu.
Introduction
This European Standard is drafted on the basis of functions which are to be provided on all
power supply equipment. The power supply equipment may have its own cabinet, or may be
housed with other equipment of the fire detection and fire alarm system, such as the control and
indicating equipment. A fire detection and fire alarm system may use more than one power
supply equipment.
1 Scope
This European Standard specifies requirements, methods of test and design assessment and
performance criteria for power supply equipment (PSE) of fire detection and fire alarm systems
installed in and around buildings (Function L of Figure 1 of EN 54-1:2011).
This European Standard provides for the assessment and verification of consistency of
performance (AVCP) of power supply equipment (PSE) to this EN.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and
are indispensable for its application. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
EN 54-1:2011, Fire detection and fire alarm systems - Part 1: Introduction
EN 54-2, Fire detection and fire alarm systems - Part 2: Control and indicating equipment
EN 54-16, Fire detection and fire alarm systems - Part 16: Voice alarm control and indicating
equipment
EN 50130-4:2011, Alarm systems - Part 4: Electromagnetic compatibility - Product family
standard: Immunity requirements for components of fire, intruder, hold up, CCTV, access control
and social alarm systems
EN 50130-5:2011, Alarm systems - Part 5: Environmental test methods
EN 60529:1991, Degrees of protection provided by enclosures (IP Code) (IEC 60529:1989)
3 Terms, definitions and abbreviations
For the purposes of this document, the terms, definitions and abbreviations given in
EN 54-1:2011 together with the following apply.
3.1
final voltage
lowest voltage, specified by the PSE manufacturer, to which a battery should be discharged
3.2
fully charged voltage
highest voltage which characterises a fully charged battery, as specified by the PSE
manufacturer
Note 1 to entry: The fully charged voltage may depend on factors, such as battery technology,
temperature, condition of the battery and recent charge history of the battery. A battery with a fully
charged voltage does not imply that the battery has full capacity.
3.3
P max. a
maximum output power which can be supplied continuously
3.4
P max. b
maximum output power higher than P max. a, which can be supplied while battery charging is
not required and without discharging the battery
3.5
P max. c
maximum output power which can be supplied by the standby power source
3.6
P min
minimum output power of the PSE
3.7
integrated PSE
PSE incorporated within other equipment, which supplies power to that equipment and may
have one or more outputs to power external equipment
Note 1 to entry: See Annex D for examples of integrated PSE.
3.8
main power source
part of the PSE that operates from the public electricity supply and supplies power to the
connected equipment, including associated fuses or protective devices
3.9
standby power source
part of the PSE that does not operate from the public electricity supply and supplies power to
the connected equipment, including associated fuses or protective devices
3.10
charger
part of the PSE that operates either from the public electricity or from the main power source
and that charges the battery of the standby power source, including associated fuses or
protective devices
3.11
distributed PSE
PSE where the functions are located in more than one component
Note 1 to entry: See Annex D for examples of integrated PSE
3.12
Vn
nominal voltage of the public electricity supply or its equivalent
4 Product characteristics
4.1 Compliance
In order to comply with this standard, power supply equipment (PSE) shall meet the
requirements of Clause 4, which shall be verified by visual inspection or engineering assessment
and shall be tested as described in Clause 5.
If the PSE is integrated in other equipment, covered by another part of EN 54, the requirements
of durability of operational reliability for that other equipment shall apply instead.
4.2 Operational reliability
4.2.1 General product characteristics
4.2.1.1 The PSE shall have at least two power sources, a main power source and a standby
power source.
4.2.1.2 The main power source shall be designed to operate from the public electricity supply.
4.2.1.3 The standby power source shall be designed to operate from one or more rechargeable
batteries.
4.2.1.4 The PSE shall include a charger function capable of charging the battery and maintaining
it in a fully charged state.
4.2.1.5 When operated from the main power source, the following shall apply.
a) The PSE outputs shall be capable of operating in accordance with the specification given in
the manufacturer’s data irrespective of the condition of the standby power source. This
includes any charge condition of the battery, or open-circuit or short-circuit of the
connection to the battery.
b) The PSE shall be capable of continuously supplying P max. a and simultaneously charging the
battery in any charge condition above its final voltage.
c) The PSE shall be capable of supplying P max. b without drawing current from the battery,
other than that associated with the monitoring.
4.2.1.6 The manufacturer shall declare the types and capacities of the batteries compatible with
the PSE. The batteries shall:
a) be suitable to be maintained continuously at their fully charged voltage;
b) be marked with its type designation and code or number identifying the production period;
c) be mounted in accordance with the battery manufacturer’s data;
d) specified not to release electrolyte during normal operation.
NOTE 4.2.1.6.d) may be satisfied by batteries of the sealed type or valve regulated lead acid type.
4.2.1.7 The charger shall be designed and rated as follows:
a) Batteries shall be charged automatically. Charging of the batteries may be limited or
interrupted, such that the requirement of 4.2.1.7.b) may not be met, while the PSE delivers
an output power greater than Pmax. a or the connected equipment is in fire alarm
condition.
b) Batteries of maximum capacity, as specified by the PSE manufacturer, discharged to their
final voltage shall be recharged to at least 80 % of its rated capacity within 24 h and to their
rated capacity within another 48 h, while the PSE is delivering up to Pmax. a.
c) The charging characteristics shall be within the PSE manufacturer’s specification for the
range of temperatures that the batteries can reach when the ambient temperature is in
accordance with the environmental class, or severity level specified by the PSE
manufacturer.
4.2.1.8 Batteries shall not discharge through the charger when the charging voltage is below the
battery voltage, except for the purpose of battery monitoring.
4.2.1.9 The PSE shall be capable of recognizing and signalling the following faults:
a) loss of the function of a main power source, within 30 min of the occurrence;
b) loss of the function of a standby power source, within 15 min of the occurrence;
c) if the associated main power source is operational, a high internal resistance of batteries and
their associated circuitry, e.g. connections, fuses within 4 h of the occurrence (see Annex C);
d) loss of the function of a charger, within 30 min of the occurrence, except where the charger is
switched off or limited as under 4.2.1.7.a).
4.2.1.10 Visible indications may be given on the PSE. In this case the following shall apply.
a) The presence of the main power source or the standby power source shall be given by means
of a green light emitting indication.
b) The presence of a fault as under 4.2.1.9.a) to d) or a system fault as under 4.2.6 shall be given
by means of a yellow or amber light emitting indication, at least common to all faults.
4.2.1.11 Standby power sources shall automatically supply power to connected equipment in
the event of loss of the function of one or more main power sources.
4.2.1.12 When operated from a standby power source, the PSE:
a) shall be capable of operating in accordance with the specification given in the manufacturer’s
data;
b) shall be capable of supplying P max. c, irrespective of the condition of a main power source
and with an internal resistance of the batteries and its associated circuitry up to Ri max (see
Annex C).
4.2.1.13 If batteries can be damaged by deep discharge, the PSE shall have a facility to protect
the batteries against deep discharge.
4.2.1.14 The cabinet or cabinets containing the PSE shall be of robust construction, consistent
with the method of installation recommended in the documentation, and shall meet at least
classification IP20C of EN 60529:1991. If the PSE is integrated with other equipment with a
higher IP classification in the same cabinet then this higher IP classification shall apply.
4.2.1.15 All manual controls, fuses, calibration elements and cable terminals shall be clearly
labelled (e.g. to indicate their function, rating, or by reference to the PSE manufacturer's
documentation).
4.2.1.16 All outputs shall be protected against power overload, consistent with the PSE
manufacturer's specification.
4.2.2 Product characteristics for non-integrated PSE
4.2.2.1 The PSE may be non-integrated, in which case 4.2.2.2 to 4.2.2.7 shall apply.
4.2.2.2 The manufacturer shall provide the output specification.
4.2.2.3 The main power source and the standby power source shall each be capable of meeting
the PSE manufacturer's output specification.
4.2.2.4 The manufacturer shall declare the duration of any interruption in the supply of power
to outputs during the change-over from one power source to the other.
4.2.2.5 The PSE shall provide at least a common fault output for the faults mentioned in
4.2.1.9.a) to d). This output signal shall also be given if the PSE is de-energized.
4.2.2.6 If the PSE is housed in a separate cabinet or cabinets, or cabinets associated with other
fire detection and fire alarm system equipment, manual controls, fuses, calibration elements etc.
for disconnection and adjustment of the power sources shall be accessible only by the use of a
tool or key.
4.2.2.7 PSE may have provision for more than one output, in order to power more than one
piece of equipment, or equipment that require duplicated power inputs (e.g. CIE or VACIE). In
this case, a short circuit in one output shall not prevent the supply of power to another output.
4.2.3 Product characteristics for integrated PSE with external outputs
4.2.3.1 The PSE may be integrated with external outputs, in which case 4.2.3.2 to 4.2.3.7 shall
apply.
4.2.3.2 The manufacturer shall provide the external output specification and the maximum
power consumption of the integral equipment (in total P max. b).
4.2.3.3 The main power source and the standby power source shall each be capable of meeting
the external output specification and shall be capable of powering the integral equipment,
within the manufacturer’s specification.
4.2.3.4 The manufacturer shall declare the duration of any interruption in the supply of power
to external outputs during the change-over from one power source to the other.
4.2.3.5 The PSE shall provide at least a common fault output for the faults mentioned in
4.2.1.9.a) to d). This output signal shall also be given if the PSE is de-energized. This output may
be the same as a fault output of the integral equipment.
4.2.3.6 If the PSE is housed in a CIE or VACIE, manual controls, fuses, calibration elements etc.
for disconnection and adjustment of the power sources shall be accessible only at AL3 or AL4 of
EN 54-2 or EN 54-16.
4.2.3.7 A short circuit, in one external output shall not prevent the supply of power to another
output, or to integral equipment.
4.2.4 Product characteristics for integrated PSE without external outputs
4.2.4.1 The PSE may be integrated without external outputs, in which case 4.2.4.2 to 4.2.4.5
shall apply.
4.2.4.2 The manufacturer shall provide the maximum power consumption of the integral
equipment (P max. b).
4.2.4.3 The main power source and the standby power source shall each be capable of powering
the integral equipment, within the manufacturer’s specification.
4.2.4.4 The PSE shall provide at least a common fault output for the faults mentioned in
4.2.1.9.a) to d). This output signal shall also be given if the PSE is de-energized. This output may
be the same as a fault output in the integral equipment.
4.2.4.5 If the PSE is housed in other equipment, manual controls, fuses, calibration elements etc.
for disconnection and adjustment of the power sources shall be accessible only at AL3 or AL4 of
EN 54-2 or EN 54-16, or by the use of a tool or key.
4.2.5 Product characteristics for distributed PSE
4.2.5.1 The PSE may be distributed in which case 4.2.5.2 to 4.2.5.7 shall apply.
4.2.5.2 For each main power source and each standby power source the manufacturer shall
provide the output specification, including maximum power loading, and shall provide the
possible configurations for powering connected equipment.
4.2.5.3 For each specified configuration, one or more main power sources shall be associated
with one or more standby power sources, such that connected equipment remains powered in
the event of failure of any and all main power sources. If the PSE has more than one main power
source, in the event of failure of a main power source, current may be drawn from one of more
standby power sources.
4.2.5.4 The PSE shall be capable of recognizing and signalling short circuit or interruption in
transmission paths between its components within 100 s of the occurrence of the fault.
4.2.5.5 The PSE shall provide at least a common fault output for the faults mentioned in
4.2.1.9.a) to d). and 4.2.5.4. This output signal shall also be given if the PSE is de-energized.
4.2.5.6 If the PSE is housed in a separate cabinet or cabinets, or cabinets associated with other
fire detection and fire alarm system equipment, manual controls, fuses, calibration elements etc.
for disconnection and adjustment of the power sources shall be accessible only by the use of a
tool or key.
4.2.5.7 PSE may have provision for more than one output, in order to power more than one
piece of equipment, or equipment that require duplicated power inputs (e.g. CIE or VACIE). In
this case, each output shall be protected such that a short circuit or interruption in one
transmission path does not prevent the supply of power at another output.
4.2.6 Product characteristics for PSE controlled by software and related technology
4.2.6.1 Manufacturer's documentation
The PSE design may be based on one or more of the following in order to fulfil requirements of
this European Standard.
a) The equipment may be wholly or partly controlled by software. This software may have been
developed and tested by the manufacturer, or may have been developed and tested
specifically for the PSE by third parties under the control of the manufacturer.
b) Parts of the software may be common to other applications, and supplied to the
manufacturer by third parties (e.g. operating systems, task scheduler, memory handler). In
this case, the manufacturer may not have access to full design information, including
software source code.
c) The equipment may contain software-controlled modules that are supplied to the
manufacturer by third parties, e.g. switch-mode voltage convertors, memory. In this case,
the manufacturer may not have access to full design information, including that for the
embedded software.
d) The equipment may contain software-configured electronic components, e.g. programmable
logic devices.
If any of the above applies, this shall be documented by the manufacturer (see Annex A) and the
PSE shall comply with the requirements of 4.2.6.2 to 4.2.6.5, where applicable.
4.2.6.2 Software design
For software as under 4.2.6.1(a), the following shall apply for software design.
a) The software shall be designed in a methodical manner. The source code shall be divided into
recognizable major functions, or routines, which correspond to the main functions and
tasks performed.
b) The design of the interfaces for manually and automatically generated data shall not permit
invalid data to cause an error in the program execution.
c) The software shall be designed so that appropriate techniques and measures are
implemented for the avoidance of and control of systematic faults and failures in the
software (see Annex E).
d) No elements of the program shall be capable of being updated automatically (e.g. by remote
download) without the authorization of the PSE manufacturer.
4.2.6.3 Program monitoring (see also Annex E)
4.2.6.3.1 The execution of the program shall be monitored as under 4.2.6.3.2 or 4.2.6.3.3. If
routines associated with the main functions of the program are no longer executed, either or
both of the following shall apply.
a) The PSE shall signal a system fault as in 4.2.6.6, within 100 s.
b) The PSE shall enter the fault warning condition within 100 s and signal faults of affected
functions, where only these functions are affected.
4.2.6.3.2 If the program executes in one processor, the execution of the routines as in 4.2.6.3.1
shall be monitored by a monitoring device as in 4.2.6.3.6.
4.2.6.3.3 If the program executes in more than one processor, the execution of the routines as in
4.2.6.3.1 shall be monitored in each processor. A monitoring device as in 4.2.6.3.6 shall be
associated with one or more processors, and at least one such processor shall monitor the
functioning of any processor not associated with such a monitoring device.
4.2.6.3.4 The operation of software as under 4.2.6.1.b) shall be monitored as in 4.2.6.3.1.
4.2.6.3.5 The operation of software-controlled modules as under 4.2.6.1.c) shall be monitored,
at least by a mechanism such as regular data exchange with a processor as in 4.2.6.3.2 and
4.2.6.3.3.
4.2.6.3.6 The monitoring device of 4.2.6.3.2 and 4.2.6.3.3 shall have a time base independent of
that of the monitored system. The functioning of the monitoring device, and the signalling of a
fault, shall not be prevented by a failure in the execution of the program of the monitored
system.
4.2.6.3.7 In the event of a fault as specified in 4.2.6.3.1 or 4.2.6.5, those parts of the PSE affected
shall enter a safe state not later than the indication of the fault. This safe state shall be specified
by the manufacturer.
4.2.6.4 Storage of programs and data (see also Annex E)
4.2.6.4.1 All executable code and data necessary to comply with this European Standard shall
be held in memory which is capable of continuous, non-maintained, reliable operation for a
period of at least 10 years.
4.2.6.4.2 For the program, the following requirements shall apply.
a) The program shall be held in non-volatile memory, which is only accessible by the PSE
manufacturer or an authorized person. Where the program is executed from an image held
in volatile memory, then regular checking for corruption of the image shall be made as
specified in 4.2.6.5.
b) It shall be possible to identify the version reference of the program, by means accessible to an
authorized person. The version reference or references shall be in accordance with the
documentation of Annex A.
4.2.6.4.3 For PSE configuration data, the following requirements shall apply.
a) The alteration of PSE configuration data shall only be possible by the PSE manufacturer or an
authorized person.
b) The alteration of PSE configuration data shall not affect the structure of the program.
c) If stored in volatile memory, the site-specific data shall be protected against power loss by a
back-up energy source which can only be separated from the memory by the PSE
manufacturer or an authorized person, and which is capable of maintaining the memory
contents for at least 2 weeks.
d) If stored in read-write memory, there shall be a mechanism, which prevents the memory
being written without intervention by the PSE manufacturer or an authorized person, such
that its contents are protected in the ev
...
