EN 1071-3:2005

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Advanced technical ceramics - Methods of test for ceramic coatings - Part 3: Determination of adhesion and other mechanical failure modes by a scratch testHochleistungskeramik - Verfahren zur Prüfung keramischer Schichten - Teil 3: Bestimmung der Haftung und Formen des mechanischen Versagens mit dem RitztestCéramiques techniques avancées - Méthodes d'essai pour revetements céramiques - Partie 3 : Détermination de l'adhérence et autres modes de rupture mécanique par essai de rayureAdvanced technical ceramics - Methods of test for ceramic coatings - Part 3: Determination of adhesion and other mechanical failure modes by a scratch test81.060.30Sodobna keramikaAdvanced ceramics25.220.99Druge obdelave in prevlekeOther treatments and coatingsICS:Ta slovenski standard je istoveten z:EN 1071-3:2005SIST EN 1071-3:2005en01-december-2005SIST EN 1071-3:2005SLOVENSKI
STANDARDSIST ENV 1071-3:20001DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1071-3August 2005ICS 81.060.30Supersedes ENV 1071-3:1994
English VersionAdvanced technical ceramics - Methods of test for ceramiccoatings - Part 3: Determination of adhesion and othermechanical failure modes by a scratch testCéramiques techniques avancées - Méthodes d'essai pourrevêtements céramiques - Partie 3 : Détermination del'adhérence et autres modes de défaillance mécanique paressai de rayureHochleistungskeramik - Verfahren zur Prüfung keramischerSchichten - Teil 3: Bestimmung der Haftung und Formendes mechanischen Versagens mit dem RitztestThis European Standard was approved by CEN on 27 June 2005.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2005 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1071-3:2005: ESIST EN 1071-3:2005

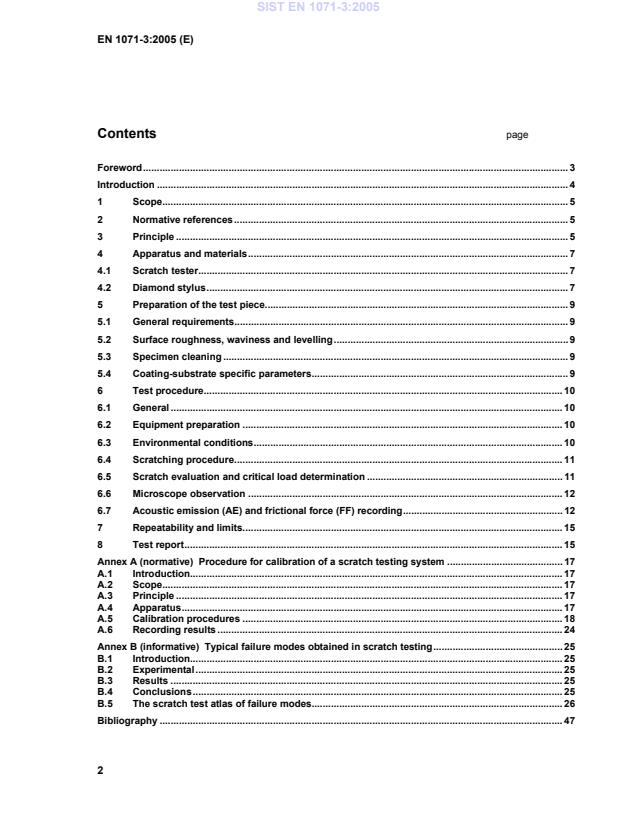

Procedure for calibration of a scratch testing system.17 A.1 Introduction.17 A.2 Scope.17 A.3 Principle.17 A.4 Apparatus.17 A.5 Calibration procedures.18 A.6 Recording results.24 Annex B (informative)
Typical failure modes obtained in scratch testing.25 B.1 Introduction.25 B.2 Experimental.25 B.3 Results.25 B.4 Conclusions.25 B.5 The scratch test atlas of failure modes.26 Bibliography.47
Determination of coating thickness by contact probe profilometer Part 2:
Determination of coating thickness by the crater grinding method Part 3:
Determination of adhesion and other mechanical failure modes by a scratch test Part 4:
Determination of chemical composition by electron probe microanalysis (EPMA) Part 5:
Determination of porosity Part 6:
Determination of the abrasion resistance of coatings by a micro-abrasion wear test Part 7:
Determination of hardness and Young's modulus by instrumented indentation testing Part 8:
Rockwell indentation test for evaluation of adhesion Part 9: Determination of fracture strain Part 10:
Determination of coating thickness by cross sectioning Part 11: Measurement of internal stress with the Stoney formula Parts 7 to 11 are Technical Specifications. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom. SIST EN 1071-3:2005

Knowledge of the failure mode is essential to assess the mechanical behaviour of coated surfaces. Only some of the observed failure events in scratch testing are related to detachment at the coating-substrate interface and are thus relevant as a measure of adhesion. Other failures, such as cracks and cohesive damage within the coating or substrate may be equally important to determine the behaviour of a coated component in a particular application.
The scratch test is designed for the assessment of the mechanical integrity of coated surfaces. The test method consists of generating scratches with a stylus of defined shape (usually diamond with a Rockwell C geometry) by drawing it across the surface of the coating-substrate system to be tested, either under constant or progressive load (see Figure 1). Failure events are detected by direct microscopic observation of the scratch and sometimes by using acoustic emission and/or friction force measurement. The driving forces for the failure of the coating-substrate system in the scratch test are a combination of elastic-plastic indentation stresses, frictional stresses and the residual internal stress present in the coating. The normal load at which failure occurs is called the critical load Lc.
NOTE 1 In a scratch test, a number of consecutive coating failure events may be observed at increasing critical load values. Failure by cracking through the coating thickness (through-thickness cracking) usually occurs at lower loads than detachment of the coating. Therefore, it is quite common to characterise the onset of cracking by the critical normal load Lc1, while the onset of coating detachment defines the critical normal load Lc2. In general, a series of failure modes are observed and used to study the mechanical behaviour of the coated surface, where the onset of the nth failure mode defines the critical load Lcn (see Annex B). NOTE 2 The critical loads at which the failure events appear depend not only on the coating adhesion strength but also on other parameters, such as loading rate, traverse speed, diamond tip wear, substrate and coating roughness, some of which are directly related to the test itself, while others are related to the coating-substrate system. SIST EN 1071-3:2005

(a)
(b) Key X Time Y Normal load Z Indenter traverse distance Figure 1 — Sketches illustrating the normal load and traverse distance versus time in (a) the progressive load, and (b) the constant load operation modes
To meet the requirements of this European Standard, scratch testers shall comply with the calibration requirements of Annex A.
4.2 Diamond stylus This consists of a rigidly mounted diamond normally having a Rockwell C geometry compliant with the requirements of EN ISO 6508-2. The stylus shall be inspected regularly to check for contamination and changes in geometry. If damage is observed at 200x or lower magnification then the stylus shall be changed (see [1]) and if either damage or contamination is observed, the test results since the last inspection shall be disregarded. If during constant load operation the friction force increases, it should be presumed that the stylus has been contaminated.
NOTE 1 Uncertainties in the Rockwell C stylus tip shape and manufacturing defects are a major source of error for the scratch test method. The use of an imperfect stylus may result in different values of critical load when the stylus is rotated in its holder. Control of the stylus shape is imperative, in the as-received condition as well as during usage, to detect wear at the tip. Wear usually occurs in the form of ring cracks or crater wear which is easily visible under a reflected light microscope (magnification > 100:1).
NOTE 2 A certified reference material, BCR-6921), which presents three repeatable failure events at known critical load intervals is available for verification purposes. This can provide a good indication of overall performance, including stylus condition and calibration.
1) European Commission – Directorate-General Joint Research Centre, Institute for Reference Materials and Measurement (IRMM), Retieseweg 111, B-2440 Geel, Belgium.
Key 1 Stylus shaft 2 Vertical load transducer 3 Upper support assembly 4 Base reference 5 XY stage to manoeuvre 6 XY stage drive arrangement 7 Low friction sample table 8 Horizontal force transducer
Figure 2 — Schematic diagram of a typical scratch tester SIST EN 1071-3:2005

NOTE 1 For spring deformation controlled normal load instruments (typical spring constant: 0,02 N/µm) the normal load depends on the roughness and waviness of the surface. A surface roughness value Ra of 0'5 µm may lead to load oscillations of 0,1 N. Load variations of less than 1 N (1 % of the typical load range) require a waviness and/or levelling error smaller than 50 µm. NOTE 2 In general, the critical load is reduced with increasing surface roughness, by the concentration of stresses at roughness peaks as well as by the poorer cleanliness properties of rough substrates prior to coating. The test surface shall be levelled with respect to the stylus/specimen traverse displacement direction – see Annex A. In practice, this is easily attained for flat specimens held on the sample holder. Cylindrical specimens require additional alignment facilities. NOTE 3 The specimen levelling mechanism should be stiff to preclude the variation of load rate due to the compliance of the specimen support. It has been shown that the load rate may vary considerably with the rotational position of the spring, and the compliance of the test specimen. Ideally, mechanisms with in-situ control of the load should be used. 5.3 Specimen cleaning The specimen surface shall be freed from surface contaminants such as oil, grease and moisture by cleaning it prior to testing.
NOTE The following cleaning procedure is adequate if no anomalous contamination has occurred: place the specimen in an ultrasonic bath for 5 min, using clean analytical grade petroleum ether. Allow it to reach room temperature before testing. If drying stains are observed wipe with a soft tissue soaked in petroleum ether.
Allow at least 3 min equilibration time before testing. During testing, the specimen surface and stylus tip shall be kept free of fingerprints. 5.4 Coating-substrate specific parameters The coating-substrate specific parameters include: a) substrate hardness and roughness; b) coating hardness and roughness;
c) coating thickness;
d) friction coefficient between coating and indenter;
e) internal stress in the coating. SIST EN 1071-3:2005

NOTE 3 There is a trend towards the extension and automation of scratch test operation modes to facilitate the use of more advanced test regimes (see [3]). 6.2 Equipment preparation Before starting a test the following actions shall be taken: 1) Scratch tester shall be confirmed as having been calibrated in accordance with Annex A. 2) Diamond stylus shall be confirmed to be free from surface contaminants (oil, grease, material picked up from the preceding test). NOTE If necessary the stylus can be cleaned by wiping with a soft tissue soaked in petroleum ether. If adhering debris is still observed under an optical microscope (recommended magnification: 200 X), #1 200 and #2 400 SiC paper can be used, followed by the wiping with a soft tissue soaked in petroleum ether. Ultrasonic cleaning of the stylus should not be used as cavitation damage can occur. Following cleaning the stylus shall be allowed to reach room temperature before testing. 6.3 Environmental conditions Scratch testing requires frictional interaction between the indenter and the specimen surface, and the frictional properties may be sensitive to environmental conditions. Temperature and relative humidity of the test environment shall therefore be known and controlled, if possible, to ensure repeatability. NOTE The recommended environmental conditions are: i) temperature:
(22 ± 2) °C ii) relative humidity: (50 ± 10) % SIST EN 1071-3:2005

NOTE It may be necessary to use more than one test mode depending upon the coating type, the coating substrate combination and the failure mode of interest. 6.4.2 Progressive loading scratch test Hold the specimen rigidly in the sample holder and bring the stylus into contact with the coated surface. Load the stylus to the required starting load. Select the loading rate and table traverse speed. Values of 100 N/min and 10 mm/min are recommended. Scratch the sample and determine the critical loads of the selected failure events, as described in 6.5.
NOTE 1 Preliminary scratches should be used to define a minimum start load producing an indentation that can be observed using microscope observation (see 6.6) and the highest critical load of interest. The maximum load used in subsequent scratches can then be limited to prevent unnecessary wear of the scratch stylus.
NOTE 2 If the critical load defining the failure event of interest is lower than 10 N, a loading rate of 10 N/min and an indenter traverse speed of 10 mm/min are recommended. 6.4.3 Constant load scratch test Hold the specimen rigidly in the sample holder and bring the diamond stylus into contact with the coated surface. If the equipment is able to operate in the PLST mode, scratch the surface using the procedure in 6.4.2 to determine the load range of interest. Move the sample so that a new, unscratched, region can be tested. Using one fifth of the critical load determined by the PLST test, produce a series of scratches at increasing load using an indenter traverse speed of 10 mm/min and a scratch length of 10 mm. NOTE Following evaluation of the scratches produced, a new series of scratches using lower load increments can be used to investigate any regions of interest more closely. 6.4.4 Multipass scratch test Hold the specimen rigidly in the sample holder and bring the diamond stylus into contact with the coated surface. Using the PLST mode, scratch the surface to determine an approximate load at which the failure mode of interest occurs. Using a load of 50 % of that determined under the PLST mode, an indenter traverse speed of 10 mm/min and a scratch length of at least 3 mm, test the sample using the MPST mode until failure occurs.
NOTE Depending on the mechanical response of the specimen under investigation, it may be necessary to adjust the normal load, to obtain better discriminating capacity by lowering the load, or to obtain the results in an acceptable time-scale by using higher loads. 6.5 Scratch evaluation and critical load determination
Several different methods are in
...
