EN 2593-001:2014
(Main)Aerospace series - Bases for 10 A electromagnetic plug-in relays, two and four poles double thrown - Part 001: Technical specification
Aerospace series - Bases for 10 A electromagnetic plug-in relays, two and four poles double thrown - Part 001: Technical specification
This European Standard specifies the characteristics, installation and mounting dimensions for plug-in relay bases for use with two and four poles double throw relays in accordance with EN 2548 001.
Relay bases in accordance with this standard shall be used at ambient temperatures between 70 °C and 125 °C and at altitudes up to 25 000 m.
Luft- und Raumfahrt - Fassungen für steckbare, elektromagnetische Relais, 10 A, zwei- und vierpolige Wechselschalter - Teil 001: Technische Lieferbedingungen
Série aérospatiale - Socles pour relais électromagnétiques 10 A, embrochables, deux et quatre pôles inverseurs - Partie 001: Spécification technique
Aeronavtika - Vtičnice za elektromagnetne vtične dvopolne in štiripolne releje za 10 A - 001. del: Tehnične specifikacije
Ta evropski standard določa značilnosti, namestitev in mere za montažo vtičnic za vtične releje za uporabo z dvopolnimi in štiripolnimi releji v skladu s standardom EN 2548-001. V skladu s tem standardom je treba vtičnice za releje uporabljati pri temperaturi okolja med −70 °C in 125 °C na nadmorski višini do 25000 m.
General Information
- Status
- Published
- Publication Date
- 16-Dec-2014
- Withdrawal Date
- 29-Jun-2015
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2593-001:2014 is a CEN technical specification in the Aerospace series that defines the characteristics, installation and mounting dimensions for plug-in relay bases designed for 10 A electromagnetic, two- and four-pole double-throw relays (mating with EN 2548-001 relays). The standard covers materials, sealing, polarizing/keying, marking, packaging, storage and qualification/quality-assurance requirements for aerospace relay bases intended for extreme environments (ambient temperatures from −70 °C to 125 °C and altitudes up to 25 000 m).
Key Topics and Requirements
- Scope & Interface
- Relay bases for 10 A plug-in relays, two- and four-pole double-throw, to be used with EN 2548-001 relays.
- Derived from MIL-S-12883/40 and MIL-S-12883/41 lineage.
- Environmental Range
- Operational temperature: −70 °C to 125 °C.
- Altitude capability: up to 25 000 m.
- Materials & Construction
- Socket body: non‑flammable thermoplastic (per EN 2349-100).
- Interface seal: silicon rubber providing environmental sealing and electrical isolation.
- Crimp contacts: per EN 3155-017; gold plating 1.27 µm minimum.
- Metal hardware: non‑magnetic corrosion-resistant steel.
- Mechanical & Functional Features
- Retaining clip to ensure permanent holding of crimp contacts.
- Polarizing holes (two‑pole) and keyed terminal positions (four‑pole) to prevent incorrect relay insertion.
- Insertion/extraction forces and mating/unmating requirement: < 36 N for specified types.
- Testing & Qualification
- Qualification and maintenance tests reference EN 2349-100 test methods: vibration (sinusoidal & random), shock, thermal cycling, salt spray, humidity/low pressure, ozone, mould, insulation resistance, dielectric strength, contact voltage drop, overload and switching performance.
- Qualification tests must be performed with the mating relay; periodic requalification is required.
- Marking, Packaging & Storage
- Marking: EN reference, manufacture date (year-week), manufacturer name/trademark, terminal IDs.
- Delivery: individual plastic bags, accessories separately packed; store in original packaging protected from UV.
Applications / Who Uses This Standard
- Aerospace component manufacturers and relay base suppliers designing and producing aerospace relay bases.
- Systems and avionics designers specifying plug-in relay interfaces for aircraft and spacecraft.
- Qualification and test laboratories performing environmental and electrical testing on relay assemblies.
- Procurement, quality assurance and certification teams ensuring component compliance with aerospace electrical interface standards.
Related Standards
- EN 2548-001 - Relays (mating relays specification)
- EN 2593-003 / EN 2593-004 / EN 2593-005 - Product dimension variants of EN 2593 series
- EN 2349 (all parts) - Requirements and test procedures for switching devices
- EN 3155-017 - Crimp contacts for relay bases
- MIL-S-12883/40, MIL-S-12883/41 - US military socket references
Keywords: EN 2593-001:2014, aerospace relay bases, 10 A electromagnetic plug-in relays, relay base dimensions, relay qualification tests, EN 2548-001.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 2593-001:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Bases for 10 A electromagnetic plug-in relays, two and four poles double thrown - Part 001: Technical specification". This standard covers: This European Standard specifies the characteristics, installation and mounting dimensions for plug-in relay bases for use with two and four poles double throw relays in accordance with EN 2548 001. Relay bases in accordance with this standard shall be used at ambient temperatures between 70 °C and 125 °C and at altitudes up to 25 000 m.
This European Standard specifies the characteristics, installation and mounting dimensions for plug-in relay bases for use with two and four poles double throw relays in accordance with EN 2548 001. Relay bases in accordance with this standard shall be used at ambient temperatures between 70 °C and 125 °C and at altitudes up to 25 000 m.
EN 2593-001:2014 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2593-001:2014 has the following relationships with other standards: It is inter standard links to EN 2349-303:2006, EN 2349-601:2007, EN 2349-312:2006, EN 2349-301:2006, EN 2349-305:2006, EN 2349-415:2007, EN 2349-202:2006, EN 2349-414:2007, EN 2349-412:2007, EN 2349-310:2006, EN 2349-402:2006, EN 2349-304:2006, EN 2349-308:2006, EN 2349-319:2006, EN 2349-317:2006. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2593-001:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Steckfassung für elektromagnetische Relais 10 A, steckbar, zwei- und vierpolig - Teil 001: Technische LieferbedingungenSérie aérospatiale - Socles pour relais électromagnétiques 10 A, embrochables, deux et quatre pôles inverseurs - Partie 001: Spécification techniqueAerospace series - Bases for 10 A electromagnetic plug-in relays, two and four poles double thrown - Part 001: Technical specification49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2593-001:2014SIST EN 2593-001:2015en,fr,de01-marec-2015SIST EN 2593-001:2015SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2593-001
December 2014 ICS 49.060 English Version
Aerospace series - Bases for 10 A electromagnetic plug-in relays, two and four poles double thrown - Part 001: Technical specification
Série aérospatiale - Socles pour relais électromagnétiques 10 A, embrochables, deux et quatre pôles inverseurs - Partie 001: Spécification technique
Luft- und Raumfahrt - Fassungen für steckbare, elektromagnetische Relais, 10 A, zwei- und vierpolige Wechselschalter - Teil 001: Technische LieferbedingungenThis European Standard was approved by CEN on 22 November 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2593-001:2014 ESIST EN 2593-001:2015

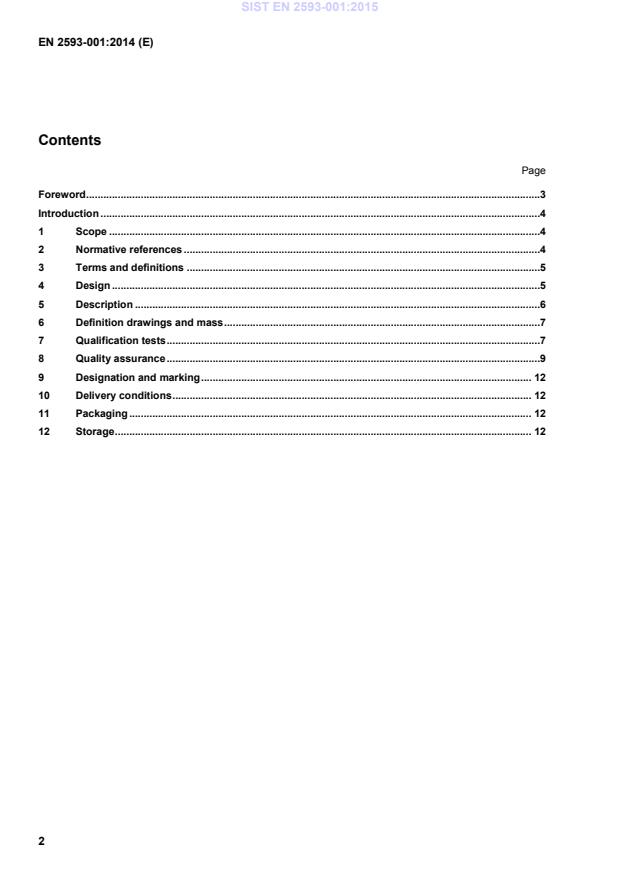

Page Foreword .3 Introduction .4 1 Scope .4 2 Normative references .4 3 Terms and definitions .5 4 Design .5 5 Description .6 6 Definition drawings and mass .7 7 Qualification tests .7 8 Quality assurance .9 9 Designation and marking . 12 10 Delivery conditions . 12 11 Packaging . 12 12 Storage . 12
EN 2548-001, Aerospace series — Relays, electromagnetic, 10 A (resistive load), with or without suppressor, plug-in type, two and four poles double throw — Part 001: Technical specification 2)
EN 2593-003, Aerospace series — Bases for 10 A electromagnetic plug-in relays, two and four poles double throw — Part 003: According to EN 2548-003 — Base with non-captive fixation stud, metric — Dimensions — Product standard 2) EN 2593-004, Aerospace series — Bases for 10 A electromagnetic plug-in relays, two and four poles double throw — Part 004: According to EN 2548-004 — Base with melded-in fixation stud, unified — Dimensions — Product standard 2) EN 2593-005, Aerospace series — Bases for 10 A electromagnetic plug-in relays, two and four poles double throw — Part 005: According to EN 2548-005 — Base with melded-in fixation stud, metric — Dimensions — Product standard 2) EN 3155-017, Aerospace series — Electrical contacts used in elements of connection — Part 017: Contacts, electrical, relay base, female, type A, crimp, class P — Product standard MIL-S-12883/40, Socket, plug-in electronic components, socket for MIL-R-6106 and MIL-R-83726 relays, square pattern 3)
MIL-S-12883/41, Socket, plug-in electronic components, socket for MIL-R-6106 relays 3)
1) Published as ASD-STAN Prestandard at the date of publication of this standard by Aerospace and Defence Industries Association of Europe-Standardization (ASD-STAN) (www.asd-stan.org). 2) In preparation at the date of publication of this standard. 3) Published as DoD National (US) Mil. Department of Defense (http://www.defenselink.mil/). SIST EN 2593-001:2015
...
