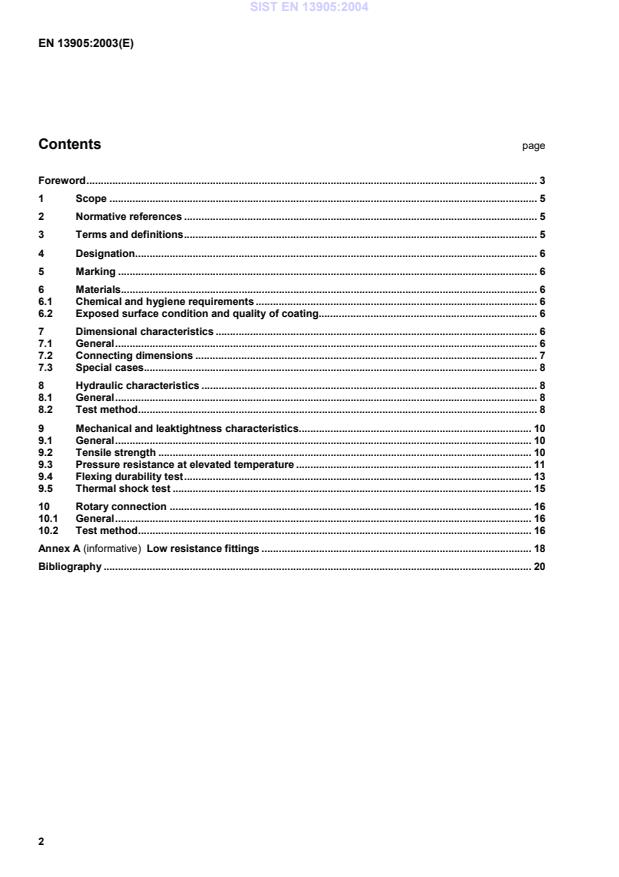

EN 13905:2003(E)2ContentspageForeword.31Scope.52Normative references.53Terms and definitions.54Designation.65Marking.66Materials.66.1Chemical and hygiene requirements.66.2Exposed surface condition and quality of coating.67Dimensional characteristics.67.1General.67.2Connecting dimensions.77.3Special cases.88Hydraulic characteristics.88.1General.88.2Test method.89Mechanical and leaktightness characteristics.109.1General.109.2Tensile strength.109.3Pressure resistance at elevated temperature.119.4Flexing durability test.139.5Thermal shock test.1510Rotary connection.1610.1General.1610.2Test method.16Annex A (informative)
Low resistance fittings.18Bibliography.20SIST EN 13905:2004



EN 13905:2003(E)3ForewordThis document (EN 13905:2003) has been prepared by Technical Committee CEN/TC 164 “Water supply”,the secretariat of which is held by AFNOR.This European Standard shall be given the status of a national standard, either by publication of an identicaltext or by endorsement, at the latest by March 2004, and conflicting national standards shall be withdrawn atthe latest by March 2004.Annex A is informative.This document includes a Bibliography.According to the CEN/CENELEC Internal Regulations, the national standards organizations of the followingcountries are bound to implement this European Standard: Austria, Belgium, Czech Republic, Denmark,Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands,Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and the United Kingdom.SIST EN 13905:2004



EN 13905:2003(E)4IntroductionIn respect of potential adverse effects on the quality of water intended for human consumption caused by theproduct covered by this standard:1) This standard provides no information as to whether the product may be used without restriction inany of the Member States of the EU or EFTA.2) It should be noted that, while awaiting the adoption of verifiable European criteria, existing nationalregulations concerning the use and/or the characteristics of this product remain in force.This European Standard specifies requirements for "low resistance" shower hoses suitable for use in lowpressure water supply systems as described in informative annex A.Requirements for shower hoses suitable for use in high pressure water supply systems are specified in EN1113.SIST EN 13905:2004



EN 13905:2003(E)51 ScopeThis European Standard specifies :¾ the dimensional, leaktightness, mechanical and hydraulic characteristics with which shower hoses shallcomply ;¾ the procedures for testing these characteristics.It applies to shower hoses of any material used for ablutionary purposes and intended for connecting showerhandsets to the sanitary tapware of baths and showers. They should only be connected downstream of theobturator of the tapware.Details of pressure and temperature are given in Table 1.Table 1 — Conditions of useLimits of useRecommended limits for correctoperationDynamic pressure0,01 £ P £ 0,2 MPa(0,1 £ P £ 2 bar)0,02 £ P £ 0,1 MPa(0,2 £ P £ 1,0 bar)TemperatureT £ 70 °CT £ 42 °CHoses which are an integral part of sanitary tapware (e.g. sink mixers) or hoses intended to connect sanitarytapware to the water supplies are not covered by this standard.2 Normative referencesThis European Standard incorporates by dated or undated reference, provisions from other publications.These normative references are cited at the appropriate places in the text, and the publications are listedhereafter. For dated references, subsequent amendments to or revisions of any of these publications apply tothis European Standard only when incorporated in it by amendment or revision. For undated references thelatest edition of the publication referred to applies (including amendments).EN 248 Sanitary tapware - General specification for electrodeposited coatings of Ni-Cr.ISO 228-1, Pipe threads where pressure-tight joints are not made on the threads - Part 1: Dimensions,tolerances and designation.3 Terms and definitionsFor the purposes of this European Standard, the following terms and definitions apply.3.1shower hoseflexible supply pipe which connects sanitary tapware to a shower handsetSIST EN 13905:2004



EN 13905:2003(E)64 DesignationHoses complying with this standard, are designated by :¾ the connecting thread dimensions G 1/2 ´ G 1/2 or G 1/2 ´ G 3/4 ;¾ the length ;¾ the material of the external sheath (plastic, metal) ;¾ the type of nuts and if conical the dimension C ;¾ reference to this standard EN 13905 ;¾ flow rate Class (see 8.2.4).EXAMPLEShower hose G 1/2, cone 26 ´ G 3/4, length 1,5 m, metal sheath, EN 13905, Class H.5 MarkingHoses complying with this standard shall be marked permanently and legibly with the manufacturer's mark orthe supplier's mark.The designation shall appear on the packaging.6 Materials6.1 Chemical and hygiene requirementsAll materials coming into contact with water intended for human consumption shall not present any health riskup to a temperature of 90 °C. They shall not cause any deterioration to the water intended for humanconsumption in terms of quality, appearance, smell or taste.Within the recommended limits for correct operation given in clause 1 of this standard the materials shall notundergo any change which would impair the performance of the hose. Parts subjected to pressure shallwithstand the pressures given in Table 1. Materials without adequate resistance to corrosion shall beprotected against corrosion.6.2 Exposed surface condition and quality of coatingVisible chromium plated surfaces and Ni-Cr coatings shall comply with the requirements of EN 248.7 Dimensional characteristics7.1 GeneralGeneral comment on design :¾ the design and construction of components without defined dimensions permits various design solutionsto be adopted by the manufacturer,¾ permitted deviations from the defined dimensions are given in 7.3.SIST EN 13905:2004



EN 13905:2003(E)77.2 Connecting dimensionsThe connecting dimensions of shower hoses are specified in Table 2 and Figures 1 to 3.Table 2 — Connecting dimensionsDimensionsValues in mmCommentsAG 1/2 or G 3/4Connecting thread (tap side) ISO 228-1BG 1/2Connecting thread (shower side)ISO 228-1CÆ 23 5010,,
+-orÆ 26 5010
...
