EN 4008-006:2006
(Main)Aerospace series - Elements of electrical and optical connection - Crimping tools and associated accessories - Part 006: Positioner for crimping tool M22520/7 - Product standard
Aerospace series - Elements of electrical and optical connection - Crimping tools and associated accessories - Part 006: Positioner for crimping tool M22520/7 - Product standard
This standard specifies the characteristics for the positioner used with the M22520/7 crimping tool to crimp electrical contacts according to EN 4008 002.
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Crimpwerkzeuge und zugehöriges Zubehör - Teil 006: Positionierer für Crimpzange M22520/7 - Produktnorm
Diese Norm legt die Eigenschaften des Positionierstückes fest, das zusammen mit der Crimpzange M22520/7 zum Crimpen von elektrischen Kontakten nach EN 4008 002 verwendet wird.
Série aérospatiale - Organes de connexion électrique et optique - Outils de sertissage et accessoires associés - Partie 006 : Positionneur pour pince à sertir M22520/7 - Norme de produit
Aeronavtika - Elementi električnih in optičnih povezav - Orodje za stiskanje in pripadajoča oprema - 006. del: Pozicionirna naprava za klešče M22520/7 - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 18-Jul-2006
- Withdrawal Date
- 30-Jan-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4008-006:2006 is a European product standard from CEN that defines the positioner used with the M22520/7 crimping tool for crimping electrical contacts in aerospace applications. The document specifies the required characteristics, materials, marking and designation so the positioner reliably locates contacts to be crimped in accordance with EN 4008-002. This standard supports consistent tooling, interchangeability and quality control for aerospace crimping tools and associated accessories.
Key topics and technical requirements
- Function and mounting
- Secures to the M22520/7 crimping tool by two bayonets and an internal spring-loaded locator.
- Contact positioning is achieved by the contact butting against a shoulder in the central bore.
- Locator spring characteristic
- Locator must be spring-loaded to depress 0.79 mm with a force of (9 ± 4.5) N.
- Dimensions and tolerances
- Dimensions are provided in millimetres (see figure in standard). General tolerances: ± 0.25 mm.
- Maximum mass: 30 g.
- Materials and finish
- Positioner body: aluminium alloy, colour green.
- Locator: stainless steel.
- Marking and designation
- Surfaces must be marked with the manufacturer’s name and part number, and the text EN 4008-006 "use with M22520/7 basic tool".
- Example designation format given (POSITIONER EN4008-006; optional code I9005).
- Related technical content
- Refers to general terminology and test methods in EN 2591-100 and to the technical specification EN 4008-001. It is intended for use with EN 4008-002 product requirements.
Applications and who uses this standard
- Aerospace manufacturers specifying tooling for wire termination and harness assembly.
- Tooling suppliers and OEMs designing or producing positioners and accessories for the M22520/7 crimping tool.
- Procurement and quality managers ensuring purchased positioners meet aerospace product standard requirements for interchangeability and traceability.
- Maintenance and repair teams replacing or refurbishing crimping tool accessories to approved specifications.
- Test laboratories performing acceptance checks and mechanical verification against the standard’s characteristics.
Related standards
- EN 4008-001 - Crimping tools and accessories: Technical specification
- EN 4008-002 - Product standards for crimping electrical contacts
- EN 2591-100 - Test methods and terminology
- MIL C-22520/7 - Military specification for the M22520/7 crimping tool (reference historical compatibility)
Keywords: EN 4008-006:2006, positioner for crimping tool M22520/7, aerospace crimping tools, crimping tool accessories, EN 4008-002, product standard, locator spring force, tooling specification.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4008-006:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Elements of electrical and optical connection - Crimping tools and associated accessories - Part 006: Positioner for crimping tool M22520/7 - Product standard". This standard covers: This standard specifies the characteristics for the positioner used with the M22520/7 crimping tool to crimp electrical contacts according to EN 4008 002.
This standard specifies the characteristics for the positioner used with the M22520/7 crimping tool to crimp electrical contacts according to EN 4008 002.
EN 4008-006:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4008-006:2006 has the following relationships with other standards: It is inter standard links to EN 4008-001:2006, EN 4008-002:2006, EN 2591-100:2024. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4008-006:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

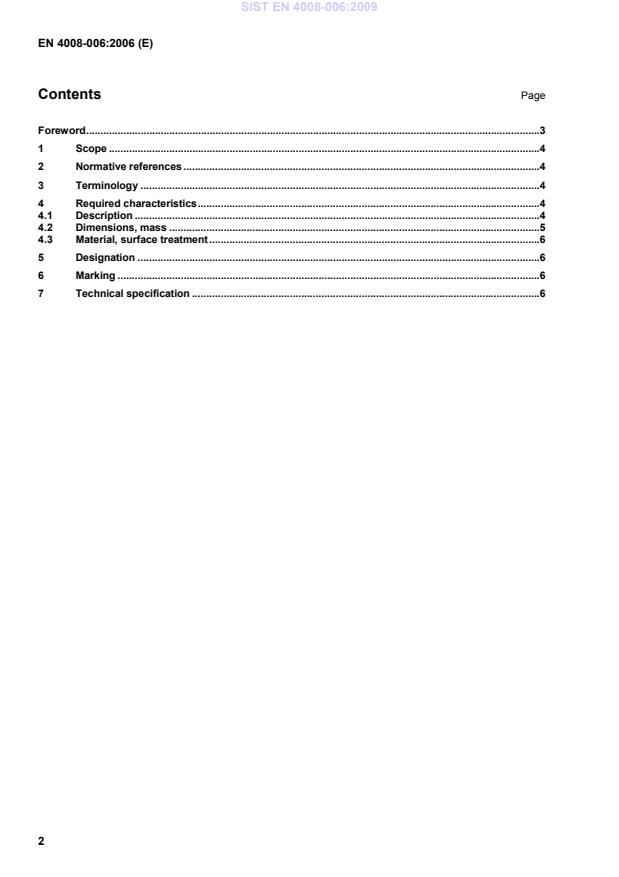

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Crimpwerkzeuge und zugehöriges Zubehör - Teil 006: Positionierer für Crimpzange M22520/7 - ProduktnormSérie aérospatiale - Organes de connexion électrique et optique - Outils de sertissage et accessoires associés - Partie 006 : Positionneur pour pince à sertir M22520/7 - Norme de produitAerospace series - Elements of electrical and optical connection - Crimping tools and associated accessories - Part 006: Positioner for crimping tool M22520/7 - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 4008-006:2006SIST EN 4008-006:2009en,de01-julij-2009SIST EN 4008-006:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 4008-006July 2006ICS 49.060 English VersionAerospace series - Elements of electrical and optical connection- Crimping tools and associated accessories - Part 006:Positioner for crimping tool M22520/7 - Product standardSérie aérospatiale - Organes de connexion électrique etoptique - Outils de sertissage et accessoires associés -Partie 006 : Positionneur pour pince à sertir M22520/7 -Norme de produitLuft- und Raumfahrt - Elektrische und optischeVerbindungselemente - Crimpwerkzeug und zugehörigesZubehör - Teil 006: Positionierer für Crimpzange M22520/7- ProduktnormThis European Standard was approved by CEN on 6 February 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 4008-006:2006: ESIST EN 4008-006:2009
...
