Furniture - Seating - Determination of stability
This document specifies test methods and requirements for the determination of the stability of all types of seating for adults weighing up to 110 kg, without regard to use, materials, design/construction or manufacturing process.
The test methods described can be used for seating for children and heavier adults by modifying test loads and loading points.
This document does not apply to children’s highchairs, table mounted chairs and bath seats which are covered by other European Standards.
Möbel - Sitzmöbel - Bestimmung der Standsicherheit
Dieses Dokument legt Anforderungen und Prüfverfahren zur Bestimmung der Standsicherheit für alle Arten von Sitzmöbeln für Erwachsene mit einem Gewicht von bis zu 110 kg ohne Rücksicht auf Gebrauch, Materialien, Design/Bauart oder Fertigungsprozess fest.
Die beschriebenen Prüfverfahren können durch Abänderung der Prüflasten und Belastungspunkte auf Sitzmöbel für Kinder und schwerere Erwachsene angewendet werden.
Dieses Dokument gilt nicht für Kinderhochstühle, Tischhängesitze und Badesitze, die durch andere Europäische Normen abgedeckt werden.
Mobilier - Sièges - Détermination de la stabilité
La présente Norme européenne spécifie les méthodes d’essai et les exigences pour la détermination de la stabilité de tous les types de sièges destinés à être utilisés par des adultes jusqu’à 110 kg, indépendamment de leur utilisation, de la nature des matériaux, de la conception/construction ou du procédé de fabrication.
Les méthodes d’essai décrites peuvent être utilisées pour les sièges destinés aux enfants et ceux destinés aux adultes plus lourds en modifiant les charges d’essai et les points de charge.
La présente Norme européenne ne s’applique pas aux chaises hautes pour enfants, aux sièges de table, ni aux sièges de bain qui sont couverts par d’autres Normes européennes.
Pohištvo - Sedežno pohištvo - Ugotavljanje stabilnosti
Ta evropski standard določa preskusne metode in zahteve za ugotavljanje stabilnosti vseh vrst domačih sedežev za odrasle.
General Information
- Status
- Withdrawn
- Publication Date
- 13-Nov-2018
- Withdrawal Date
- 13-Apr-2025
- Technical Committee
- CEN/TC 207 - Furniture
- Drafting Committee
- CEN/TC 207/WG 9 - Test methods
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 29-Nov-2023
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 21-Nov-2018
- Effective Date
- 18-Jan-2023
Frequently Asked Questions
EN 1022:2018 is a standard published by the European Committee for Standardization (CEN). Its full title is "Furniture - Seating - Determination of stability". This standard covers: This document specifies test methods and requirements for the determination of the stability of all types of seating for adults weighing up to 110 kg, without regard to use, materials, design/construction or manufacturing process. The test methods described can be used for seating for children and heavier adults by modifying test loads and loading points. This document does not apply to children’s highchairs, table mounted chairs and bath seats which are covered by other European Standards.
This document specifies test methods and requirements for the determination of the stability of all types of seating for adults weighing up to 110 kg, without regard to use, materials, design/construction or manufacturing process. The test methods described can be used for seating for children and heavier adults by modifying test loads and loading points. This document does not apply to children’s highchairs, table mounted chairs and bath seats which are covered by other European Standards.
EN 1022:2018 is classified under the following ICS (International Classification for Standards) categories: 97.140 - Furniture. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 1022:2018 has the following relationships with other standards: It is inter standard links to EN 1022:2005, EN 1022:2023. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 1022:2018 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Pohištvo - Sedežno pohištvo - Ugotavljanje stabilnostiMöbel - Sitzmöbel - Bestimmung der StandsicherheitMobilier domestique - Sièges - Détermination de la stabilitéFurniture - Seating - Determination of stability97.140PohištvoFurnitureICS:Ta slovenski standard je istoveten z:EN 1022:2018SIST EN 1022:2019en,fr,de01-april-2019SIST EN 1022:2019SLOVENSKI
STANDARDSIST EN 1022:20061DGRPHãþD

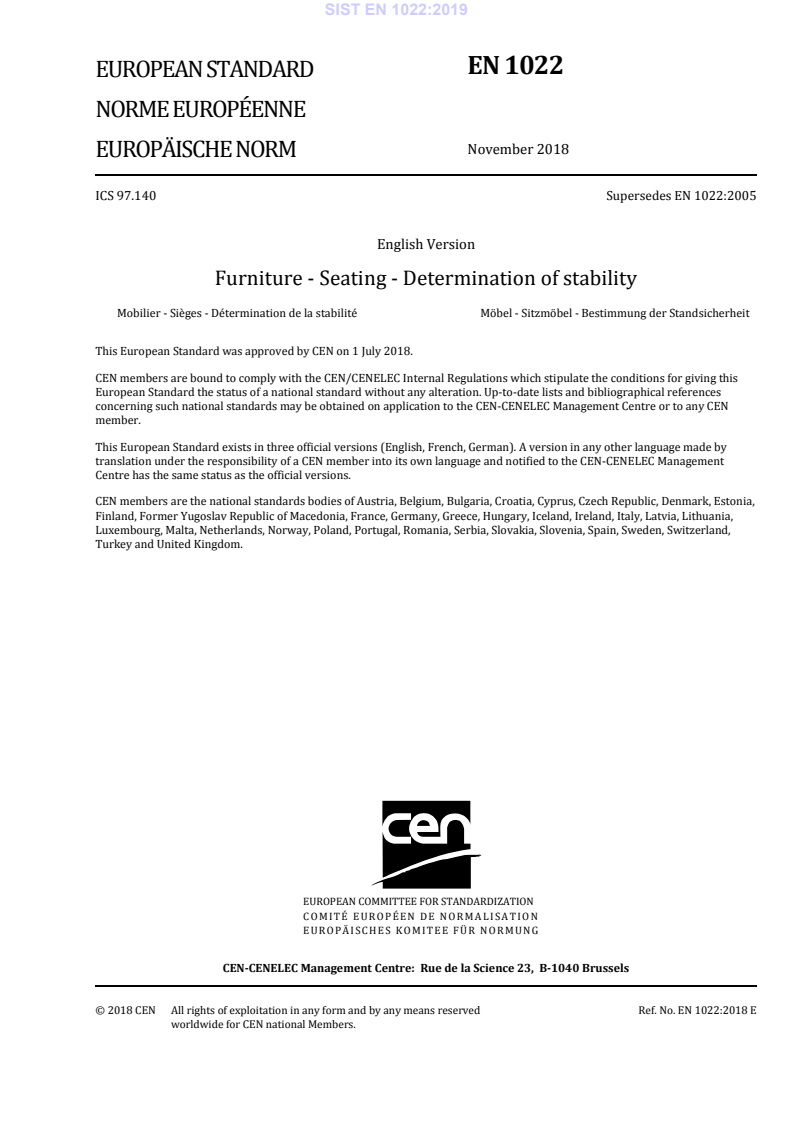

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1022
November
t r s z ICS
{ yä s v r Supersedes EN
s r t tã t r r wEnglish Version
Furniture æ Seating æ Determination of stability Mobilier æ Sièges æ Détermination de la stabilité
Möbel æ Sitzmöbel æ Bestimmung der Standsicherheit This European Standard was approved by CEN on
s July
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s r t tã t r s z ESIST EN 1022:2019

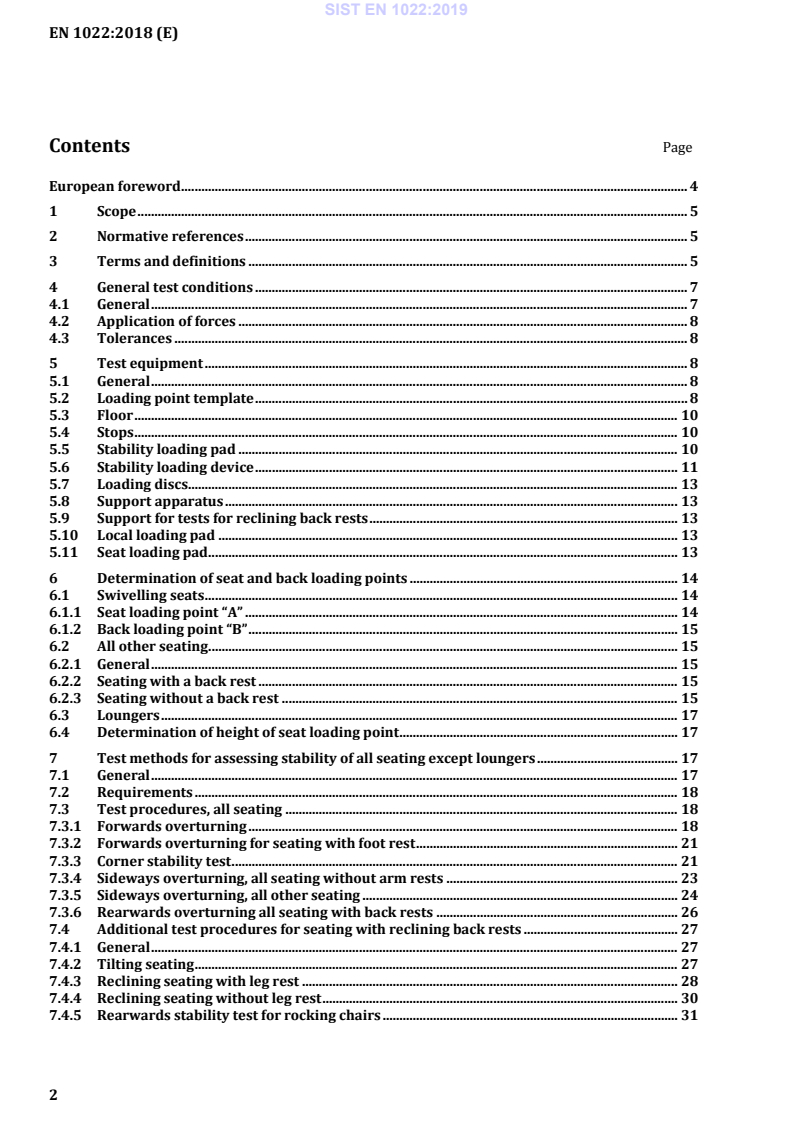

Page European foreword . 4 1 Scope . 5 2 Normative references . 5 3 Terms and definitions . 5 4 General test conditions . 7 4.1 General . 7 4.2 Application of forces . 8 4.3 Tolerances . 8 5 Test equipment . 8 5.1 General . 8 5.2 Loading point template . 8 5.3 Floor . 10 5.4 Stops . 10 5.5 Stability loading pad . 10 5.6 Stability loading device . 11 5.7 Loading discs. 13 5.8 Support apparatus . 13 5.9 Support for tests for reclining back rests . 13 5.10 Local loading pad . 13 5.11 Seat loading pad . 13 6 Determination of seat and back loading points . 14 6.1 Swivelling seats . 14 6.1.1 Seat loading point “A” . 14 6.1.2 Back loading point “B” . 15 6.2 All other seating . 15 6.2.1 General . 15 6.2.2 Seating with a back rest . 15 6.2.3 Seating without a back rest . 15 6.3 Loungers . 17 6.4 Determination of height of seat loading point . 17 7 Test methods for assessing stability of all seating except loungers . 17 7.1 General . 17 7.2 Requirements . 18 7.3 Test procedures, all seating . 18 7.3.1 Forwards overturning . 18 7.3.2 Forwards overturning for seating with foot rest . 21 7.3.3 Corner stability test . 21 7.3.4 Sideways overturning, all seating without arm rests . 23 7.3.5 Sideways overturning, all other seating . 24 7.3.6 Rearwards overturning all seating with back rests . 26 7.4 Additional test procedures for seating with reclining back rests . 27 7.4.1 General . 27 7.4.2 Tilting seating . 27 7.4.3 Reclining seating with leg rest . 28 7.4.4 Reclining seating without leg rest . 30 7.4.5 Rearwards stability test for rocking chairs . 31 SIST EN 1022:2019
