EN 3708-002:2006
(Main)Aerospace series - Modular interconnection systems - Terminal junction systems - Part 002: Performance specification
Aerospace series - Modular interconnection systems - Terminal junction systems - Part 002: Performance specification
This standard specifies the general characteristics of terminal junction systems for modular interconnection systems in accordance with EN 3708-001, including versions with sealed or unsealed modules, the interconnection diagrams of which may be different and defined in the product standards.
Luft- und Raumfahrt - Verteilersysteme in modularer Bauweise - Verteilermodule - Teil 002: Leistungsdaten
Diese Norm legt die allgemeinen Eigenschaften für Verteilersysteme in modularer Bauweise nach EN 3708 001 fest, einschließlich der Ausführungen mit abgedichteten und nicht abgedichteten Modulen, deren Schaltschemata unterschiedlich sein können und in den Produktnormen angegeben sind.
Série aérospatiale - Systèmes d'interconnexions modulaires - Barrettes de raccordement - Partie 002 : Spécification de performances
Aeronavtika - Modularni medsebojno povezljivi sistemi - Razdelilni moduli - 002. del: Specifikacija lastnosti
General Information
- Status
- Published
- Publication Date
- 16-May-2006
- Withdrawal Date
- 29-Nov-2006
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3708-002:2006 - part of the Aerospace series - is the performance specification for terminal junction systems used in modular interconnection systems. It defines the general characteristics and required performance for terminal junction modules (sealed or unsealed) intended to work with EN 3708-001 technical specifications. The standard is aimed at ensuring consistent electrical, mechanical and climatic performance for modular aerospace connectors and junction modules.
Key Topics and Requirements
- Scope: General characteristics of terminal junction systems for modular interconnection systems; covers both sealed and unsealed module versions and allows interconnection diagrams as defined in product standards.
- Authorized cable dimensions (external diameter):
- Contact size 22: 0.72 – 1.37 mm
- Contact size 20: 0.85 – 2.10 mm
- Contact size 16: 1.20 – 2.62 mm
- Contact size 12: 1.90 – 4.01 mm
- Electrical requirements:
- Insulation resistance at ambient temperature: 5 000 MΩ
- Voltage proof test: 1 500 V r.m.s., 50 Hz at sea level
- Nominal allowable contact currents (at extreme temperature 175 °C):
- Size 22: 5 A
- Size 20: 7.5 A
- Size 16: 13 A
- Size 12: 23 A
- Thermal derating and warming limits referenced to EN 2591‑209
- Climatic category:-55 °C to 175 °C
- Contacts and accessories: Contacts per EN 3155‑016; filler plugs per EN 4008‑003.
- Normative references: Includes EN 2083, EN 2591 series, EN 3155‑016, EN 3708‑001 and others required for correct application.
Applications and Users
EN 3708-002:2006 is used by:
- Aerospace manufacturers and systems integrators when specifying modular interconnection systems and terminal junction modules.
- Electrical and avionics engineers designing, selecting, or validating connector layouts and junction modules for aircraft wiring harnesses.
- Component and connector suppliers to ensure products meet required performance specifications (electrical, thermal, climatic).
- Maintenance, procurement and certification teams preparing compliance documentation, procurement specifications, and acceptance tests.
Practical uses include designing junction modules to match cable sizes and current ratings, specifying insulation and voltage test requirements, and selecting appropriate contacts and filler plugs for sealed/unsealed modules.
Related Standards
- EN 3708-001: Technical specification for modular interconnection systems
- EN 2083: Copper/copper alloy conductors for electrical cables
- EN 2591-100 / EN 2591-209: Test methods and current temperature derating
- EN 3155-016: Electrical contact product standard
- EN 4008-003: Filler plugs for electrical connections
Keywords: EN 3708-002:2006, modular interconnection systems, terminal junction systems, aerospace series, performance specification, sealed modules, contacts, insulation resistance, voltage proof test, airborne connectors.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3708-002:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Modular interconnection systems - Terminal junction systems - Part 002: Performance specification". This standard covers: This standard specifies the general characteristics of terminal junction systems for modular interconnection systems in accordance with EN 3708-001, including versions with sealed or unsealed modules, the interconnection diagrams of which may be different and defined in the product standards.
This standard specifies the general characteristics of terminal junction systems for modular interconnection systems in accordance with EN 3708-001, including versions with sealed or unsealed modules, the interconnection diagrams of which may be different and defined in the product standards.
EN 3708-002:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3708-002:2006 has the following relationships with other standards: It is inter standard links to EN 2591-209:1996, EN 3708-001:2006, EN 2591-100:2024, EN 4008-003:2017, EN 3155-016:2025, EN 2083:2001, EN 3155-002:2024. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3708-002:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-september-2009
Aeronavtika - Modularni medsebojno povezljivi sistemi - Razdelilni moduli - 002.
del: Specifikacija lastnosti
Aerospace series - Modular interconnection systems - Terminal junction systems - Part
002: Performance specification
Luft- und Raumfahrt - Verteilersysteme in modularer Bauweise - Verteilermodule - Teil
002: Leistungsdaten
Série aérospatiale - Systèmes d'interconnexions modulaires - Barrettes de raccordement
- Partie 002: Spécification de performances
Ta slovenski standard je istoveten z: EN 3708-002:2006
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 3708-002
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2006
ICS 49.060
English Version
Aerospace series - Modular interconnection systems - Terminal
junction systems - Part 002: Performance specification
Série aérospatiale - Systèmes d'interconnexions Luft- und Raumfahrt - Verteilersystem in modularer
modulaires - Barrettes de raccordement - Partie 002 : Bauweise - Verteilermodule - Teil 002: Leistungsdaten
Spécification de performances
This European Standard was approved by CEN on 16 March 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3708-002:2006: E
worldwide for CEN national Members.

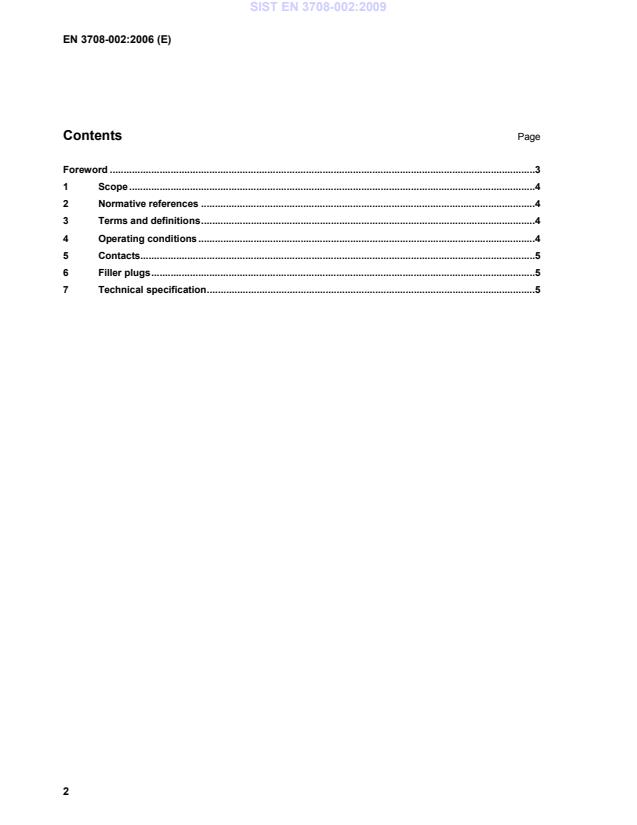

Contents Page
