EN 4652-312:2015
(Main)Aerospace series - Connectors, coaxial, radio frequency - Part 312: Type 3, N interface - Clamp nut assembly version - Square flange receptacle - Product standard
Aerospace series - Connectors, coaxial, radio frequency - Part 312: Type 3, N interface - Clamp nut assembly version - Square flange receptacle - Product standard
This European Standard specifies the characteristics of screwed on coupling (N interface) coaxial square flange receptacle − 50 ohms. The cable to connector assembly is a clamp technology.
Luft- und Raumfahrt - Koaxiale Hochfrequenz-Steckverbinder - Teil 312: Typ 3, N-Schnittstelle - Klemmverbindung - fester Steckverbinder mit quadratischem Montageflansch - Produktnorm
Série aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 312 : Type 3, interface N - Version à presse étoupe - Embase à collerette carrée - Norme de produit
Aeronavtika - Konektorji, koaksialni, radiofrekvenčni - 312. del: Tip 3, vmesnik N - Izvedba z objemno matico - Vtičnica s pravokotno prirobnico - Standard za proizvod
Ta evropski standard določa lastnosti koaksialnih vtičnic s kvadratno prirobnico in vijačnim spojem (vmesnik N) – 50 ohmov. Sklop kabla in konektorja je spojna tehnologija.
General Information
- Status
- Published
- Publication Date
- 01-Dec-2015
- Withdrawal Date
- 29-Jun-2016
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 02-Dec-2015
- Completion Date
- 02-Dec-2015
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
EN 4652-312:2015 - Overview
EN 4652-312:2015 is a CEN aerospace product standard that defines the characteristics and requirements for a Type 3 N interface, clamp nut assembly version, square flange receptacle - a 50 ohm coaxial RF connector intended for aerospace use. The standard covers mechanical, electrical and environmental properties for cable-to-connector assemblies using clamp technology and is part of the Aerospace series of coaxial connector standards.
Key topics and technical requirements
- Interface and impedance: N interface, 50 Ω nominal (connector characteristic impedance 50 Ω ±5 Ω at 200 MHz).
- Electrical performance: Maximum operating frequency up to 6 GHz; VSWR ≤ 1.15 up to 6 GHz; insertion loss specified (see standard for formula); contact resistance and insulation resistance limits (centre contact ≤ 1.5 mΩ initial; insulation ≥ 5 000 MΩ).
- Materials and finishes: centre contact - copper alloy gold plated over nickel; insulators - PTFE; seals - silicone rubber; body - copper alloy nickel plated; heat-shrink - polyolefin.
- Environmental & mechanical: Operating temperature −65 °C to +165 °C; service life 500 cycles; centre contact retention ≥ 27 N; cable retention 180 N (cable groups A and B).
- Tests & qualification: Comprehensive test program referenced to EN 2591 series including contact resistance, VSWR, insertion loss, RF leakage (−50 dB for cable group A, −60 dB for group B between 2–3 GHz), corona, salt mist, vibration, shock, mechanical endurance and pressure/altitude (voltage proof at sea level and reduced pressures).
- Configuration & marking: Mechanical dimensions and mass, square flange mounting, marking, packaging and designation follow EN 4652-001 cross-references.
Practical applications and users
- Who uses this standard: aerospace OEMs, avionics engineers, RF subsystem designers, connector manufacturers, procurement/specification writers and test laboratories.
- Typical applications: aircraft and spacecraft RF links, antennas, telemetry, radio communications and avionics interconnects requiring robust, qualified 50 Ω coaxial interfaces with square flange mounting and clamp nut assembly for cable harnesses.
Related standards
- EN 4652-001 (technical specification for aerospace coaxial RF connectors)
- EN 4652-310 (Type 3 N clamp nut - straight plug)
- EN 2591 series (test methods)
- EN 2812 (stripping of electric cables)
- EN 9133 (quality management for aerospace standard parts)
- TR 6058 (cable code identification list)
Keywords: EN 4652-312:2015, N interface, coaxial connector, 50 ohm, square flange receptacle, clamp nut assembly, aerospace RF connector, VSWR, insertion loss, connector qualification.
Get Certified
Connect with accredited certification bodies for this standard
DEKRA North America
DEKRA certification services in North America.
Eagle Registrations Inc.
American certification body for aerospace and defense.
Element Materials Technology
Materials testing and product certification.
Sponsored listings
Frequently Asked Questions
EN 4652-312:2015 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Connectors, coaxial, radio frequency - Part 312: Type 3, N interface - Clamp nut assembly version - Square flange receptacle - Product standard". This standard covers: This European Standard specifies the characteristics of screwed on coupling (N interface) coaxial square flange receptacle − 50 ohms. The cable to connector assembly is a clamp technology.
This European Standard specifies the characteristics of screwed on coupling (N interface) coaxial square flange receptacle − 50 ohms. The cable to connector assembly is a clamp technology.
EN 4652-312:2015 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4652-312:2015 has the following relationships with other standards: It is inter standard links to EN 2812:2019, EN 4652-001:2015, EN 2591:1992, EN 9133:2018, EN 4652-310:2015, EN 4652-311:2015. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4652-312:2015 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

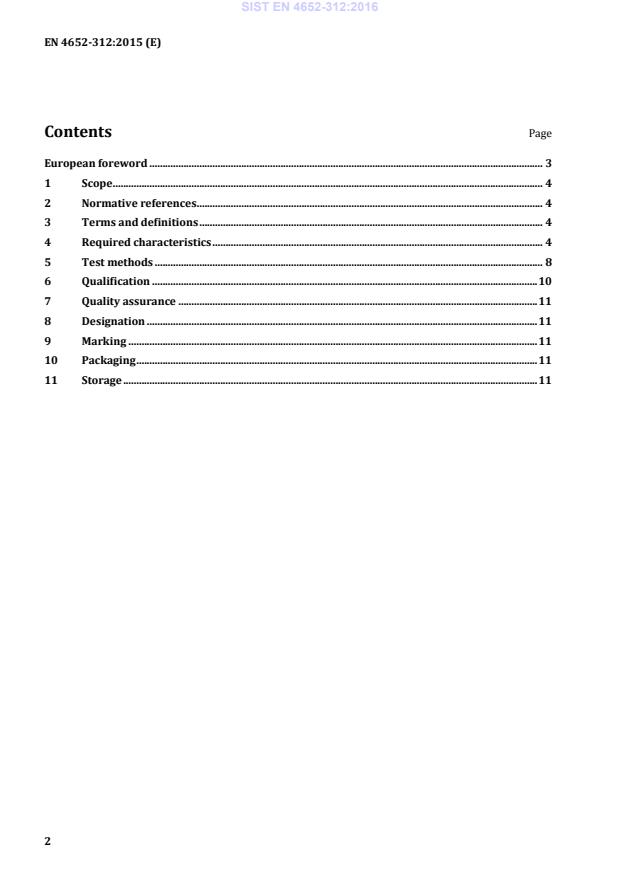

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.SURL]YRGLuft- und Raumfahrt - Hochfrequenz Steckverbinder, koaxial - Teil 312: Typ 3 N - Klemmverbindung - Fester Steckverbinder mit quadratischem Montageflansch - ProduktnormSérie aérospatiale - Connecteurs coaxiaux pour radio fréquences - Partie 312 : Type 3, interface N - Version à presse étoupe - Embase à collerette carrée - Norme de produitAerospace series - Connectors, coaxial, radio frequency - Part 312: Type 3, N interface - Clamp nut assembly version - Square flange receptacle - Product standard49.060Aerospace electric equipment and systems31.220.10Plug-and-socket devices. ConnectorsICS:Ta slovenski standard je istoveten z:EN 4652-312:2015SIST EN 4652-312:2016en,fr,de01-februar-2016SIST EN 4652-312:2016SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4652-312
December
t r s w ICS
v {ä r x r English Version
Aerospace series æ Connectorsá coaxialá radio frequency æ Part
u s tã Type
uá N interface æ Clamp nut assembly version æ Square flange receptacle æ Product standard Série aérospatiale æ Connecteurs coaxiaux pour radio fréquences æ Partie
u s t ã Type
uá interface N æ Version à presse étoupe æ Embase à collerette carrée æ Norme de produit
Luftæ und Raumfahrt æ Koaxiale HochfrequenzæSteckverbinder æ Teil
u s tã Typ
uá NæAnschluss æ Klemmverbindung æ fester Steckverbinder mit quadratischem Montageflansch æ Produktnorm This European Standard was approved by CEN on
x June
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s w CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
v x w tæ u s tã t r s w ESIST EN 4652-312:2016
...
