TECHNICAL SPECIFICATION
CEN/TS 1566-2
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
May 2012
ICS 23.040.20; 91.140.80 Supersedes ENV 1566-2:2001
English Version
Plastics piping systems for soil and waste discharge (low and
high temperature) within the building structure - Chlorinated
poly(vinyl chloride) (PVC-C) - Part 2: Guidance for assessment
of conformity
Systèmes de canalisations en plastique pour l'évacuation Kunststoff-Rohrleitungssysteme zum Ableiten von
des eaux-vannes et des eaux usées (à basse et à haute Abwasser (niedriger und hoher Temperatur) innerhalb der
température) à l'intérieur de la structure des bâtiments - Gebäudestruktur - Chloriertes Polyvinylchlorid (PVC-C) -
Poly(chlorure de vinyle) chloré (PVC-C) - Partie 2 : Guide Teil 2: Empfehlungen für die Beurteilung der Konformität
pour l'évaluation de la conformité
This Technical Specification (CEN/TS) was approved by CEN on 9 January 2012 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 1566-2:2012: E
worldwide for CEN national Members.

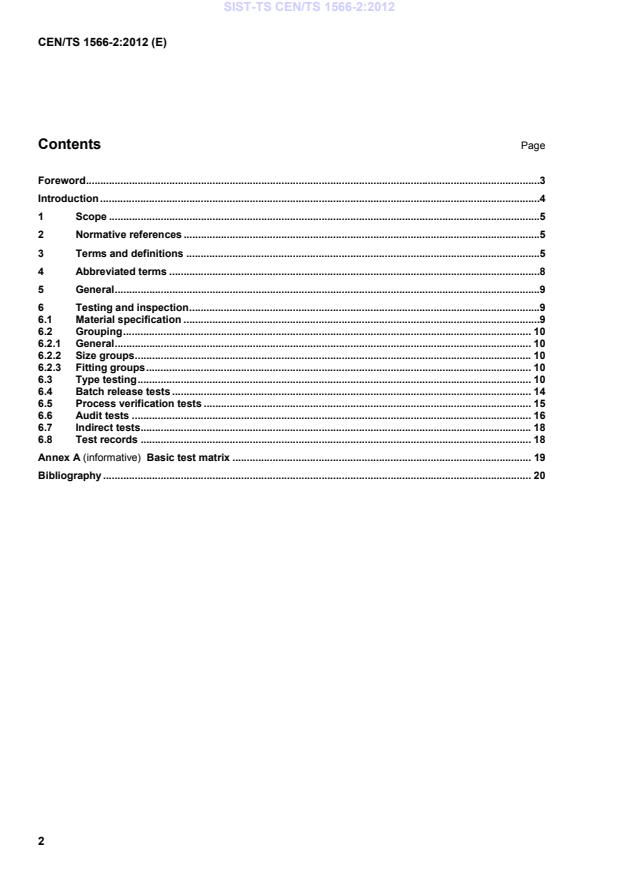

Contents Page
Foreword .3
Introduction .4
1 Scope .5
2 Normative references .5
3 Terms and definitions .5
4 Abbreviated terms .8
5 General .9
6 Testing and inspection .9
6.1 Material specification .9
6.2 Grouping . 10
6.2.1 General . 10
6.2.2 Size groups . 10
6.2.3 Fitting groups . 10
6.3 Type testing . 10
6.4 Batch release tests . 14
6.5 Process verification tests . 15
6.6 Audit tests . 16
6.7 Indirect tests . 18
6.8 Test records . 18
Annex A (informative) Basic test matrix . 19
Bibliography . 20

Foreword
This document (CEN/TS 1566-2:2012) has been prepared by Technical Committee CEN/TC 155 “Plastics
piping systems and ducting systems”, the secretariat of which is held by NEN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes ENV 1566-2:2001.
Compared with ENV 1566-2:2001, the following changes have been made:
a) Use of the template drafted by CEN/TC 155/WG 21 for assessment of conformity documents (change of
"Terms and definitions" and addition of 1 column "Sampling procedures" in Tables);
b) Addition of a table (Table 1) for Formulation specification;
c) Size groups have been redefined (Table 2);
d) Deletion of requirements for Vicat Softening Temperature (VST) after conditioning 16 h in water at 90 °C
as they are no longer required (Tables 4, 9 and 12);
e) Deletion of requirements for water absorption as they are no longer required (Tables 4 and 5);
f) Deletion of requirements for TPE seals as they are no longer required (Tables 6, 11 and 14);
g) Addition of an informative Annex A: Basic test matrix.
EN 1566 Plastics piping systems for soil and waste discharge (low and high temperature) within the building
structure — Chlorinated poly(vinyl chloride) (PVC-C) consists of the following Parts:
 Part 1: Specifications for pipes, fittings and the system
 Part 2: Guidance for the assessment of conformity (the present Technical Specification)
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland, Turkey and the United Kingdom.
Introduction
Figures 1 and 2 are intended to provide general information on the concept of testing and organisation of
those tests used for the purpose of the assessment of conformity. For each type of test, i.e. type test (TT),
batch release test (BRT), process verification test (PVT) and audit test (AT), this document details the
applicable characteristics to be assessed and the frequency and sampling of testing.
A typical scheme for the assessment of conformity of materials (compounds/formulations), pipes, fittings,
joints or assemblies by manufacturers is given in Figure 1.

Figure 1 — Typical scheme for the assessment of conformity by a manufacturer
A typical scheme for the assessment of conformity of materials (compounds/formulations), pipes, fittings,
joints or assemblies by manufacturers, including a third-party certification, is given in Figure 2.

Figure 2 — Typical scheme for the assessment of conformity by a manufacturer, including a third-
party certification
1 Scope
This Technical Specification gives guidance for the assessment of conformity of materials
(compounds/formulations), products and assemblies in accordance with EN 1566-1 intended to be included in
the manufacturer’s quality plan as part of the quality management system and for the establishment of third-
party certification procedures.
NOTE 1 It is recommended that the quality management system conforms to or is no less stringent than the relevant
requirements to EN ISO 9001 [1].
NOTE 2 If third-party certification is involved, it is recommended that the certification body is accredited to
EN 45011 [2], EN 45012 [3] or EN ISO/IEC 17021 [4], as applicable.
NOTE 3 In order to help the reader, a basic test matrix is given in Annex A.
In conjunction with EN 1566-1, this document is applicable to solid-wall piping systems made of chlorinated
poly(vinyl chloride) (PVC-C) intended to be used for the following purposes:
 for soil and waste discharge systems (low and high temperature) inside buildings (application area code
"B");
 for soil and waste discharge systems (low and high temperature) for both inside buildings and buried in
ground within the building structure (application area code "BD").
NOTE 4 This is reflected in the marking of products by "B" or "BD".
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 1566-1:1998, Plastics piping systems for soil and waste discharge (low and high temperature) within the
building structure — Chlorinated poly(vinyl chloride) (PVC-C) — Part 1: Specifications for pipes, fittings and
the system
3 Terms and definitions
For the purposes of this Technical Specification, the terms and definitions given in EN 1566-1:1998 and the
following apply.
3.1
certification body
impartial body, governmental or non-governmental, possessing the necessary competence and authority to
carry out certification of conformity according to given rules of procedure and management
Note 1 to entry: A certification body is preferably accredited to EN 45011 [2].
3.2
inspection body
impartial organisation or company approved by the certification body as possessing the necessary
competence to verify and/or to carry out initial type testing, audit testing and inspection of the manufacturer's
factory production control in accordance with the relevant standard
Note 1 to entry: An inspection body is preferably accredited to EN ISO/IEC 17020 [5].
3.3
testing laboratory
laboratory which measures, tests, calibrates or otherwise determines the characteristics of the performance of
materials and products
Note 1 to entry: In the context of this part of EN 1566, the materials and products can be subjected to type testing,
batch release testing, process verification testing, audit testing and/or witness testing, as applicable.
Note 2 to entry: A testing laboratory is preferably accredited to EN ISO/IEC 17025 [6].
3.4
quality management system
a system to direct and control an organization with regard to quality
Note 1 to entry: Requirements for quality management systems are given in EN ISO 9001 [1].
3.5
quality plan
document setting out the specific quality practices, resources and sequence of activities relevant to a
particular product or range of products
3.6
type testing
TT
testing performed to verify that the material, product, joint or assembly is capable of conforming to the
requirements given in the relevant standard
Note 1 to entry: The type test results remain valid until there is a change in the material or product or assembly
provided that the process verification tests are done regularly.
3.7
batch release test
BRT
test performed by or on behalf of the manufacturer on a batch of materials or products, which needs to be
satisfactorily completed before the batch can be released
3.8
process verification test
PVT
test performed by or on behalf of the manufacturer on materials, products, joints or assemblies at specific
intervals to confirm that the process continues to be capable of produc
...
