Overview - EN 3645-007:2015 (Protective cover for plug)
EN 3645-007:2015 is a European product standard from CEN for protective covers for plugs used with aerospace circular electrical connectors featuring a triple-start threaded coupling. The standard defines required characteristics, designation and marking, dimensions and mass, materials and surface treatments, and attachment types for plug protective covers compatible with shell sizes 09–25. These connectors are derived from and interchangeable with models W, F, K and Z in MIL‑DTL‑38999/32 and are intended for continuous operating temperatures of 175 °C or 200 °C.
Key topics and technical requirements
- Scope and compatibility
- Applies to models listed in Table 2 (models W, F, K, Z) and shell sizes coded A–J (sizes 09–25).
- Interchangeability with MIL‑DTL‑38999/32 series III metric designs is specified.
- Dimensions and mass
- Detailed dimensional data, tolerances and mass are given in Figure 1 and Table 1 (dimensions in millimetres).
- Example detail: eyelet hole diameter specified as 4.24 mm −0.13 mm; sealing gasket shall be bonded or mechanically retained.
- Materials and surface treatments
- Model-dependent construction and finish are specified in Table 2:
- W: cadmium‑plated aluminium alloy, olive green, salt spray resistance 500 h, max 175 °C
- F: nickel‑plated aluminium alloy, max 200 °C
- K: stainless steel, max 200 °C
- Z: zinc‑nickel plated aluminium, non‑reflective black, max 175 °C
- Model-dependent construction and finish are specified in Table 2:
- Attachment and sealing
- Attachment types in Table 4 (stainless steel chain, stainless steel rope with PTFE jacket, ring or eyelet).
- Fastener materials and freedom of chain/rope rotation specified.
- Electrical, mechanical and climatic performance
- Performance characteristics are referenced to EN 3645-002 and EN 3645-001 (technical specification).
- Designation and marking
- Standardised designation format (example: PROTECTIVE COVER ELECTRICAL CONNECTOR EN3645‑F4B7) and marking requirements per EN 3645-001.
Applications and users
- Practical applications:
- Protective covers for plugs on aerospace and defence electrical systems where high-temperature and corrosion resistance are required.
- Used during storage, maintenance, transport or when connectors are disconnected to protect contacts from contamination and mechanical damage.
- Primary users:
- Aerospace OEMs, connector and accessory manufacturers, systems and avionics designers, procurement and quality assurance teams, and maintenance organizations requiring standard-compliant components.
Related standards and references
- EN 3645-001 (technical specification)
- EN 3645-002 (performance and contact arrangements)
- EN 3645-008, -011, -012 (plug product standards)
- MIL‑DTL‑38999/32 (DoD specification for interchangeability)
Keywords: EN 3645-007:2015, protective cover for plug, circular electrical connectors, triple-start threaded coupling, aerospace connectors, MIL-DTL-38999/32, high-temperature connector cover, connector protective cap.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3645-007:2015 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Connectors, electrical, circular, scoop-proof, triple start threaded coupling, operating temperature 175 °C or 200 °C continuous - Part 007: Protective cover for plug - Product standard". This standard covers: This European Standard specifies the characteristics of protective covers for plugs in the family of circular, electrical connectors, with triple start threaded coupling. It applies to models in Table 2. For plugs, see EN 3645-008, EN 3645-011 and EN 3645-012. These connectors are derived from and interchangeable with models W, F, K and Z in specification MIL DTL 38999/32.
This European Standard specifies the characteristics of protective covers for plugs in the family of circular, electrical connectors, with triple start threaded coupling. It applies to models in Table 2. For plugs, see EN 3645-008, EN 3645-011 and EN 3645-012. These connectors are derived from and interchangeable with models W, F, K and Z in specification MIL DTL 38999/32.
EN 3645-007:2015 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3645-007:2015 has the following relationships with other standards: It is inter standard links to EN 3645-007:2007, EN 3660-063:2009, EN 4531-001:2012, EN 3660-035:2017, EN 3660-020:2009, EN 3660-062:2009, EN ISO 11664-3:2013, EN 3660-021:2009, EN ISO/CIE 11664-3:2019. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3645-007:2015 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-junij-2015
1DGRPHãþD
SIST EN 3645-007:2008
$HURQDYWLND.RQHNWRUMLHOHNWULþQLRNURJOL]DãþLWHQLNRQWDNWKLWUDVSRMND]
QDYRMHPVWDOQDGHORYQDWHPSHUDWXUDPHGƒ&LQƒ&GHO =DãþLWQD
NDSD]DYWLþ6WDQGDUG]DSURL]YRG
Aerospace series - Connectors, electrical, circular, scoop-proof, triple start threaded
coupling, operating temperature 175 °C or 200 °C continuous - Part 007: Protective
cover for plug - Product standard
Luft- und Raumfahrt - Elektrische Rundsteckverbinder, kontaktgeschützt, dreigängige
Gewinde-Schnellkupplung, Betriebstemperatur 175 °C oder 200 °C konstant - Teil 007:
Schutzkappe für freien Steckverbinder - Produktnorm
Série aérospatiale - Connecteurs électriques circulaires à contacts protégés, à
accouplement par filetage à pas rapide à trois filets, températures d'utilisation 175 °C ou
200 °C continu - Partie 007 : Bouchon de vol pour fiche - Norme de produit
Ta slovenski standard je istoveten z: EN 3645-007:2015
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 3645-007
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2015
ICS 49.060 Supersedes EN 3645-007:2007
English Version
Aerospace series - Connectors, electrical, circular, scoop-proof,
triple start threaded coupling, operating temperature 175 °C or
200 °C continuous - Part 007: Protective cover for plug - Product
standard
Série aérospatiale - Connecteurs électriques circulaires à Luft- und Raumfahrt - Elektrische Rundsteckverbinder,
contacts protégés, à accouplement par filetage à pas rapide kontaktgeschützt, dreigängige Gewinde-Schnellkupplung,
à trois filets, températures d'utilisation 175 °C ou 200 °C Betriebstemperatur 175 °C oder 200 °C konstant - Teil 007:
continu - Partie 007 : Bouchon de vol pour fiche - Norme de Schutzkappe für freien Steckverbinder - Produktnorm
produit
This European Standard was approved by CEN on 5 December 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3645-007:2015 E
worldwide for CEN national Members.

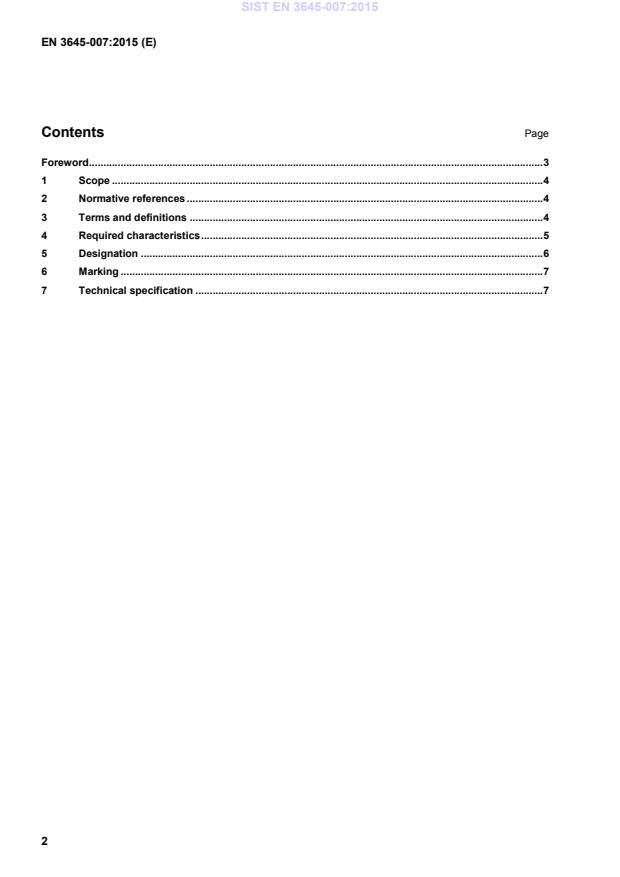

Contents Page
