EN 4199-003:2014
(Main)Aerospace series - Bonding straps for aircraft - Part 003: Bonding strap assemblies with flat braided conductor copper, tin plated - 65 °C up to 150 °C and copper, nickel plated - 65 °C up to 260 °C - Product standard
Aerospace series - Bonding straps for aircraft - Part 003: Bonding strap assemblies with flat braided conductor copper, tin plated - 65 °C up to 150 °C and copper, nickel plated - 65 °C up to 260 °C - Product standard
This European Standard defines the characteristics of bonding straps with flat braided copper conductors tin or nickel plated and terminal lugs tin or nickel plated, crimped on both ends for use on aircraft. This standard shall be used together with EN 4199-001.
Luft- und Raumfahrt - Masseverbinder für Luftfahrzeuge - Teil 003: Masseverbinder, konfektioniert, flache Geflechtleiter Kupfer, verzinnt - 65 °C bis 150 °C und Kupfer, vernickelt - 65 °C bis 260 °C - Produktnorm
Série aérospatiale - Tresses de métallisation pour avion - Partie 003: Tresses assemblées à conducteur plat pour utilisation de - 65 °C à 150 °C en cuivre étamé et de - 65 °C à 260 °C en cuivre nickelé - Norme de produit
Aeronavtika - Ozemljitvene zbiralke za letala - 003. del: Ozemljitvene zbiralke iz ploščatih pletenih bakrenih vodnikov, pocinkane od -65 °C do vključno 150 °C in ponikljane od -65 °C do vključno 260 °C - Standard za proizvod
EN 4199-003 določa značilnosti pocinkanih ali ponikljanih ozemljitvenih zbiralk iz ploščatih pletenih bakrenih vodnikov in pocinkanih ali ponikljanih kabelskih čevljev, ki so obojestransko spojeni s stiskanjem za uporabo na letalih. Ta standard se mora uporabljati skupaj s standardom EN 4199-001.
General Information
- Status
- Published
- Publication Date
- 29-Apr-2014
- Withdrawal Date
- 30-Oct-2014
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 10-Jul-2013
- Effective Date
- 28-Jan-2026
Overview
EN 4199-003:2014 is a CEN product standard in the Aerospace series that specifies bonding strap assemblies for aircraft. It covers bonding straps made from flat braided copper conductors with tin-plated or nickel-plated finishes and with terminal lugs crimped on both ends. The standard sets material, dimensional, electrical and mechanical characteristics and is intended for use together with EN 4199-001 (technical specification).
Key topics and requirements
- Temperature rating
- Tin-plated copper braid and terminals: −65 °C to +150 °C
- Nickel-plated copper braid and terminals: −65 °C to +260 °C
- Conductor and finish
- Flat braided copper conductors; braid and terminal must have same finish (T = tin, N = nickel).
- Cross-sectional area, test current and tensile strength
- Nominal cross-sections include typical braid sizes (4, 6, 10, 16, 25 mm²) with corresponding test currents and lug-to-lug tensile strength requirements (see Table 1 in EN 4199-003).
- Dimensions and lengths
- Length defined between terminal hole centres; standard lengths in 25 mm increments, preferred 50–300 mm. Standard tolerances apply per length ranges.
- For lightning bonding, braids longer than 220 mm are generally not approved without design authority consent.
- For installations generating >100 kHz, avoid exceeding a length-to-width ratio of 5:1 for EMC reasons.
- Electrical characteristics
- Nominal resistance and mass data provided for 100 mm straps (Table 3); values shown for nickel-plated straps (tin-plated straps have slightly lower resistance).
- Quality and testing
- Mechanical fatigue qualification: 50 000 cycles.
- Acceptance and measurement methods referenced to EN 4199-001 (resistance measured terminal palm to palm at 20 ± 5 °C).
- Designation, marking and packaging
- Designation format example: STRAP BONDING EN 4199-003-X-XXX-XX-X, with finish code T/N.
- Packaging and labeling requirements include full designation, manufacture date and manufacturer identification per EN 2424.
Applications and users
- Practical uses: electrical bonding, grounding, lightning protection, equipotential bonding and EMI/EMC mitigation on fixed-wing aircraft, helicopters and airborne systems.
- Typical users: aircraft OEMs, wiring-harness manufacturers, aerospace component suppliers, design authorities, maintenance organizations and procurement/certification engineers specifying bonded connections.
Related standards
- EN 4199-001 (technical specification for bonding straps)
- EN 4199-005 (flat braid conductor product standard)
- EN 3373-001 (terminal lugs / crimping)
- EN 2424 (marking of aerospace products)
Keywords: EN 4199-003:2014, bonding straps, aircraft bonding strap assemblies, flat braided conductor, tin plated, nickel plated, aerospace standard, CEN.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4199-003:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Bonding straps for aircraft - Part 003: Bonding strap assemblies with flat braided conductor copper, tin plated - 65 °C up to 150 °C and copper, nickel plated - 65 °C up to 260 °C - Product standard". This standard covers: This European Standard defines the characteristics of bonding straps with flat braided copper conductors tin or nickel plated and terminal lugs tin or nickel plated, crimped on both ends for use on aircraft. This standard shall be used together with EN 4199-001.
This European Standard defines the characteristics of bonding straps with flat braided copper conductors tin or nickel plated and terminal lugs tin or nickel plated, crimped on both ends for use on aircraft. This standard shall be used together with EN 4199-001.
EN 4199-003:2014 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4199-003:2014 has the following relationships with other standards: It is inter standard links to EN 4199-003:2009, EN 4199-002:2006. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4199-003:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-julij-2014
1DGRPHãþD
SIST EN 4199-003:2009
$HURQDYWLND2]HPOMLWYHQH]ELUDONH]DOHWDODGHO 2]HPOMLWYHQH]ELUDONHL]
SORãþDWLKSOHWHQLKEDNUHQLKYRGQLNRYSRFLQNDQHRGƒ&GRYNOMXþQRƒ&LQ
SRQLNOMDQHRGƒ&GRYNOMXþQRƒ&6WDQGDUG]DSURL]YRG
Aerospace series - Bonding straps for aircraft - Part 003: Bonding strap assemblies with
flat braided conductor copper, tin plated - 65 °C up to 150 °C and copper, nickel plated -
65 °C up to 260 °C - Product standard
Luft- und Raumfahrt - Masseverbinder für Luftfahrzeuge - Teil 003: Masseverbinder,
konfektioniert, flache Geflechtleiter Kupfer, verzinnt - 65 °C bis 150 °C und Kupfer,
vernickelt - 65 °C bis 260 °C - Produktnorm
Série aérospatiale - Tresses de métallisation pour avion - Partie 003: Tresses
assemblées à conducteur plat pour utilisation de - 65 °C à 150 °C en cuivre étamé et de
- 65 °C à 260 °C en cuivre nickelé - Norme de produit
Ta slovenski standard je istoveten z: EN 4199-003:2014
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 4199-003
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2014
ICS 49.060 Supersedes EN 4199-003:2009
English Version
Aerospace series - Bonding straps for aircraft - Part 003:
Bonding strap assemblies with flat braided conductor copper, tin
plated - 65 °C up to 150 °C and copper, nickel plated - 65 °C up
to 260 °C - Product standard
Série aérospatiale - Tresses de métallisation pour avion - Luft- und Raumfahrt - Masseverbinder für Luftfahrzeuge -
Partie 003: Tresses assemblées à conducteur plat pour Teil 003: Masseverbinder, konfektioniert, flache
utilisation de - 65 °C à 150 °C en cuivre étamé et de - 65 °C Geflechtleiter Kupfer, verzinnt - 65 °C bis 150 °C und
à 260 °C en cuivre nickelé - Norme de produit Kupfer, vernickelt - 65 °C bis 260 °C - Produktnorm
This European Standard was approved by CEN on 12 October 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4199-003:2014 E
worldwide for CEN national Members.

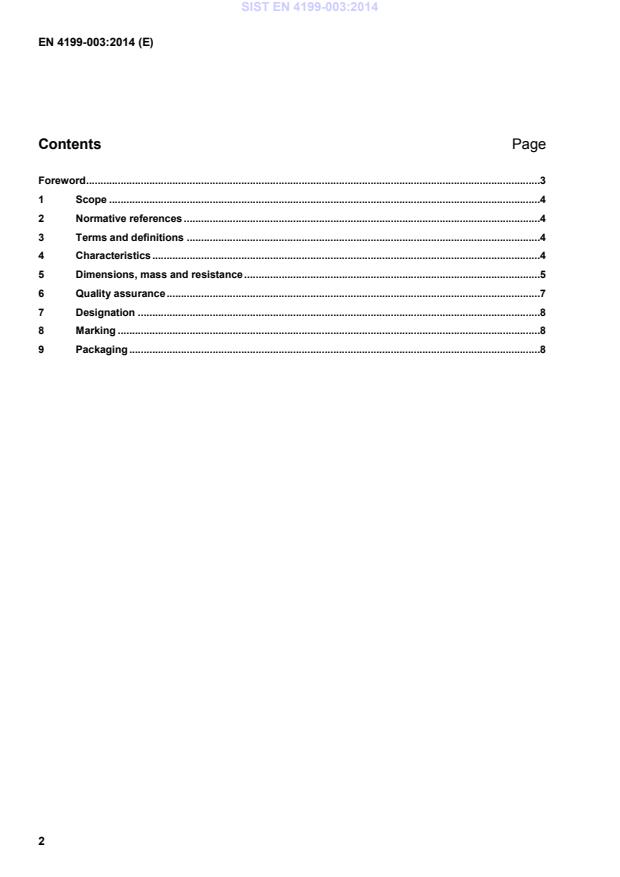

Contents Page
