EN 2714-005:2006
(Main)Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 005: Screened (spiral) and jacketed, CO2 laser printable - Product standard
Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 005: Screened (spiral) and jacketed, CO2 laser printable - Product standard
This standard specifies the characteristics of CO2 laser printable, single and multicore screened (spiral) and jacketed electrical cables for use in the on-board electrical systems of aircraft, at operating temperatures between - 55 °C and 260 °C.
It shall also be possible to mark these cables by hot stamp printing or ink jet printing.
These markings shall be in accordance with EN 3838.
Luft- und Raumfahrt - Leitungen, elektrisch, ein- und mehradrig, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 260 °C - Teil 005: Geschirmt (Umseilung) und ummantelt, CO2-Laser-bedruckbar - Produktnorm
Diese Norm legt die Eigenschaften von CO2 Laser bedruckbaren, ein und mehradrigen, geschirmten (Umsei¬lung) und ummantelten elektrischen Leitungen fest, die zur Verwendung in Bordnetzen von Luftfahrzeugen bei Betriebstemperaturen zwischen –55 °C und 260 °C bestimmt sind.
Es muss auch möglich sein, diese Leitungen mittels Heißprägung oder Tintenstrahldruck zu kennzeichnen.
Diese Kennzeichnungen müssen EN 3838 entsprechen.
Série aérospatiale - Câbles, électriques, mono et multiconducteurs d'usage général - Températures de fonctionnement comprises entre - 55 °C et 260 °C - Partie 005 : Blindés (guipés) et gainés, marquables au laser CO2 - Norme de produit
Aeronavtika - Eno- ali večžilni električni kabli za splošno uporabo - Delovne temperature med –55 °C in 260 °C - 005. del: Oklopljeni (spirala) in oplaščeni, z možnostjo laserskega tiskanja CO2 - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 11-Jul-2006
- Withdrawal Date
- 30-Jan-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 2714-005:2006 is a CEN aerospace product standard that specifies the characteristics of CO2 laser printable, single- and multicore screened (spiral) and jacketed electrical cables intended for on‑board aircraft electrical systems. The standard covers cables designed to operate in the temperature range −55 °C to 260 °C, and requires that cables also be markable by hot-stamp or ink-jet printing in accordance with EN 3838.
Key topics and technical requirements
Scope and construction
- Applicable to 1 to 4 core cables (2–4 core cables are twisted; filler cores not permitted).
- Conductors conform to EN 2267-003; screen is a nickel‑plated copper stranded spiral (strand dimensions in the standard’s Table 1).
- Outer jacket: polyimide layer (nominal 30 µm) with fluorocarbon coatings (2.5 µm each side), a PTFE wrap layer (0.07 mm) and a dispersion fluorocarbon top coat (≥15 µm) to accept CO2 laser marking.
- Overlap and winding direction requirements are specified for jacket layers.
Size and electrical parameters
- Nominal conductor sections covered by the standard include 0.15 mm² up to 5 mm² (AWG equivalents and values for linear resistance, external diameter and mass are given in Table 1).
Marking
- Cables must accept CO2 laser marking; hot-stamp and ink-jet marking are allowed and must comply with EN 3838 for user‑applied markings.
Test and performance matrix
- Tests referenced from EN 3475-100 and EN 2235 include visual, dimensional, ohmic resistance, voltage proof, insulation resistance, surface resistance, accelerated ageing, shrinkage/delamination (specified temperatures), thermal endurance (40 000 h at 260 °C), flammability (extinguishing time ≤ 3 s), notch propagation, scrape abrasion, plating continuity/adherence/thickness, smoke density and toxicity, strippability and permanence of marking, among others.
Quality and designation
- Quality assurance follows EN 9133; designation, identification, packaging and delivery lengths are referenced to EN 2235 and EN 2714-002.
Applications and who uses this standard
- Aerospace OEMs and Tier‑1 suppliers specifying high‑temperature, screened, jacketed wiring for aircraft.
- Cable and wiring harness manufacturers producing laser‑printable, high‑temperature cables.
- Avionics integrators, procurement engineers, maintenance and certification bodies requiring verified material, marking and test criteria for on‑board electrical systems.
- Laser marking and printing vendors ensuring compatibility of marking processes with aerospace cable jackets.
Related standards
- EN 2235 (technical specification for screened and jacketed cables)
- EN 2267-003 (core construction / ink-jet printable cores)
- EN 3475-100 (cable test methods)
- EN 3838 (user-applied markings on aircraft cables)
- EN 2083 (copper conductor requirements)
- EN 2714-002 (general requirements for screened and jacketed cables)
- EN 9133 (quality management / qualification procedure)
Keywords: EN 2714-005:2006, aerospace cables, CO2 laser printable, screened spiral cable, jacketed cable, aircraft wiring, high-temperature cables, polyimide jacket, PTFE, EN 3838.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 2714-005:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 005: Screened (spiral) and jacketed, CO2 laser printable - Product standard". This standard covers: This standard specifies the characteristics of CO2 laser printable, single and multicore screened (spiral) and jacketed electrical cables for use in the on-board electrical systems of aircraft, at operating temperatures between - 55 °C and 260 °C. It shall also be possible to mark these cables by hot stamp printing or ink jet printing. These markings shall be in accordance with EN 3838.
This standard specifies the characteristics of CO2 laser printable, single and multicore screened (spiral) and jacketed electrical cables for use in the on-board electrical systems of aircraft, at operating temperatures between - 55 °C and 260 °C. It shall also be possible to mark these cables by hot stamp printing or ink jet printing. These markings shall be in accordance with EN 3838.
EN 2714-005:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 2714-005:2006 has the following relationships with other standards: It is inter standard links to EN 3838:2022, EN 9133:2018, EN 2083:2001, EN 2267-003:2005, EN 2714-002:2016, EN 3475-100:2010, EN 2235:2022. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 2714-005:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

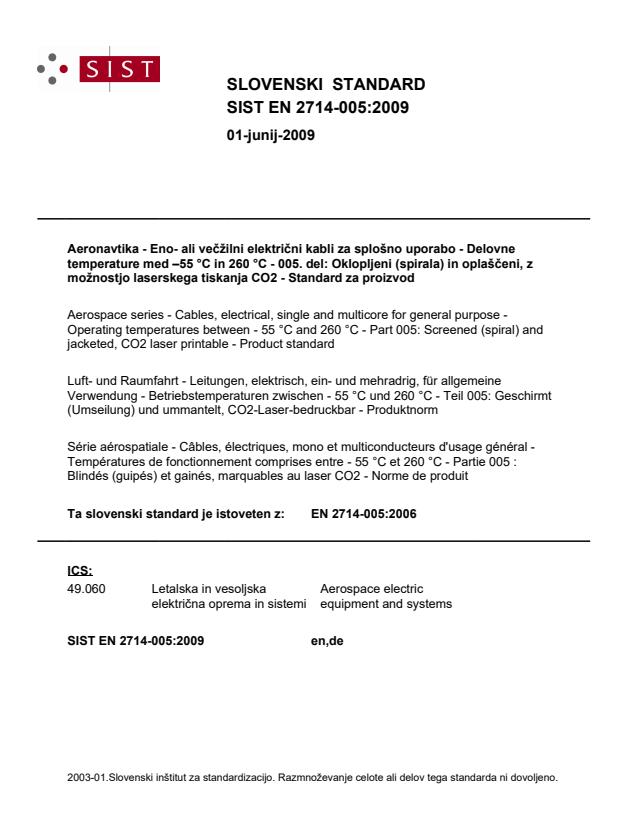

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Leitungen, elektrisch, ein- und mehradrig, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 260 °C - Teil 005: Geschirmt (Umseilung) und ummantelt, CO2-Laser-bedruckbar - ProduktnormSérie aérospatiale - Câbles, électriques, mono et multiconducteurs d'usage général - Températures de fonctionnement comprises entre - 55 °C et 260 °C - Partie 005 : Blindés (guipés) et gainés, marquables au laser CO2 - Norme de produitAerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 005: Screened (spiral) and jacketed, CO2 laser printable - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 2714-005:2006SIST EN 2714-005:2009en,de01-junij-2009SIST EN 2714-005:2009SLOVENSKI
STANDARD

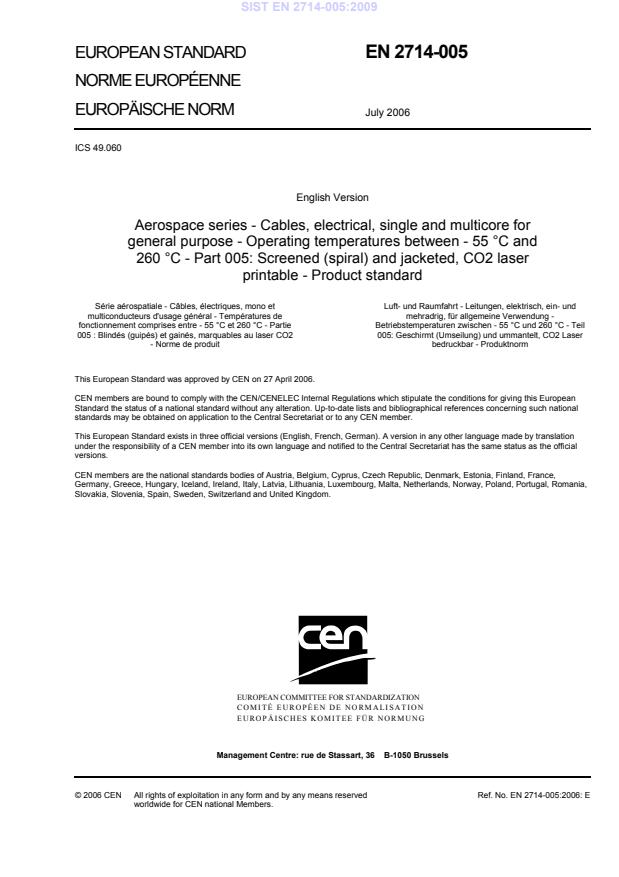

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 2714-005
July 2006 ICS 49.060 English Version
Aerospace series - Cables, electrical, single and multicore for general purpose - Operating temperatures between - 55 °C and 260 °C - Part 005: Screened (spiral) and jacketed, CO2 laser printable - Product standard
Série aérospatiale - Câbles, électriques, mono et multiconducteurs d'usage général - Températures de fonctionnement comprises entre - 55 °C et 260 °C - Partie 005 : Blindés (guipés) et gainés, marquables au laser CO2 - Norme de produit
Luft- und Raumfahrt - Leitungen, elektrisch, ein- und mehradrig, für allgemeine Verwendung - Betriebstemperaturen zwischen - 55 °C und 260 °C - Teil 005: Geschirmt (Umseilung) und ummantelt, CO2 Laser bedruckbar - Produktnorm This European Standard was approved by CEN on 27 April 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2006 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 2714-005:2006: ESIST EN 2714-005:2009
...
