Aerospace series - Carbon fibre reinforced plastics - Test method - Determination of
interlaminar fracture toughness energy - Mode II - GIIC
Luft- und Raumfahrt - Kohlenstofffaserverstärkte Kunststoffe - Prüfverfahren -
Bestimmung der interlaminaren Energiefreisetzungsrate - Mode II - GIIC
Série aérospatiale - Matières plastiques renforcées de fibres de carbone - Méthode
d'essai - Détermination de l'énergie de ténacité en rupture interlaminaire - Mode II - GIIC
Ta slovenski standard je istoveten z: EN 6034:2015
ICS:
49.025.40 Guma in polimerni materiali Rubber and plastics
83.120 2MDþDQLSROLPHUL Reinforced plastics
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 6034
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2015
EUROPÄISCHE NORM
ICS 49.025.40
English Version
Aerospace series - Carbon fibre reinforced plastics - Test
method - Determination of interlaminar fracture
toughness energy - Mode II - GIIC
Série aérospatiale - Matières plastiques renforcées de Luft- und Raumfahrt - Kohlenstofffaserverstärkte
fibres de carbone - Méthode d'essai - Détermination de Kunststoffe - Prüfverfahren - Bestimmung der
l'énergie de ténacité en rupture interlaminaire - Mode interlaminaren Energiefreisetzungsrate - Mode II - GIIC
II - GIIC
This European Standard was approved by CEN on 10 August 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6034:2015 E
worldwide for CEN national Members.

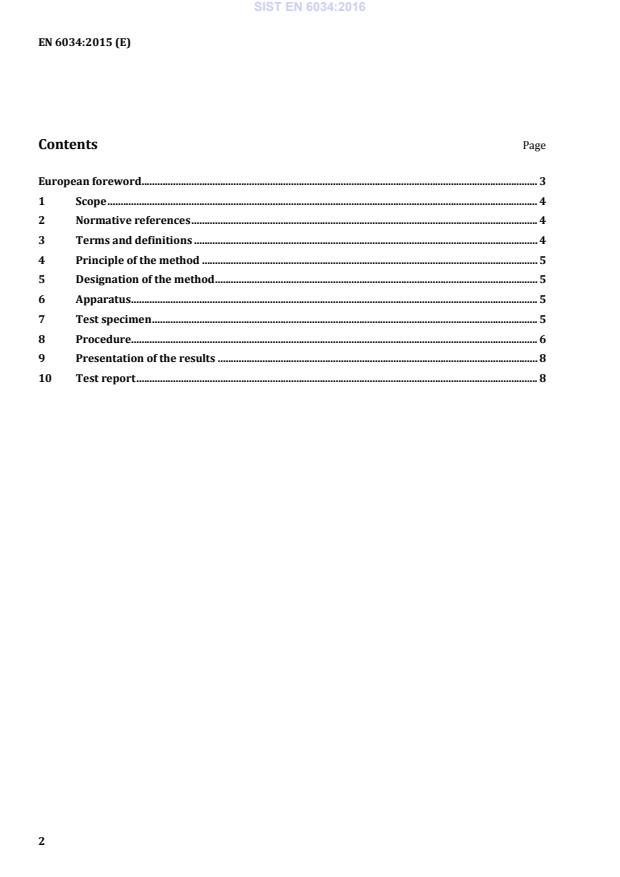

Contents Page
