EN 4008-013:2006
(Main)Aerospace series - Elements of electrical and optical connection - Crimping tools and associated accessories - Part 013: Positioner for crimping tool M22520/2-01 - Product standard
Aerospace series - Elements of electrical and optical connection - Crimping tools and associated accessories - Part 013: Positioner for crimping tool M22520/2-01 - Product standard
This standard specifies the characteristics for the positioner used with the M22520/2-01 crimping tool to crimp electrical contacts according to EN 4008 002.
Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Crimpwerkzeug und zugehöriges Zubehör - Teil 013: Positionierer für Crimpzange M22520/2-01 - Produktnorm
Diese Norm legt die Eigenschaften des Positionierstückes fest, das zusammen mit der Crimpzange M22520/2 01 zum Crimpen von elektrischen Kontakten nach EN 4008 002 verwendet wird.
Série aérospatiale - Organes de connexion électrique et optique - Outils de sertissage et accessoires associés - Partie 013 : Positionneur pour pince à sertir M22520/2-01 - Norme de produit
Aeronavtika - Elementi električnih in optičnih povezav - Orodje za stiskanje in pripadajoča oprema - 013. del: Pozicionirna naprava za klešče M22520/2-01 - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 18-Jul-2006
- Withdrawal Date
- 30-Jan-2007
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 01-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 4008-013:2006 defines the product standard for the positioner used with the crimping tool M22520/2-01 in aerospace electrical and optical connection systems. The positioner ensures correct longitudinal and radial placement of electrical contacts when crimping to the product requirements set out in EN 4008-002, helping achieve repeatable crimp quality for aerospace wiring and connector assemblies.
Key topics and technical requirements
- Function and locking: Secures to the M22520/2-01 crimping tool by two bayonets and an internal spring-loaded locator for reliable seating and repeatable contact positioning.
- Locator spring: Locator shall be spring-loaded to depress 0.79 mm with a force of (9 ± 4.5) N, ensuring consistent contact butting against the shoulder in the locator bore.
- Critical dimensions and tolerances:
- Mass: ≤ 30 g
- General dimensional tolerances: ± 0.25 mm
- Bayonet lock pin diameter: Ø 1.09 ± 0.025 mm
- Other mounting and location features (see figure references in the standard).
- Materials and finish:
- Positioner body: aluminium alloy, coloured blue
- Positioner ferrule: stainless steel
- Marking and designation:
- Mandatory stamping: manufacturer name and part number; identification text such as “EN 4008-013 use with M22520/2 basic tool”
- Example designation block: POSITIONER EN4008-013 (optional intermediate code I9005)
- Reference to technical spec: The detailed technical specification for use and tests is given in EN 4008-001; related contact product standards include EN 3155-030 and EN 3155-031.
Applications and who uses it
- Aerospace manufacturers and OEMs producing harnesses, connectors and avionics assemblies that require certified crimp processes.
- Maintenance, repair and overhaul (MRO) facilities that need interchangeable, standard-compliant positioners for field and depot-level crimping.
- Tool and accessory manufacturers designing or qualifying positioners and adapters for the M22520/2-01 tool family.
- Procurement, quality and inspection engineers who verify conformance, traceability and marking for aerospace tooling components.
Related standards
- EN 4008-001 - Technical specification for crimping tools and associated accessories
- EN 4008-002 - Product standards list for crimping tools (used for crimping contacts)
- EN 2591-100 - Test methods (general)
- EN 3155-030 / EN 3155-031 - Contact product standards referenced for compatible contact types
- MIL C-22520/2 - U.S. Department of Defense reference for related crimping tools
This standard is essential for ensuring consistent crimp quality, tool interchangeability and regulatory compliance in aerospace electrical connection work. Keywords: EN 4008-013, positioner, crimping tool M22520/2-01, aerospace crimping, electrical contacts, crimp quality.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 4008-013:2006 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Elements of electrical and optical connection - Crimping tools and associated accessories - Part 013: Positioner for crimping tool M22520/2-01 - Product standard". This standard covers: This standard specifies the characteristics for the positioner used with the M22520/2-01 crimping tool to crimp electrical contacts according to EN 4008 002.
This standard specifies the characteristics for the positioner used with the M22520/2-01 crimping tool to crimp electrical contacts according to EN 4008 002.
EN 4008-013:2006 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 4008-013:2006 has the following relationships with other standards: It is inter standard links to EN 3155-030:2006, EN 4008-001:2006, EN 4008-002:2006, EN 3155-031:2006, EN 2591-100:2024. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 4008-013:2006 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

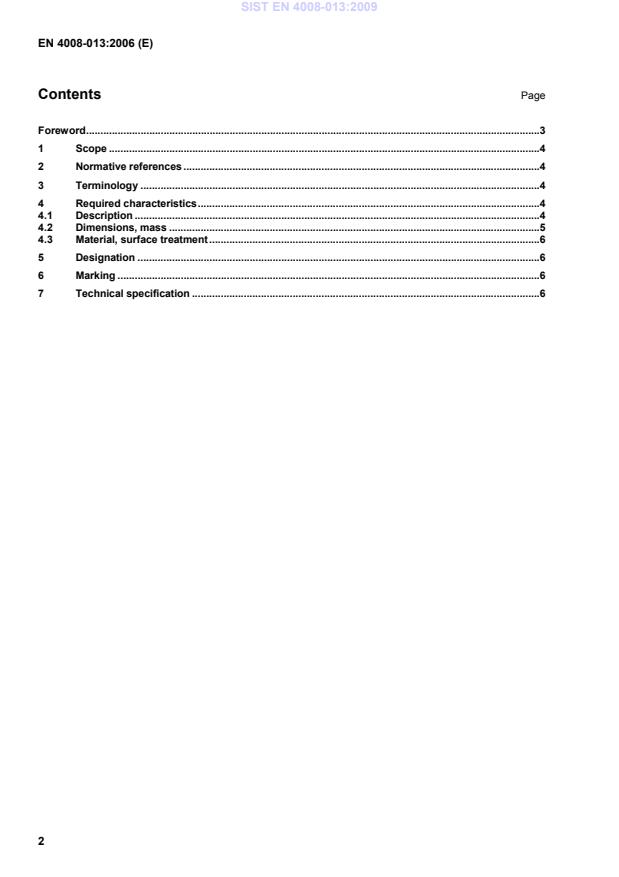

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Elektrische und optische Verbindungselemente - Crimpwerkzeug und zugehöriges Zubehör - Teil 013: Positionierer für Crimpzange M22520/2-01 - ProduktnormSérie aérospatiale - Organes de connexion électrique et optique - Outils de sertissage et accessoires associés - Partie 013 : Positionneur pour pince à sertir M22520/2-01 - Norme de produitAerospace series - Elements of electrical and optical connection - Crimping tools and associated accessories - Part 013: Positioner for crimping tool M22520/2-01 - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 4008-013:2006SIST EN 4008-013:2009en,de01-julij-2009SIST EN 4008-013:2009SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 4008-013July 2006ICS 49.060 English VersionAerospace series - Elements of electrical and optical connection- Crimping tools and associated accessories - Part 013:Positioner for crimping tool M22520/2-01 - Product standardSérie aérospatiale - Organes de connexion électrique etoptique - Outils de sertissage et accessoires associés -Partie 013 : Positionneur pour pince à sertir M22520/2-01 -Norme de produitLuft- und Raumfahrt - Elektrische und optischeVerbindungselemente - Crimpwerkzeug und zugehörigesZubehör - Teil 013: Positionierer für Crimpzange M22520/2-01 - ProduktnormThis European Standard was approved by CEN on 6 February 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 4008-013:2006: ESIST EN 4008-013:2009
...
