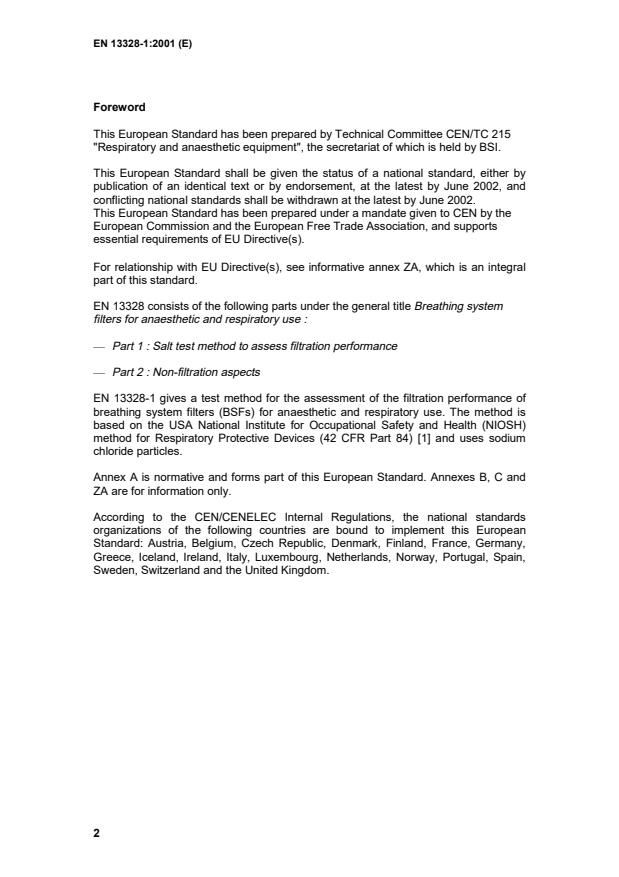

Non-filtration aspects of BSFs are addressed in prEN 13328-2.2 Terms and definitionsFor the purposes of this European Standard, the following terms and definitionsapply:2.1breathing system filterdevice intended to reduce transmission of particulates including micro-organisms inbreathing systemsNOTE
Referred to in this European Standard as ‘BSF’; (plural ‘BSFs’).2.2challenge concentrationCconcentration of sodium chloride particles in the airstream as it enters the BSF2.3penetration concentrationPconcentration of sodium chloride particles in the airstream leaving the BSF2.4penetration valuePVconcentration of sodium chloride particles passing through the BSF as a percentageof the concentration in the challenge2.5filtration efficiency percent100 minus the penetration value

- temperature: (23 ± 2) °C;
- relative humidity: (60 ± 15) %;- pressure: (96 ± 10) kPa.3.3 Apparatus3.3.1 Flowmeter, with an error limit of ± 5 % of the actual value to be measured.3.3.2 Sodium chloride aerosol generator, capable of generating an aerosol at(25 ± 5) °C and relative humidity of (30 ± 10) % with a concentration from10 mg-3 to 20 mg-3 which has been neutralized to the Boltzmann equilibriumstate.NOTE
Suitable equipment is Model 8118A sodium chloride aerosol generator, TSI Inc., POBox 64394, St. Paul, MN 55164, USA.1)3.3.3 Scanning mobility particle sizer, or equivalent instrument.NOTE
Suitable equipment is Model 3936 scanning mobility particle sizer, TSI Inc., PO Box64394, St. Paul, MN 55164, USA.1)3.3.4 Suitable forward-light-scattering photometer, or equivalent instrument.NOTE
Suitable equipment is Model AFT 8130, TSI Inc., PO Box 64394, St. Paul, MN 55164,USA.1)
1) This information is given for the convenience of users of this standard and does not constitute anendorsement by CEN of the product named.

Rationales for various aspects of this method are given in annex C.3.6.1 Set the flow through the test apparatus (see Figure 1) to the appropriate valuefor the intended use of the BSF given in Table 1, using the flowmeter (3.3.1).3.6.2 Using the aerosol generator (3.3.2), generate a sodium chloride aerosol at(25 ± 5) °C and relative humidity of (30 ± 10) % with a concentration from 10 mg-3to 20 mg-3 which has been neutralized to the Boltzmann equilibrium state.3.6.3 Using the scanning mobility particle sizer (3.3.3), confirm that the sodiumchloride test aerosol has a particle size distribution with a count median diameter of(0,075 ± 0,020) µm and a geometric standard deviation not exceeding 1,86 at thespecified test conditions.NOTE 1
A particle size distribution with a count median diameter of 0,075 µm and ageometric standard deviation of 1,86 has a mass median aerodynamic diameter (MMAD) of0,26 µm. See annex B.NOTE 2
This is a calibration step and only needs to be performed as recommended by themanufacturer of the test equipment.3.6.4 Without a BSF attached, interconnect the two photometers (3.3.4) and measurethe challenge concentration at the upstream photometer. Check that the challengeconcentration at the downstream photometer is ± 2,5 % of this value each time theapparatus is switched on, when the airflow is changed and after the BSF sample size(3.5) has been tested.3.6.5 Fit a BSF in the unconditioned state to the test apparatus. Test the BSF usingthe flow direction stated by the manufacturer. If the flow direction is not stated,perform the test with the airstream entering the BSF at the machine port.3.6.6 Repeat 3.6.2.3.6.7
Measure the challenge concentration (C) and penetration concentration (P)whilst continuing the test until an aerosol mass of (0,2 ± 0,1) mg for adult BSFs or(0,1 ± 0,05) mg for paediatric BSFs has contacted the BSF.3.6.8 Repeat 3.6.5 to 3.6.7 using a BSF in the conditioned state (see 3.4).

Compressed air8
To vacuum2
Aerosol generator9
BSF under test3
Neutralizer10
Downstream photometer4
Mixing chamber11
Flowmeter5
Exhaust12 Flow control valve6
Switching valve7
Upstream photometer13
