EN 3660-009:2007
(Main)Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 009: Cable outlet, style J, straight, sealed, for heat shrinkable boot - Product standard
Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 009: Cable outlet, style J, straight, sealed, for heat shrinkable boot - Product standard
This product standard defines a range of cable outlets, style J, straight, sealed, light duty, for heat shrinkable boots, (non-conductive or conductive), for use under the following conditions:
Associated electrical connector(s):EN 3660-002
Temperature range, Class N:65 °C to 200 °C
Class W :65 °C to 175 °C
Class K :65 °C to 260 °C
Luft- und Raumfahrt - Endgehäuse für elektrische und optische Rund- und Rechtecksteckverbinder - Teil 009: Endgehäuse, Bauform J, gerade, abgedichtet, für wärmeschrumpfende Bauteile - Produktnorm
Série aérospatiale - Accessoires arrières pour connecteurs circulaires et rectangulaires électriques et optiques - Partie 009 : Adaptateur, style J, droit, étanche, pour pièce moulée thermorétractable - Norme de produit
Aeronavtika - Dodatki za okrogle in pravokotne električne in optične konektorje - 009. del: Kabelska spojka, tip J, ravna, tesnjena, za toplotno skrčljive dele - Standard za proizvod
General Information
- Status
- Published
- Publication Date
- 10-Jul-2007
- Withdrawal Date
- 30-Jan-2008
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 30-Jun-2017
- Completion Date
- 28-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3660-009:2007 is a CEN product standard in the Aerospace series that specifies style J, straight, sealed cable outlets intended for use with heat shrinkable boots on circular and rectangular electrical and optical connectors. The standard covers light-duty, sealed cable outlet accessories (non-conductive or conductive) designed to mate with associated connectors referenced in EN 3660-002. It defines dimensions, materials, interface variants, performance classes and test requirements for aerospace applications.
Key Topics and Requirements
- Scope and compatibility
- Applies to cable outlets for circular/rectangular aerospace connectors; associated connector indexed in EN 3660-002.
- Two interface variants: Variant A (Standard AS85049 interface) and Variant B (Modified AS85049).
- Temperature classes
- Class N: −65 °C to 200 °C
- Class W: −65 °C to 175 °C
- Class K: −65 °C to 260 °C
- Materials and finishes
- Class N: Aluminium / Electroless Nickel
- Class W: Aluminium / Olive Drab Cadmium Plate
- Class K: Stainless steel / Passivated
- Mechanical and dimensional data
- Shell sizes and detailed dimensions provided (tables and figures in the standard). Coupling nut is captive but free to rotate.
- Assembly and coupling thread strength torques specified for installation and test purposes.
- Testing and qualification
- Test program references EN 2591 test methods and the general technical/specification requirements in EN 3660-001.
- Applicable tests include visual and dimensional inspection, salt mist, vibration, shock, temperature endurance, fluid/ozone resistance and electrical continuity (specific resistance limits for conductive versions).
- Designation and marking
- Part numbering and marking rules (example: EN3660-009W08A) and manufacturer marking/part number locations are defined.
Applications and Users
- Intended for aerospace OEMs, harness manufacturers, connector and accessory designers, procurement specialists, and test/qualification laboratories.
- Typical uses:
- Sealed cable terminations on aircraft electrical and optical harnesses where a heat shrinkable boot is required.
- Retrofit or new-design connector assemblies requiring standardized interfaces and defined environmental performance.
- Benefits:
- Ensures interchangeability, consistent performance across suppliers, and compliance with aerospace environmental and mechanical demands.
Related Standards
- EN 3660-001 - Technical specification for cable outlet accessories
- EN 3660-002 - Index of product standards (associated connectors)
- EN 2591 - Aerospace test methods referenced in this standard
- AS 85049A / AS85049 - Interface family referenced for compatibility
Keywords: EN 3660-009:2007, cable outlet, style J, heat shrinkable boot, aerospace connectors, sealed cable outlet, temperature class K/N/W, AS85049.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3660-009:2007 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 009: Cable outlet, style J, straight, sealed, for heat shrinkable boot - Product standard". This standard covers: This product standard defines a range of cable outlets, style J, straight, sealed, light duty, for heat shrinkable boots, (non-conductive or conductive), for use under the following conditions: Associated electrical connector(s):EN 3660-002 Temperature range, Class N:65 °C to 200 °C Class W :65 °C to 175 °C Class K :65 °C to 260 °C
This product standard defines a range of cable outlets, style J, straight, sealed, light duty, for heat shrinkable boots, (non-conductive or conductive), for use under the following conditions: Associated electrical connector(s):EN 3660-002 Temperature range, Class N:65 °C to 200 °C Class W :65 °C to 175 °C Class K :65 °C to 260 °C
EN 3660-009:2007 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3660-009:2007 has the following relationships with other standards: It is inter standard links to EN 2591:1992, EN 3660-002:2016, EN 3660-001:2019, EN 2591-326:2018, EN 2591-318:2018, EN 3660-002:2006. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3660-009:2007 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

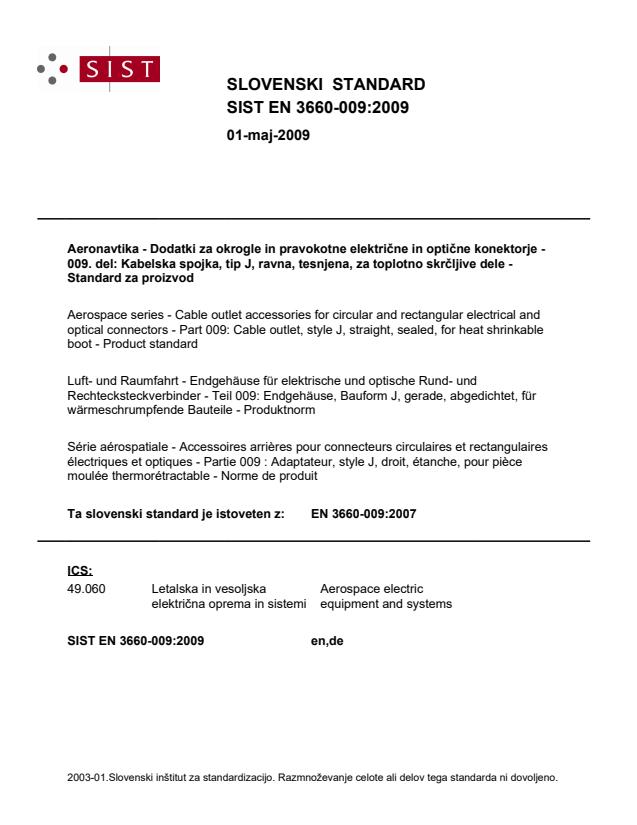

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Endgehäuse für elektrische und optische Rund- und Rechtecksteckverbinder - Teil 009: Endgehäuse, Bauform J, gerade, abgedichtet, für wärmeschrumpfende Bauteile - ProduktnormSérie aérospatiale - Accessoires arrières pour connecteurs circulaires et rectangulaires électriques et optiques - Partie 009 : Adaptateur, style J, droit, étanche, pour pièce moulée thermorétractable - Norme de produitAerospace series - Cable outlet accessories for circular and rectangular electrical and optical connectors - Part 009: Cable outlet, style J, straight, sealed, for heat shrinkable boot - Product standard49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 3660-009:2007SIST EN 3660-009:2009en,de01-maj-2009SIST EN 3660-009:2009SLOVENSKI
STANDARD

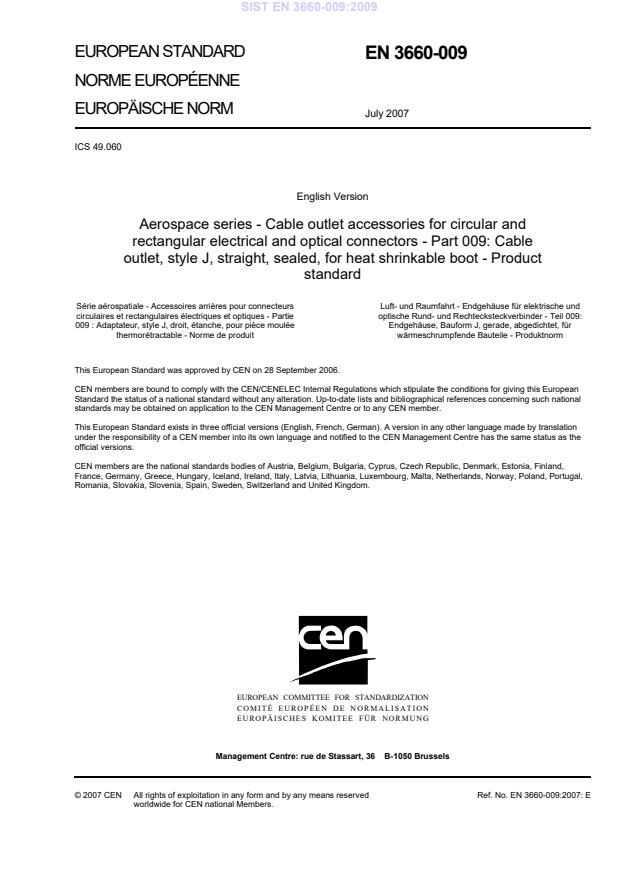

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3660-009July 2007ICS 49.060 English VersionAerospace series - Cable outlet accessories for circular andrectangular electrical and optical connectors - Part 009: Cableoutlet, style J, straight, sealed, for heat shrinkable boot - ProductstandardSérie aérospatiale - Accessoires arrières pour connecteurscirculaires et rectangulaires électriques et optiques - Partie009 : Adaptateur, style J, droit, étanche, pour pièce mouléethermorétractable - Norme de produitLuft- und Raumfahrt - Endgehäuse für elektrische undoptische Rund- und Rechtecksteckverbinder - Teil 009:Endgehäuse, Bauform J, gerade, abgedichtet, fürwärmeschrumpfende Bauteile - ProduktnormThis European Standard was approved by CEN on 28 September 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
