EN 6059-504:2014
(Main)Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 504: Temperature rise within a loom due to self-heating when protected by a sleeve
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 504: Temperature rise within a loom due to self-heating when protected by a sleeve
This European Standard specifies methods of assessing the behaviour and temperature increase of cable loom when fitted with protection sleeves or conduits subject to normal and fault currents.
It shall be used together with EN 6059-100.
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche - Prüfverfahren - Teil 504: Temperaturanstieg durch Selbsterwärmung eines Leitungsbündels in einem Schutzschlauch
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes d'essais - Partie 504 : Augmentation de température due à l'auto-échauffement d'un faisceau de câbles avec gaine de protection
Aeronavtika - Električni kabli, namestitev - Zaščitne obojke - Preskusne metode - 504. del: Dvig temperature zaradi samosegrevanja snopa vodnikov, zaščitenih z obojko
Standard EN 6059-504 določa metode za ocenjevanje vedenja in dviga temperature zaradi samosegrevanja snopa vodnikov, zaščitenih z obojko, ali inštalacijskih cevi, podvrženih običajnim in okvarnim tokom. Treba ga je uporabljati s standardom EN 6059-100.
General Information
- Status
- Published
- Publication Date
- 15-Jul-2014
- Withdrawal Date
- 30-Jan-2015
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 21-Jan-2025
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 6059-504:2014 is a CEN European Standard in the Aerospace series that specifies test methods to assess temperature rise within a cable loom (self-heating) when protected by a sleeve or conduit. Intended for aerospace electrical installations, the standard describes laboratory procedures to measure how protective sleeves affect cable temperatures under normal and fault currents. EN 6059-504:2014 is to be used together with EN 6059-100 (general test requirements).
Key topics and requirements
- Scope: Methods to evaluate behaviour and temperature increase of a cable loom fitted with protection sleeves or conduits subject to electrical heating.
- Test setup:
- Use a 3 m cable loom of airframe cables with insulation temperature rating at least equal to the sleeve material.
- Conductors are wired in series so the same current flows through each conductor; provide voltage pick-off over a test zone (minimum 1.5 m).
- Tests performed in a draft-free ambient chamber (typically 20 °C); use a screen to identify smoke.
- Method 1 - Heat transfer ratio:
- Measure loom temperature rise without sleeve (raise conductor temperature ~40 °C above ambient, stabilize for 30 min).
- Fit the protective sleeve and reapply current; after 30 min calculate the heat transfer ratio (percentage increase caused by the sleeve).
- Acceptance: heat transfer ratio shall not exceed the value specified in the product standard.
- Method 2 - Internal overheating assessment:
- Fit sleeve before heating. Raise loom temperature to the sleeve’s maximum rated temperature, then to 30 °C above that rating and hold for 15 min.
- Acceptance: no visible smoke, smell, appreciable colour change, spontaneous combustion, or separation/embrittlement after cooling.
- Measurements: Temperature is derived from conductor resistance change using the standard formula and the appropriate temperature coefficient (α) given in the standard.
Practical applications and users
- Aerospace manufacturers and wiring-harness designers evaluating protective sleeves and conduits.
- Test laboratories and qualification teams performing environmental and electrical certification of cable assemblies.
- Maintenance, safety and reliability engineers assessing retrofit protection or ensuring compliance with aerospace electrical installation requirements.
- Suppliers specifying sleeve materials to meet thermal performance and fault-current resilience.
Related standards
- EN 6059-100 - Aerospace series - Protection sleeves - Test methods - Part 100: General (mandatory companion document).
- Product-specific standards that define allowable heat transfer ratio limits and material temperature ratings.
Keywords: EN 6059-504:2014, protection sleeves, cable loom, temperature rise, heat transfer ratio, self-heating, aerospace test methods, EN 6059-100.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 6059-504:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 504: Temperature rise within a loom due to self-heating when protected by a sleeve". This standard covers: This European Standard specifies methods of assessing the behaviour and temperature increase of cable loom when fitted with protection sleeves or conduits subject to normal and fault currents. It shall be used together with EN 6059-100.
This European Standard specifies methods of assessing the behaviour and temperature increase of cable loom when fitted with protection sleeves or conduits subject to normal and fault currents. It shall be used together with EN 6059-100.
EN 6059-504:2014 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 6059-504:2014 has the following relationships with other standards: It is inter standard links to EN 6049-008:2017, EN 6059-100:2011, EN 6049-008:2013. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 6059-504:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
01-november-2014
$HURQDYWLND(OHNWULþQLNDEOLQDPHVWLWHY=DãþLWQHRERMNH3UHVNXVQHPHWRGH
GHO 'YLJWHPSHUDWXUH]DUDGLVDPRVHJUHYDQMDVQRSDYRGQLNRY]DãþLWHQLK]
RERMNR
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods -
Part 504: Temperature rise within a loom due to self-heating when protected by a sleeve
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche -
Prüfverfahren - Teil 504: Temperaturanstieg durch Selbsterwärmung eines
Leitungsbündels in einem Schutzschlauch
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes
d'essais - Partie 504 : Augmentation de temperature due à l'auto-échauffement d'un
faisceau de câbles avec gaine de protection
Ta slovenski standard je istoveten z: EN 6059-504:2014
ICS:
49.060 /HWDOVNDLQYHVROMVND Aerospace electric
HOHNWULþQDRSUHPDLQVLVWHPL equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 6059-504
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2014
ICS 49.060
English Version
Aerospace series - Electrical cables, installation - Protection
sleeves - Test methods - Part 504: Temperature rise within a
loom due to self-heating when protected by a sleeve
Série aérospatiale - Câbles électriques, installation - Gaines Luft- und Raumfahrt - Elektrische Leitungen, Installation -
de protection - Méthodes d'essais - Partie 504 : Schutzschläuche - Prüfverfahren - Teil 504:
Augmentation de temperature due à l'auto-échauffement Temperaturanstieg durch Selbsterwärmung eines
d'un faisceau de câbles avec gaine de protection Leitungsbündels in einem Schutzschlauch
This European Standard was approved by CEN on 27 December 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2014 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6059-504:2014 E
worldwide for CEN national Members.

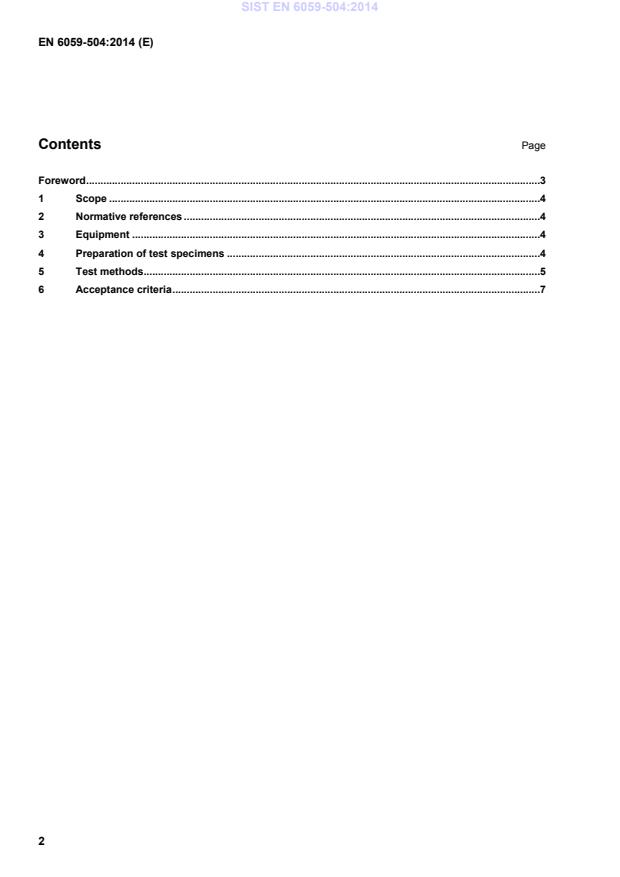

Contents Page
