EN ISO 376:2004

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kovinski materiali – Kalibracija merilnikov sile, ki se uporabljajo za preverjanje preskusnih strojev z enoosno obremenitvijo (ISO 376:2004)Metallische Werkstoffe - Kalibrierung der Kraftmessgeräte für die Prüfung von Prüfmachinen mit einachsiger Beanspruchung (ISO 376:2004)Matériaux métalliques - Etalonnage des instruments de mesure de force utilisés pour la vérification des machines d'essais uniaxiaux (ISO 376:2004)Metallic materials - Calibration of force-proving instruments used for the verification of uniaxial testing machines (ISO 376:2004)77.040.10Mehansko preskušanje kovinMechanical testing of metalsICS:Ta slovenski standard je istoveten z:EN ISO 376:2004SIST EN ISO 376:2005en01-januar-2005SIST EN ISO 376:2005SLOVENSKI
STANDARDSIST EN ISO 376:2004SIST EN 10002-3:19961DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN ISO 376
November 2004 ICS 77.040.10
Supersedes EN ISO 376:2002
English version
Metallic materials - Calibration of force-proving instruments used for the verification of uniaxial testing machines (ISO 376:2004) Matériaux métalliques - Etalonnage des instruments de mesure de force utilisés pour la vérification des machines d'essais uniaxiaux (ISO 376:2004)
This European Standard was approved by CEN on 20 October 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36
B-1050 Brussels © 2004 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN ISO 376:2004: ESIST EN ISO 376:2005

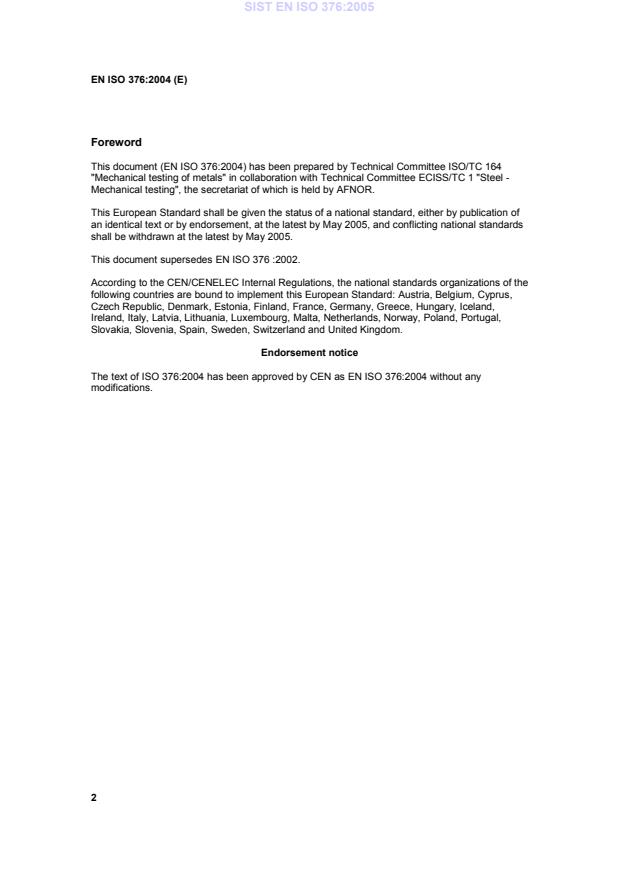

Foreword
This document (EN ISO 376:2004) has been prepared by Technical Committee ISO/TC 164 "Mechanical testing of metals" in collaboration with Technical Committee ECISS/TC 1 "Steel - Mechanical testing", the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by May 2005, and conflicting national standards shall be withdrawn at the latest by May 2005.
This document supersedes EN ISO 376 :2002.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Endorsement notice
The text of ISO 376:2004 has been approved by CEN as EN ISO 376:2004 without any modifications. SIST EN ISO 376:2005

Reference numberISO 376:2004(E)© ISO 2004
INTERNATIONAL STANDARD ISO376Third edition2004-11-01Metallic materials — Calibration of force-proving instruments used for the verification of uniaxial testing machines Matériaux métalliques — Étalonnage des instruments de mesure de force utilisés pour la vérification des machines d'essais uniaxiaux
ISO 376:2004(E) PDF disclaimer This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area. Adobe is a trademark of Adobe Systems Incorporated. Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
©
ISO 2004 All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body in the country of the requester. ISO copyright office Case postale 56 • CH-1211 Geneva 20 Tel.
+ 41 22 749 01 11 Fax
+ 41 22 749 09 47 E-mail
copyright@iso.org Web
www.iso.org Published in Switzerland
ii © ISO 2004 – All rights reserved
ISO 376:2004(E) © ISO 2004 – All rights reserved iii Contents Page Foreword.iv Introduction.v 1 Scope.1 2 Normative references.1 3 Terms and definitions.1 4 Symbols and their designations.1 5 Principle.2 6 Characteristics of force-proving instruments.3 6.1 Identification of the force-proving instrument.3 6.2 Application of force.3 6.3 Measurement of deflection.3 7 Calibration of the force-proving instrument.3 7.1 General.3 7.2 Resolution of the indicator.4 7.3 Minimum force.4 7.4 Calibration procedure.5 7.5 Assessment of the force-proving instrument.6 8 Classification of the force-proving instrument.7 8.1 Principle of classification.7 8.2 Classification criteria.8 8.3 Calibration certificate and duration of validity.8 9 Use of calibrated force-proving instruments.9 Annex A (informative)
Example of dimensions of force transducers and corresponding loading fittings.10 Annex B (informative)
Additional information.17 Bibliography.20
ISO 376:2004(E) iv © ISO 2004 – All rights reserved Foreword ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO member bodies). The work of preparing International Standards is normally carried out through ISO technical committees. Each member body interested in a subject for which a technical committee has been established has the right to be represented on that committee. International organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization. International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2. The main task of technical committees is to prepare International Standards. Draft International Standards adopted by the technical committees are circulated to the member bodies for voting. Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. ISO shall not be held responsible for identifying any or all such patent rights. ISO 376 was prepared by Technical Committee ISO/TC 164, Mechanical testing of metals, Subcommittee SC 1, Uniaxial testing. This third edition cancels and replaces the second edition (ISO 376:1999), which has been technically revised. SIST EN ISO 376:2005

ISO 376:2004(E) © ISO 2004 – All rights reserved v Introduction No information is currently provided in this International Standard for determining the uncertainty of a
force-proving device or its indicator. An ISO/TC 164/SC 1 working group is currently developing procedures for determining the measurement uncertainty of force-proving devices. Until such information is provided in this International Standard, procedures for determining the measurement uncertainty of force-proving devices can be found in the two first documents listed in the Bibliography.
INTERNATIONAL STANDARD ISO 376:2004(E) © ISO 2004 – All rights reserved 1 Metallic materials — Calibration of force-proving instruments used for the verification of uniaxial testing machines 1 Scope This International Standard covers the calibration of force-proving instruments used for the static verification of uniaxial testing machines (e.g. tension/compression testing machines) and describes a procedure for classifying these instruments. This International Standard generally applies to force-proving instruments in which the force is determined by measuring the elastic deformation of a loaded member or a quantity which is proportional to it. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. ISO/IEC 17025, General requirements for the competence of testing and calibration laboratories 3 Terms and definitions For the purposes of this document, the following term and definition apply. 3.1 force-proving instrument whole assembly from the force transducer through to, and including, the indicator 4 Symbols and their designations Symbols and their designations are given in Table 1. SIST EN ISO 376:2005

ISO 376:2004(E) 2 © ISO 2004 – All rights reserved Table 1 — Symbols and their designations Symbol Unit Designation b % Relative reproducibility error with rotation b′ % Relative repeatability error without rotation Ff N Maximum capacity of the transducer FN N Maximum calibration force fc % Relative interpolation error f0 % Relative zero error if — Readinga on the indicator after removal of force io — Readinga on the indicator before application of force r N Resolution of the indicator v % Relative reversibility error of the force-proving instrument X — Deflection with increasing test force Xa — Computed value of deflection X′ — Deflection with decreasing test force Xmax — Maximum deflection from runs 1, 3 and 5 Xmin — Minimum deflection from runs 1, 3 and 5 XN — Deflection corresponding to the maximum calibration force rX — Average value of the deflections with rotation wrX — Average value of deflections without rotation a Reading value corresponding to the deflection.
5 Principle Calibration consists of applying precisely-known forces to the force transducer and recording the data from the indicator, which is considered an integral part of the force-proving instrument. When an electrical measurement is made, the indicator may be replaced by another indicator and the
force-proving instrument need not be recalibrated provided the following conditions are fulfilled. a) The original and replacement indicators have calibration certificates, traceable to national standards, which give the results of calibration in terms of electrical base units (volt, ampere). The replacement indicator shall be calibrated over a range equal to or greater than the range for which it is used with the force-proving instrument and the resolution of the indicator shall be at least equal to the resolution of the indicator when it is used with the force-proving instrument. b) The units and excitation source of the replacement indicator should b
...
